l 856 aviation obstruction light

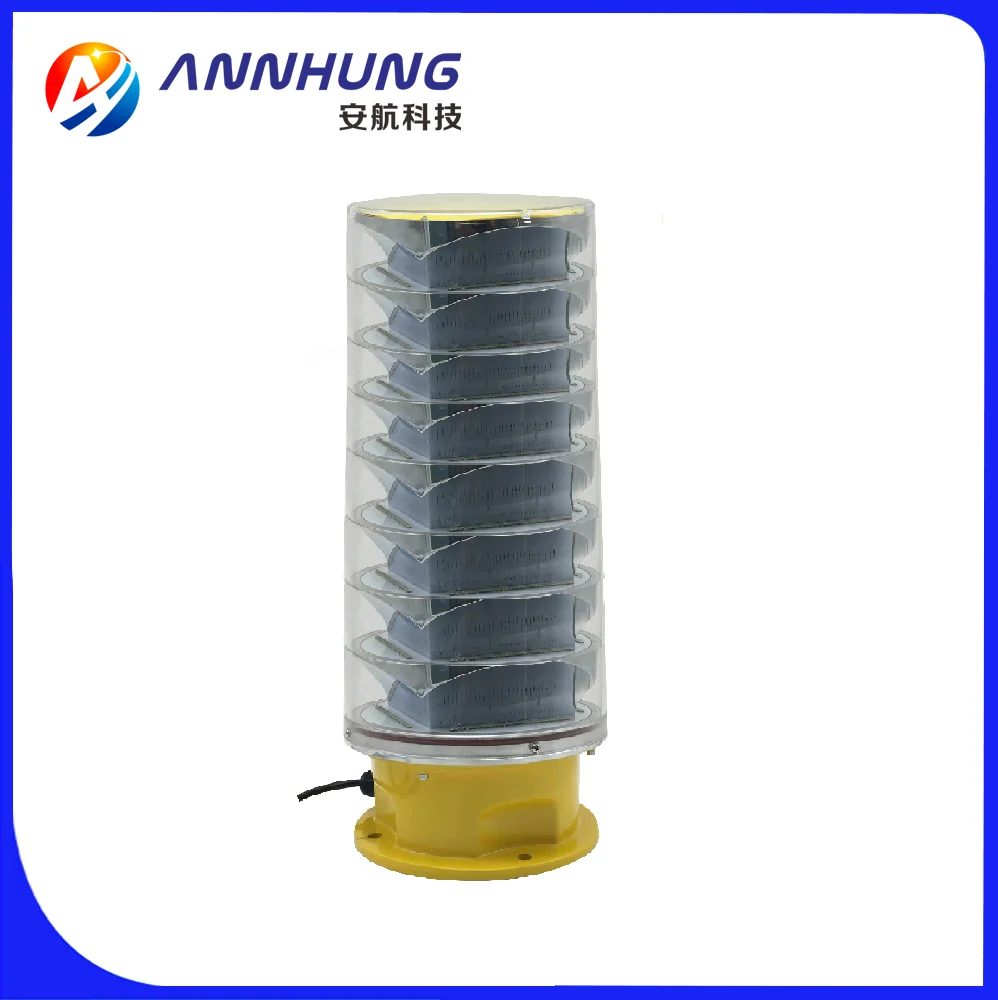

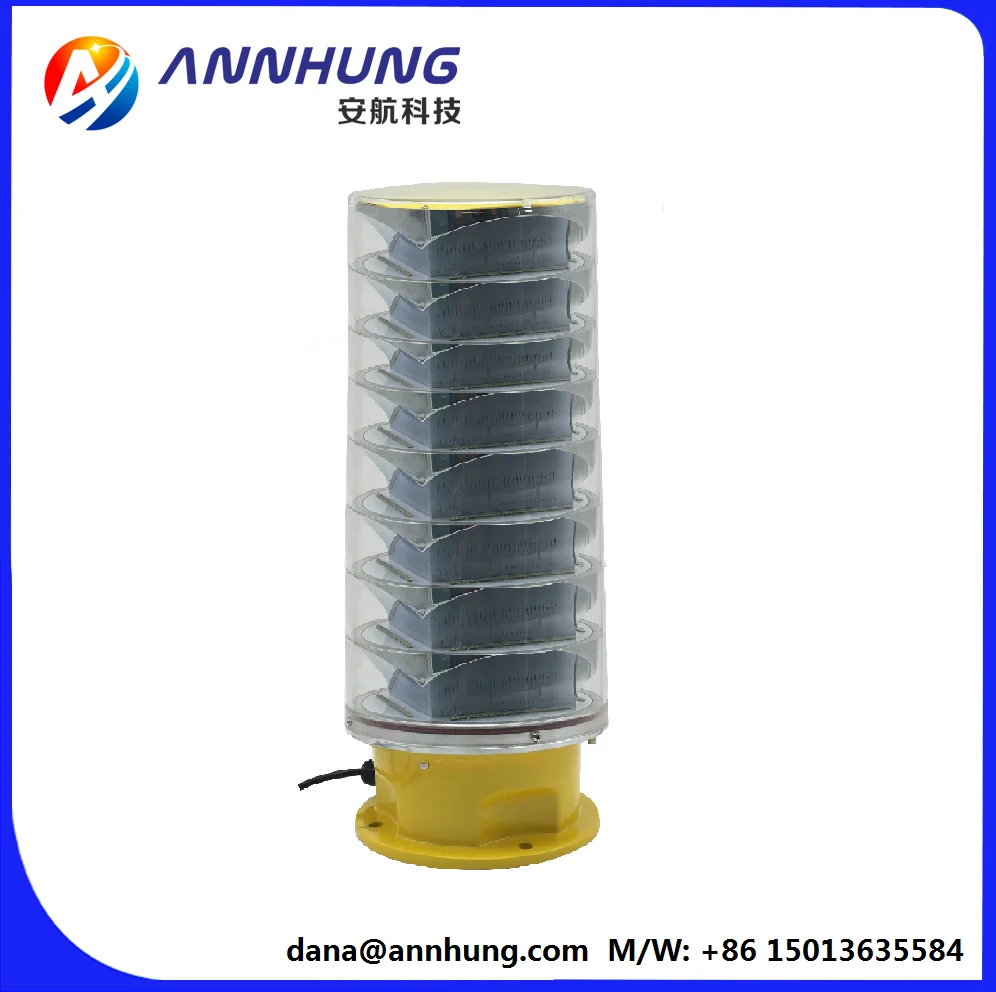

L-856 aviation obstruction light

Aircraft warning light.

LED airport lamp. high intensity.

obstruction beacon. compliant with ICAO,FAA,CAAC

Scope of Application

This product is mainly used on the top of Television transmitting tower, High-rise building, High chimney, cable stayed bridge,,communications Tower, Cooling tower, etc which height is over 150meter so that it can play a warning role in potentially hazardous obstructions to air traffic flashing white safety light.

Function

The products are one Single light with photocell, so it can work all day and automatically change light intensity according to ambient brightness by photocell. When ambient brightness is less than 50cd/m2,light intensity is 2,000cd(±25%);When ambient brightness is between 50cd/m2 and 500cd/m2,light intensity is 20,000cd(±25%) ;When ambient brightness is more than 500cd/m2,light intensity is 200,000cd(±25%). All control signal wire of light is paralleled to make several lights flash synchronously.

Advantages

1.Strong efficiency transmission.
2.International-advanced Big power and Precision integrated chip LED with high brightness and service life of light source reaching 100000hours.
3.The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5 times, IMAX 15KA so that the light is suitable to harsh environment.
4.Strong corrosion resistance, Shock and Vibrations protection and UV protection.
5.Baked advance aluminum alloy Material.
6.Resistant to heavy rain or storms.
7.Automatically changing light intensity, day/twilight/night intensity operating.
8.More than 91% utilizing rate of illuminating efficiency.
9.Perfect protection function in control circuit. Light will stop working automatically under condition of light short circuit, over temperature and working exceptional. After fault is solved, control circuit will automatically resume to work normally.
10.Free maintenance and aluminum alloy Material.
11.Five year warranty
12.low power consumption and low cost of ownership.

Main Parameter

Compliance

High-intensity Type A FAA L-856
High-intensity Type A Aviation Obstruction Light, ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth edition July 2004,table6.3
