CY30 ASK/OOK Superheterodyne Wireless 433mhz ASK Receiver Module

Product Overview

Description

DESCRIPTION:
The CY30 is a ASK/OOK compatible super heterodyne receiver module.. CY30 is a superior performance receiver for ISM band. With the adoption of inported’s Industrial RF wireless data receiver chip, CY30 has the high receiving sensitivity and strong anti-interference ability. It can do wireless signal input to the data signal output without any external circuit. Its superior performance makes a lot of before market car manufactures adopt this module as the preferred choice for RKE receiver module.
Users only need to decode the data plus a simple circuit and then any wireless products development can be easily achieved.



FEATURES:
Frequency: 315MHz/433.92MHz(custom frequency is available)
High sensitivity -110dbm/433.92 1kbps BER10E-2;
Power down mode with very low supply current (100nA typ)
Higher sensitivity: -110dBm
Operation temperature: -40℃ ~85℃
Supply voltage: 5V
Low current: 4.6mA(5V, 315MHz)
Be compatible with most (ASK/OOK) transmitters
Fully integrated VCO and PLL Synthesizer
Date slicer with self-adjusting threshold



APPLICATION:
TPMS/RKE/PKE
Remote controls
Car alarm systems
Garage door and gate openers
Alarm and security system
Automation systems



PIN DEFINITION:

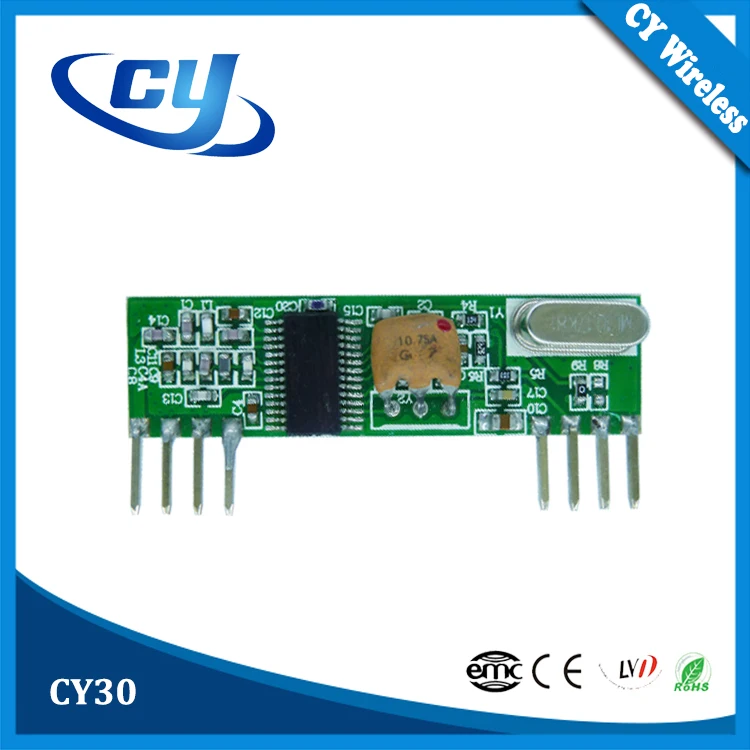

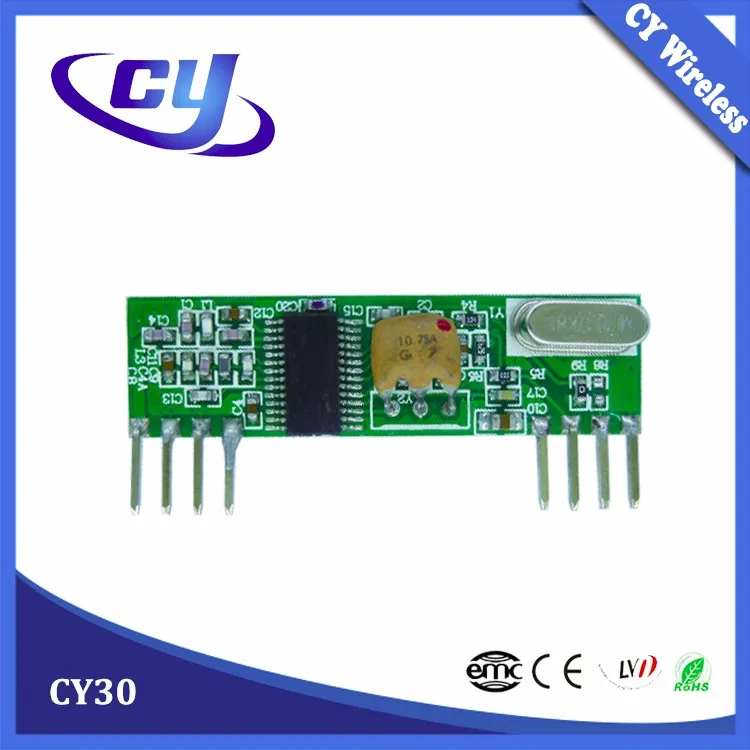

Figure 1 CY30 Shape & Pins

Pin-out as showed in figure 1 above.

Pin Name	Pin Definition
ANT	RF signal input pin, connect antenna outside(Note1)
GND	Connect to negative power supply
GND	Connect to negative power supply
VCC	Connect to positive power supply
VCC	Connect to positive power supply
DATA	Data connected to MCU
EN	Optional output 1.Empty (default setting) 2.Battery saving mode: (Working mode in High level input) (Sleeping mode in Low level input)
GND	Connect to negative power supply



Note1: ANT pin is a 50 ohm antenna input. The length is about:
23cm for 315MHz
17cm for 433.92MHz


ELECTRICAL CHARACTERISTICS:

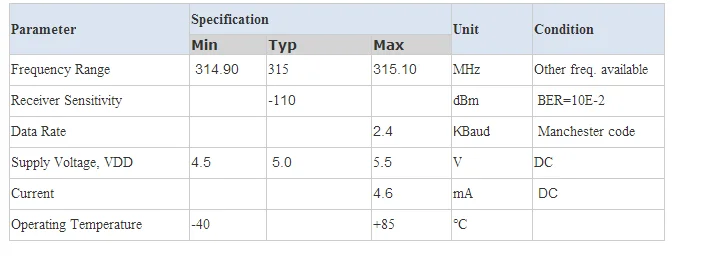

Condition: Ta=25℃ Vcc=5.0V Frequency=315MHz

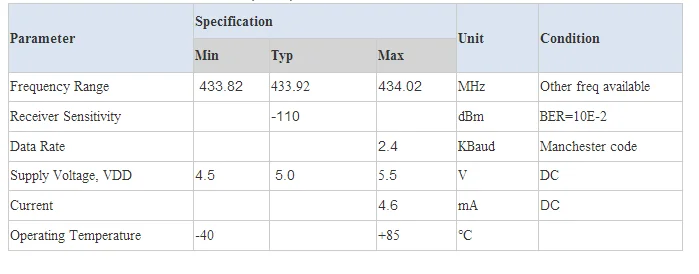

Condition: Ta=25℃ Vcc=5.0V Frequency=433.92MHz

MECHANICAL SIZE: (UNIT: mm)

Figure2 CY30 Dimension

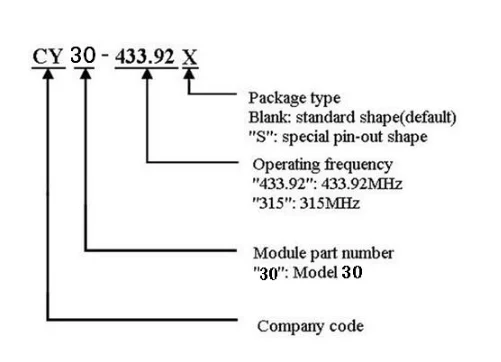

ORDER INFORMATION:
