1100w V1100F stainless steel submersible high pressure brand names cast iron sewage water pump

Product Overview

Description

1100w V1100F stainless steel submersible high pressure brand names cast iron sewage water pump





Operating conditions:
*The maximum deep it is allowed in water is 5m from its center of impeller;
*Max. medium temperature: +40
*Trans medium's PH:4-10;
*Kinematics viscosity of the trans medium is:7*10^-7-23*10^-8m²/s;
*Density of the trans medium limit;1.2*10³kg/m³;*The solid diameter is about35mm.



Motor:
*Closed, externally ventilated
*Insulation Class B
*Protection IPX8



Material:
*Pump body: Cast iron
*Impeller: Superior steel / Cast iron
*Shaft with rotor: Superior steel
*Mechanical seal: Stainless steel/Carbon-ceramic
*Thermal protector
*Motor housing:Stainless steel
*Single phase 220V-230V/50Hz
*Three phase 380V/50Hz
*Three phase 220V/440/60Hz if request

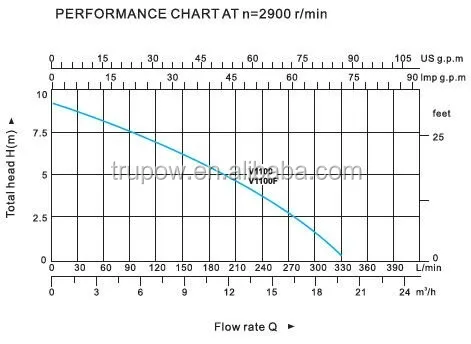

Technical Data:

MODEL	POWER		VOLT.	FREQ.	MAX.FLOW	MAX.HEAD	OUTLET	N.W	PACKING DIMENSION
	(Kw)	(Hp)	(V)	(Hz)	(L/min)	(m)	(mm)	(Kg)	(mm)
V1100F	1.1	1.5	220	50	333	9	50	24	275*225*560
