CNC Tube Pipe Bending Tool Machine,Mandrel Bender Machine
Semi-Automatic Tube Bending Machine
Semi-automatic tube bending machine has an NC control unit to allow the operator to program the bend degree (C axis)-the standard memory can store up to 25 programs each with 10 sequential bends.This allows the operator to select from the memory to bend sequence they require and load the tube and start bending. The rotating and feeding (B&Y axis) are controlled manually. Other movements as die working,mandrel working are controlled by hydraulic. Pipe Bending Machine combines easy-to-use operation with high bending accuracy and cost effectiveness. It is the practical semi-automatic solution for small to medium productions.
Feature
* 1 axis NC control
* PLC controlling
* Memory can store 25 programs x 10 bends – (Y)
* Sequential flip stop axis control - (X)
* Fully hydraulic clamping
* Mandrel extractor
* Hydraulic pressure die
* hydraulic pressure die assist
* CE&ISO 9001:2000.
* Memory can store 25 programs x 10 bends – (Y)
* Sequential flip stop axis control - (X)
* Fully hydraulic clamping
* Mandrel extractor
* Hydraulic pressure die
* hydraulic pressure die assist
* CE&ISO 9001:2000.
Options
* IPC control
* Automatic pipe rotating(by servo motor) or Automatic pipe feeding(by servo motor)* Anti-clockwise bending
* Extra mandrel length
* Feeding length positioner
Model | 38NCB | 50NCB | 63NCB | 76NCB |
Max Capacity | ￠38.1 (1.5”)×2mm | ￠50.8 (2”)×2mm | ￠63.5 (2.5”)×4mm | ￠76.2 (3”)×5mm |
Bending Degree | 0-190° | 0-190° | 0-190° | 0-190° |
Bending Radius | 10-200mm (for machine) | 15-250mm (for machine) | 20-300mm (for machine) | 25-350mm (for machine) |
Min Bending Radius | R≥1.5D (for pipe) | R≥1.5D (for pipe) | R≥1.5D (for pipe) | R≥1.5D (for pipe) |
Mandrel Length | 2300mm (can be customized) | 2500mm(can be customized) | 3000mm(can be customized) | 3200mm(can be customized) |
Max Bending Speed | 90°/s | 65°/s | 60°/s | 45°/s |
Bending Accuracy | ±0.1° | ±0.1° | ±0.1° | ±0.1° |
Motor Power | 4 Kw | 55.5 Kw | 7.5 Kw | 7.5 Kw |
Model | 89NCB | 114NCB | 129NCB | 168NCB |
Max Capcity | ￠89 (3.5”)×8mm | ￠114 (4.5”)×8mm | ￠129(5”)×12mm | ￠168(6.5”)×16mm |
Bending Degree | 0-190° | 0-190° | 0-190° | 0-190° |
Bending Radius | 30-450mm (for machine) | 40-550mm (for machine) | 50-650mm (for machine) | 60-850mm (for machine) |
Mini Bending Radius | R≥1.5D (for pipe) | R≥1.5D (for pipe) | R≥1.5D (for pipe) | R≥1.5D (for pipe) |
Mandrel Length | 3800mm(can be customized) | 4500mm(can be customized) | 4600mm(can be customized) | 6500mm(can be customized) |
Max Bending Speed | 40°/s | 25°/s | 20°/s | 10°/s |
Bending Accuracy | ±0.1° | ±0.1° | ±0.1° | ±0.1° |
Motor Power | 11 Kw | 15 Kw | 18.5 Kw | 22 Kw |

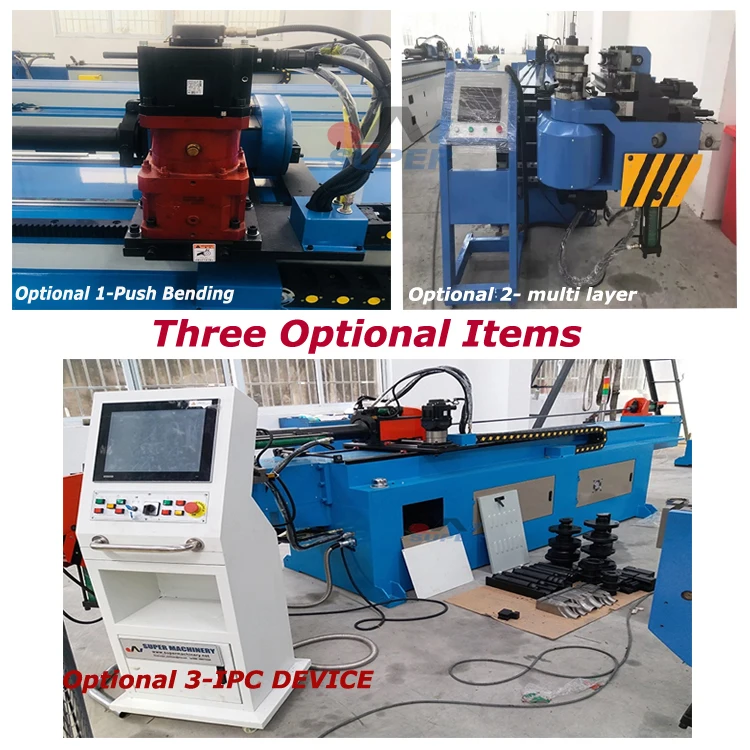

Tool & Accessories
STANDARD MATERIAL: 45# STEEL
Optional Materials:
* Ampco Bronze- Mandrel&Wiper die for Stainless Steel Pipe
* Nylon- Bending die,Clampe die&Pressure die for Aluminum Pipe
* Cr 12-For other pipe material
* Nylon- Bending die,Clampe die&Pressure die for Aluminum Pipe
* Cr 12-For other pipe material
