CY02 433 Mhz Ask fm Radio Receiver 433mhz Module

Product Overview

Description

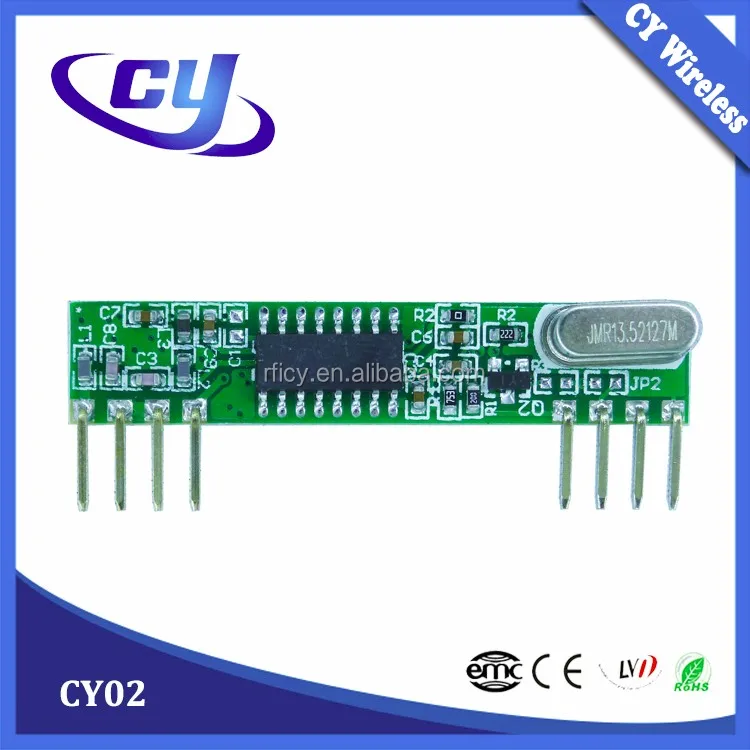

 CY02 433 Mhz Ask fm Radio Receiver 433mhz Module



DESCRIPTION:

CY02 is an ASK/OOK compatible super-heterodyne receiver, which is designed with high sensitivity, long distance, easy use for designing. The CY02 is base on a single-conversion, super-heterodyne receiver architecture and incorporates an entire Phase-Locked Loop (PLL) for precise local oscillator generation. It can be used in OOK/ HCS/ PWM modulation signal and demodulate to digital signal. CY02 have a high performance at a competitive cost and easily to design your product.



FEATURES:



Frequency: 315M/433.92MHz (custom frequency is available);
High sensitivity -110dBm/433.92 1kbps BER10E-2;
Supply voltage: VCC= 3.6 to 5.5 V;
IF band: 230KHz(integrated in chip);
Low power consumption: 4.8mA/315M,6mA/433.92 MHz;
Excellent selectivity and noise rejection;
Easy for using



APPLICATION:



Remote gate controls
Remote keyless entry
Car alarm systems
Wireless security systems
Automation systems

PIN DEFINITION:

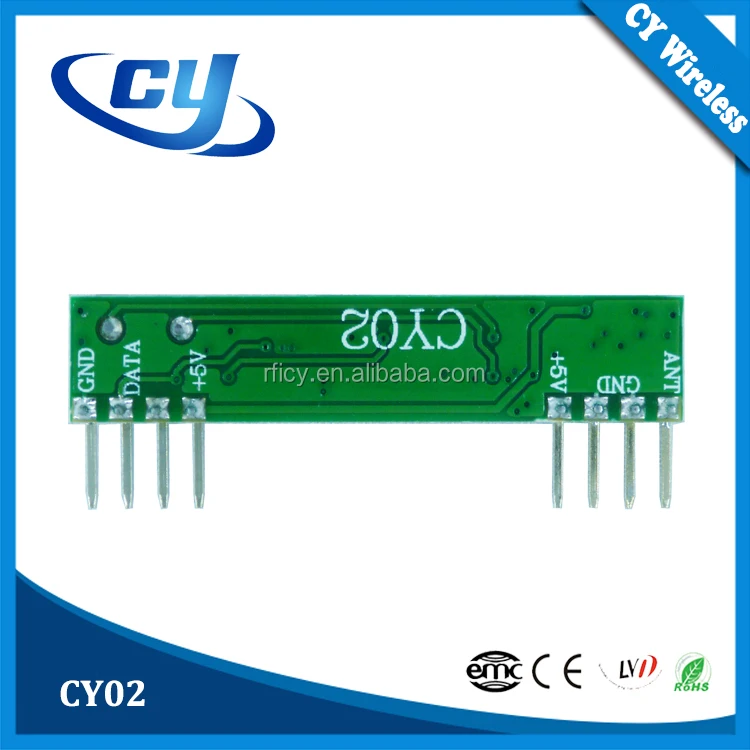

Pin-out as showed in figure1 above.



Pin Name	Pin Definition
ANT	RF signal input pin, connect antenna outside(Note1)
GND	Connect to negative power supply
GND	Connect to negative power supply
VDD	Connect to positive power supply
VDD	Connect to positive power supply
NC	No connect
DATA	Data output pin, connect to MCU or decoder’s input pin
GND	Connect to negative power supply





Note1: Antenna Length about: 23cm for 315 MHz
17cm for 433.92 MHz

ELECTRICAL CHARACTERISTICS:



Condition: Ta=25℃ Vcc=5.0V Frequency=315 MHz

Parameter	Specification			Unit	Condition
	Min	Typ	Max
Frequency Range		315		MHz	Others available
Receiver Sensitivity		-110		dBm	BER=10E-2
Data Rate	0.58	2.4	4.8	KBaud	Manchester code
Supply Voltage, VDD	3.6		5.5	V	DC
Current		4.6		mA
Operating Temperature	-20		+70	℃



Condition: Ta=25℃ Vcc=5.0V Frequency=433.92MHz

Parameter	Specification			Unit	Condition
	Min	Typ	Max
Frequency Range		433.92		MHz	Others available
Receiver Sensitivity		-110		dBm	BER=10E-2
Data Rate	0.58	2.4	4.8	KBaud	Manchester code
Supply Voltage, VDD	3.6		5.5	V	DC
Current		6.0		mA
Operating Temperature	-20		+70	℃





MECHANICAL SIZE: (UNIT: mm)

ET(WVON(VO5XE2NTNH`HEU.png" ori-width="553" ori-height="302"/>

Figure2 CY02 Dimension

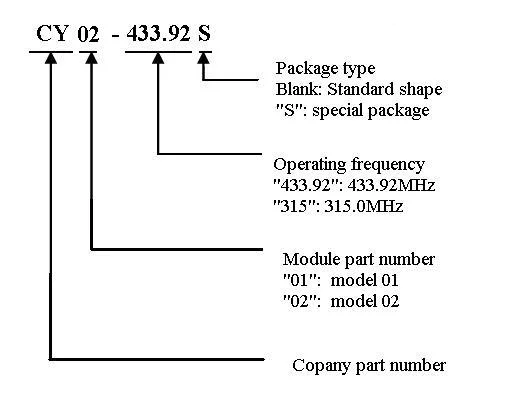

ORDER INFORMATION:
