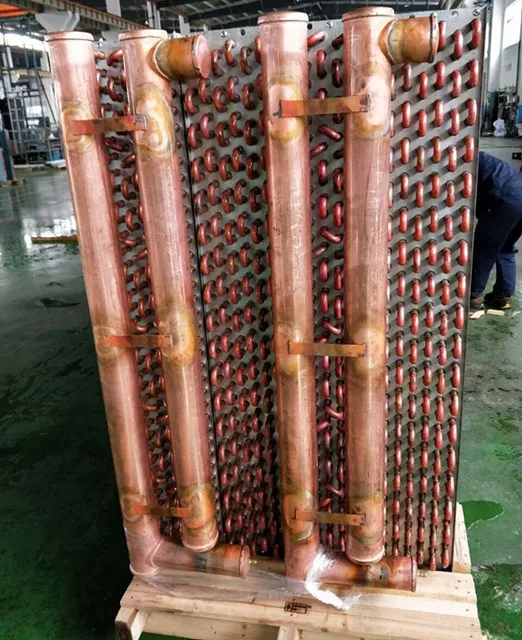

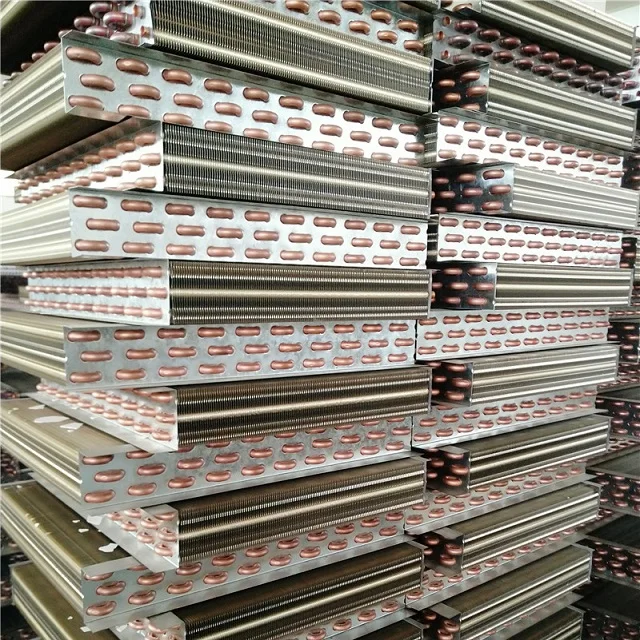

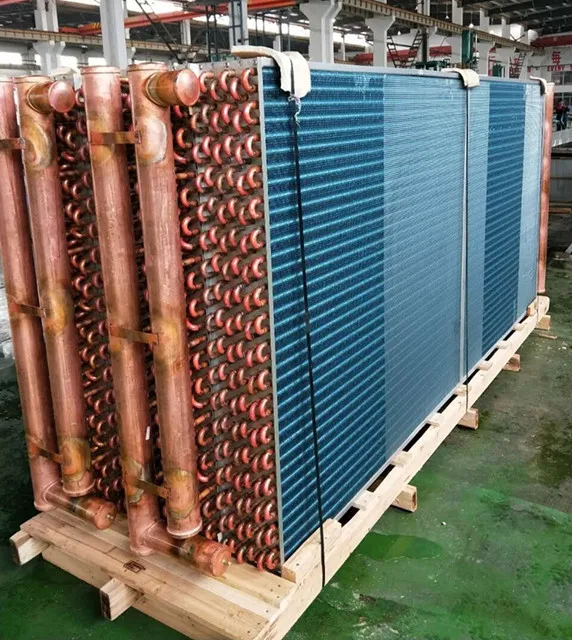

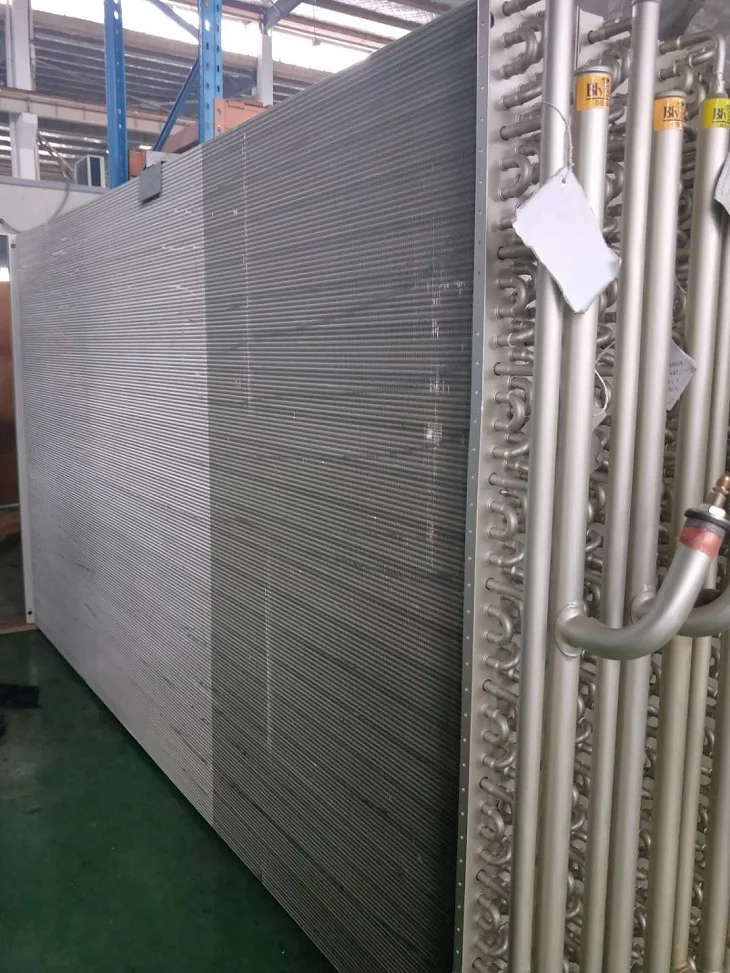

0.75HP Double Helix Heat Exchanger Coils
US $65.00
Industry Air to Water Copper fin tube heat exchanger
- Category: Heat Exchanger >>>
- Supplier: Changzhou Vrcoolertech Refrigeration Co. Ltd.
Share on (60532495876):
Product Overview
Description
Product description
1. Product Application
·A heat exchanger is an energy-saving device that transfers heat between materials at two or more fluids at different temperatures. It transfers heat from a higher temperature fluid to a lower temperature fluid, allowing the fluid temperature to reach the flow. Specified indicators to meet the needs of process conditions, but also one of the main equipment to improve energy efficiency.
·Mainly concentrated in the fields of petroleum, chemical, metallurgy, electric power, shipbuilding, central heating, refrigeration and air conditioning, machinery, food, pharmaceuticals, etc.
·Our factory currently focuses on large heat exchangers for various industry.
·Mainly concentrated in the fields of petroleum, chemical, metallurgy, electric power, shipbuilding, central heating, refrigeration and air conditioning, machinery, food, pharmaceuticals, etc.
·Our factory currently focuses on large heat exchangers for various industry.
2. Raw materials
TUBE | Copper | Titanium | Aluminum | Carbon steel |
Stainless steel 304 | Stainless steel 316 | Cu-Ni(90/10) | Cu-Ni(70/30) | |
FIN | Copper | Aluminum | Stainless steel | |
Carbon steel | Titanium | |||
FRAME | Galvanized | Aluminum | Stainless steel |
Details of materials
TUBES
We make tubes of different diameters, with a greater number of thicknesses and different materials such as copper, stainless steel and cupronickel. The tube expansion, during the flaring phase, allows a perfect contact between the tubes and the fins and as a consequence it assures efficient thermal exchange.
COPPER - Copper tube
STAINLESS STEEL - AISI 316L tube
CURRONICKEL - CuNi10Fe1Mn tube
FINS
The fins, made of aluminium, prevarnished aluminium or copper, are pressed by means of a particular ondulation that increases the thermal exchange between the air and the fin reducing the load losses on the air side and encouraging at the same time the flow of condensation or defrosting water.
The fins can also be made from 316L stainless steel for installations where the thermal exchange is in aggressive environments such as the food sector or exchangers used in salty environments.
The main geometries, achievable according to the chosen material, are reported following below; besides, according to the application chosen by the customer and to the thickness of the requested strap, it will be possible to make a major or minor pitch between the fins.
The fins can also be made from 316L stainless steel for installations where the thermal exchange is in aggressive environments such as the food sector or exchangers used in salty environments.
The main geometries, achievable according to the chosen material, are reported following below; besides, according to the application chosen by the customer and to the thickness of the requested strap, it will be possible to make a major or minor pitch between the fins.
ALUMINIUM FINS
HYDROPHYLIC ALUMINIUM FINS\t
PREVARNISHED ALUMINIUM FINS
STEEL FINS 316L
COPPER FINS
PLATES
Thanks to its accurate three-dimensional design and to modern punchers and numerical control bending machines, it is possible to make carpentry and structures of different sizes that can be adapted to any construction requirement of the customer.
GALVANIZED STEEL PLATES
ALLUMINIUM PLATES
COPPER PLATES
BRASS PLATES
STAINLESS STEEL PLATES Aisi 304
plated with protective pvc
plated with protective pvc
Engineering Data
We have customized products for many customers, following are some projects we did before.
We can provide designing data and prodcution drawings.
We promise we use the design software sold by a well-known European HAVC software company.
Through 8 years of cooperation with them, we have designed, processed and exported dry coolers to various countries all around the world.
All of customers feedback is that the actual cooling performance is almost the same as the theoretical design value.
Through 8 years of cooperation with them, we have designed, processed and exported dry coolers to various countries all around the world.
All of customers feedback is that the actual cooling performance is almost the same as the theoretical design value.
Customer feedback photos
Russia epoxy coating project
Thailand chiller project
New Zealand gold fin evaporator for heat pump project
Italy 7mm fan coil unit coil
British Blygold project
Australia U-type coil project
Our Company
MORE THAN 15 YEARS OF SUCCESS
Changzhou Vrcoolertech Refrigeration Co.,Ltd specializes in researching, manufacturing and exporting Heat Exchangers, Evaporators, Condensers, air cooler and other heat transfer equipments for the varied industries since 2004.
OUR MISSION
We are committed to quality products and services to meet our customer's expectations and the needs of industrials. We are dedicated to our mission and goal and we believe in long term business relationship with our customers which is based on integrity, responsiveness and quality
A STRATEGIC LOCATION
Address: Qingsitang, Henglin Town, Wujin Dist, Changzhou, Jiangsu, China.
Tel: +86-0519-81695177
E-mail: info@vrcooler.com ; sales@vrcooler.com
Website: www.vrcoolertech.com ; www.vrcooler.com
Tel: +86-0519-81695177
E-mail: info@vrcooler.com ; sales@vrcooler.com
Website: www.vrcoolertech.com ; www.vrcooler.com
QUALITY CERTIFICATES
Since 2004 UNI EN ISO 9001:2008 Quality System
Since 2005 UNI EN ISO 14001:2004 Environmental Management System
Since 2005 UNI EN ISO 14001:2004 Environmental Management System
Packing and delivery
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
