demister knitted mesh Stainless Steel wire mesh
- Category: >>>
- Supplier: Hebei Xiangguang Metal Net Co. Ltd.
Share on (60532805384):
Product Overview
Description

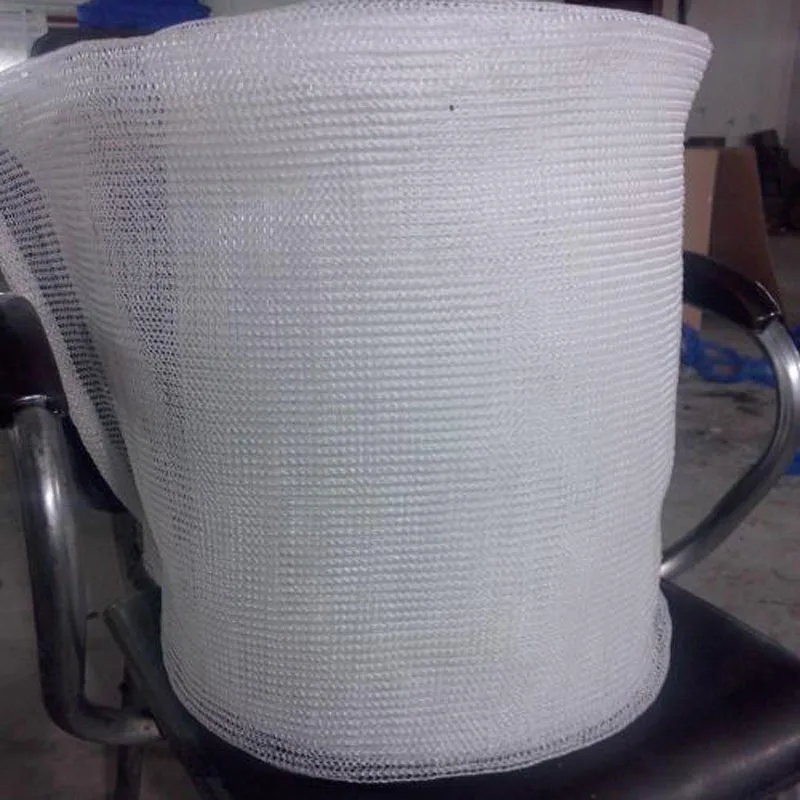

XiangGuang>> demister knitted mesh Stainless Steel wire mesh
1.Wire Materials: Stainless steel (AISI201,202,301,302,3041,304L,321/316L) Galvanized wire, bronze wire ,Phosphor wire, Nickel wire, PP,PC,PE,PVC,PTFE etc.
2.Process: Crochet weaving.
3.Wire diameter: From .0035” to .0200”.Wires can be round or flat.
4.Mesh size: 2x3mm, 4x5mm,12x6mm or can be fine-adjust as customer request.
5.Width: 2" - 43"
6.Surface: Flat or Corrugated.
Product Description

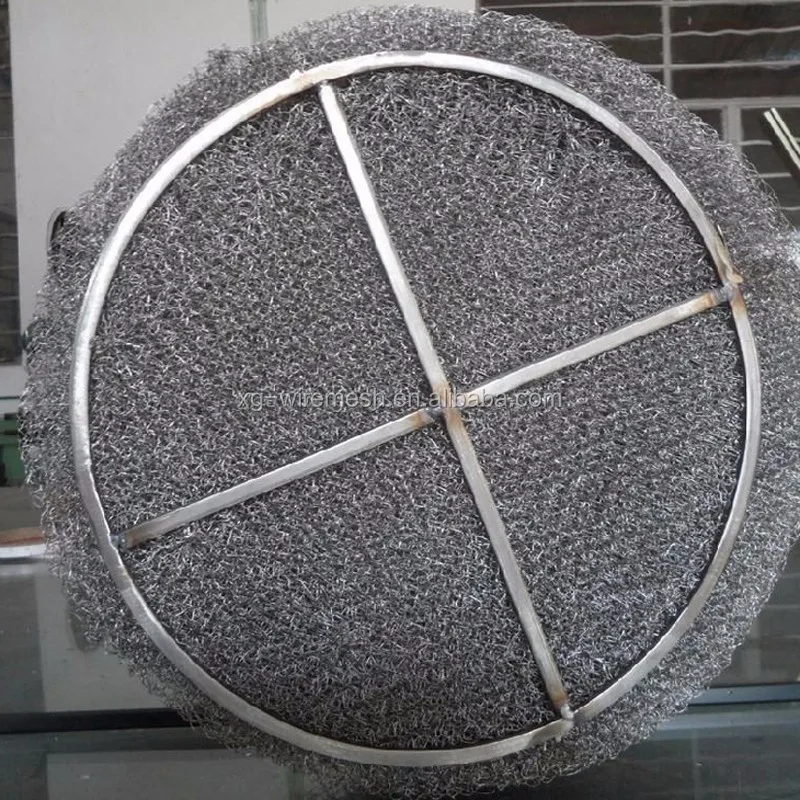

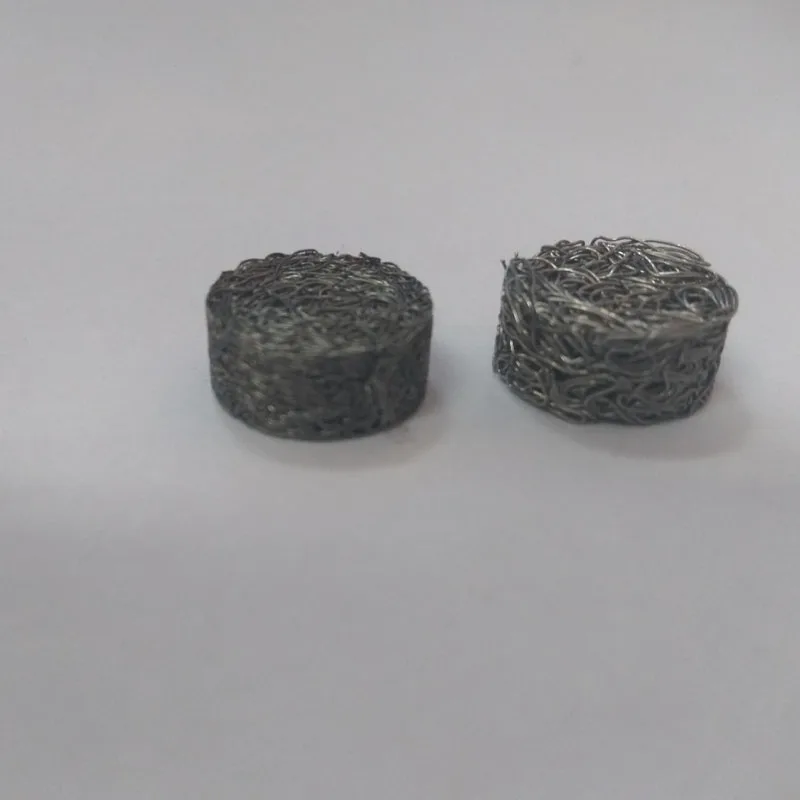

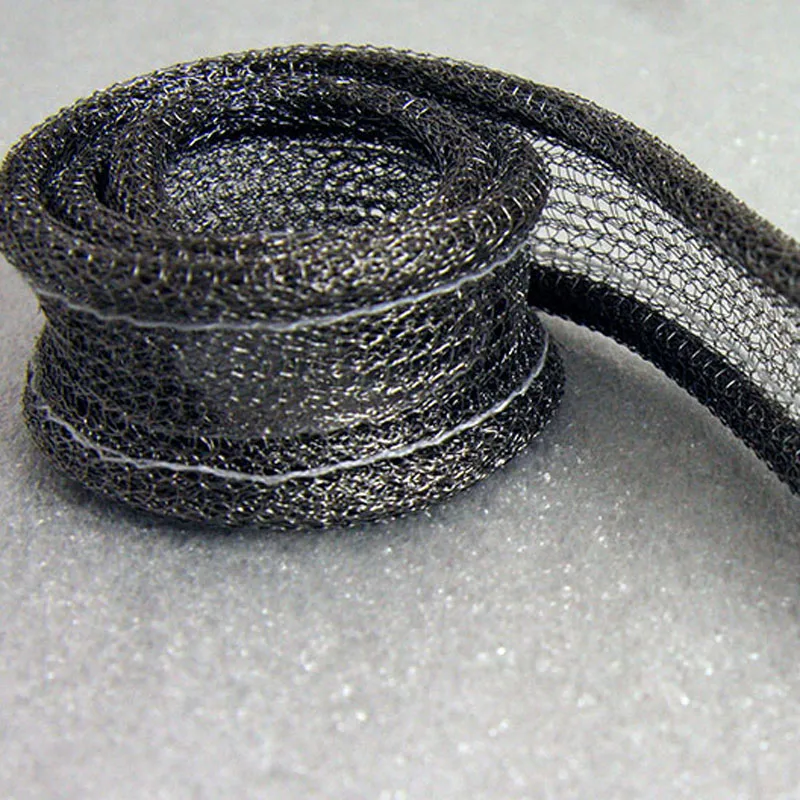

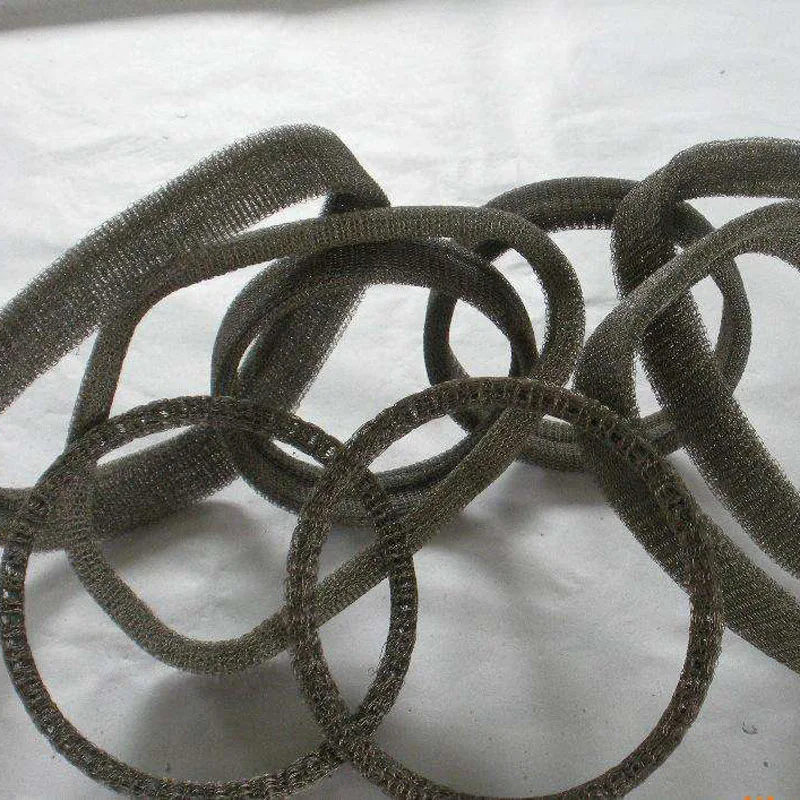

Demisterare fabricated from knitted materials with interlocking asymmetrical loops of metal, glass fiber or plastic with typical diameters being 0.1 – 0.3mm.

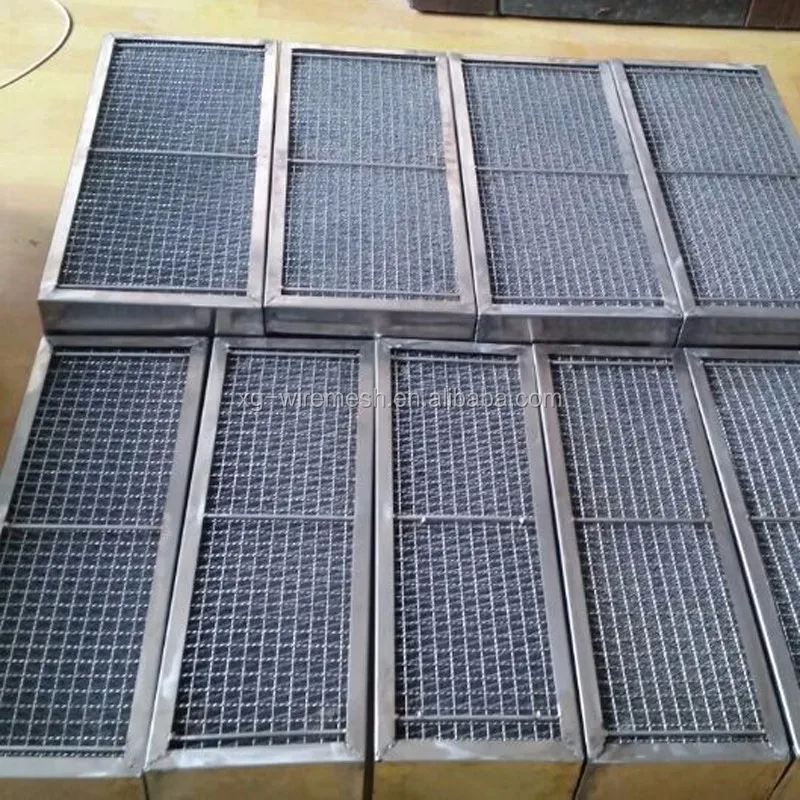

Wire Mesh Demister is also known as mist eliminators or sprays. This is a kind of high efficiency separation devices, used throughout all kinds of process industries, to remove liquid droplets from gas and/or vapour streams.
Wire Mesh Demister uses: Chemical, petroleum, sulfate, medicine, light industry, metallurgy, machine, building, construction, aviation, shipping and environment protection. Demister pad is mainly used to eliminate streams with diameter of more than 3μm to 5μm.
(1) Standard
Wire diameter dw(mm) | Width tolerance (mm) | Density (kg/m3) | Surface area (m2/m3) | Free volume | ||
Flat wire | Round wire | +10 -0 | 150 | 450 | 320 | 0.981 |
0.1*0.4 | 0.23 | |||||
28 layers of knitted mesh for 100mm thick
(2) High Efficiency
Wire diameter dw(mm) | Width tolerance (mm) | Density (kg/m3) | Surface area (m2/m3) | Free volume | ||
Flat wire | Round wire | +10 -0 | 182 | 626 | 484 | 0.977 |
0.1*0.3 | 0.19 | |||||
32 layers of knitted mesh for 100mm thick
(3) High Penetration
Wire diameter dw(mm) | Width tolerance (mm) | Density (kg/m3) | Surface area (m2/m3) | Free volume | ||
Flat wire | Round wire | +10 -0 | 98 | 313 | 217 | 0.9875 |
0.1*0.4 | 0.23 | |||||
