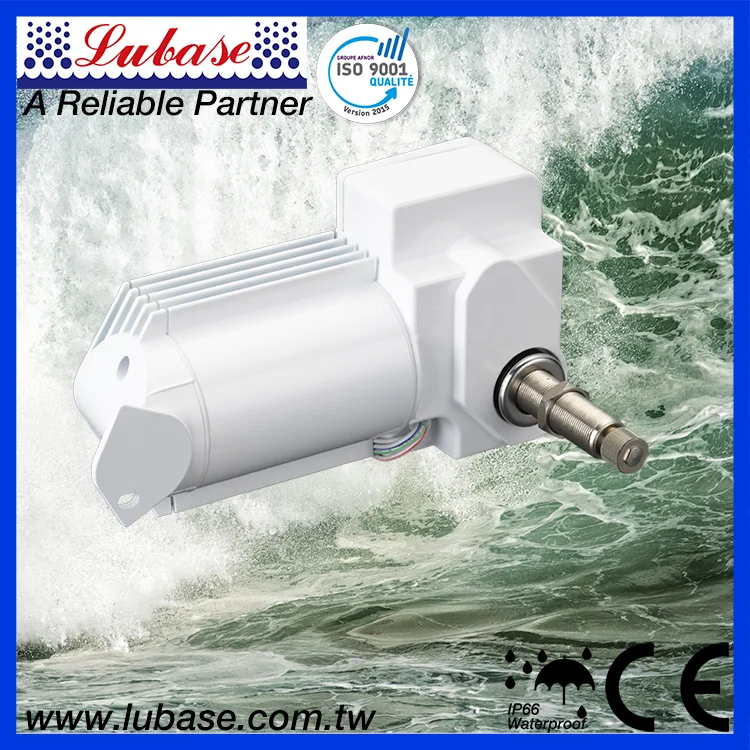

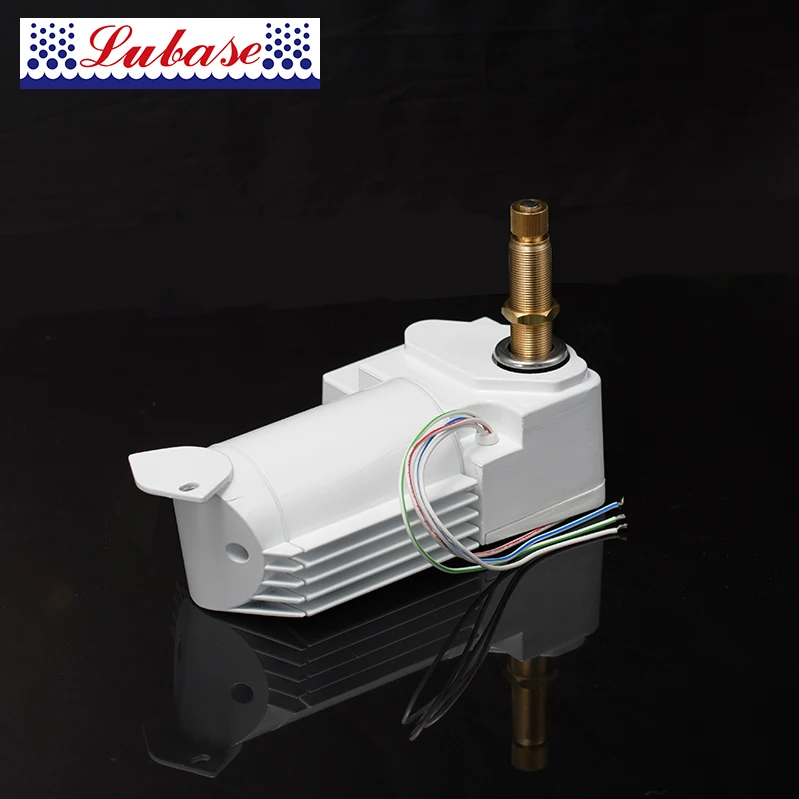

This motor equips with 18Nm torque to drive longer and heavier wiper arms& blades. Moreover, the motor is waterproof with IP66 rated so you don’t need to worry about waves and to install cover for the motor. Suitable for most windshields, the motor can adjust its wiping angle from 40 to 110and parking position. The thin fin design on the body can transfer the heat, cool the system and make motor lifetime longer.
Specification
Torque: 18 Nm
Max arm length: 24" (610mm)
Max blade length: 24" (610mm)
Sweep angle: 40~110, 10 increments
Two speeds: Low 40 sweeps/min; High 60 sweeps/min
Park position: Adjustable & Self-parking; Left or Right
Shaft length: 2.5” (63.5 mm) [Optional]
Shaft adapter: 13.85 mm, L9.8 mm, 72 teeth [Optional]
Voltage: 12V/24V
Waterproof: IP66
Isolated ground; suitable for steel, aluminum, wooden and GRP boat
Stainless drive shaft with nickel-plated brass socket
Aluminum case
CE Approval
3 years warranty
IP66 Waterproof
3 different shaft lengths 1.5"(38mm), 2.5"(63mm), 3.5"(89mm)
Item name
Item Number
Shaft Length
Color
Voltage
IP66 Waterproof HD Windshield Motor (1693 Series)
169311-12 CE
1.5"
White
12V
169321-12 CE
2.5"
White
12V
169331-12 CE
3.5"
White
12V
169311-24 CE
1.5"
White
24V
169321-24 CE
2.5"
White
24V
169331-24 CE
3.5"
White
24V
If you need a quote, please provide 1. Item Number 2. Qtys 3. Your postal code. We will reply with shipping ASAP
