high temperature heating element sic heaters

Product Overview

Description

high temperature heating element sic heaters



High temperature heating element sic heaters is made from high-density, high-purity silicon carbide, which is the most popular type of economical heating element capable of operating under hot and rigorous environments.



SiC heaters Features:

1. Withstands as high as 1600°C (surface temperature),

2. Generates high heat output per unit surface area, approximately 5-10 times than the output of

Nichrome wire,

3. High strength and excellent shock resistance,

4. Heat source is free of noise and air pollution.





SiC heaters Specifications:

When you place an order of the Rod type silicon carbide heating elements, please give following information:

OD: Outer Diameter;

HZ: Length of Hot Zone;

CZ: Length of Cold Zone;

OL: total Length



Order Sample of the  SiC heating elements of Rod shape:

OD=54mm,HZ=1575mm,CZ=419mm OL=2413mm ,Resistance :0.9

Please Specify As: 54/1575/2413/0.90







SiC heaters of Rod shape Technical Parameters:

OD (Diameter)	HZ (Hot Zone)	CZ (Cold Zone)	OL (Total Length)	Resistance
8mm	100-300mm	60-200mm	240-700mm	2.1-8.6 ohms
12mm	100-400mm	100-350mm	300-1100mm	0.8-5.8 ohms
14mm	100-500mm	150-350mm	400-1200	0.7-5.6ohms
16mm	200-600mm	200-350mm	600-1300	0.7-4.4 ohms
18mm	200-800mm	200-400mm	600-1600	0.7-5.8 ohms
20mm	200-800mm	250-600mm	700-2000mm	0.6-6.0 ohms
25mm	200-1200mm	250-700mm	700-2600mm	0.4-5.0 ohms
30mm	300-2000mm	250-800mm	800-3600mm	0.4-4.0 ohms
35mm	400-2000mm	250-800mm	900-3600mm	0.5-3.6 ohms
40mm	500-2700mm	250-800mm	1000-4300mm	0.5-3.4 ohms
45mm	500-3000mm	250-750mm	1000-4500mm	0.3-3.0 ohms
50mm	600-2500mm	300-750mm	1200-4000mm	0.3-2.5 ohms
54mm	600-2500mm	300-750mm	1200-4000mm	0.3-3.0 ohms







SiC heaters Application:

Silicon Carbide (SiC) heaters can usually make use for furnace which temperature from 600-1600. It can be directly used in an air atmosphere, without any protection atmosphere. It is extensively used in the fields of metallurgy, ceramics, glass, machinery, analysis test, semiconductor, science & research and so on.







Packaging & Shipping

Plastic paper inside, Polyfoam filled, Wooden box outside.

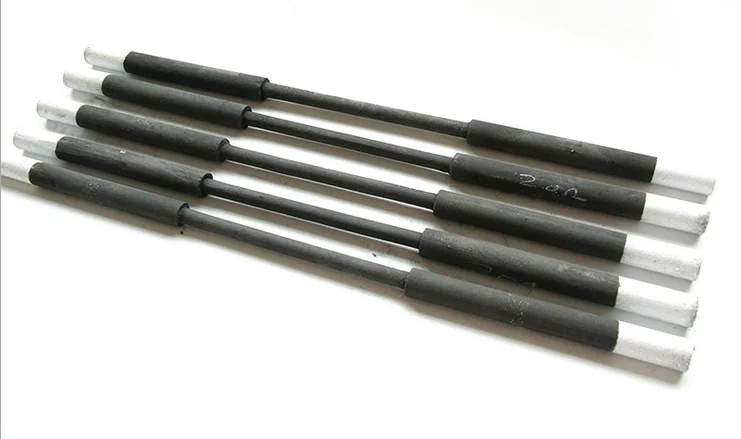

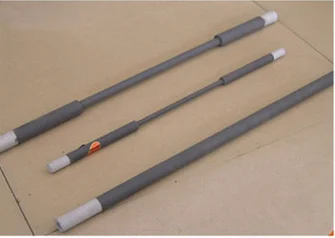

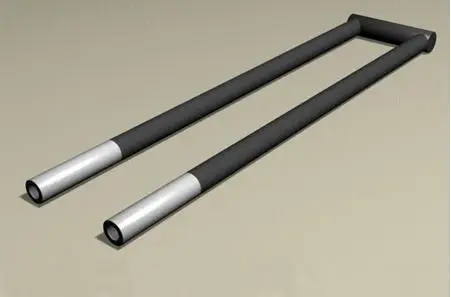

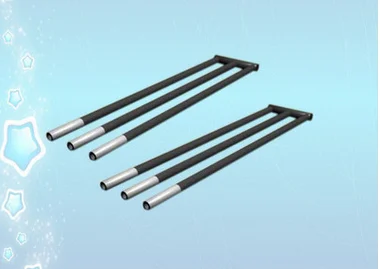

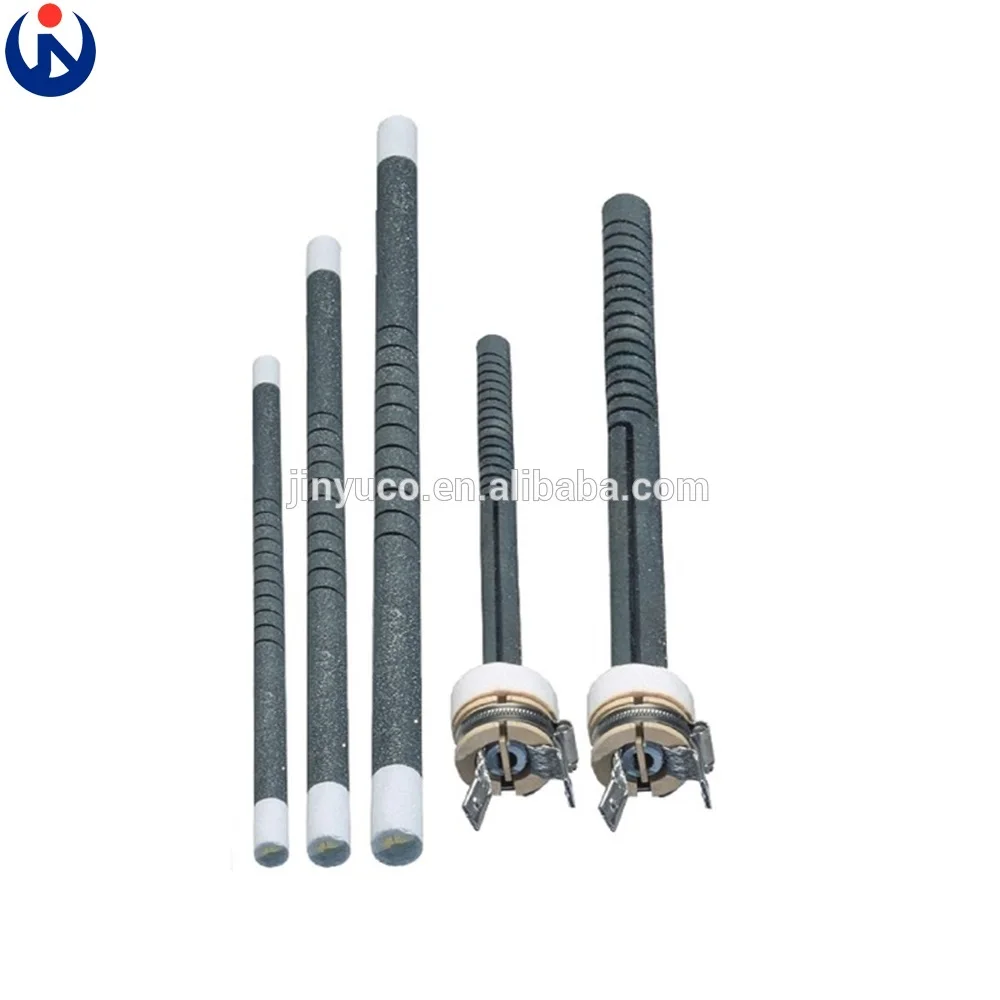

Related images:
