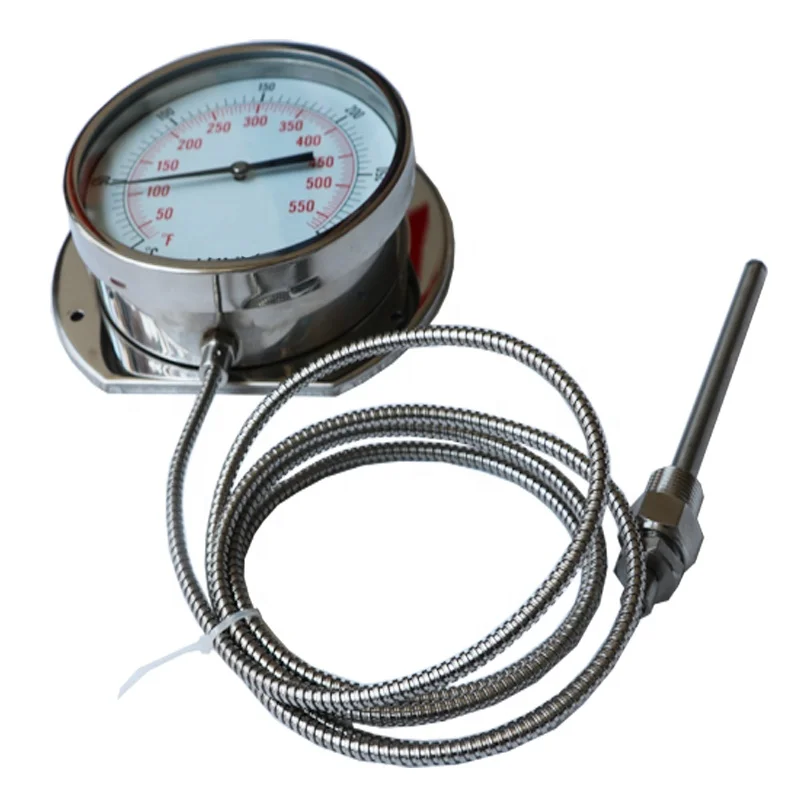

Industrial Remote reading capillary thermometer

Product Overview

Description

 Name:High quality stainless steel  Remote reading capillary thermometer



Beijing ShengRuiKe offer a complete range of made to order, high quality mechanical dial capillary thermometers available with a wide range of options to meet the requirements of most industrial applications





I. Main technician parameter for Remote reading capillary thermometer

Dial Size:	3", 4" 5", 6"
Stem diameter:	Φ6.3, Φ8, Φ10
Temperature probe :	Φ14 x 60,100,150, 200, 250, 300mm
Connection:	Bottom, and back connection
Capillary length :	≤ 20 m
Connection thread:	1/4", 3/8", 1/2" BSP, BSPT, NPT
Case ring:	304 stainless steel
Window (lens):	Polycarbonate lens, tempered glass available
Accuracy:	1.6% full scale
Option Info:	Other materials, ranges, connections are available upon request





II.  More Specification for Remote reading capillary thermometer



1. Dial Size?



2. Temperature Range?



3. Back or Bottom or Adjustable Type?



4. What is the thread size?



5. Display C&F or only C?



6.Capillary Length?

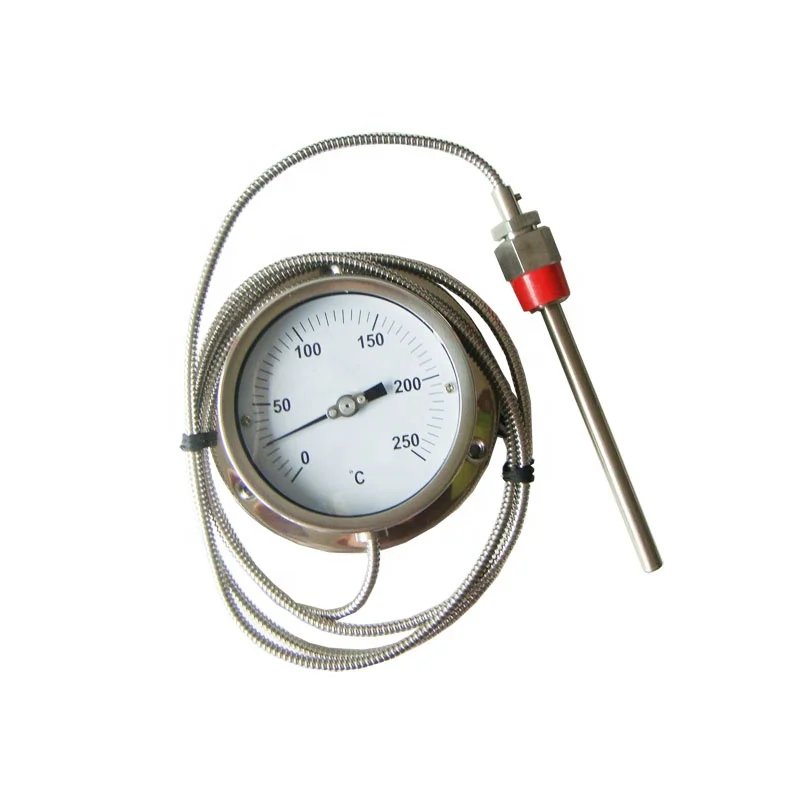

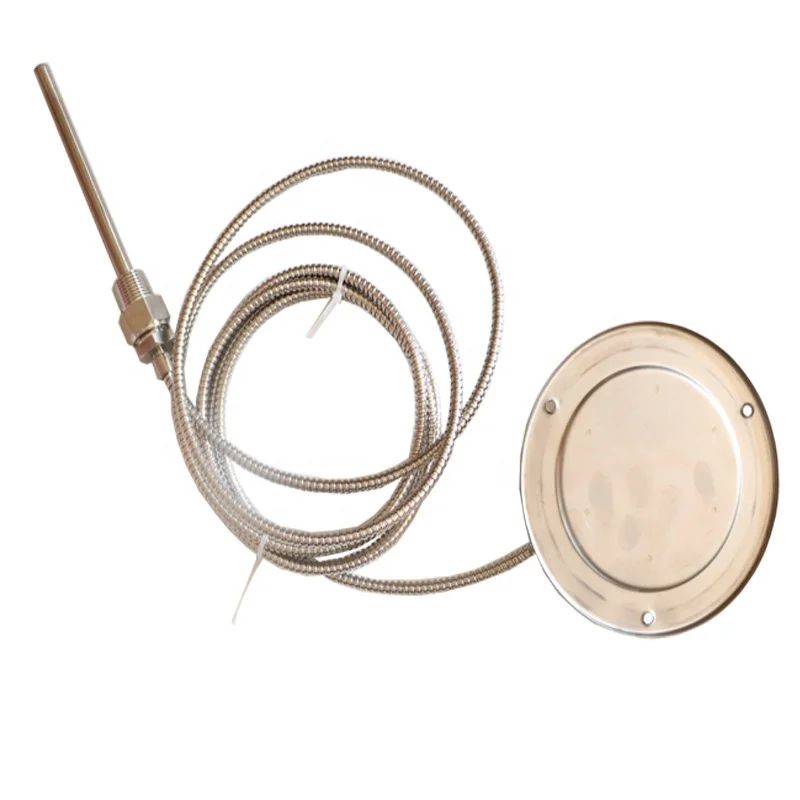

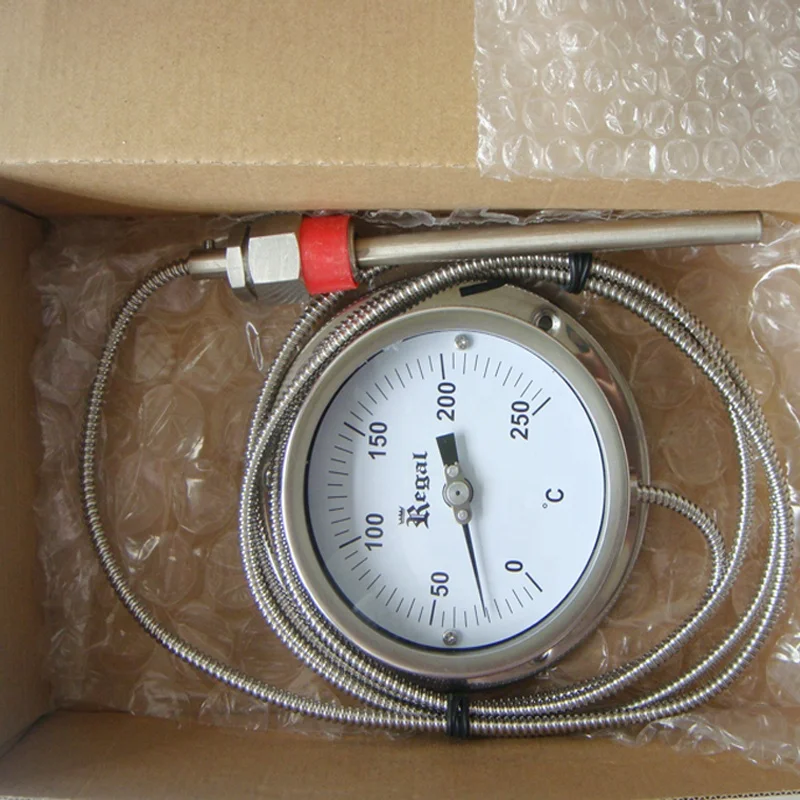

 III. Show for Remote reading capillary thermometer









Remote Reading Thermometer
