gunite machine,dry-mix shotcrete machine,concrete spray machine
Product Description
Description:
1. Shotcrete machine, is a new type of high efficient spray machines, mainly is suitable for the 5 m * 5 m section of roadway concrete shotcrete homework. The device with concrete pump concrete conveying to the manipulator through a pipe nozzle, use with hardener of sprayed concrete jet to be compressed air tunnel walls. Its structure is reasonable, humanized design, reliable performance, convenient operation and maintenance, long service life. Work clean, low noise, small resilient rate.
2. Construction of shotcrete machine of the type that wipe a spray as a kind of tide, applicable to iron (public) road tunnel, high-rise buildings and water diversion culvert engineering. The machine has simple structure, easy operation and maintenance. Unique clamping device
Technical Specification:
Type | PZ-5 |
Output | 5m³/h |
Max. Convey Distance | Horizontal:200m;Vertical: 20m |
Water Cement ratio | ≤0.4 |
Max. Aggregate. Size | Ø 20mm |
Hose Inner Size | Ø 51mm |
Operating Pressure | 0.4~0.6MPa |
Air Consumption | 7-8m³/min |
Rotor Diameter | 438mm |
Motor Power | Y132-6-5.5KW |
Voltages | 380V or As Your Request |
Dimension | 1600mmx700mmx1150mm |
Net Weight | 800KG |
Wheel | Nylon Wheel;Rubber Wheel;Skid Wheel;Rail Wheel |
Custom-made :
1. We can change the color according to your actual requirements.
2. Customized the voltage motor based on your country.
3. Choose the different wheel according to your needs.

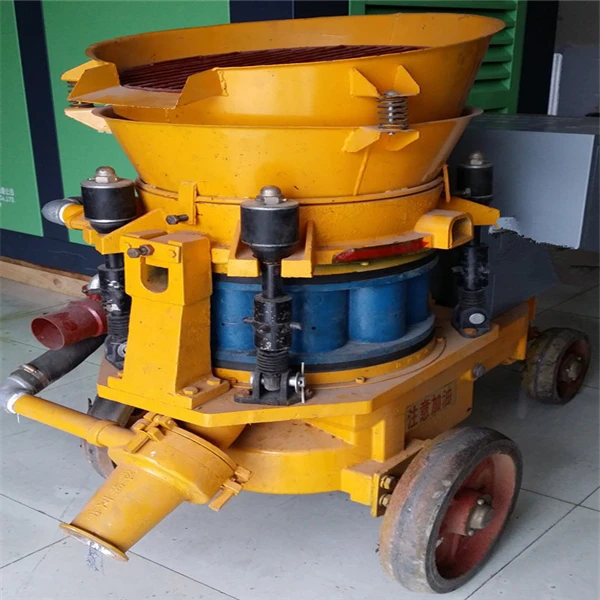

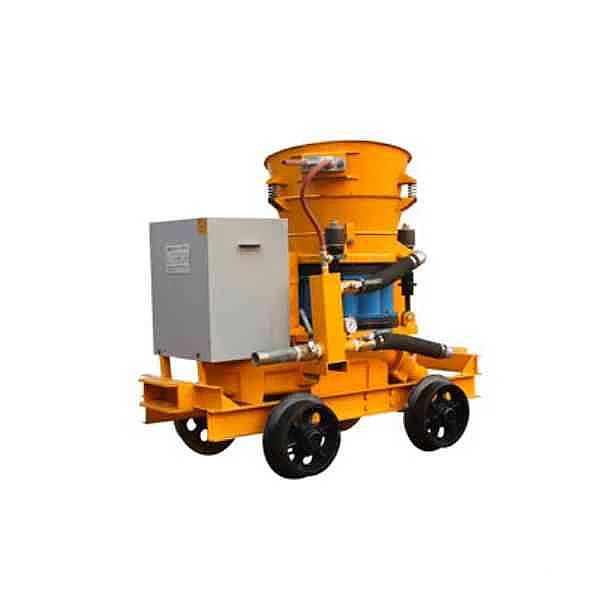

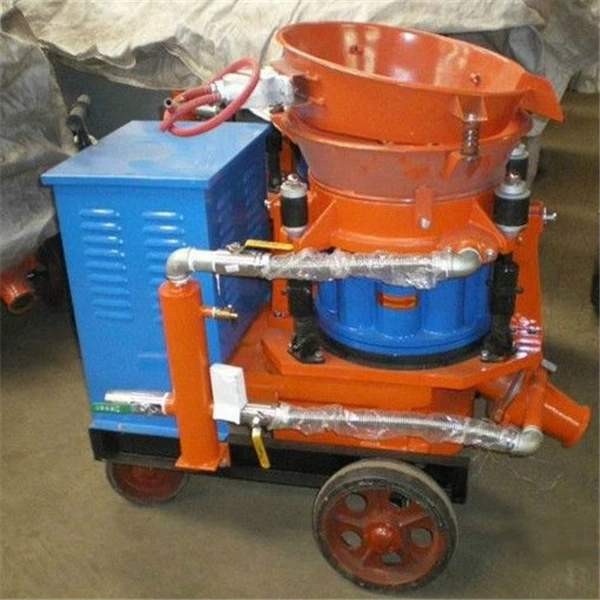

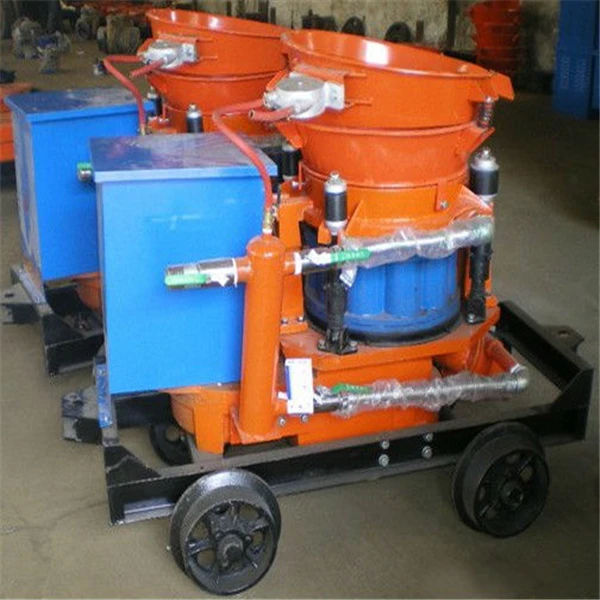

Details of machine:
