KY - PET Expandable Braided Sleeving For Wire harness
Product Description
KY-PET Expandable Braided Sleeving is braided by halogen-free environmental PET monofilament, with good flame retardancy, heat insulation properties, scalability, can satisfy the request of various industrial fields on abrasion resistance, especially its unique weaving structure can be expanded to 1.5 times larger than the original diameter size, suitable for package wiring harness, ensure its smoothly go through the huge volume connector.

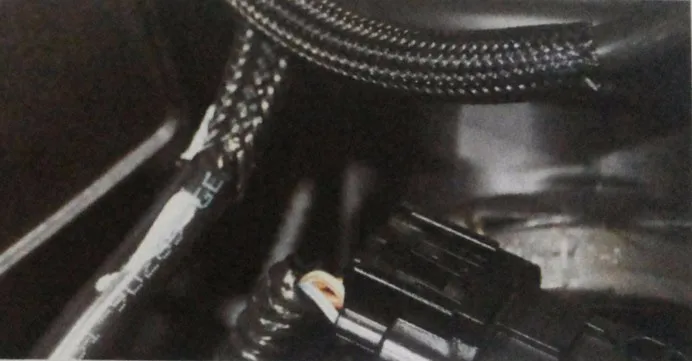

Application
Product application:
Black and grey: Braided Sleeves widely used in computer power cord, wire harness, rubber hose, wire processing and other industries, have the protection and beautification effect.
Colorized: Braided Loom sleeving suitable for computer electric supply wire, A/V the power cord, audio video wire, HDMI wire, etc. Have the effects of protection and beautification.
Patter color: is advantageous to promote and identify the trademark and brand image.

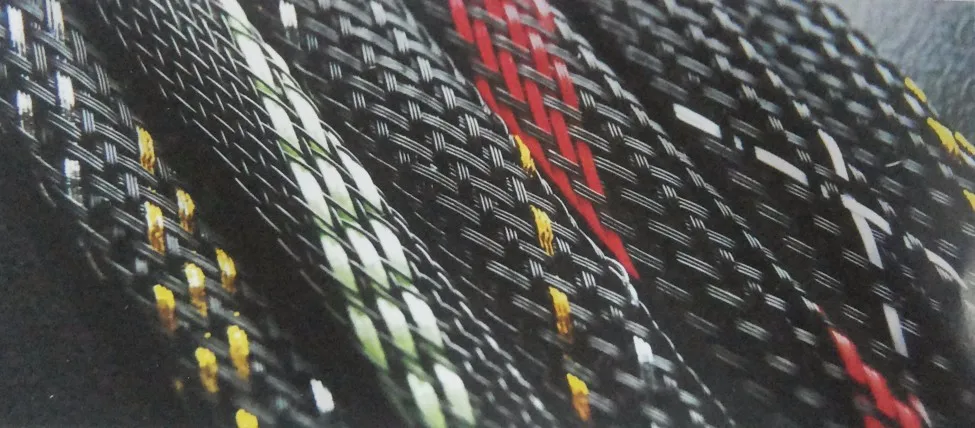

Pattern color PET braided sleeving
Technical indexes :
Material quality: polyester
Working temperature: - 50 ℃ to 125 ℃
Melting point: 240 ± 10℃
Level of flame retardant: VW - 1
Standard color: black, gray, color
Certification: meet the ROHS2.0, REACH, halogen free certification.
Cutting tools: keen knife

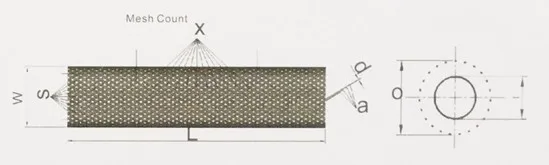

Product size drawing:
Detailed Images
Product Dimension
Part NO. | Lay flat(W) | Bundle DIA | Packaging(L) | ||
Inch | MM | Min.(mm) | Max.(mm) | ||
KY-PET/FR003 | 1/8" | 3 | 1 | 6 | 1000m/roll |
KY-PET/FR006 | 1/4" | 6 | 3 | 9 | 500m/roll |
KY-PET/FR008 | 5/16" | 8 | 5 | 12 | 350m/roll |
KY-PET/FR010 | 3/8" | 10 | 7 | 17 | 350m/roll |
KY-PET/FR012 | 1/2" | 12 | 8 | 20 | 300m/roll |
KY-PET/FR016 | 5/8" | 16 | 10 | 27 | 250m/roll |
KY-PET/FR019 | 3/4" | 19 | 14 | 30 | 200m/roll |
KY-PET/FR025 | 1" | 25 | 18 | 33 | 200m/roll |
KY-PET/FR032 | 1-1/4" | 32 | 20 | 50 | 150m/roll |
KY-PET/FR038 | 1-1/2" | 38 | 30 | 60 | 100m/roll |
KY-PET/FR045 | 1-3/4" | 45 | 35 | 75 | 100m/roll |
KY-PET/FR050 | 2" | 50 | 40 | 80 | 100m/roll |
KY-PET/FR064 | 2-1/2" | 64 | 45 | 105 | 100m/roll |
KY-PET/FR076 | 3" | 76 | 64 | 120 | 100m/roll |
Remark:
1, inner diameter is the diameter when the sleeving is roundness, not the lay plat width.
2, special packaging, special color, etc, can be customized according to customer's requirements.
3, product detail parameters, please refer to our approval sample sheet.

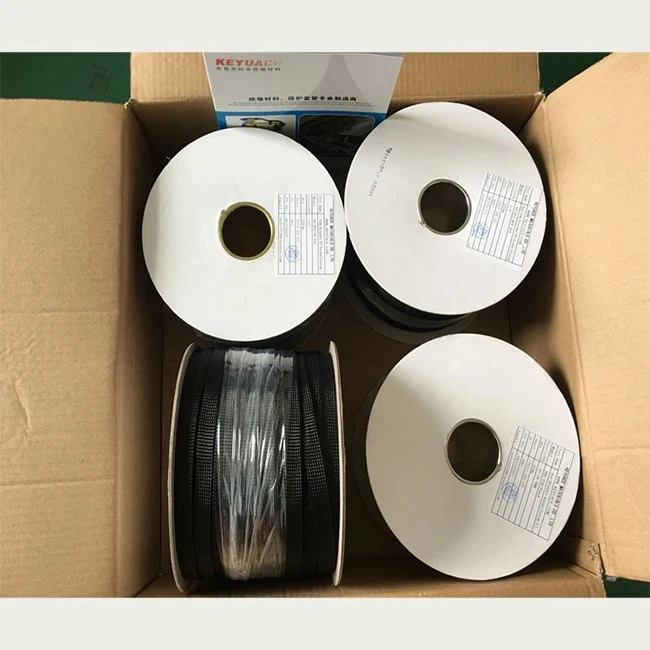

Packaging & Shipping
