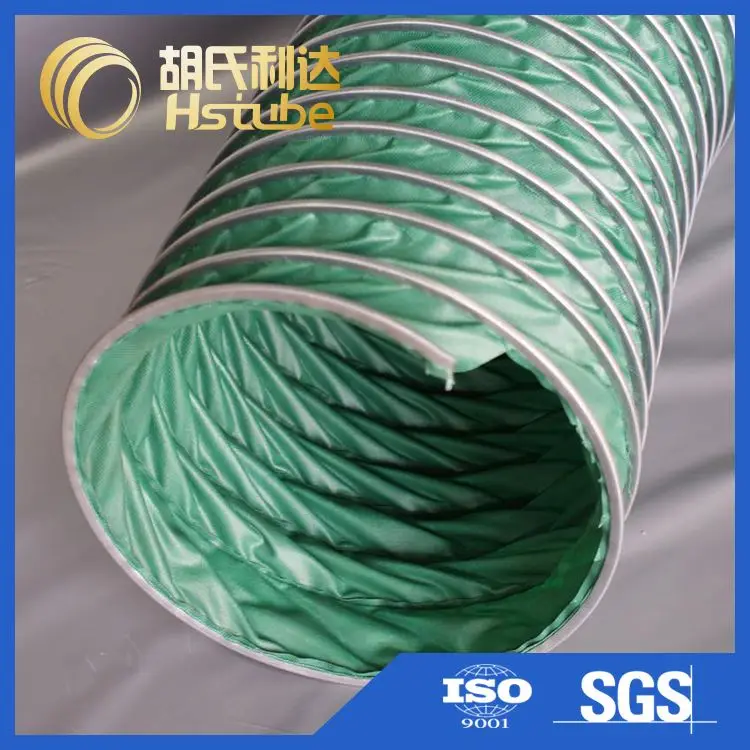

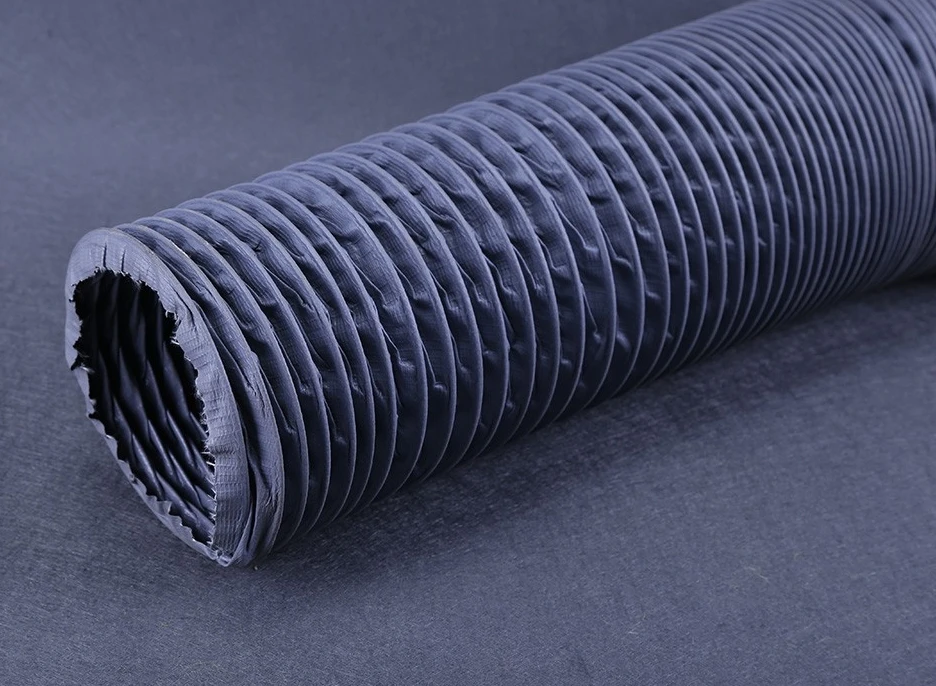

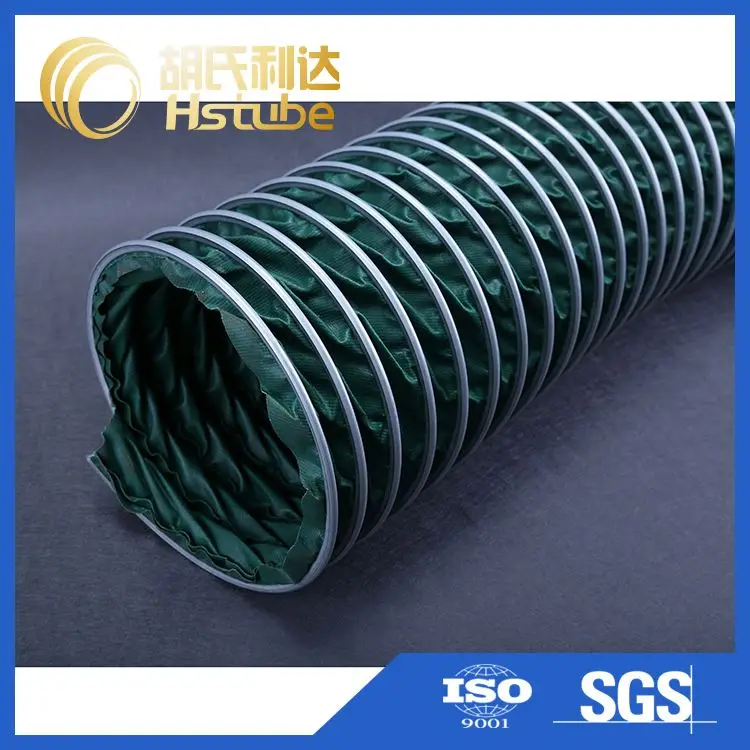

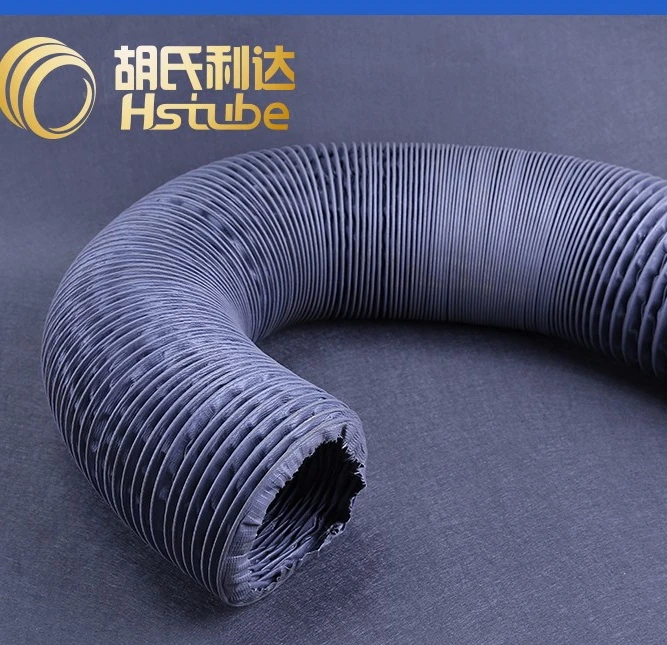

Nylon Fabric Ventilation Pipe Ventilated Hose Plastic Canvas Flexible Telescopic Tube Intake Exhaust Duct

Product Overview

Description







Product Name	PVC coated fabric duct
Material	textile glass, fabric reinforced with galvanized steel
Color	yellow, orange, black, white, green
Specification	2’’~24’’
Thickness	0.35mm-0.7mm
Tearing strength	>=190N
Working Temperature	-20 ~ 300 °C
Construction	Mechanical bond, galvanized steel helix
Length	10mor as Request
Expanding Ratio	1: 6
Working Pressure	-3000pa to +6000pa
Free sample	YES
Bend radius	1.5 x D
OEM & ODM	Accept







Feature:

1)  minimum burst pressure:2 1/2 working pressure.

2)  It is the highest quality standard and it has the advantage in its intensity,breath ability and          fireproof and flexibility.this ducts are mainly applied in HAVC air ventilation system.

3)  Bend radius:ODx1 compression ratio:1:6

4)  Fire resistance and endure high temperature,the acid,the alkali and the oleic acid.

5)  It easy to turn and to connect and convenient to schlep.



Function:

  it is heat resistance,acid-base resistance,fire resistance,abration resistance,tearing resistance   and flexible.Applied in workshop,electronic equipment,sewers,metallurgy,exhaust emission,refrigeration ventilation engineering,environmental protection ventilation project.









Main products as below:





PVC Coated, Laminated Tarpaulin,



Fiberglass Flame Retardant Tarpaulin,



Polyester-cotton Organosilicon Tarpaulin,



Oil-wax Tarpaulin,



Vermiculite coated fiberglass texturized Cloth for welding in shipyard etc,











Diameter		Thickness		Distance		Details
Inch	Inner	PVC coated	Wire	Wire	Speed	length
2	51	0.4	0.6	45cm	45m/s	10m
2.5	64	0.4	0.7	45cm	45m/s	10m
3	76	0.4	0.8	45cm	45m/s	10m
4	102	0.4	0.9	45cm	45m/s	10m
5	127	0.4	0.9	45cm	45m/s	10m
6	153	0.4	1	45cm	45m/s	10m
8	203	0.4	1.2	45cm	45m/s	10m
10	254	0.4	1.2	45cm	45m/s	10m
12	305	0.4	1.2	45cm	45m/s	10m
14	357	0.4	1.2	45cm	45m/s	10m
16	407	0.4	1.2	45cm	45m/s	10m
18	458	0.4	1.2	45cm	45m/s	10m
20	508	0.4	1.3	45cm	45m/s	10m
22	559	0.4	1.3	45cm	45m/s	10m
24	610	0.4	1.3	45cm	45m/s	10m
size		Dia<4”		4”<Dia<20”	>20”
compressed length		1m>length>90cm		90cm	80cm<length<90cm
