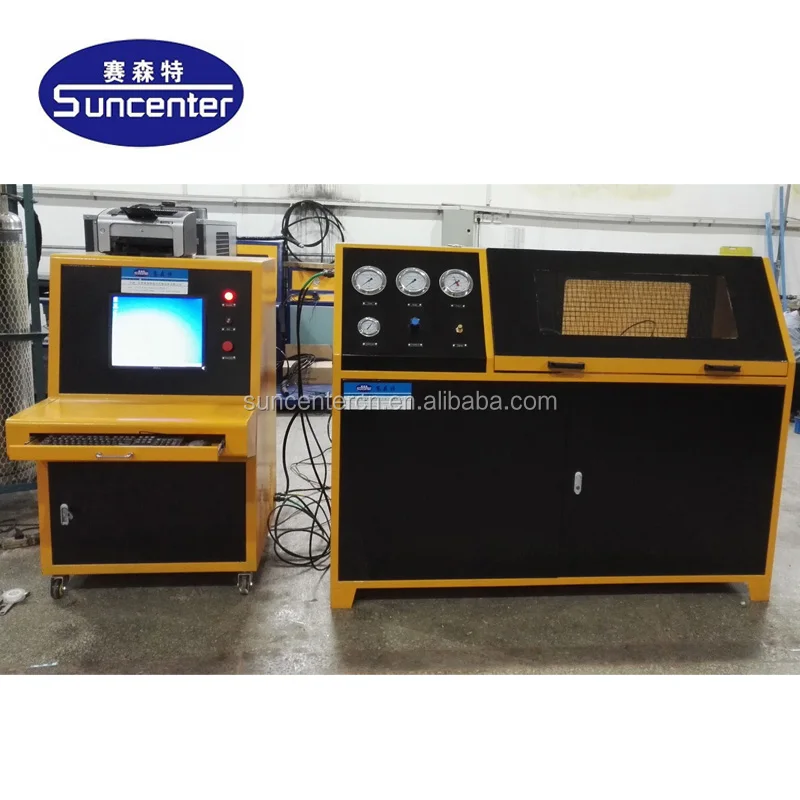

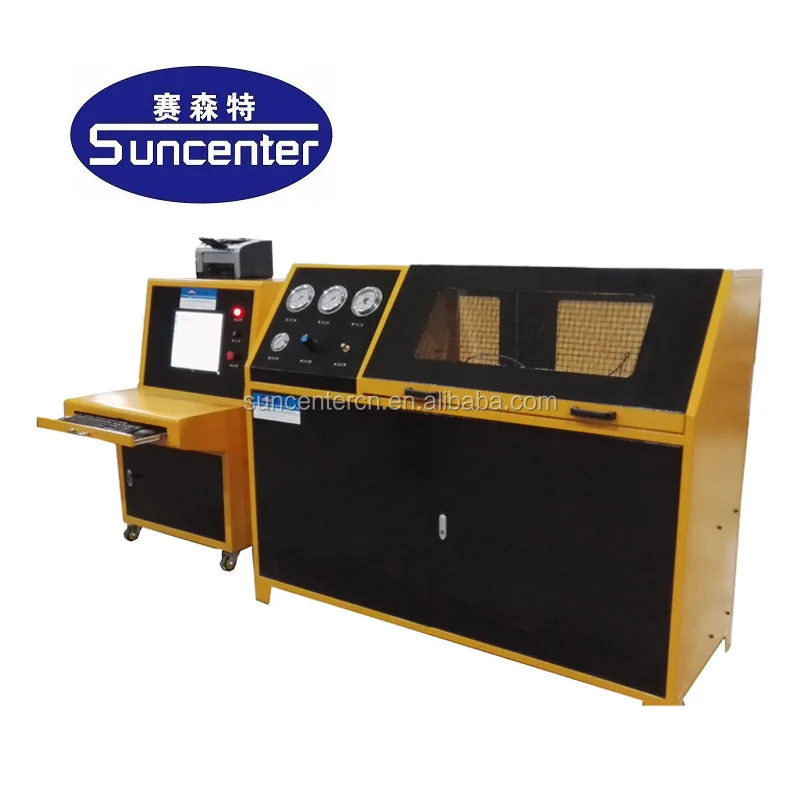

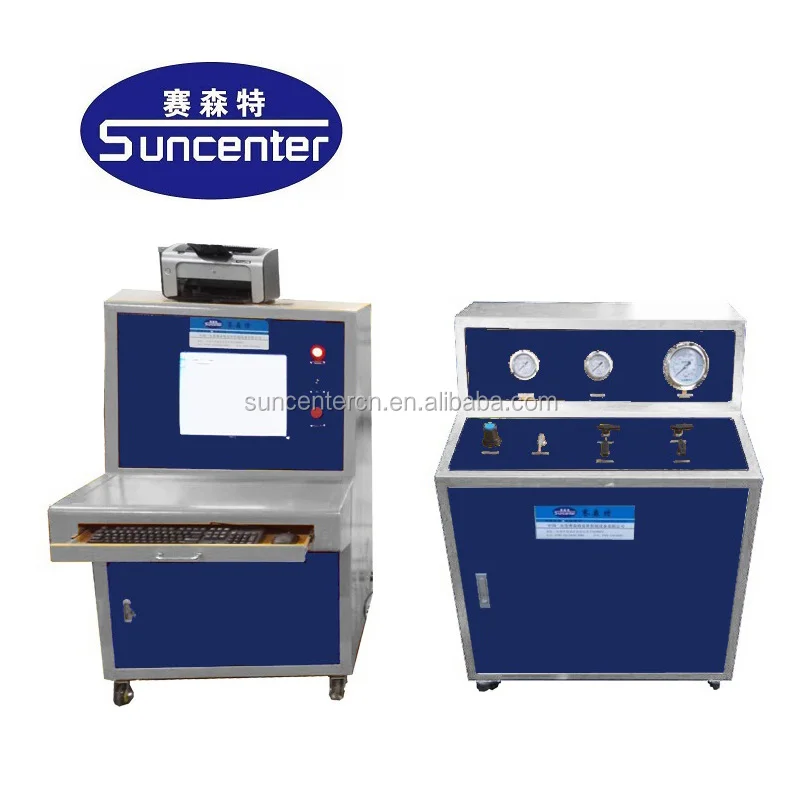

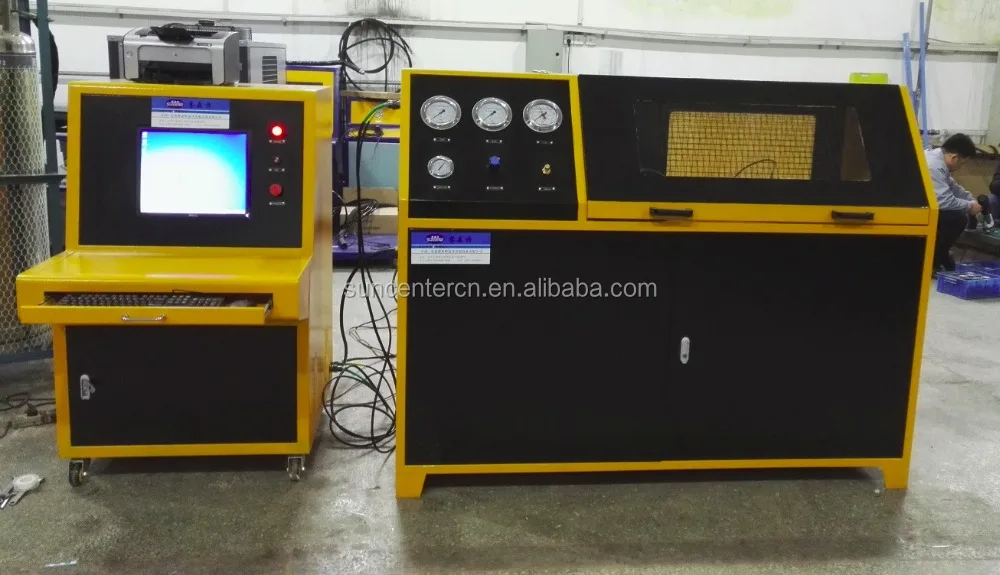

Suncenter Air powered computer control hydrostatic tester for brake hose tube pipe

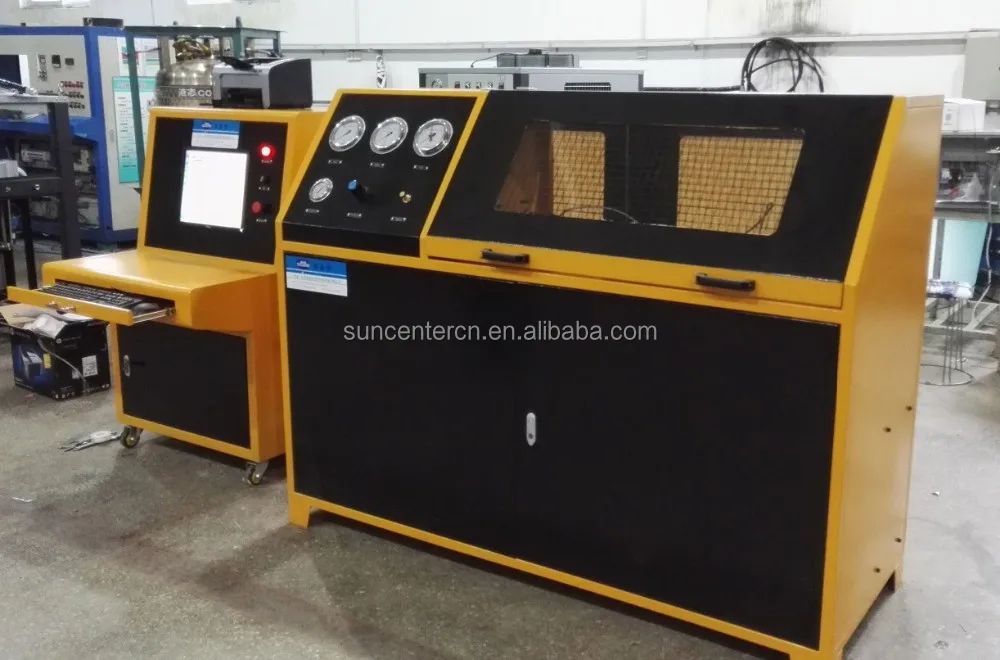

High pressure test equipment-Computer control with armored glass protection cabinet

Suncenter pneumatic/hydraulic/water/hydro/hydrostatic/burst pressure test machine

Applicable for :hose/tube/pipe/valve/sensor/cylinder/guage

Test medium: gas/air/water/hydraulic oil

Test pressure range:0-90000 psi

Specification

Suncenter Fluid Control Equipment Co.,Ltdhas rich experience in the hose ,tube, pipe pressure test field, we can provide reliable performance burst pressure test equipment, leakage test equipment, pressure pulse test equipment, can according to the standard of (GB/T5568, GB7939, ISO6802, ISO6803, ISO8032, GB/T12722, gb16897, GB/T5563, GB/T10544 etc.)do the test to the hydraulic hose and hydraulic hose assembly, automobile brake pipe, power train pipes and other pressure parts for pressure performance test.

1,Product application scope and functional characteristics:

Applicable range of pressure (bursting) test equipment:

Automobile steering tube, brake pipe, air-conditioning pipe, oil pipe, water pipe cooling, radiator, heater hose, hydraulic equipment, condenser, evaporator, air conditioning filter hose, turbocharging system hose, car brake pump, a cylinder body, a project hydraulic hose, air hose and manifold, rigid pipe, joints, valves, pressure gauges, pressure vessel, pressure transmitter etc.

Function and characteristics of pressure (burst) test equipment:

The main components is the mature products produced by our company

The piping system with non welded connection

The test fluid system and driving fluid system are separated, it is more convenient for test temperature control and test media diversification

There are three different control modes available: Manual control, PLC control, Computer control

The use of high-speed sampling card (NI) sampling test data (computer control)

The software adopts force control configuration software or written in LABVIEW (computer control)

A variety of ancillary tooling, meet different specimens of installation

In the testing process, the pressure can be automatically compensated; time after the bursting pressure decreased rapidly, pressure automatic stop system;

The protection of tooling, special design, can effectively protect the damage of blasting operation personnel and equipment.

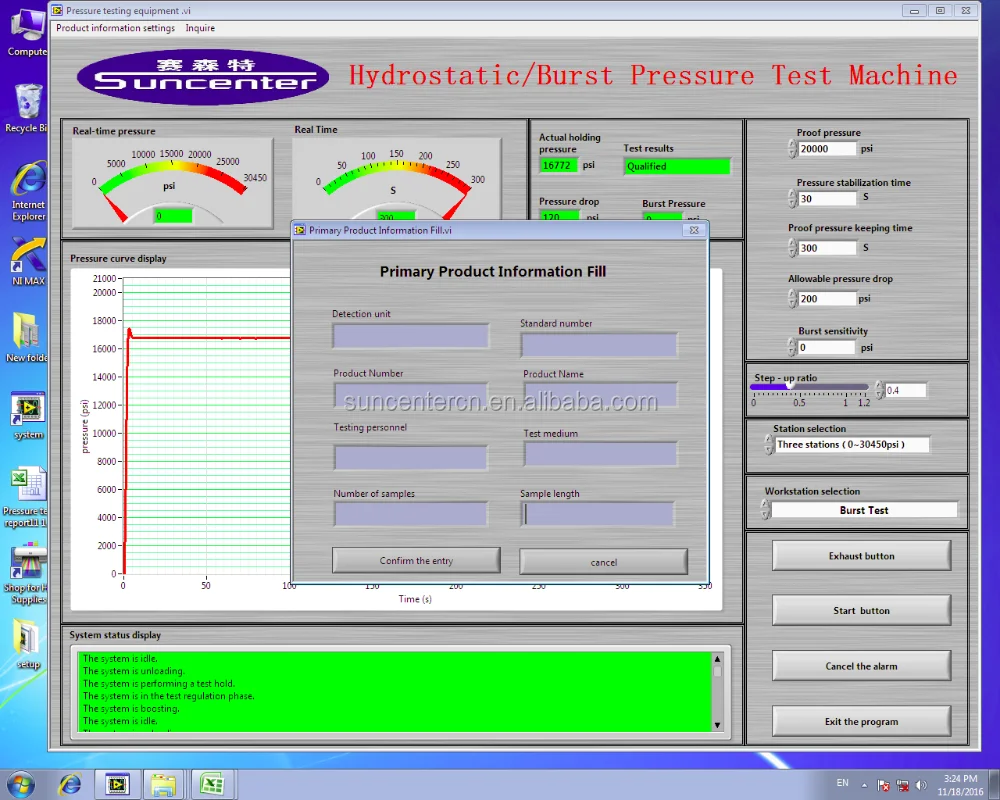

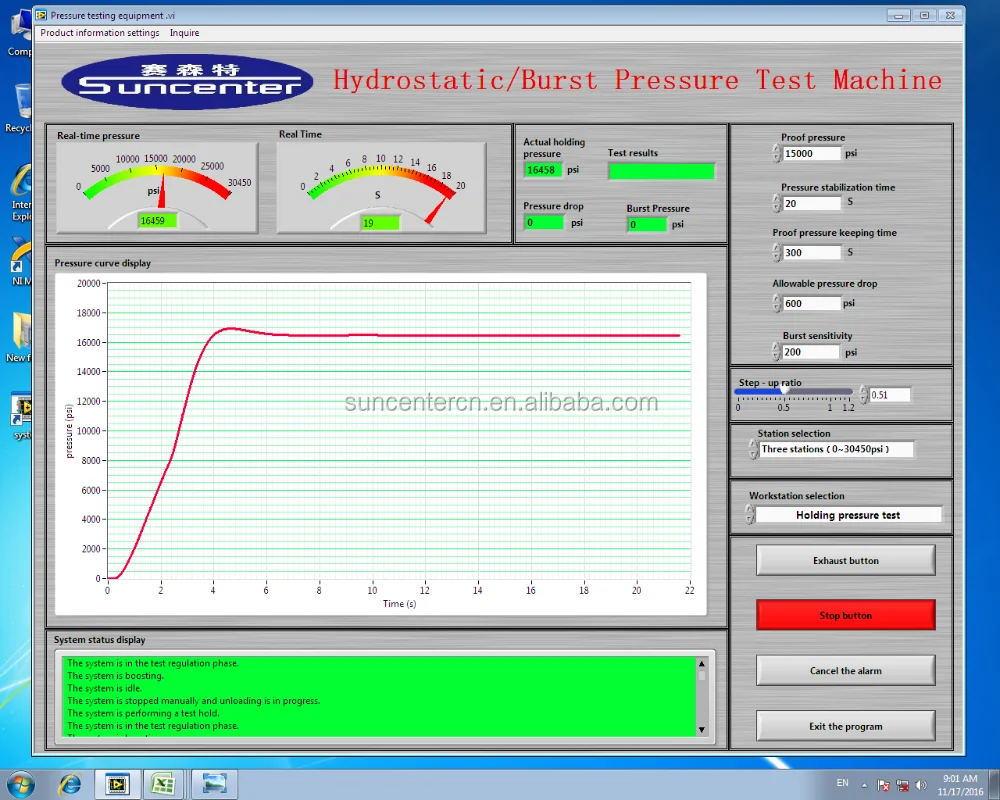

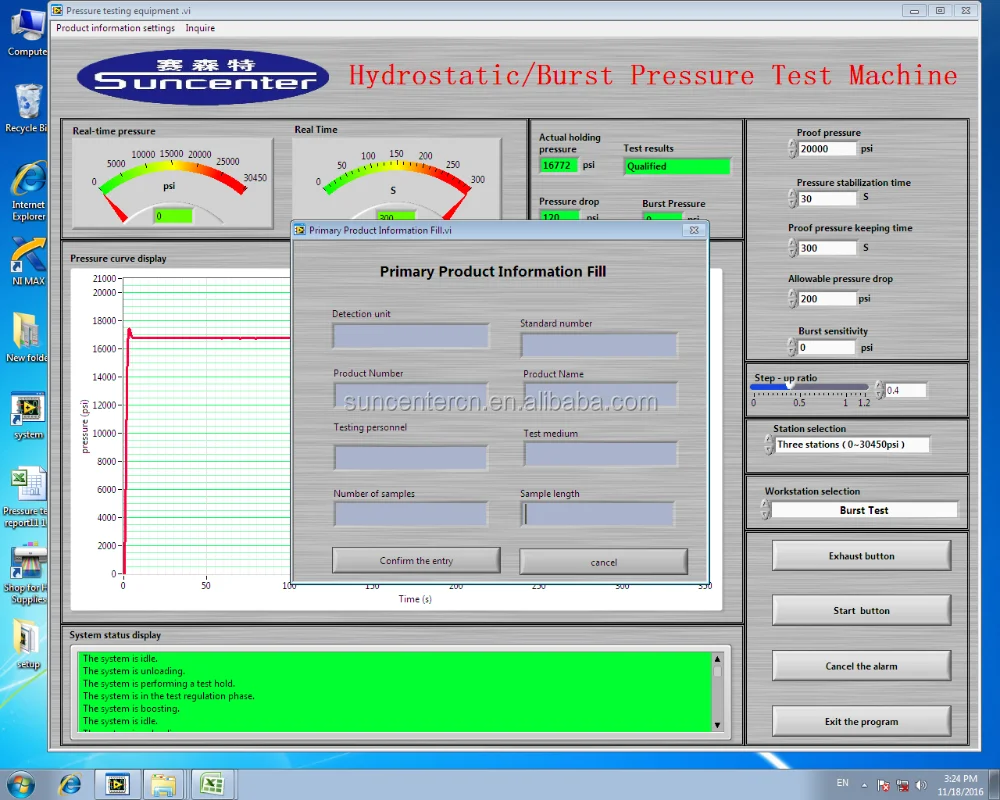

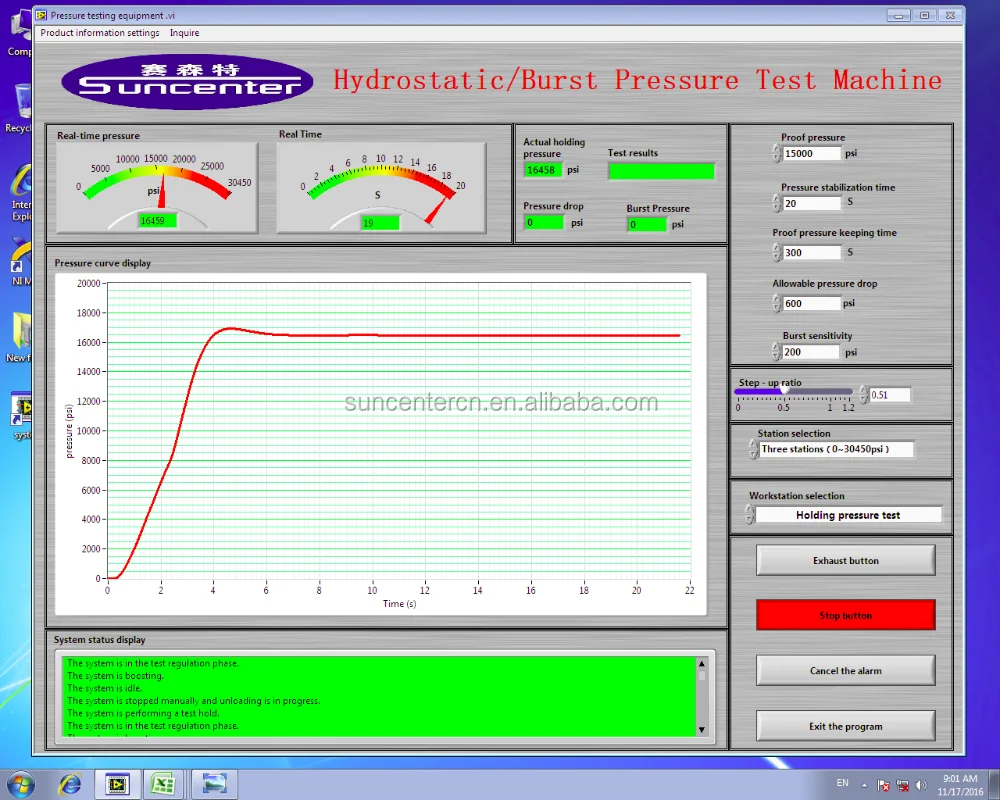

The realization computer control function, can be free to set up a water filled exhaust time, holding pressure time, aeration cleaning time, test pressure in the process of the experiment can be set arbitrarily single or multi section pressure maintaining test, can also holding pressure directly after blasting, boost the speed to maintain a constant, can realize stepless adjustment and test data and curve parameters can real-time display, can automatically save the test results, and any print test reports. (computer control)

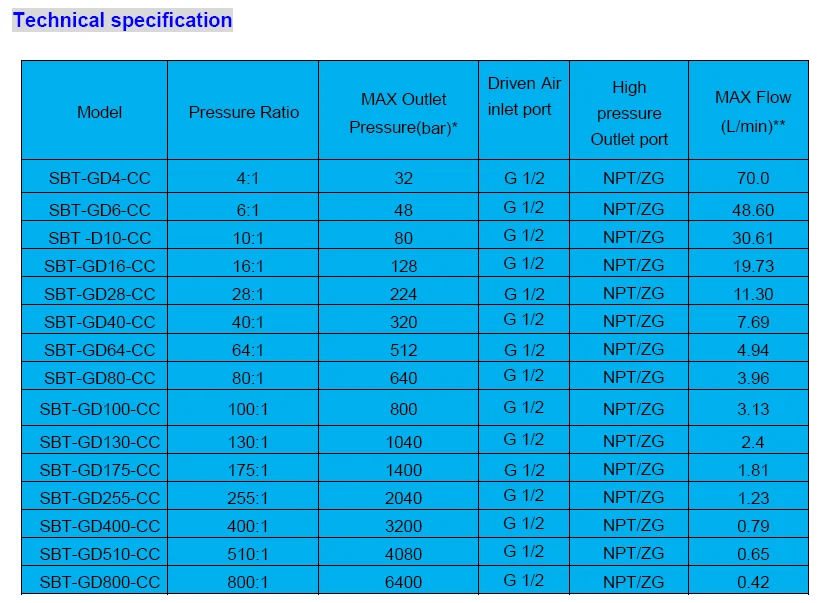

2.System technical parameters and composition

Model: SBT-G800-CC
SBT------- Suncenter Burst Pressure Test Machine
G800-------Sucneter DGG800 hydraulic booster pump
800------- Indicates a boost ratio of 800:1
CC------- Computer control

1, working pressure: 0-640MPa can be arbitrary adjustment.

Note: The maximum bursting pressure we could provide is 640Mpa (6400 bar).

2, test medium: water /oil /air / gas medium

3, technical parameters of the equipment

Drive source: clean compressed air

Driven by compressed air pressure: 3-8bar (recommended driving pressure of ≤8bar)

The maximum air consumption: 460LN/min (6 kg)

The maximum output pressure: 0-6400bar.

Suitable medium: clean water/air/gas/oil

5, safety functions: toughened glass, professional protective screen, to ensure maximum safety

6, Equipment composition: mainly by Air driving liquid booster pump, high pressure piping, control system, operating system

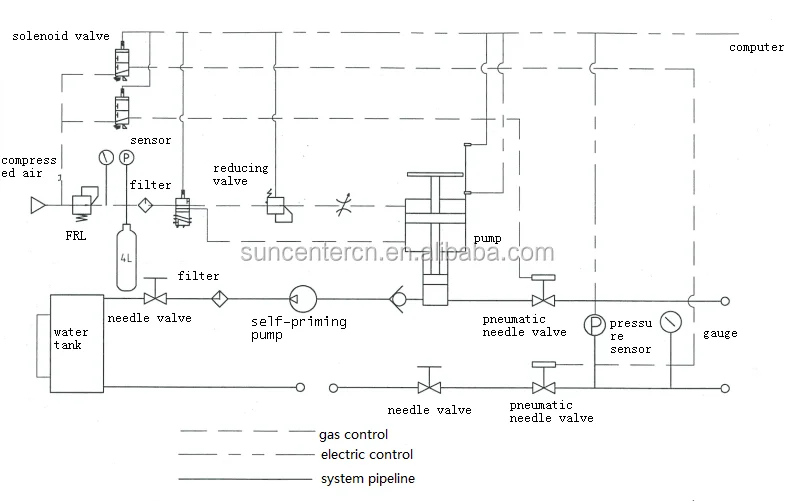

3. Working principle

About Suncenter

Dongguan Suncenter Fluid Control Equipment Co., Ltd is the member company of Suncenter Group, which is located in Dongguan city of Guangdong province in China. With more than 15 years experiences in fluid pressure exchange and controlling field, we provide various kinds of pneumatic and hydraulic booster pumps, systems and solutions to the customers all over the world. Due to our best product quality, competitive price as well as excellent after-sales service, we have win a great reputation in the field.

Our main products including:

High Pressure Booster Pumps ( Gas Booster Pump, Air Driven Liquid Pump, Air Amplifiers)

High Pressure Systems (Gas/Liquid Booster System,Hydro test bench,Chemical injection system,CO2/FM200 filling machine, Tube Expanding Machine)

High Pressure Test Equipment(Hydraulic/Burst/Hydrostatic test machine,Cylinder test machine, Valve test bench,Impulse Testing Machine, etc.)

Hydro-pneumatic cylinders and machines(pneumatic hydraulic cylinders,pneumatic riveting machines,pneumatic press machines etc.)

Product Application

Oil Industry, Gas Industry, Chemical Industry, Fire Fighting, Research Institutions etc.

Our service

13 months’ free warranty since the purchasing date and free technical support during lifetime
