Colorized Asphalt Shingle Production Line Waterproofing Membrane making machine Colorized  Shingle Production Line



 XY-Aaphalt shingle production line



1. Manufactory profile



    Jiangsu Changzhou Xinyuan Waterproof Equipment factory is a professional manufacturer which specialized in researching, manufacturing, selling and servicing various waterproofing material making machine.



        Our factory was founded in 1990.As a corporate enterprise, our factory is a very famous supplier in the line of waterproof equipment in China, is also a new prominent in international markets.



        On the basis of absorbing foreign advanced science and technology, our factory has developed several of advanced waterproof equipment plants, and has got many national patens. Our factory has obtained ISO9001-2008 international quality system certification, are also strictly in accordance with international quality system to ensure product quality.

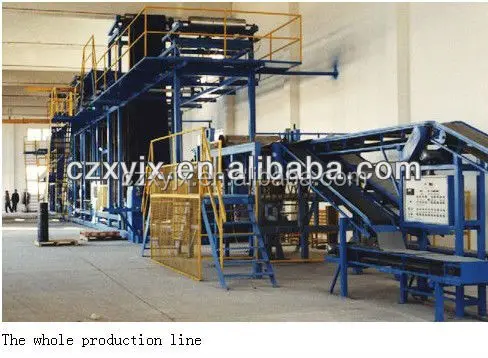

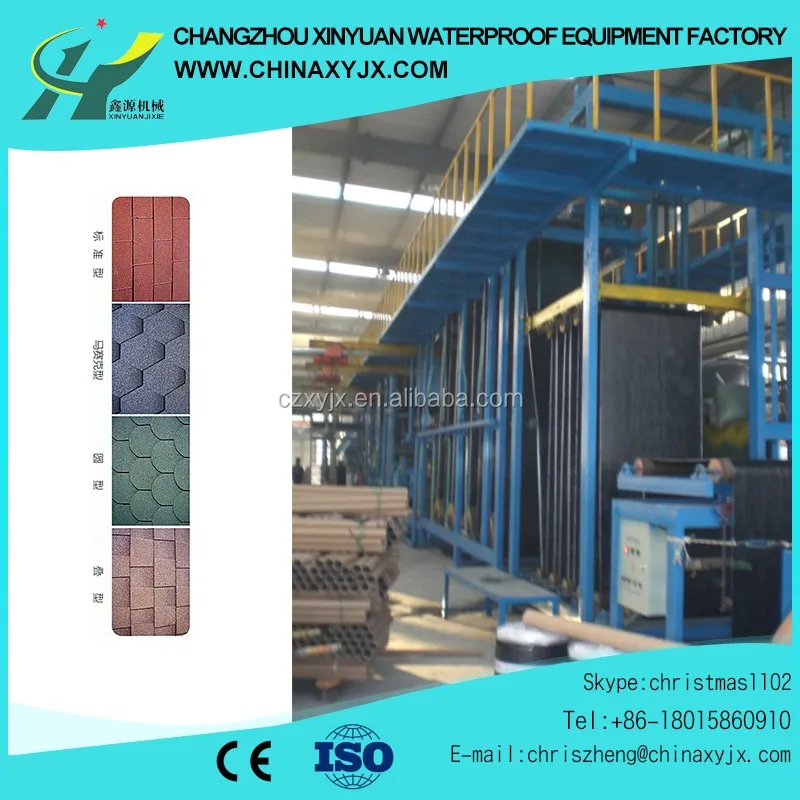

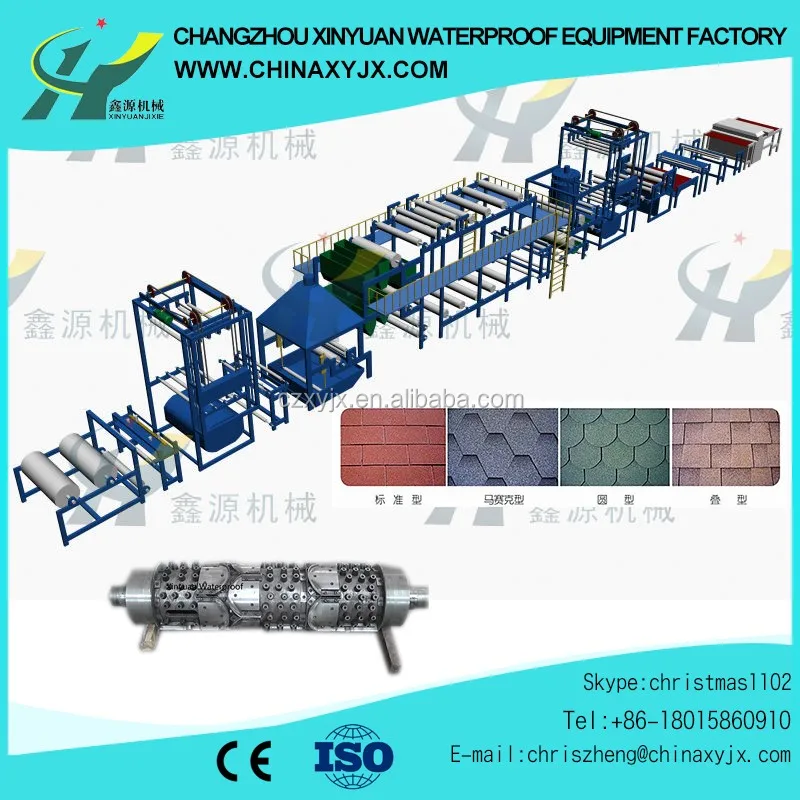

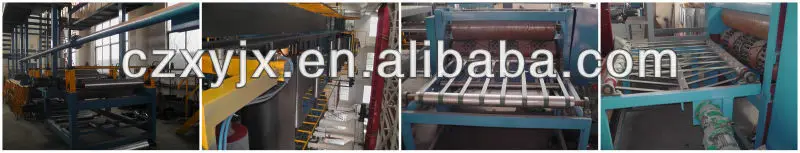

2. Brief introduction of production line and technological process



 Asphalt shingle has a base layer of glass fiber reinforcing mat. The mat is made from wet, random-laid fiberglass bonded with urea-formaldehyde resin. The mat is then coated with asphalt which contains mineral filler(rubber powder, talc powder).Then, it will be covered with different color sand and makes the fiberglass shingle waterproof.

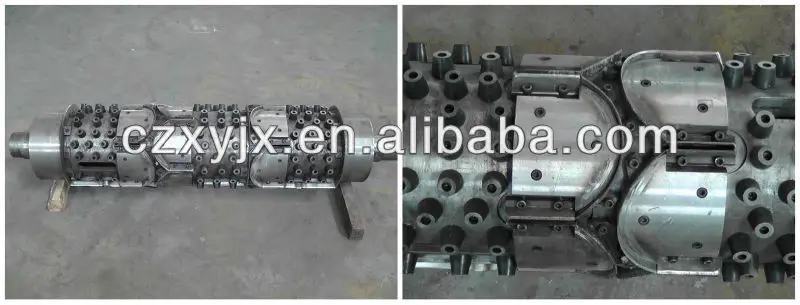

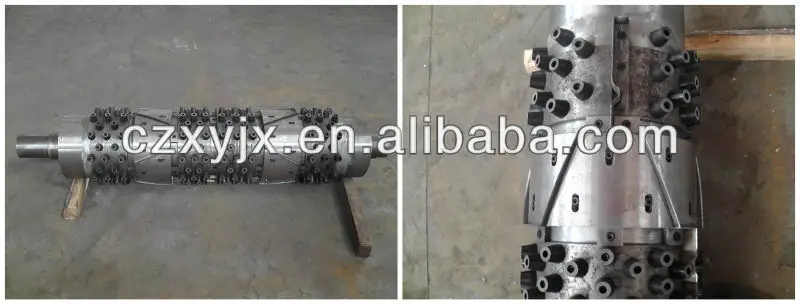

Different shapes of asphalt is cutted by different knife roller:

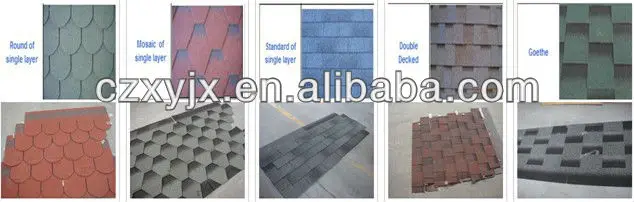

3.Asphalt Shingle produced by this production line



 Asphalt shingle is a new type of roof shingle. It is one of the most widely used roofing covers because it is relatively inexpensive and fairly simple to install, and easy to cut, fit, and fasten. Asphalt shingle is compatible with many different kinds of flashing and edging products, and doesn't require specialized accessories for roof edges, wall terminations, and chimney or vent flashings.



Product Name	Asphalt shingle
Description	Ceramic coated surface granules Weathering grade asphalt Special fiberglass mat Weathering grade asphalt Back sand
Material	Asphalt ,fiber glass mat, mineral granules
Color	More than 20 kinds of colors are available and for your selection
Specification	Length:1000mm(3.2mm more or less)
	Width:333mm(3.2mm more or less)
	Thickness:5.2mm
	Weather exposure:145mm
Average life time	20-30 years
Wind resistance	98KM/H











 5. Certification:
