DKF Heat Resistant Fireproof Silicone Fiberglass Sleeving
- Category: >>>
- Supplier: Dongguan Ke Yu New Material Technology Co. Ltd.
Share on (60533137765):
Product Overview
Description

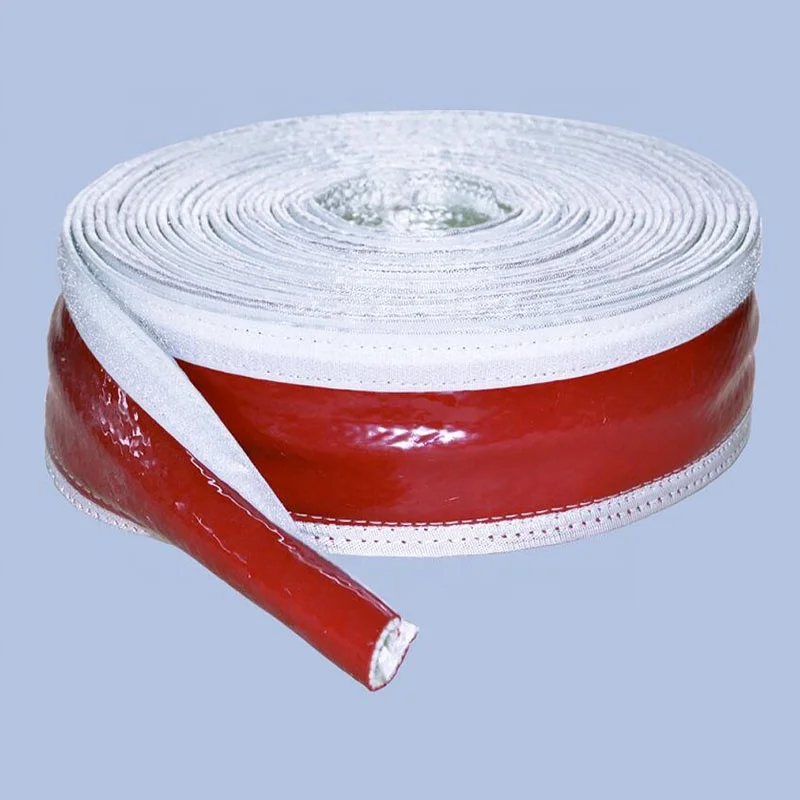

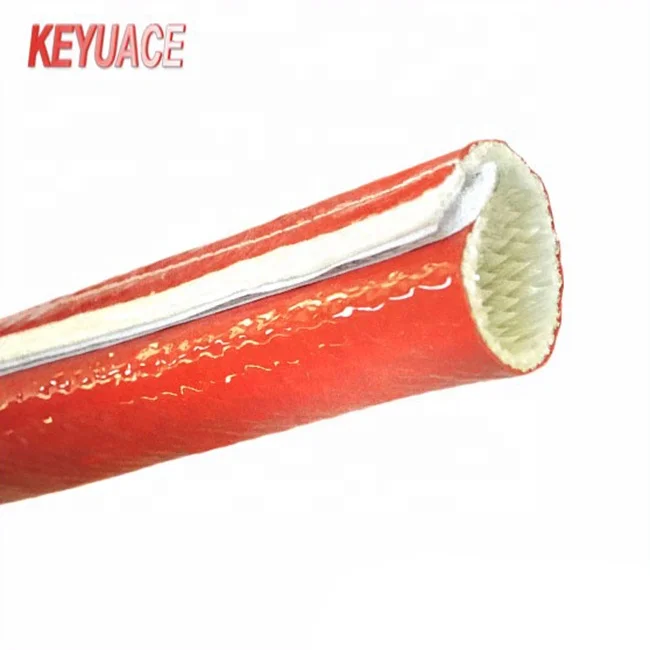

DKF -Heat Resistant Fireproof Silicone Fiberglass Sleeving
Product Description

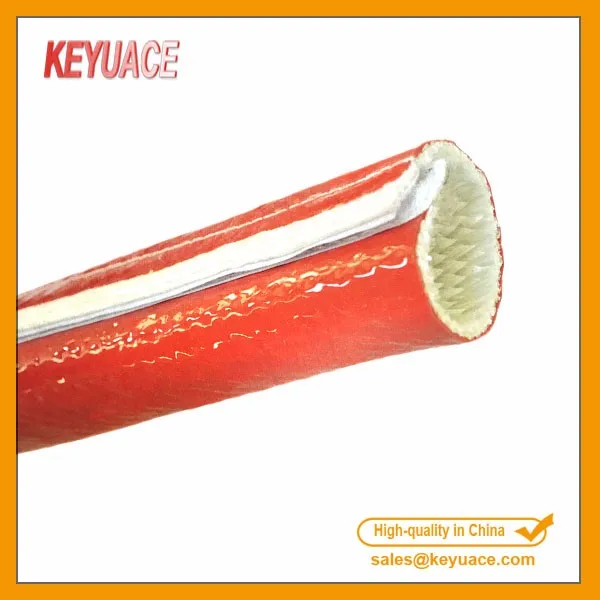

DKF- Fire sleeve with Hook and Loop Fastener is made by fire-resisting sleeve seamed with nylon flame resisting fastening.
Hook and Loop Fastener design make the fire proof sleeve easy to install and tear down. Its flexible and simple structure make it easy to apply to pipeline instruction. Especially used in installed pipeline equipment for high temperature protection.

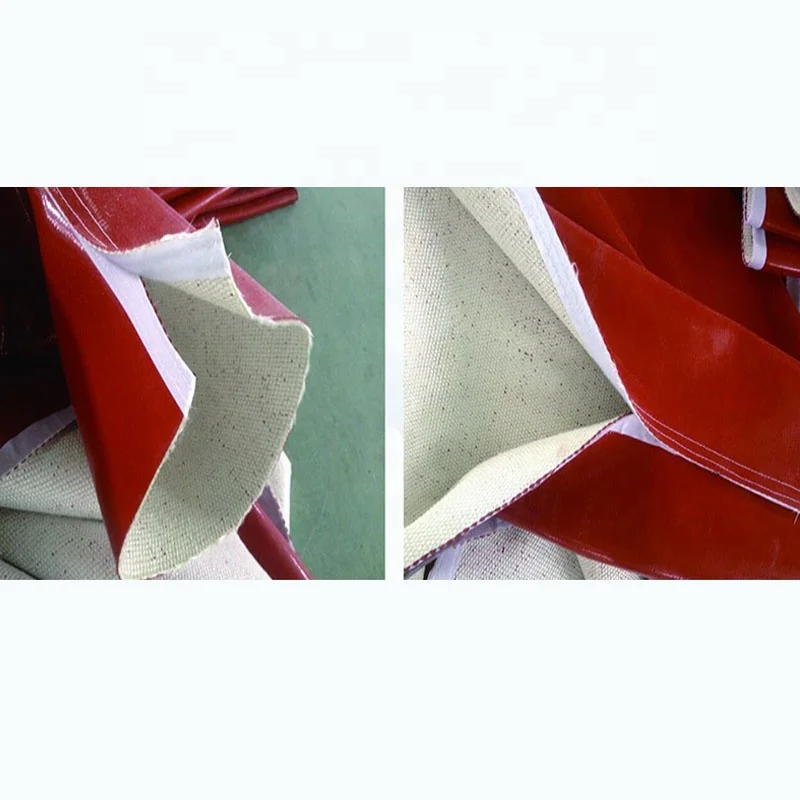

Detailed Images
Features
Product feature:
1, Fire proof, flame retardant, heat insulation.
2, Heat prevention, insulation , anti-aging
3, Withstand melting metal splash
4, Withstand strong heat source and flame.
5, Anti-acid and anti-alkali
Application
Product application:
1, widely used in steelworks, smelting plant,glassworks, rail transit, and other high temperature environment.
2, Applied to hydraulic hose, cable, metal hose, corrugated tubing and all kinds of pipeline for high temperature protection.
Product Characters:
Inner diameter | 10mm-115mm |
Color | Red, black, other colors can be made according to customer's need, nylon fastening optional color: white or black |
Work temperature | Can use continuously at - 75 ° C to 260 ° C, short moment resistance can be up to 1650 ° C |
Nominal voltage | 7kv--25 kv. |
Product properties | Fire prevention, flame retardant, heat insulation, insulation, anti-aging, prevent splashing liquid steel and waterproof, prevent oil, acid and alkali resistance |
Standard Sepcifications:
PART NO. | INNER DIA. | Single WALL THICK (mm) | LENGTH (M/Roll) | |
mm | inch | |||
DKF-10 | 10 | 3/8 | 2.1 | 20 |
DKF-15 | 15 | 5/8 | 2.4 | 20 |
DKF-20 | 20 | 3/4 | 2.6 | 20 |
DKF-25 | 25 | 1 | 2.9 | 20 |
DKF-30 | 30 | 1 1/8 | 3.1 | 20 |
DKF-35 | 35 | 1 3/8 | 3.4 | 20 |
DKF-40 | 40 | 1 5/8 | 3.4 | 20 |
DKF-45 | 45 | 1 3/4 | 3.6 | 20 |
DKF-50 | 50 | 2 | 3.7 | 20 |
DKF-55 | 55 | 2 1/6 | 3.8 | 15 |
DKF-60 | 60 | 2 3/8 | 4.0 | 15 |
DKF-65 | 65 | 2 1/2 | 4.1 | 15 |
DKF-70 | 70 | 2 3/4 | 4.3 | 15 |
DKF-75 | 75 | 3 | 4.3 | 15 |
DKF-80 | 80 | 3 1/8 | 4.5 | 15 |
DKF-85 | 85 | 3 3/8 | 4.5 | 15 |
DKF-90 | 90 | 3 1/2 | 4.6 | 15 |
DKF-95 | 95 | 3 3/4 | 4.6 | 15 |
DKF-100 | 100 | 4 | 4.7 | 10 |
DKF-105 | 105 | 4 1/8 | 4.7 | 10 |
DKF-110 | 110 | 4 3/8 | 4.8 | 10 |
DKF-115 | 115 | 4 1/2 | 4.8 | 10 |

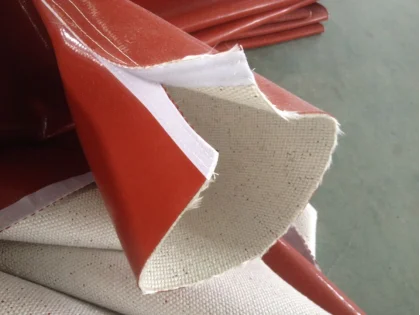

DKF-SF Fire sleeve with silicone rubber coated fiberglass fabric(made of silicone rubber coated fiberglass fabric)
Thickness: | 3.0mm |
Inner Dia.: | ≤310mm |
