Metal shredder price/metal scrap shredder/industrial metal shredder
- Category: >>>
- Supplier: Changshu Shi Shouyu Machinery Co. Ltd.
Share on (60533228669):
Product Overview
Description
Product Overview

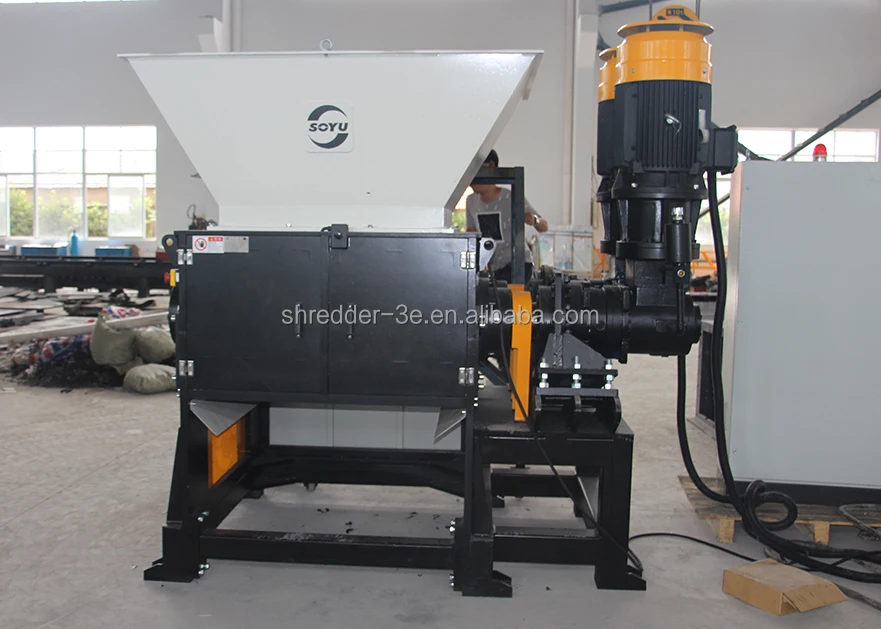

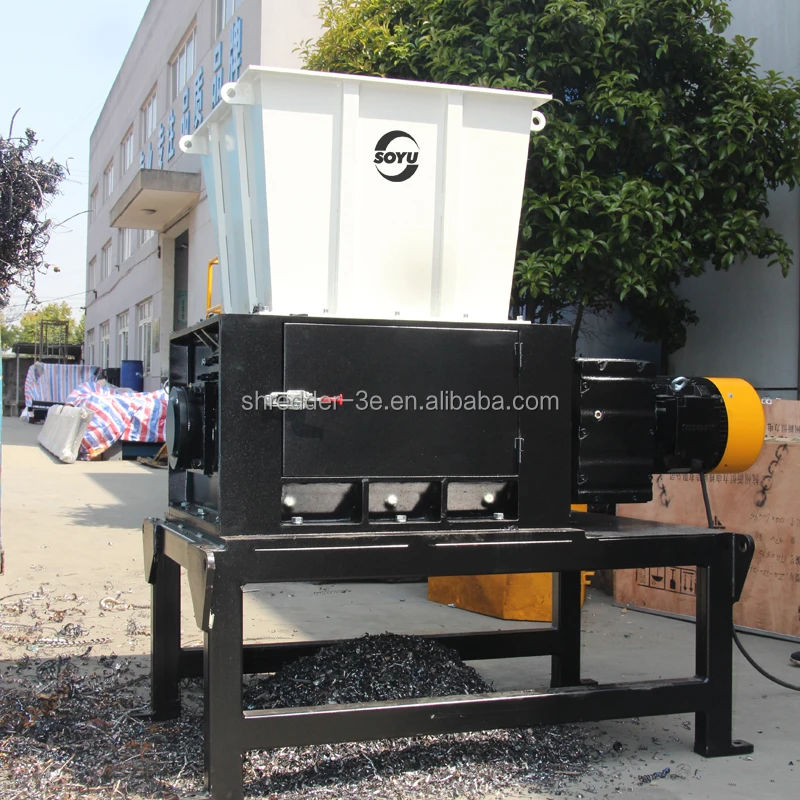

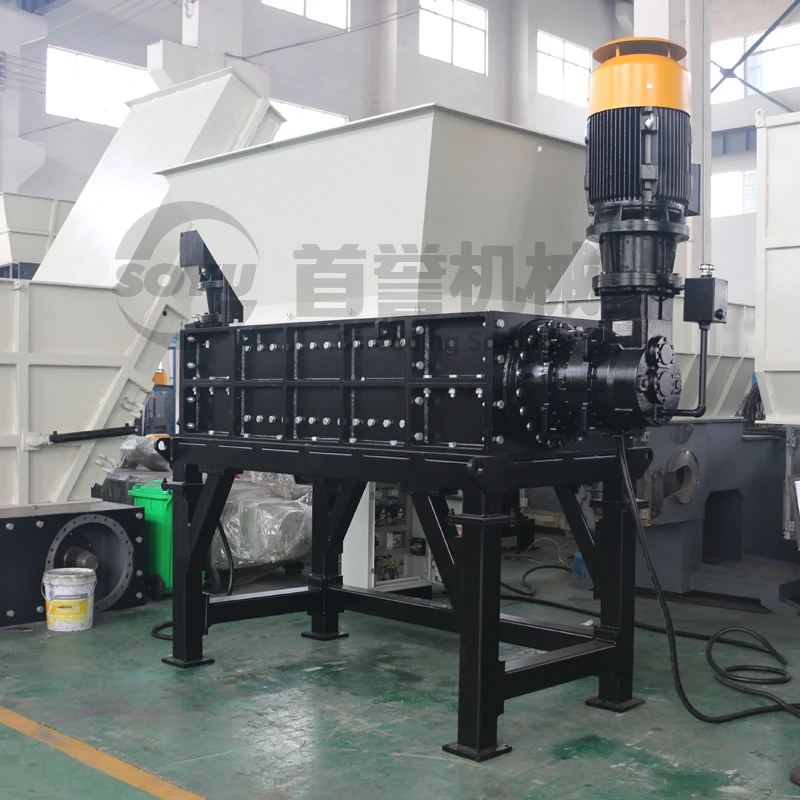

Metal chip shredder

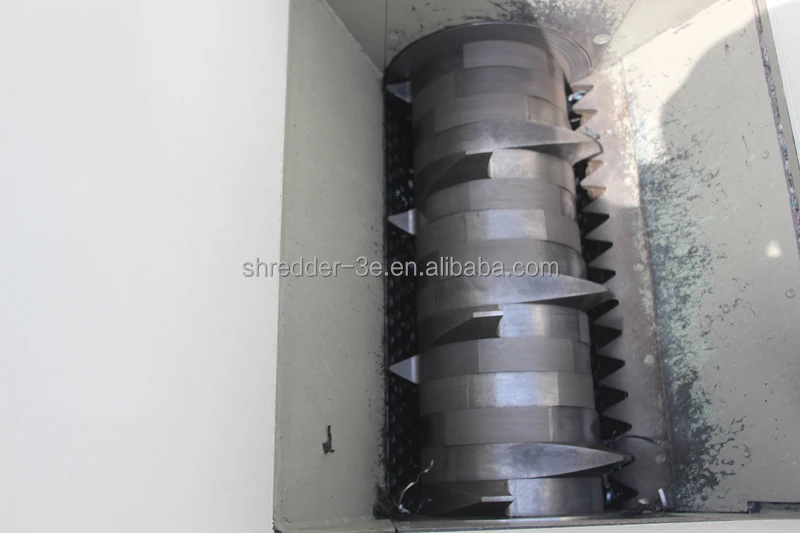

The Scrap metal crusher/Metal chip shredder adopts planet gear speed reducer driving; the blade is made of high-strength alloy steel, featured by strong abrasion resistance and high strength etc.; differential operation between axes has the functions of tearing, extrusion and occlusion, etc. The electrical part adopts Siemens electrical elements programming control with automatic detection and overload protection function, etc. It’s suitable for the refining of various large-sized and hard-to-break materials such as oil filter, scrap aluminum sheet, aluminum strip, iron sheet, scrap steel, sheet iron, copper sheet and other scrap metal materials with the advantages of uniform discharging and controllable size, etc.. Its advantages include high efficiency, low rotating speed, large torque and low noise.
FEATURES AT A GLANCE
- Applications:
Application: * Organic waste
* tires,
* plastic
* drums,
* metal drums,
* e-waste
* Car shell
* Metal materials
* tires,
* plastic
* drums,
* metal drums,
* e-waste
* Car shell
* Metal materials
PRODUCT CONFIGURATION
PRODUCT SPECIFICATIONS

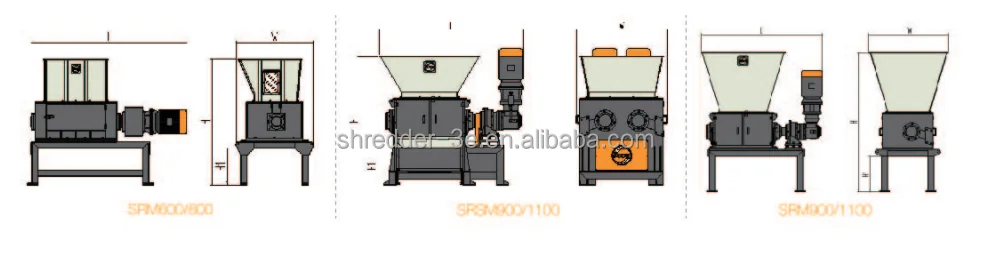

Model | SRM600 | SRM800 | SRM900 |
Motor power(kw) | 11 | 15 | 30 |
Series | SRM30 | SRM30 | SRM40 |
Number of rotor blades(pcs) | 15 | 20 | 21 |
Number of rotor claw | 1 | 2 | 2 |
Thickness of rotor blades(mm) | 40 | 40 | 40 |
Number of stator blades(pcs) | 1 | 2 | 2 |
Rotation diameter(mm) | φ300 | φ300 | φ400 |
Main shaft rev(rpm) | 32 | 25 | 21 |
Discharge height(mm) | 520 | 520 | 700 |
Screen diameter（mm) | φ20 | φ20 | φ30 |
Cutting chamber(mm) | 540x604 | 540x804 | 805x900 |
Dimension(LxWxH)(mm) | 1950x1200x1700 | 2220x1200x1700 | 2290x1380x2563 |
Weight(kg) | Approx1200 | Approx1600 | Approx3000 |
Model | SRM1100 | SRSM900 | SRSM1100 |
Motor power(kw) | 37 | 2x30 | 2x37 |
Series | SRM40 | SRM40 | SRM40 |
Number of rotor blades(pcs) | 27 | 2x21 | 2x27 |
Number of rotor claw | 2 | 2 | 2 |
Thickness of rotor blades(mm) | 40 | 40 | 40 |
Number of stator blades(pcs) | 3 | 2x3 | 2x3 |
Rotation diameter(mm) | φ400 | φ400 | φ400 |
Main shaft rev(rpm) | 21 | 21 | 21 |
Discharge height(mm) | 700 | 60 | 60 |
Screen diameter（mm) | φ30 | φ30 | φ30 |
Cutting chamber(mm) | 805x1131 | 1100x900 | 1100x1131 |
Dimension(LxWxH)(mm) | 2521x1380x2563 | 2400x1514x2115 | 2631x1514x2115 |
Weight(kg) | Approx3500 | Approx5500 | Approx6200 |
SALES AND SERVICE NETWORK
Successful Project
Project in Australia
Project in Brazil
Project in Mexico
Project in Italy
Project in India
Project in Japan
Project in South Korea
Project in UK
Project in Pakistan
SERVICE
Non-standard customization
Shredder & Crusher customization
1. A suitable shredder is chosen according to the size and features of the materials to be shred and output requirements.
2. A suitable material feeding and discharge method is select according to the material features and production site conditions.
Common material feeding means include: chain conveyor feeding, belt conveyor feeding, elevating conveyor feeding, etc. Special feeding system is also available based on customer’s needs.
3. Machine height and discharge height can be customized.
4. A variety of screens with different mesh hole size are provided to satisfy the discharge particle size requirements.
1. A suitable shredder is chosen according to the size and features of the materials to be shred and output requirements.
2. A suitable material feeding and discharge method is select according to the material features and production site conditions.
Common material feeding means include: chain conveyor feeding, belt conveyor feeding, elevating conveyor feeding, etc. Special feeding system is also available based on customer’s needs.
3. Machine height and discharge height can be customized.
4. A variety of screens with different mesh hole size are provided to satisfy the discharge particle size requirements.

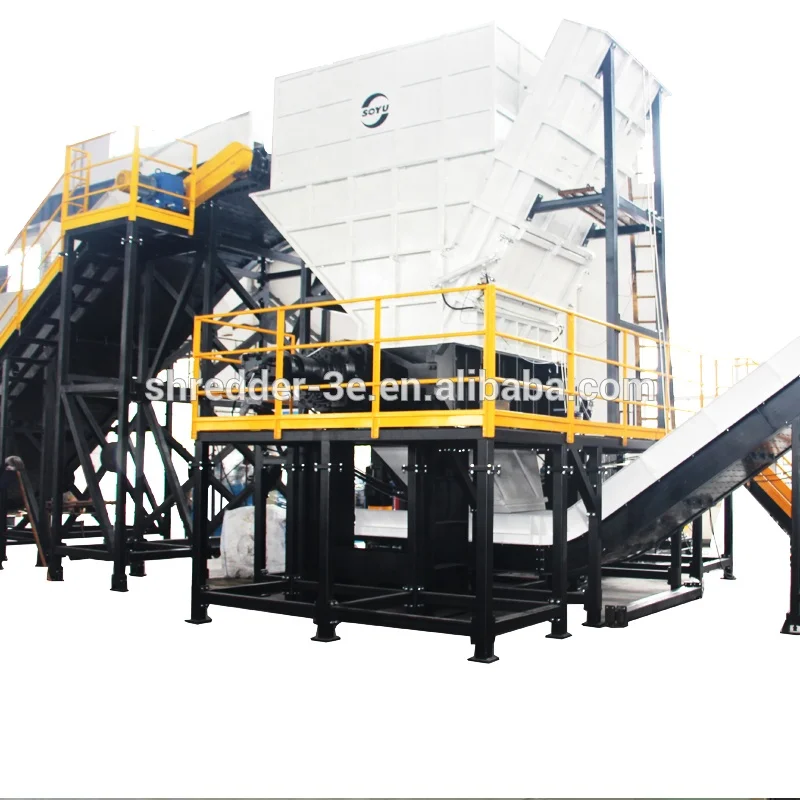

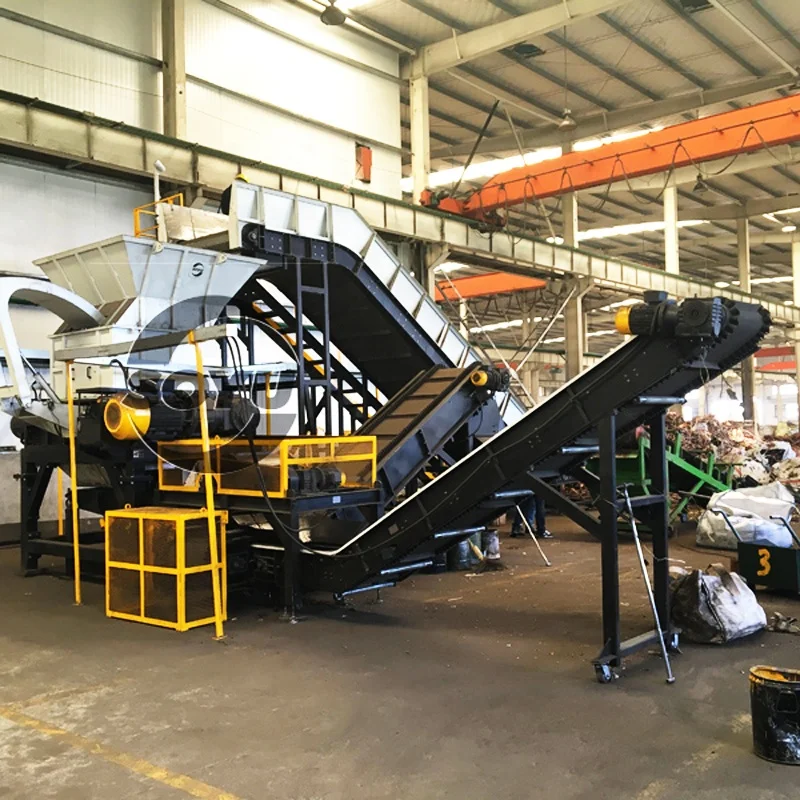

Recycling plant customization
Based on the feeding material size and requirements of subsequent steps, customized recycling plants are provided to meet customer’s expectations. SOYU custom recycling plants are small-footprint, energy saving and environmentally friendly equipment sets.
Installation and debugging
1. Single machine: SOYU standard single shredders are easy to operate and start-up—you only need to connect the power line to the electricity box. In order to save the purchasing cost for customers, SOYU offers off-site technical guidance service.
2. Non-standard complete plant: according to customer’s requirements, we can provide on-site installation and debugging service.We will help customers to train operators and offer routine maintenance service, including operation procedure training, easy failure predication, shaft greasing, hydraulic station oil change, etc.
2. Non-standard complete plant: according to customer’s requirements, we can provide on-site installation and debugging service.We will help customers to train operators and offer routine maintenance service, including operation procedure training, easy failure predication, shaft greasing, hydraulic station oil change, etc.
SIMILAR PRODUCTS
metal chip shredder
Mini metal shredder/small metal shredding machine
animal bone crusher/ Scrap metal crusher/metal crusher
Changshu Shouyu Machinery Co. (SOYU Machinery)
Changshu Shouyu Machinery Co. (SOYU Machinery) is a Chinese-Italian joint venture concentrated on the production of high-quality waste processing equipment. Relying on many years of experience in the production of shredders and crushers, SOYU Machinery is capable of providing our global customers with highly efficient, durable, and unparalleled crushing, separation, and recycling equipment. These products deliver a highly competitive price to performance ratio.
SOYU Machinery has passed ISO9001 quality management system certification and has obtained more than 10 national patents. We produce various types of crushing and separation machines in strict accordance with CE standards. Some of these products include single shaft shredders, two shaft shredders, and four shaft shredders. Our shredders and crushers are mainly used for materials recycling, waste shredding, and other applications for solid standard waste, hazardous waste, RDF, carcass disposal, medical waste, electronic scrap, plastic, paper, metal, and much more. We have established a globally spanning business network operating in over 50 countries and regions. Our products have been widely praised by our customers due to their high performance.For more than 10 years, Changshu SOYU has been involved in the Chinese recycling industry. We have assembled a well-trained, skillful, and dedicated R&D team who has made significant contributions to the industry, offering customers stable and energy saving waste size reduction machines. No matter your application, whether it be plastic shredding, materials recycling, or solid waste crushing,SOYU has what you need to provide you with a best fit solution including installation, adjustment, and maintenance, making us a perfect partner.
SOYU maintains a strict adherence to the business principles of professionalism, concentration, and quality. We have implemented a strong quality management control system that ensures raw materials purchasing, manufacturing, and after sales services are all carried out according to our strict standards. We employ a mature after sales service team and a technical staff that has the experience and skills to provide you with superior 24/7 services.
SOYU Machinery has passed ISO9001 quality management system certification and has obtained more than 10 national patents. We produce various types of crushing and separation machines in strict accordance with CE standards. Some of these products include single shaft shredders, two shaft shredders, and four shaft shredders. Our shredders and crushers are mainly used for materials recycling, waste shredding, and other applications for solid standard waste, hazardous waste, RDF, carcass disposal, medical waste, electronic scrap, plastic, paper, metal, and much more. We have established a globally spanning business network operating in over 50 countries and regions. Our products have been widely praised by our customers due to their high performance.For more than 10 years, Changshu SOYU has been involved in the Chinese recycling industry. We have assembled a well-trained, skillful, and dedicated R&D team who has made significant contributions to the industry, offering customers stable and energy saving waste size reduction machines. No matter your application, whether it be plastic shredding, materials recycling, or solid waste crushing,SOYU has what you need to provide you with a best fit solution including installation, adjustment, and maintenance, making us a perfect partner.
SOYU maintains a strict adherence to the business principles of professionalism, concentration, and quality. We have implemented a strong quality management control system that ensures raw materials purchasing, manufacturing, and after sales services are all carried out according to our strict standards. We employ a mature after sales service team and a technical staff that has the experience and skills to provide you with superior 24/7 services.
