OBS Grounding Pad Disposable (Green Pad) Electrosurgical ESU Pad

Product Overview

Description

 OBS Disposable Electrosurgical Pad (Green Pad)

( Grounding Pad/Dispersive electrode/Returning Pad /Neutral Pad )



CE Marked



NEW GENERATION



Solution to the heat problem

Evolution from the standard pad

Prevention against the risk of the thermal burns







Description:

OBS Disposable Electrosurgical Pad, also named ESU Pad, Grounding Pad, Neutral Plate, Patient Plate, and Dispersive Electrode etc., is approved by CE .OBS offers basic Electrosurgical Pads of mono-polar and bipolar (solid and split foil) in vertical and horizontal design fit for adult.



Range of Using

Match with Electrosurgical Generator, Radio Frequency Generator and other High Frequency Equipments.

They are indicated for use to adhere to the patient over the entire pad surface to complete an electrical circuit during electrosurgery between the electrosurgical generator, the active electrode and the patient. Solid pad (GBS-Dm1030a) are for use with generators that do not have a Contact Quality Monitoring System(CQMS). Split pad (GBS-Db1031a) are for use with generators that have a CQMS(i.e.REM,ARM,NESSY etc.).





Basic Information



Model	Contact Area	Backing Material	Metal Foil	Shape	Cable	Intended for

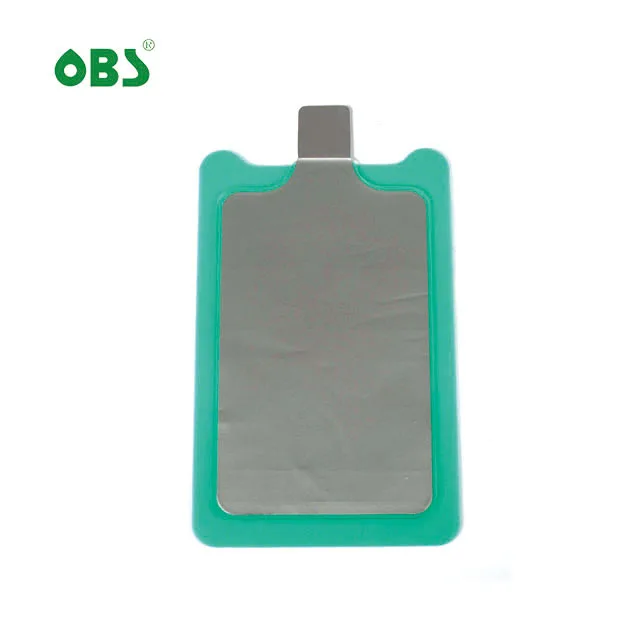

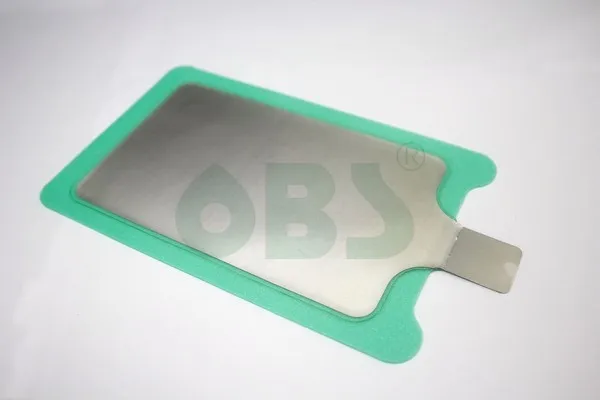

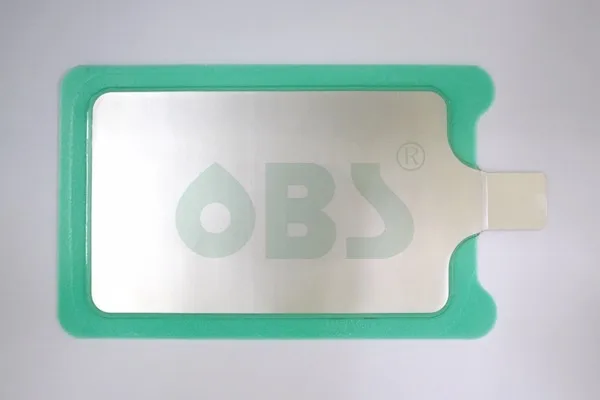

1030a	140.25cm²	Foam	Solid(mono-polar)	Upright	N/A	Adult

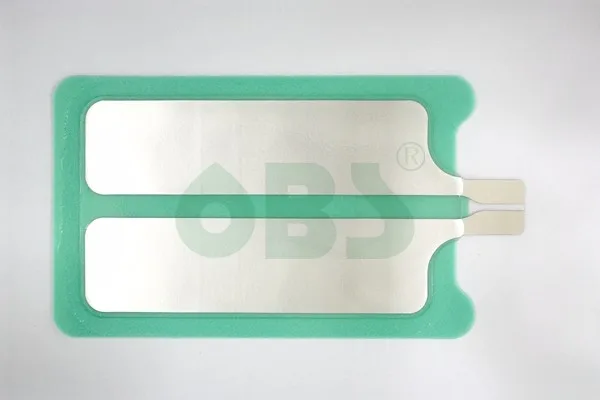

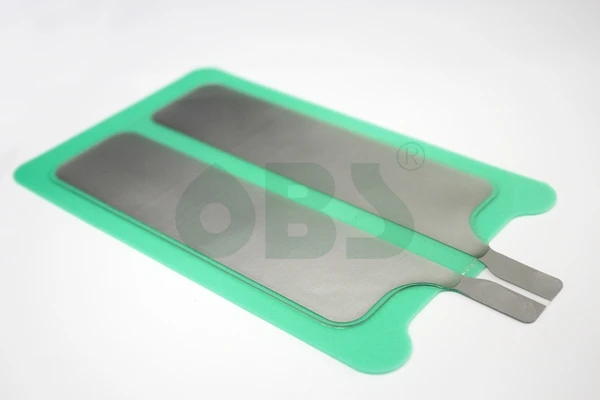

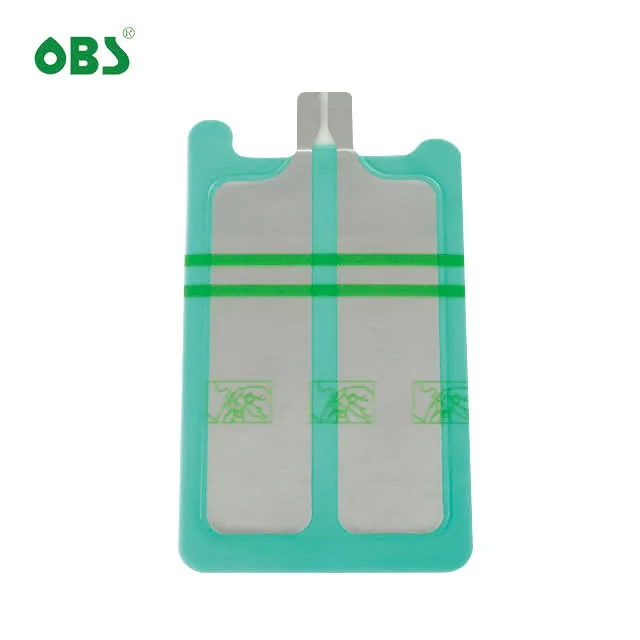

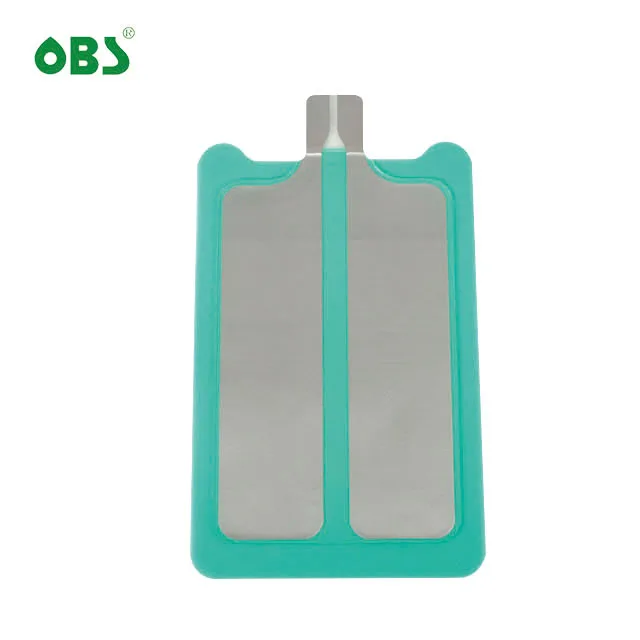

1031a	124.25 cm²	Foam	Split(bipolar)	Upright	N/A	Adult

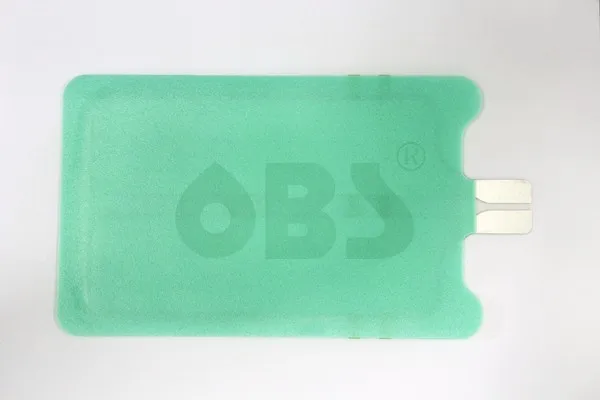

#1030A

















#1031A











Product Features:

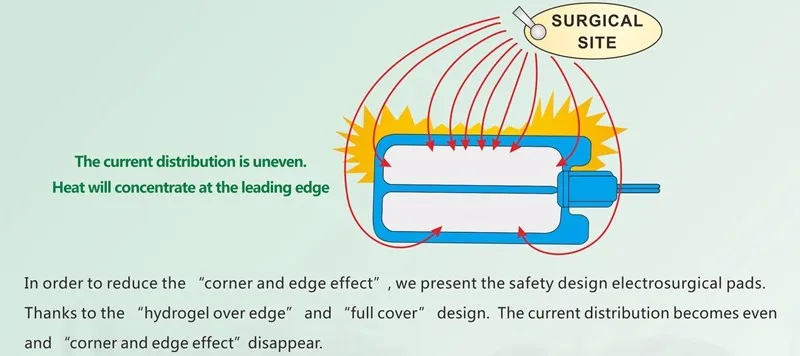

1. Minimized " Conern and Edge Effect (CAEE)".





2. Even current distribution. Special design on "full cover" and " hydrogel over edge" allows for even distribution of the current, protects the edge of aluminum foil and cuts the direct contact between the foil and the user.

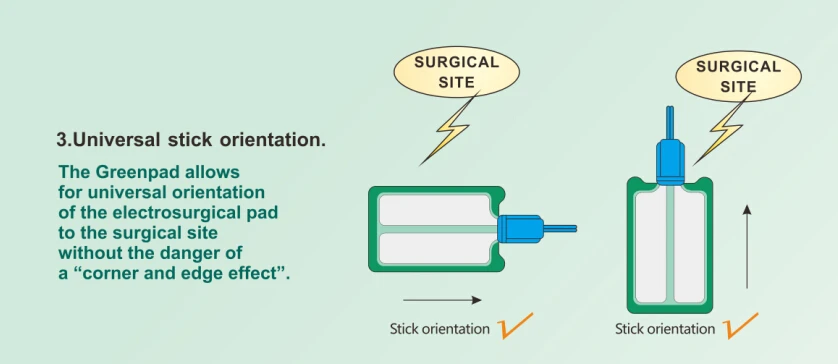

3. Universal stick orientation. More flexible than the tradtional pad on the sticking oriention, making it possible to stick with no concern for the orientation.





4. Smaller stick site

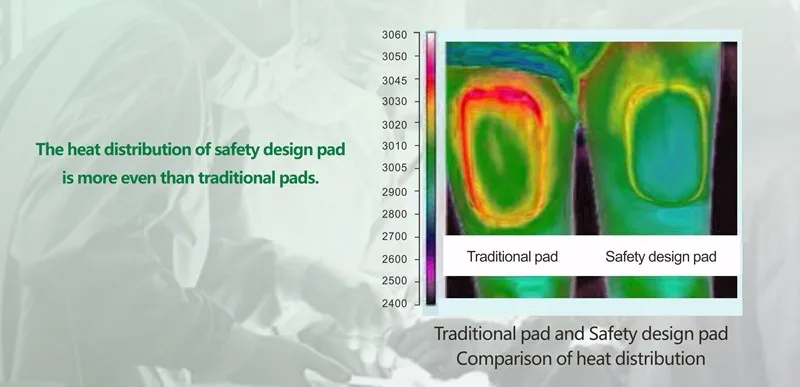

5. Low heat









Packing



1pc/pouch, 50 pouches/inner carton, 8 inner cartons/outer carton

Net weight:12kg    Gross weight:14kg

Carton Size: 510*325*300mm
