Electromagnetic lock for Double door with Buzzer(1200lbs) YM 500DBZ

Name: Electromagnetic lock for Double door with Buzzer(1200lbs) YM 500DBZ
SKU: 60533579029
Availability: InStock

Price:

Quantity:

Product Description

YM-500DBZ double door electric lock with buzzer. it will alarm till the door close ,if the door doesn't closer within the at the set time.

\t Size	\t 564Lx74.8Wx38.8H(mm)
\t Armature Plate Dimension	\t 564Lx74.8Wx38.8H(mm)
\t Holding Force	\t 500kgx2(1200Lbsx2)
\t Input Voltage	\t 12 or 24VDC
\t Current	\t 12V/420mA2 or 24V/210mA2
\t Signal Output	\t Dry Contact,Max Rating of Contact Current 3A
\t LED	\t Red indicates the door is unlock,Green indicates the door is lock
\t Buzzer	\t 5/10/20/30sec
\t Suitable	\t Wooden door , Glass door ,Metal door , Fireproof door
\t Surface Temp	\t ≤+20℃
\t Operating Temp	\t -10~+55℃(14-131F)
\t Humidity	\t 0~95%(non-condensing)
\t Cover Finish	\t Anodized aluminum
\t Lock Finish	\t Zinc
\t Armature Plate Finish	\t Zinc
\t Weight	\t 9.0kg

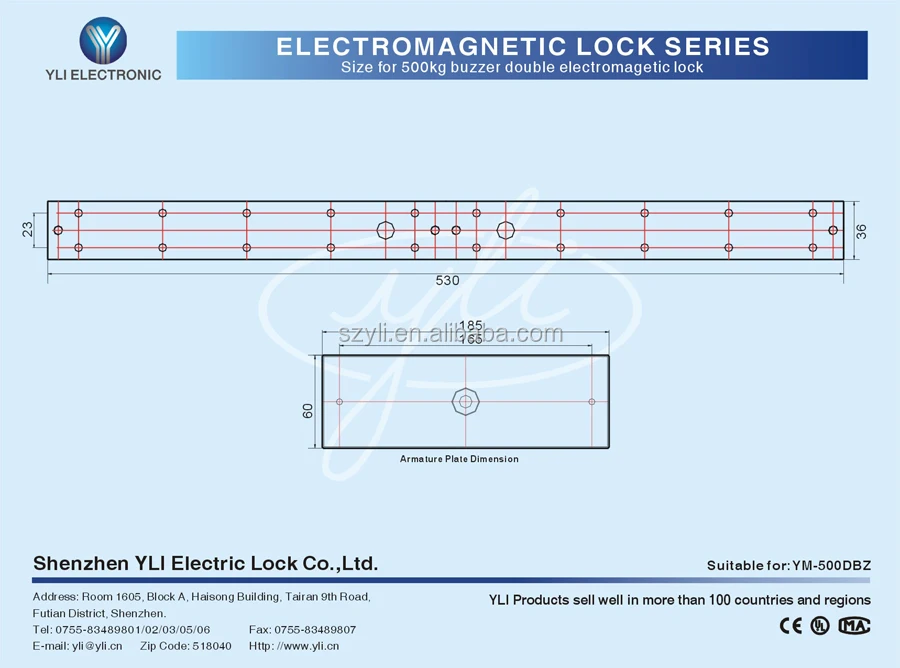

Dimension Diagram
