WEICHAI Deutz WP12 Series Marine Diesel Engine 350hp
- Category: >>>
- Supplier: Xiamen Sitaiqi Industry & Trade Co. Ltd.
Share on (60533598596):
Product Overview
Description

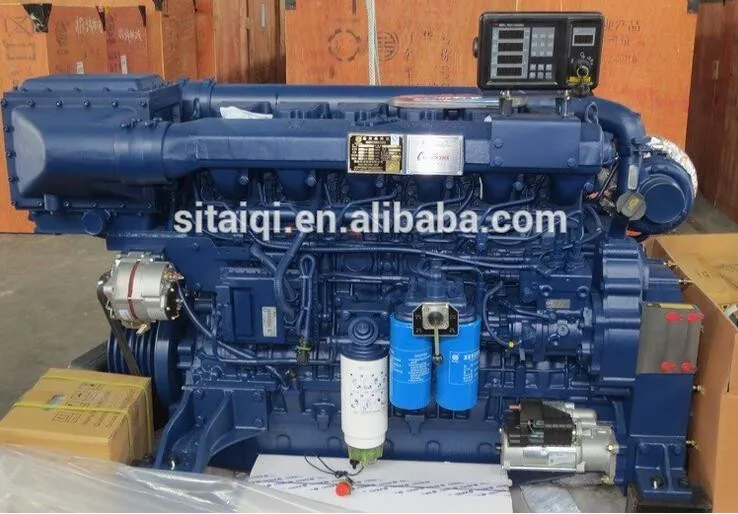

WEICHAI Deutz WP12 Series Marine Diesel Engine
Product Description
weichai WP12 series marine engine,rated power 350 hp-550hp
| MODEL | WP12C350-15 | WP12C400-18 | WP12C450-21 | WP12C500-21 | WP12C550-21 |
| TYPE | FOUR STROKES,WATER COOLED,DIRECT INJECTING COMBUSTION CHAMBER | ||||
CYLINDER NO. --BORE*STROKE | 6-126*155 | 6-126*155 | 6-126*155 | 6-126*155 | 6-126*155 |
| DISPLACEMENT (L) | 11.596 | 11.596 | 11.596 | 11.596 | 11.596 |
| PRESSURE RATIO | 17:01 | 17:01 | 17:01 | 17:01 | 17:01 |
| RATED OUTPUT | 258KW/350hp | 295KW/400hp | 330KW/450hp | 368KW/500hp | 405KW/500hp |
| SPEED/RMP | 1500 | 1800 | 2100 | 2100 | 2100 |
| AIR INTAKE TYPE | TURBOCHARGE | TURBOCHARGE, INTER-COOLING | |||
| FUEL CONSUMPTION | ≤192g/kw.h | ≤192g/kw.h | ≤192g/kw.h | ≤192g/kw.h | ≤192g/kw.h |
| OIL CONSUMPTION | ≤1.63g/kw.h | ≤1.63g/kw.h | ≤1.63g/kw.h | ≤1.63g/kw.h | ≤1.63g/kw.h |
| COOLING TYPE | FORCED WATER COOLED | ||||
| LUBRICATION | PRESSURE AND SPLASH | ||||
| STARTING | ELECTRIC STARTING | ||||
| NET WEIGHT/KG | 1200 | 1200 | 1200 | 1200 | 1200 |
| DIMENSION/MM | 1717×836×1274 | 1717×836×1274 | 1167*619*1158 | 1717×836×1274 | 1717×836×1274 |
STANDARD FITTINGS
standard engine package, belt driven cast iron self-priming sea water pump , local engine monitor , Classification product certificate , EIAPP |
OPTIONAL FITTINGS
engine front PTO , pre-mesh type air starter set , spring starter , remote monitor , dirty oil hand pump , rubber impeller sea water pump/self priming bronze sea water pump /, 2nd means of monitoring mechanical instruments , L.O & F.W pre-heater , marine gear alarm system , lig |
