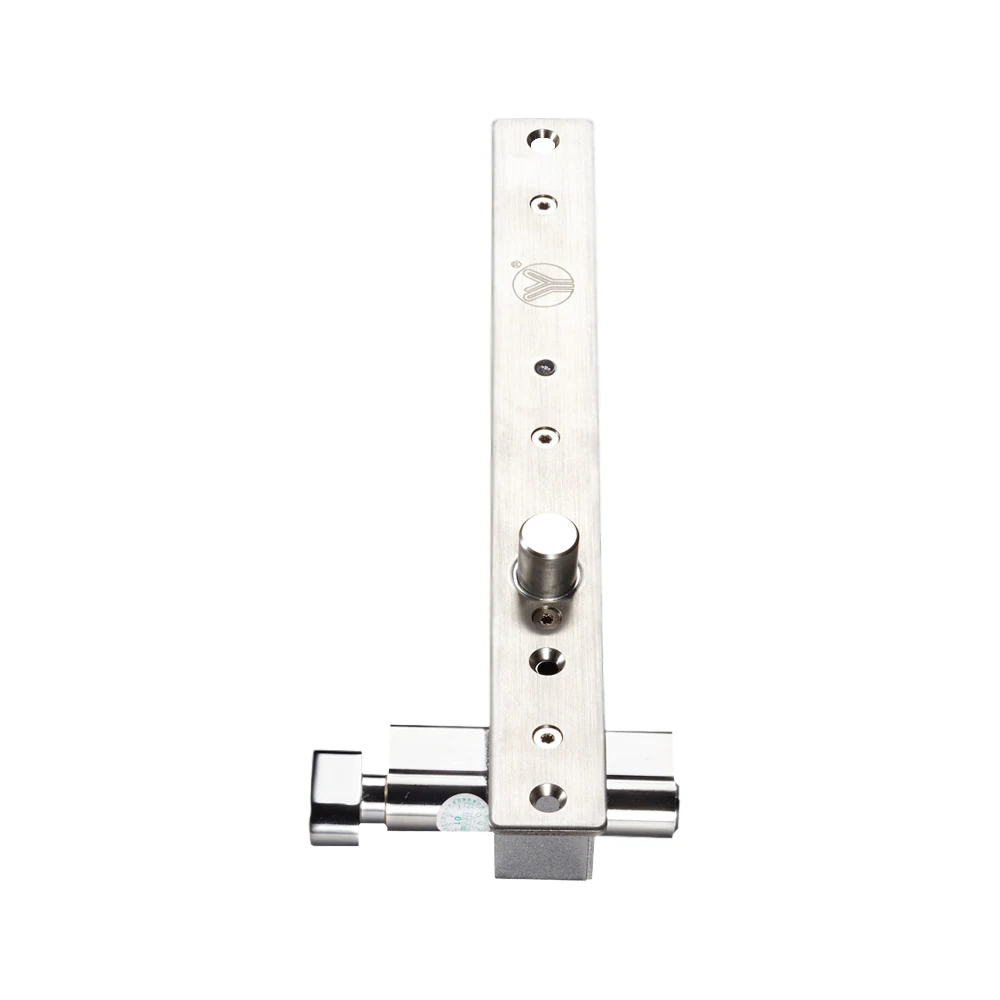

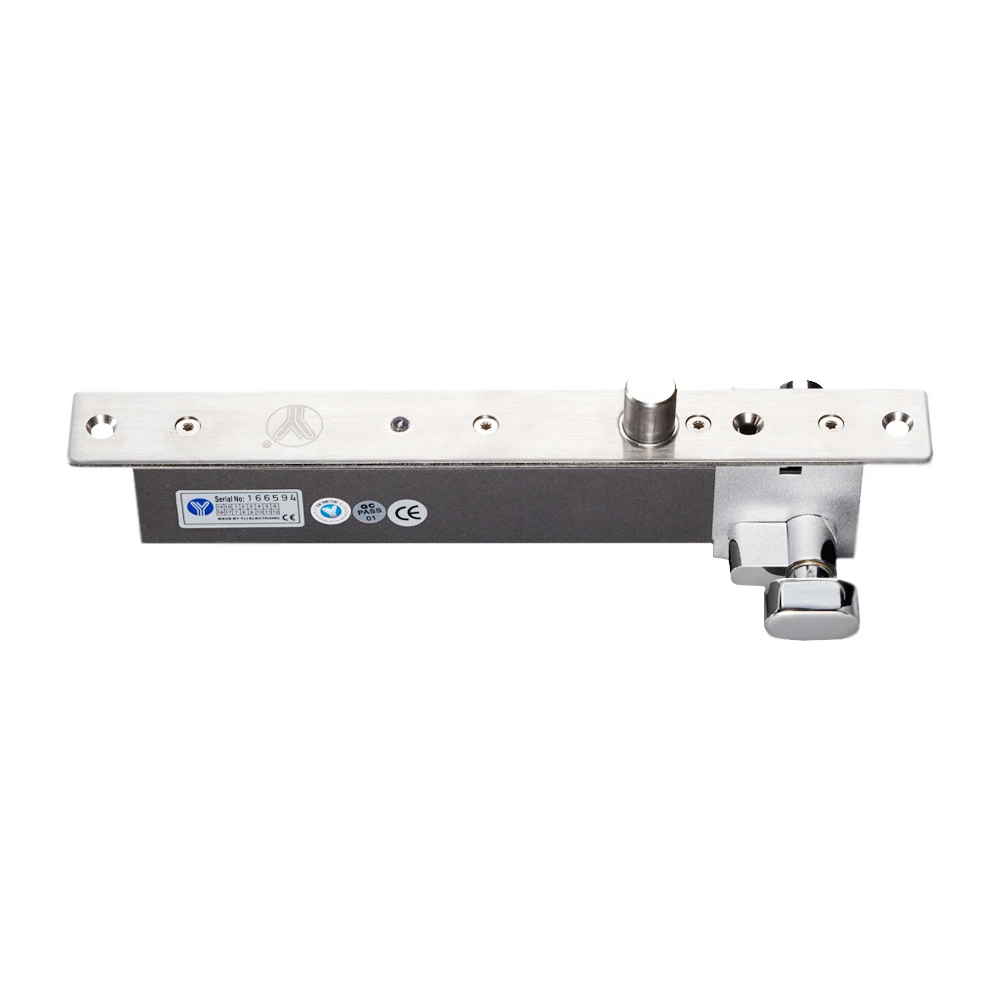

Fail Secure Electric Bolt W/Cylinder and LED YB 600B(LED)
- Category: >>>
- Supplier: Shenzhen Yli Electric Lock Co. Ltd.
Share on (60533619339):
Product Overview
Description
Product Description
Product Application

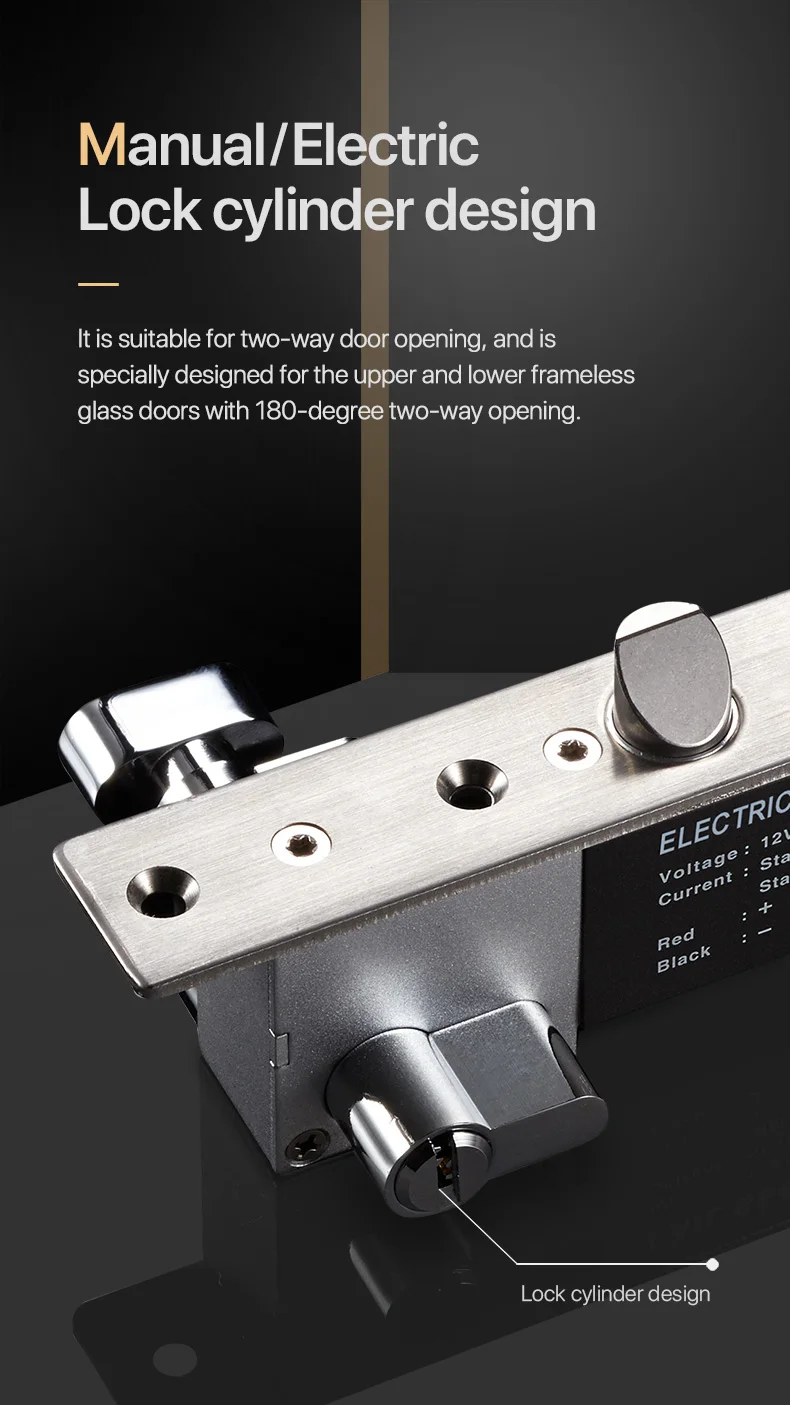

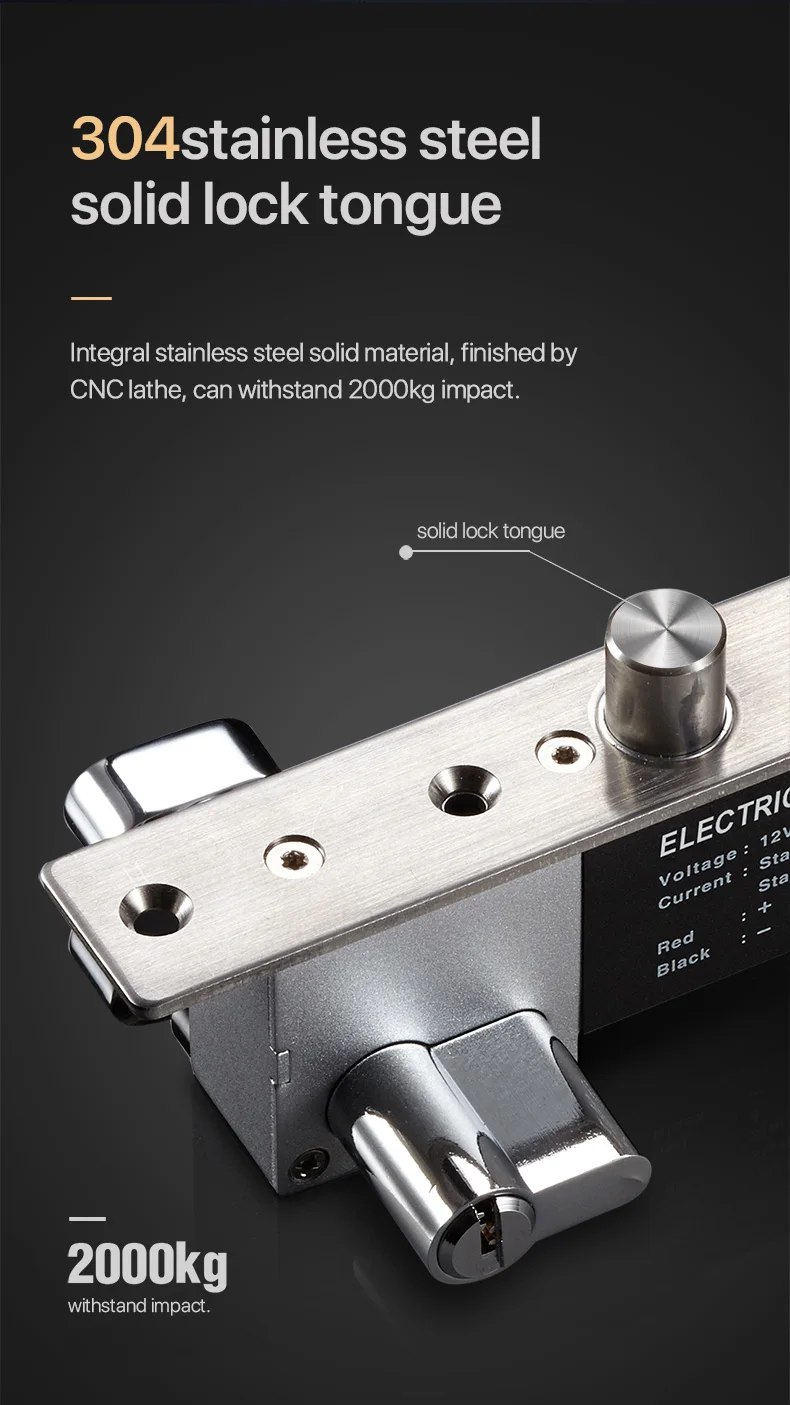

YB-600B (LED) is an all-metal construction electric bolt.with European-type cylinder and has both electric control and manual control functions. The Fail Secure is Unlocked when energized.Under the temperature of 60 ℃ or -40 ℃ below zero it can be operated normally benefit by the all-metal linkage parts. The 304 stainless steel bolt can withstand 2000kg holding force.

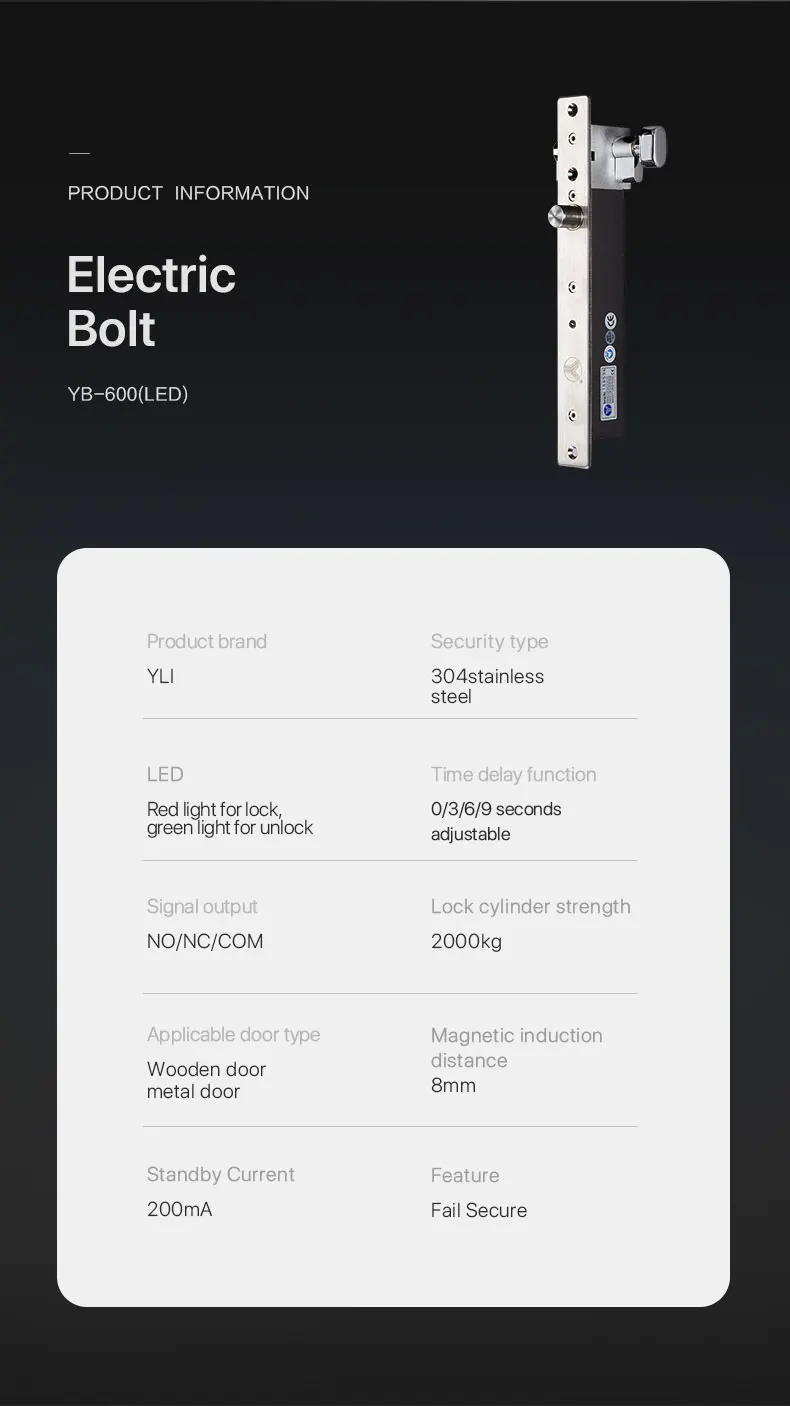

Feature | Fail Secure | ||||
Lock Body | 270Lx30WX48H(mm) | ||||
Magnetic Plate | 100Lx25Wx3H(mm) | ||||

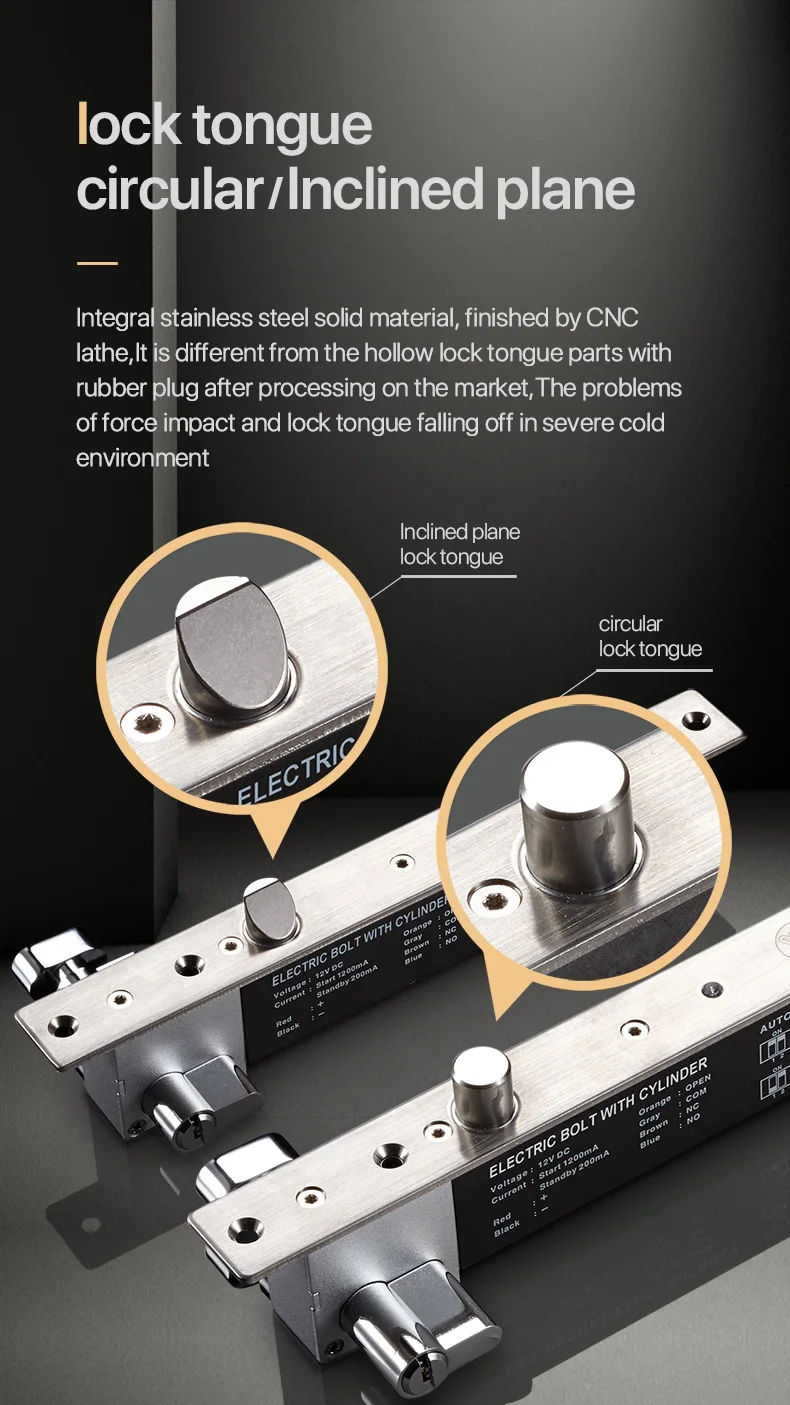

Bolt | 16(length)*16(diameter)(mm) | ||||
Voltage | DC12V | ||||
Start Current | 1200mA | ||||
Standby Current | 200mA | ||||

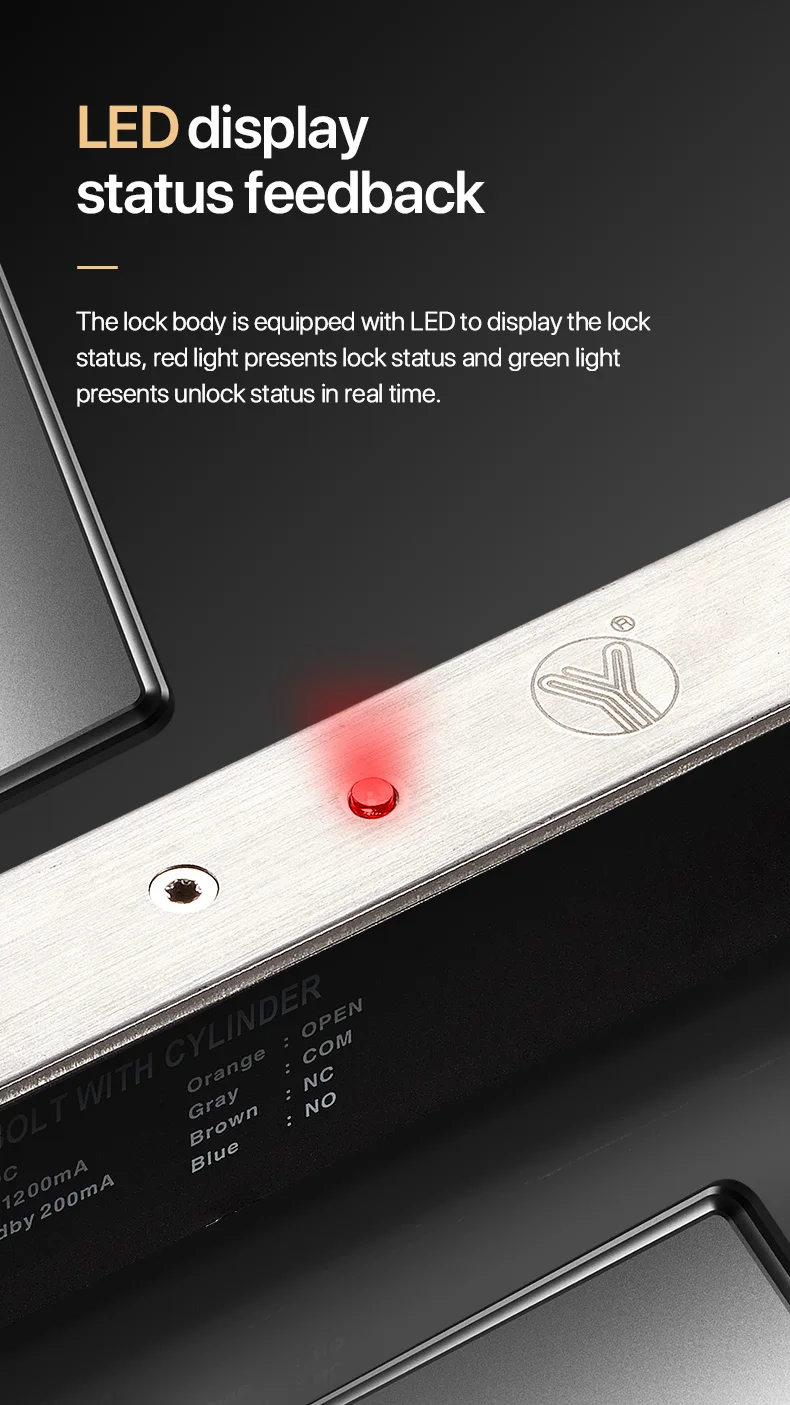

LED | Light on indicates locked, light off indicates unlocked | ||||

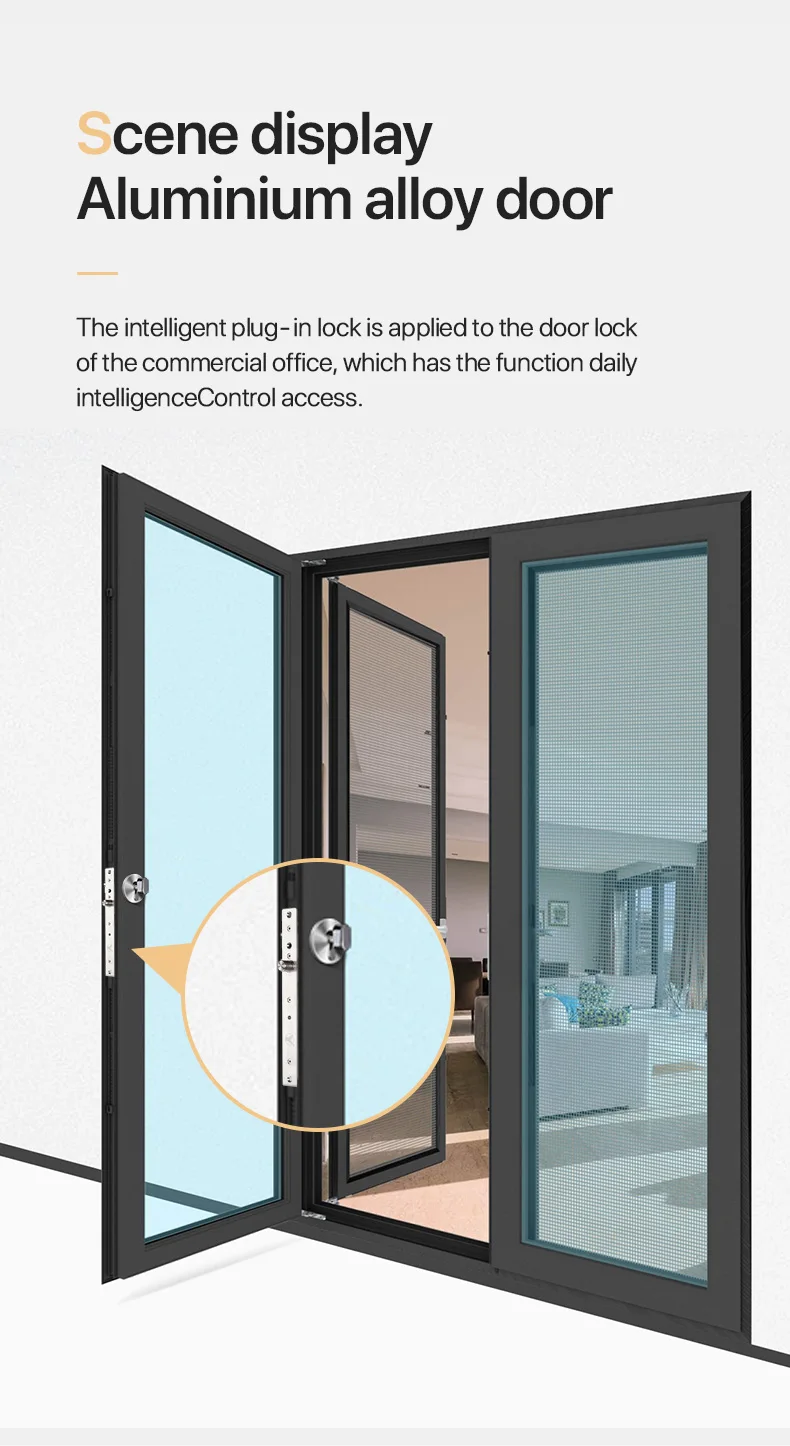

Suitable For | Wooden door , metal door , fireproof door , glass door | ||||

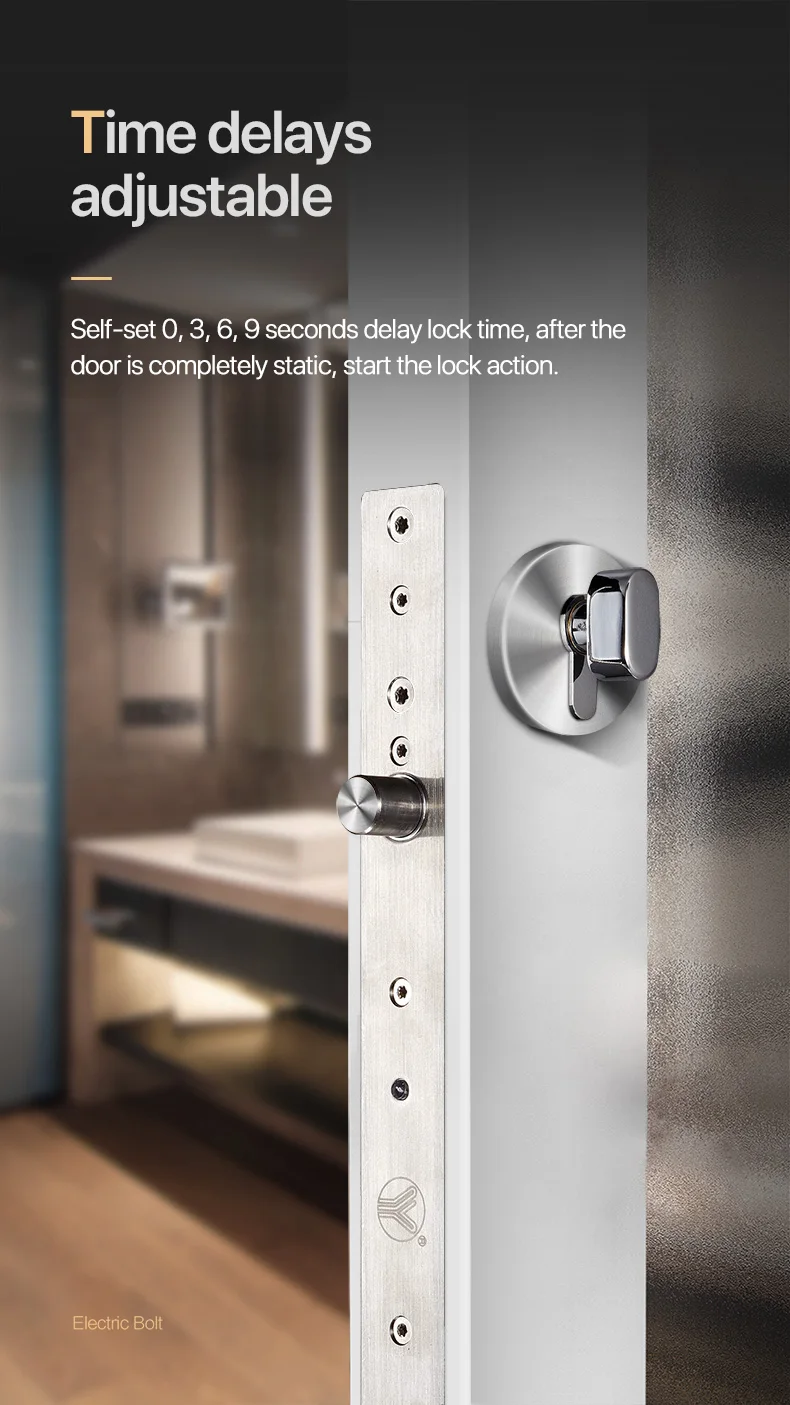

Autolock Time Delay | 0,3,6,9sec | ||||

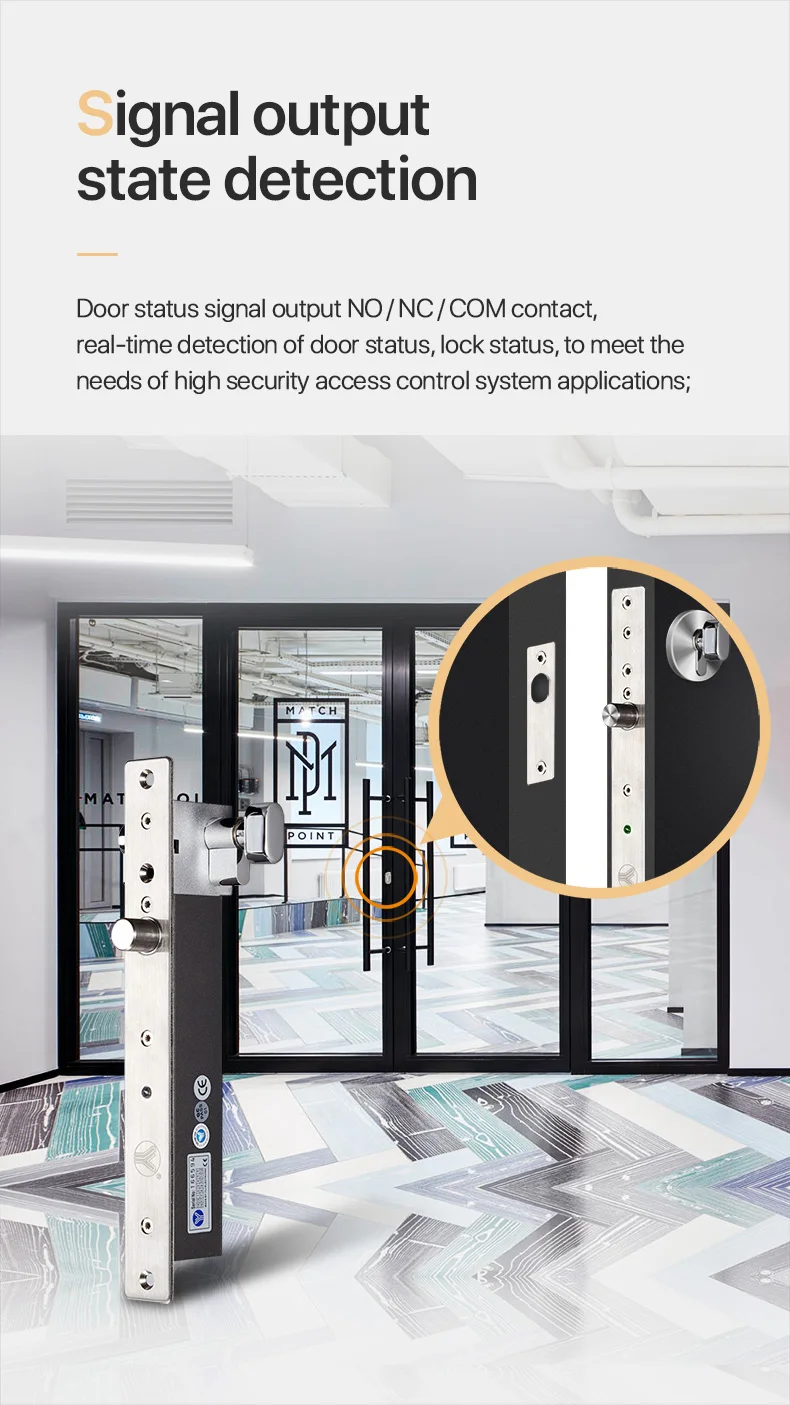

Signal Output | Lock signal(NO/NC/COM) | ||||
Material | 304 stainless steel,wire draw finishing | ||||
Induction Distance | Within 8mm | ||||
LED | Light on indicates locked, light off indicates unlocked | ||||
Weight | 1.6kg | ||||

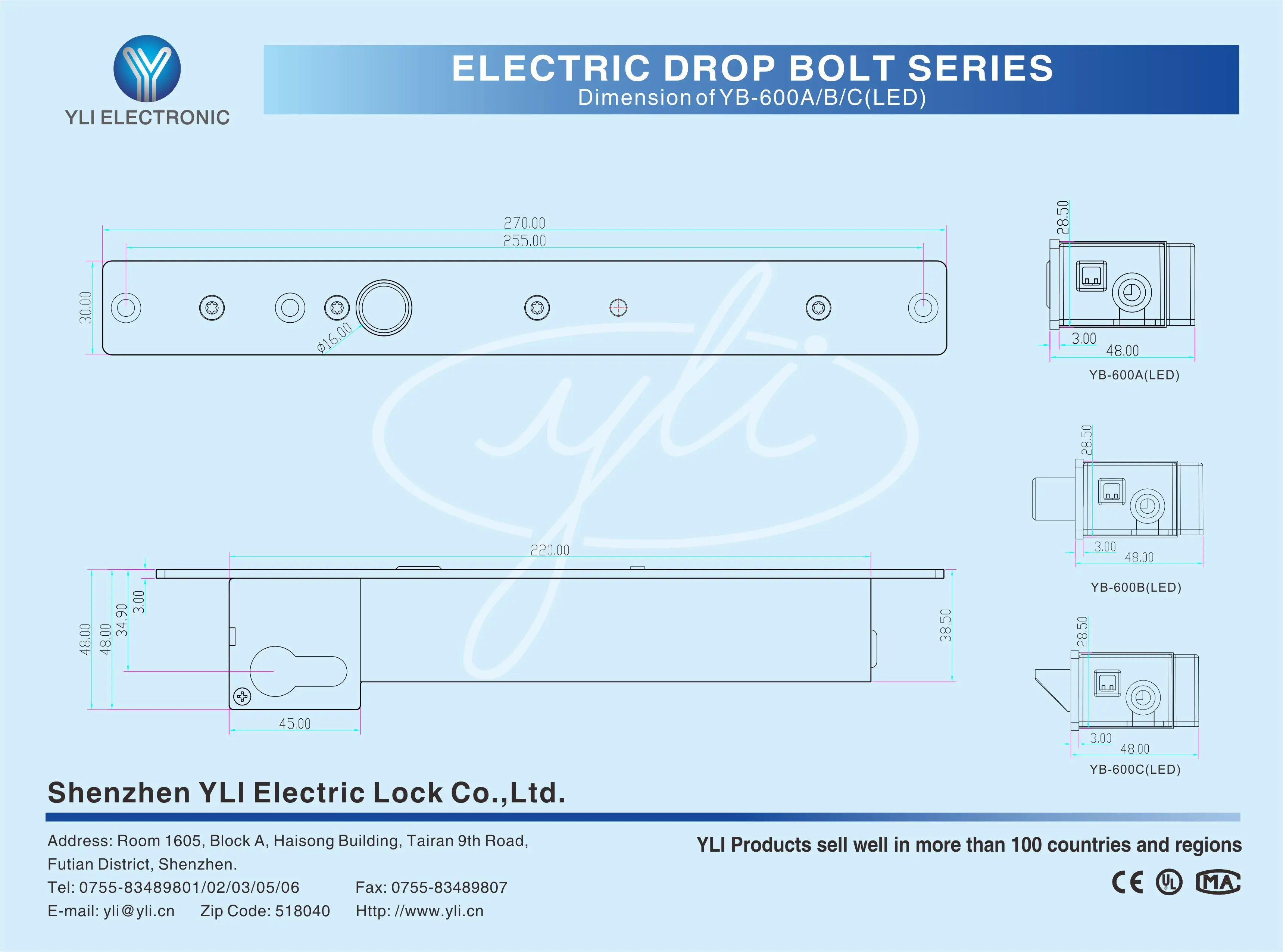

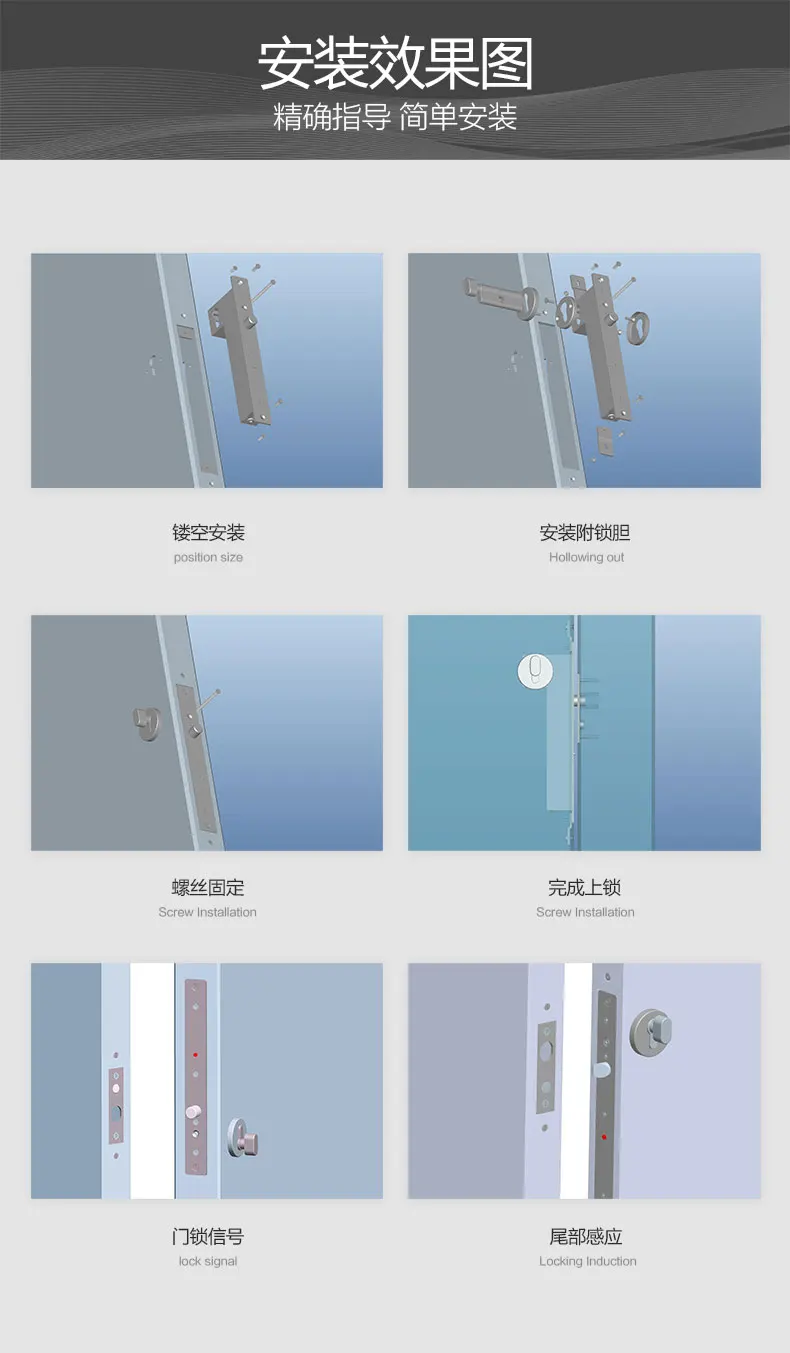

Installation Diagram
