Industrial NDT 365nm LED UV Fluorescent Lamp Rechargeable Flashlight for Nondestructive Testing
- Category: >>>
- Supplier: YUSHI INSTRUMENTS
Share on (60533738928):
Product Overview
Description
Product Description

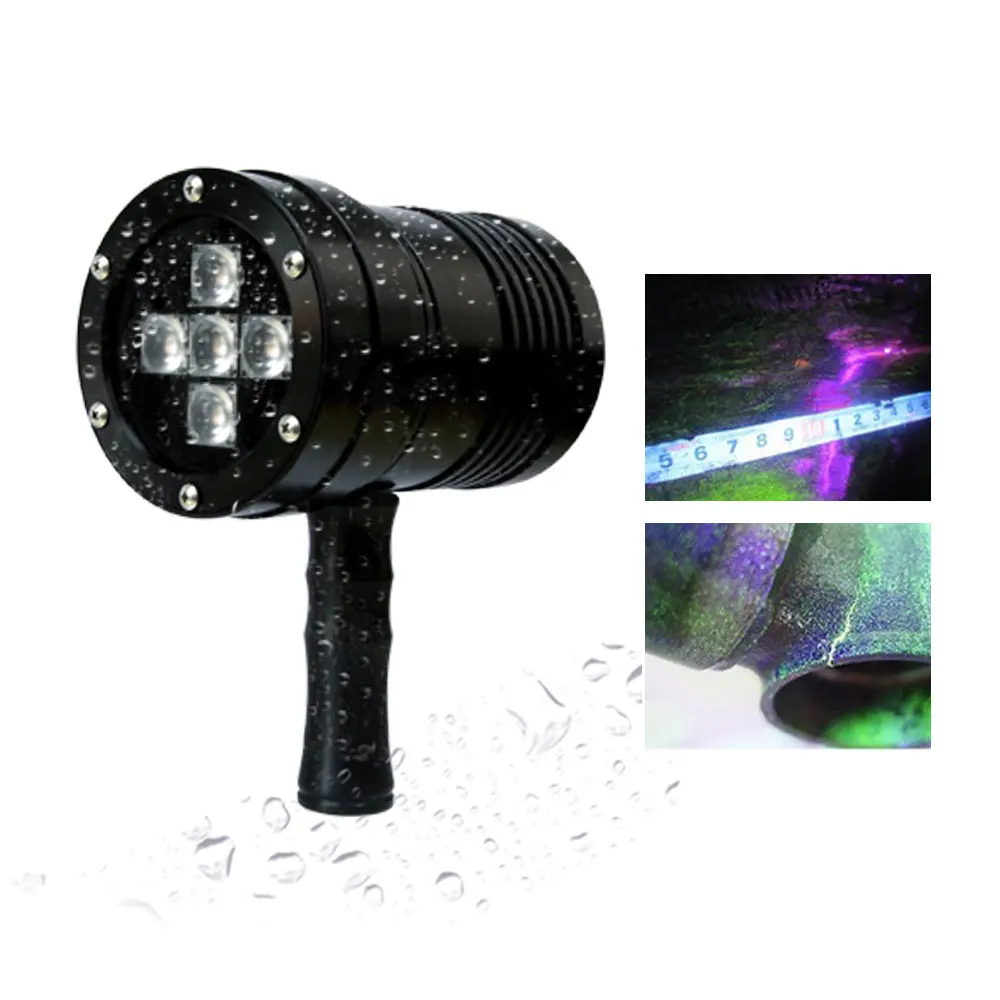

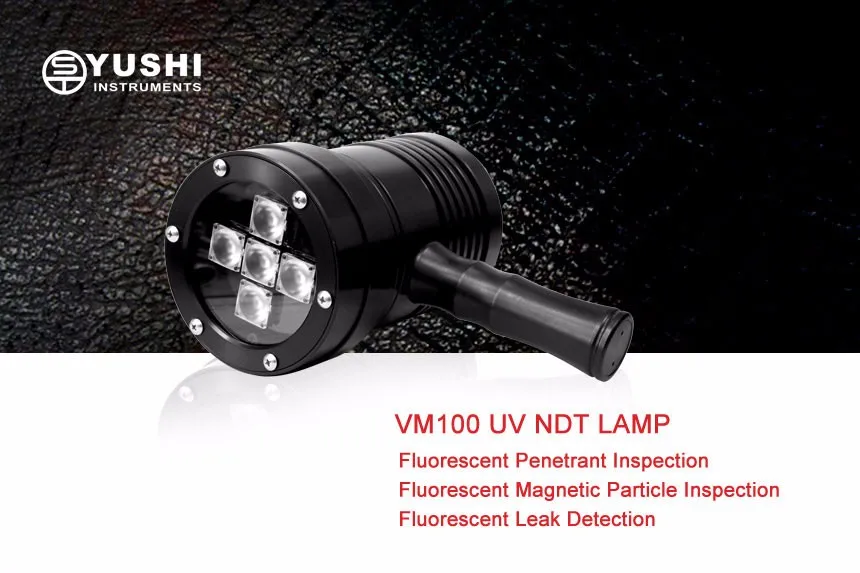

Industrial NDT 365nm LED UV Fluorescent Lamp Rechargeable Flashlight for Nondestructive Testing
Main Application of the NDT UV lamp
Fluorescent Penetrate Testing
Fluorescent Magnetic Particle Flaw Detection
Fluorescence Leak Detection
Other Application
Oil and Stain detection, special gas, oil and gas pipeline inspection, Fluorescence Reflectance Detection of Special Substances, Criminal investigation and forensic investigation, Paper currency identification, gem appreciation, agriculture, food, medical and other related industries.

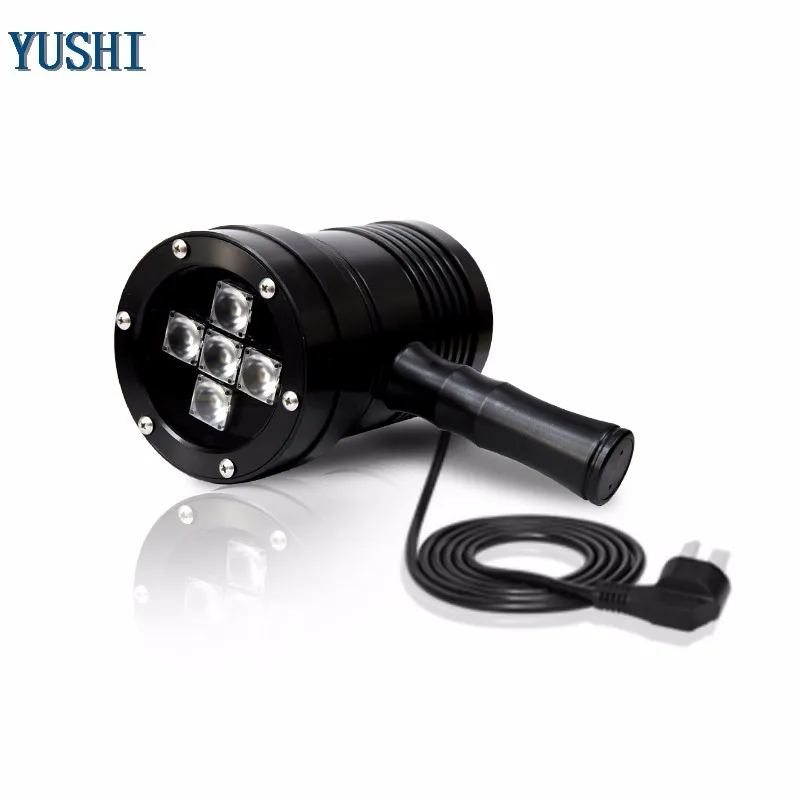

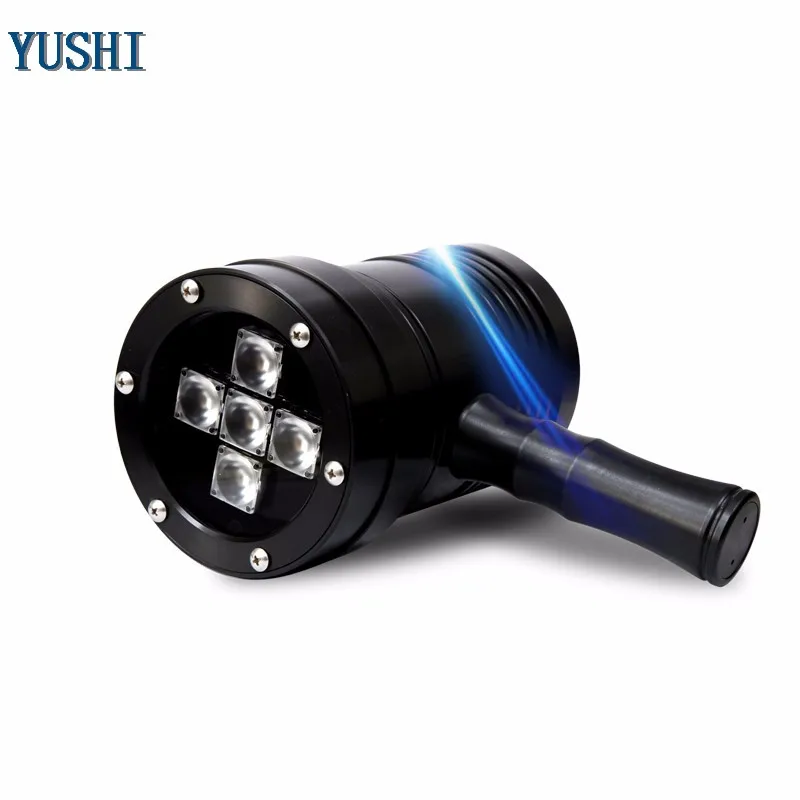

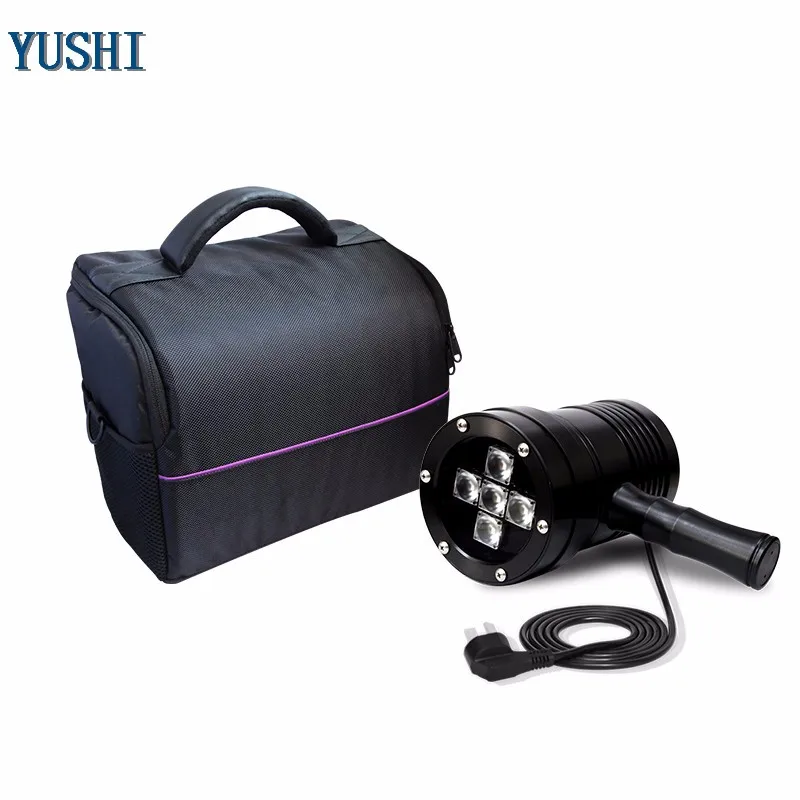

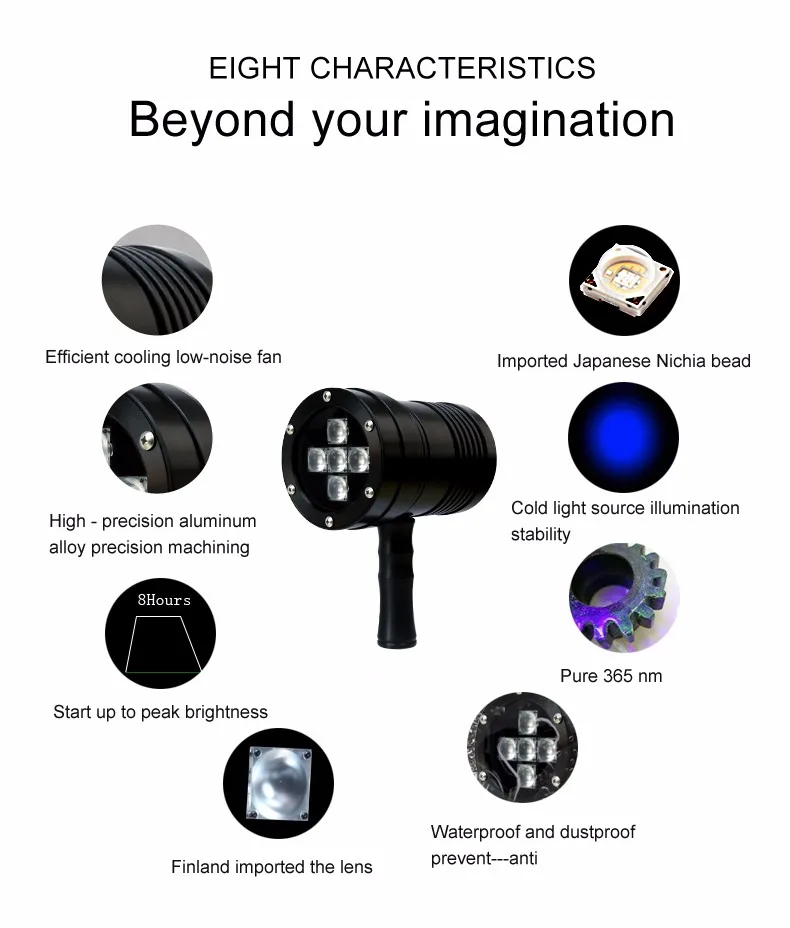

Detailed Images

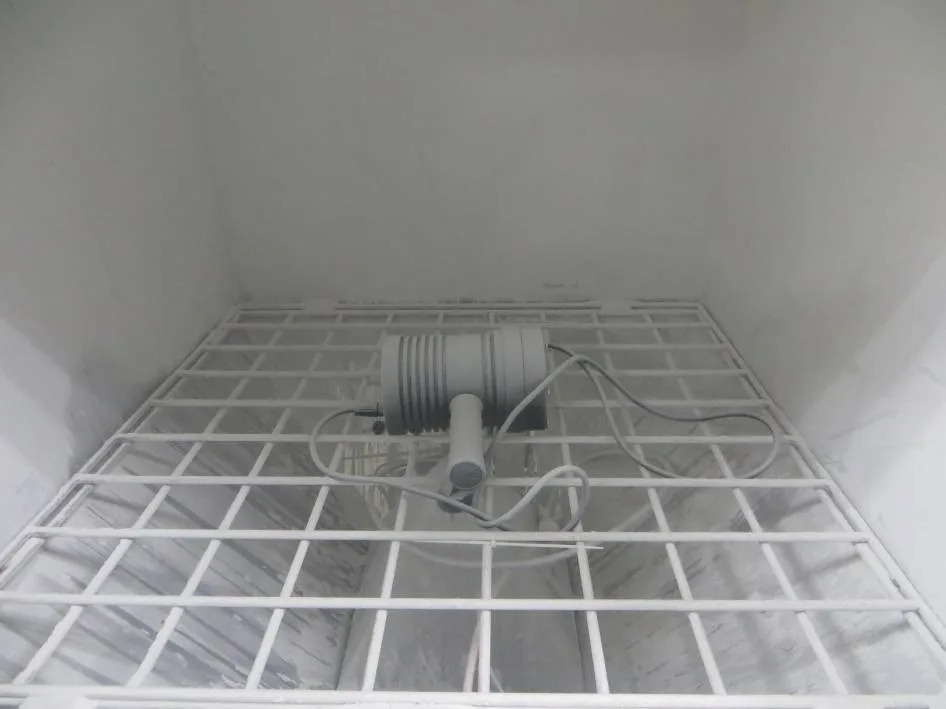

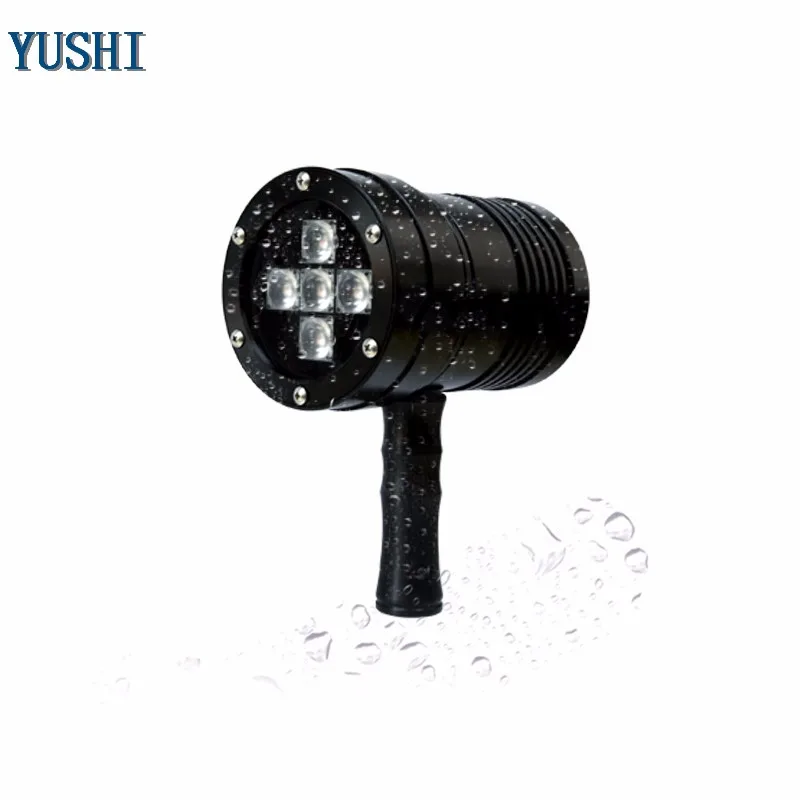

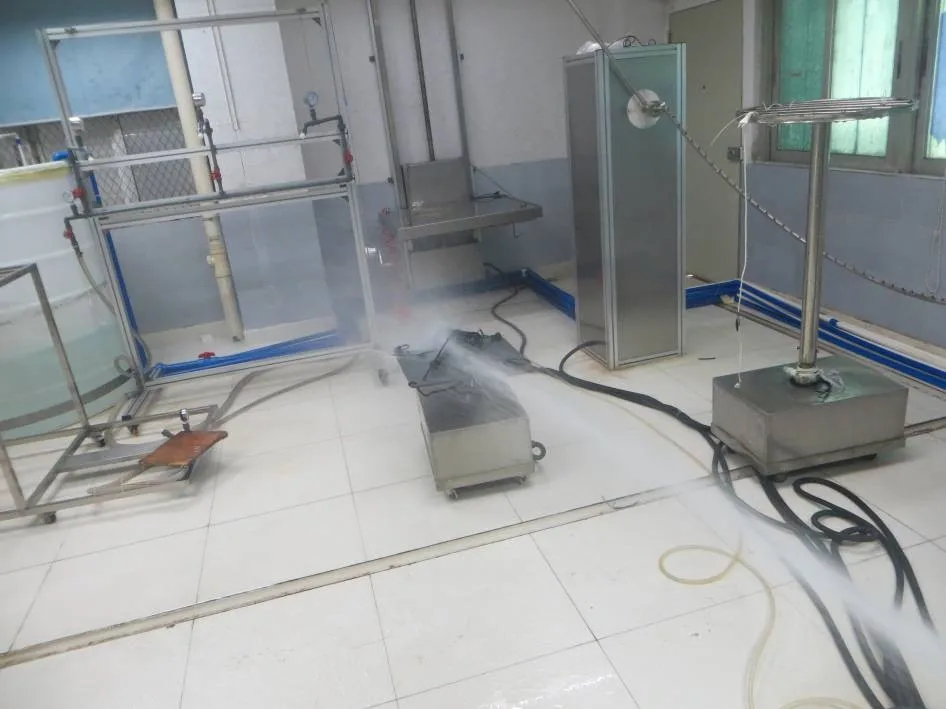

Waterproof and Dustproof testing.
The product has passed through International Standard of IEC 60529 --Housing Protection Grade(IP66)--dustproof and waterproof testing, wider working environment and more reliable.

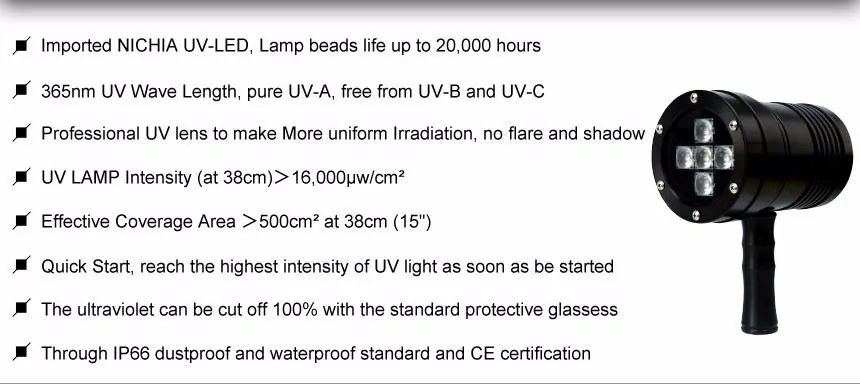

Product Parameter
Name | UV lamp light flashlight |
Model | VM100 |
Power Supply | AC |

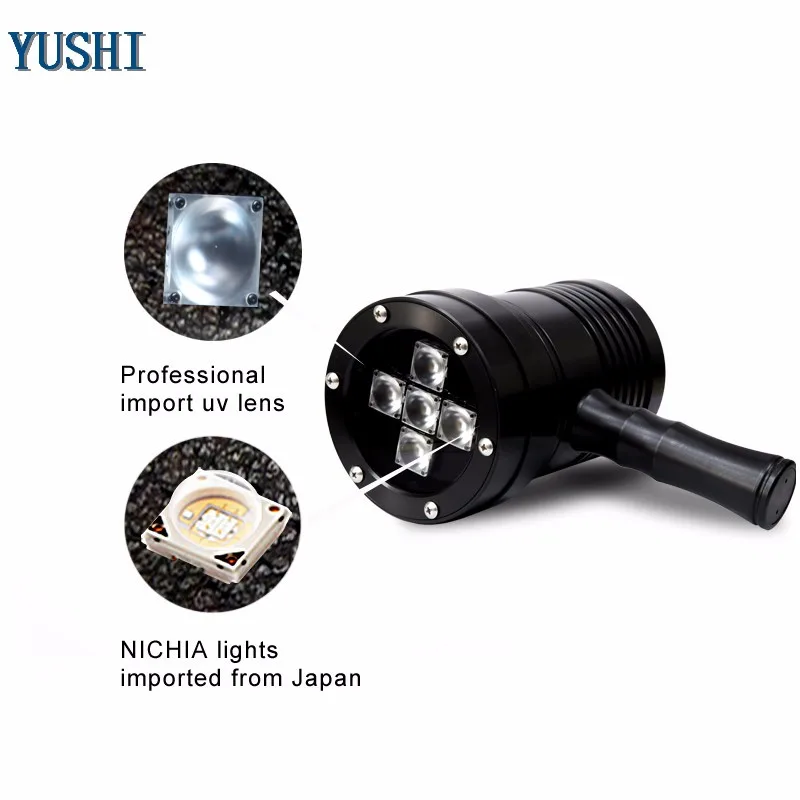

Lamp Beads | NICHIA 365nm Ultraviolet band LED Lamp Beads |
Lamp Bead Amount | 5 |
Input Voltage | 100-240VAC |
Output Power | 15W |

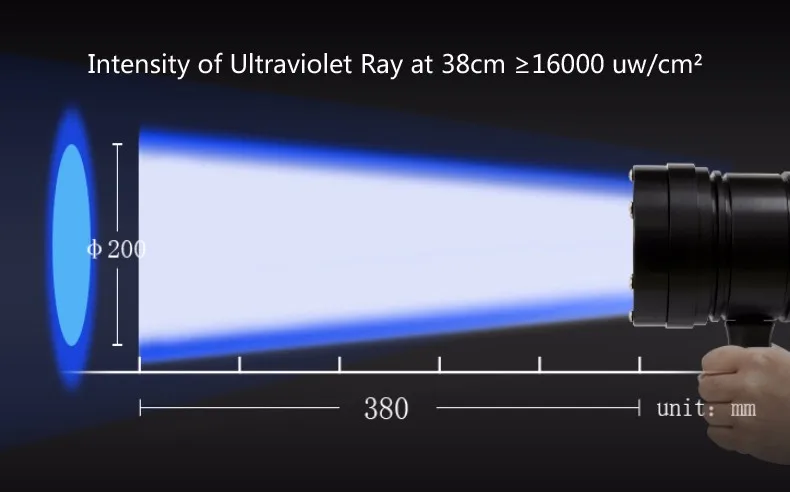

Intensity of Ultraviolet Ray at 38cm Distance | ≥16000uW/cm2 |
Irradiated Area at 38cm Distance | ￠200mm |
Diameter of Light Inlet Window | ￠88 |
Outline Dimension | ￠123 mm×190 mm×120 mm |
Weight(including Battery) | 1290g |

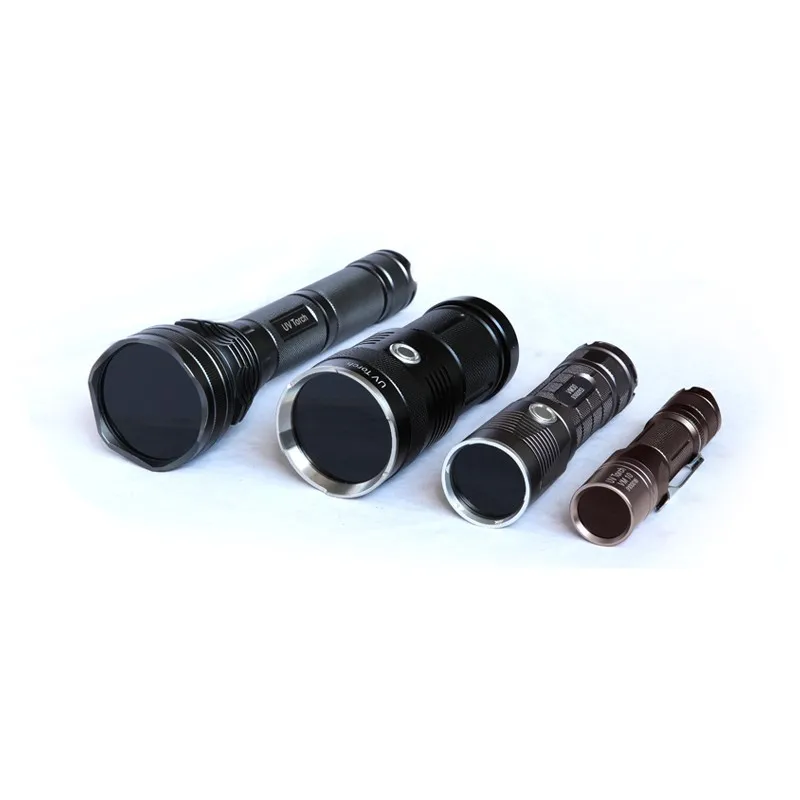

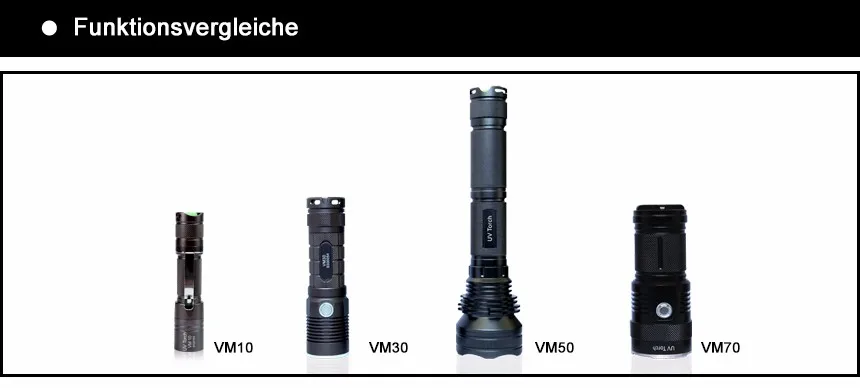

More Types
Model | VM10 | VM30 | VM50 | VM70 | VM100D | ||||
Power Supply | Chargeable Battery | Chargeable Battery | Chargeable Battery | Chargeable Battery | AC or Chargeable Battery Group | ||||
Lamp Beads | NICHIA 365nm Ultraviolet band LED Lamp Beads | ||||||||
Lamp Bead Amount | 1 | 3 | 4 | ||||||
Input Voltage | 3.7-4.2V | 3.7-4.2V | 3.7-8.4V | 3.7-4.2V | 100-240VAC | ||||
Output Power | 3W | 9W | 12W | ||||||
Intensity of Ultraviolet Ray at 38cm Distance | ≥10000uW/cm2 | ≥13000uW/cm2 | ≥17000uW/cm2 | ≥20000uW/cm2 | ≥11000uW/cm2 | ||||
Irradiated Area at 38cm Distance | ￠43mm | ￠45mm | ￠55mm | ￠80mm | ￠200mm | ||||
Diameter of Light Inlet Window | ￠22mm | ￠34mm | ￠55mm | ￠50mm | ￠88mm | ||||
ICR 18650 | ICR 26650 | ICR 26650 | ICR 18650 | ICR 18650--2600mAh 3.7V | |||||
Battery Capacity | 2600mAh | 4800mAh | 4800mAh | 2600mAh | |||||
Number of Battery | 1 | 1 | 2 | 4 | 2﹡4 | ||||
Charging Time | ≥5H | ≥6H | ≥7H | ≥5H | ≥4H | ||||
Working Hours | ≥4H | ≥5H | ≥8H | ≥5H | ≥7H | ||||
Battery Life | More than 500 time for fully charge and discharge | ||||||||
Outline Dimension | ￠28 mm | ￠40 mm | ￠62 mm | ￠60 mm | ￠123 mm | ||||
￠24 mm | ￠33 mm | ￠34 mm | ￠50 mm | 190 mm | |||||
128 mm | 144 mm | 240 mm | 143 mm | 120mm | |||||
Weight(including Battery) | 140g | 240g | 520g | 610g | 1560g | ||||

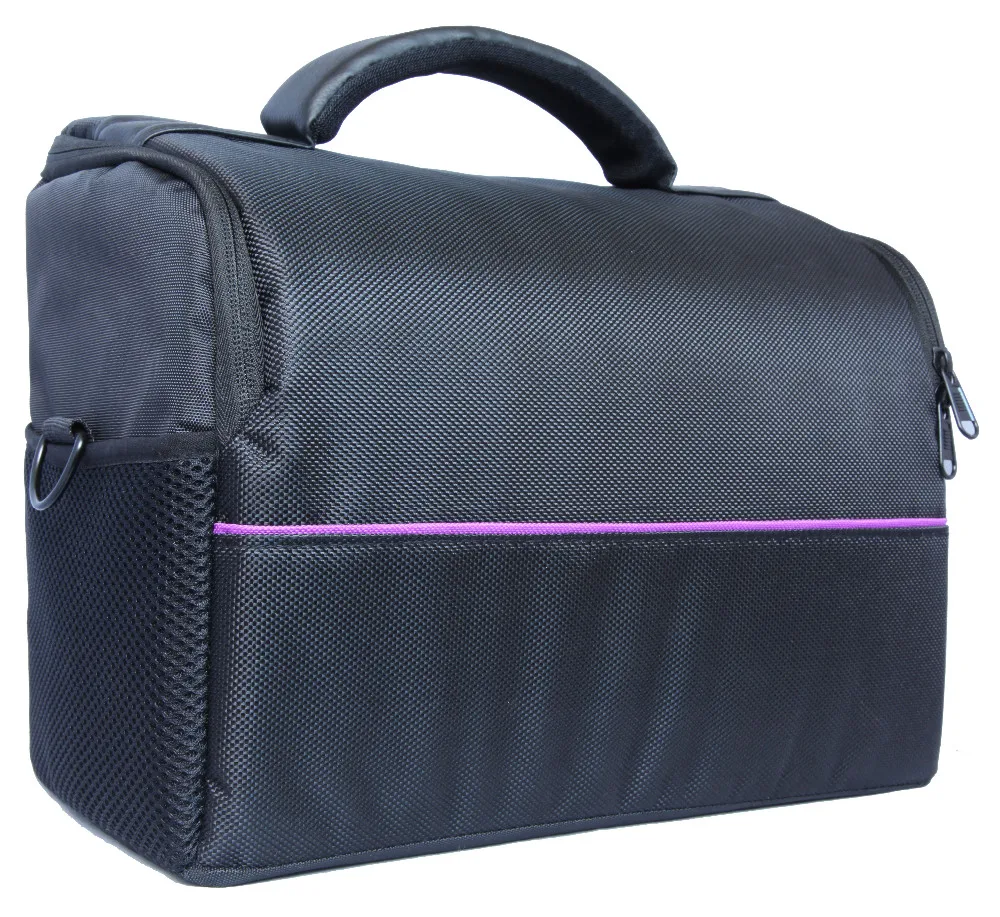

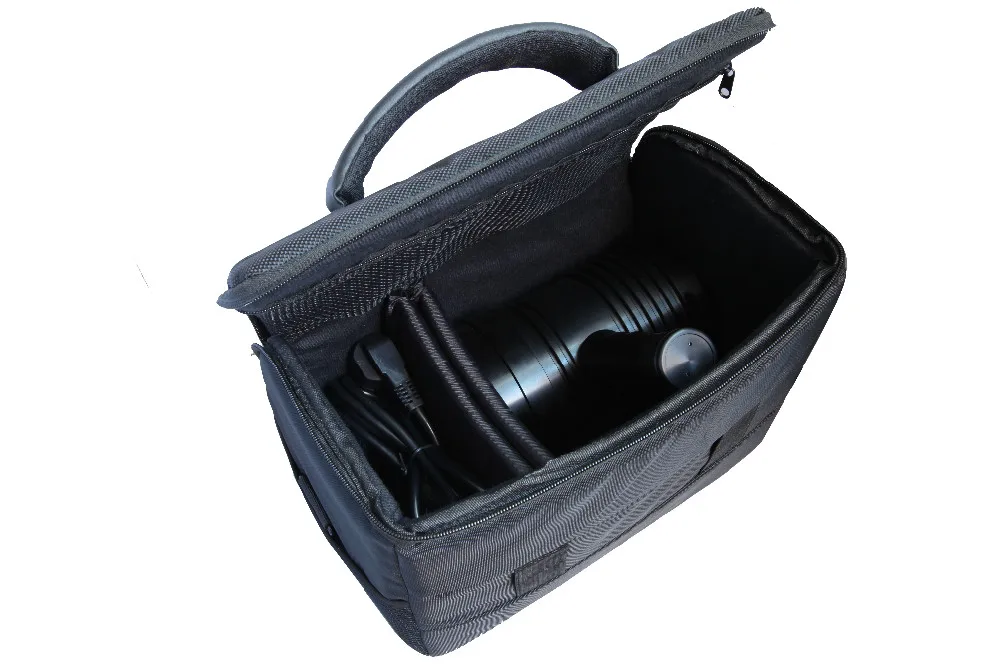

Packing & Delivery
