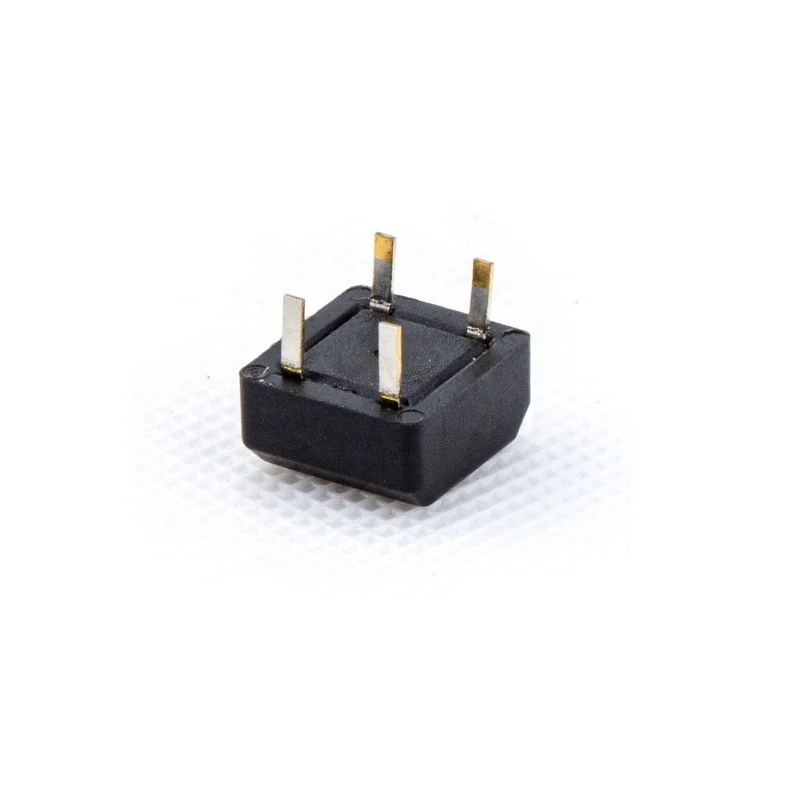

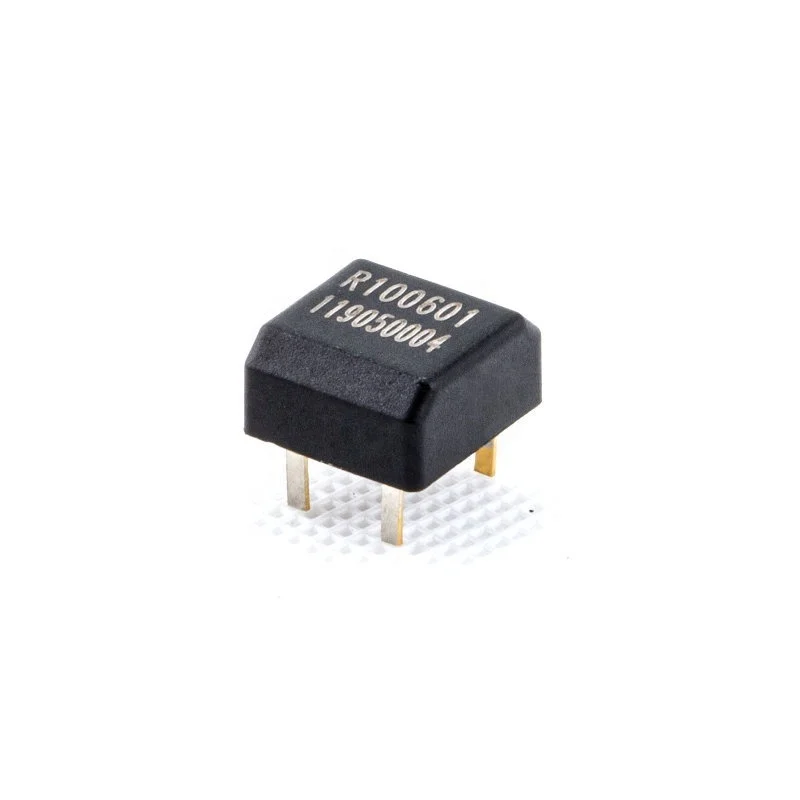

OncQue RBS100601 rolling ball rotation sensor alarm system sensor tilt switch
- Category: >>>
- Supplier: ONCQUE CORPORATION
Share on (60533742954):
Product Overview
Description
Product Description
Function
Rotation detection at 45° in vertical position.
Specification

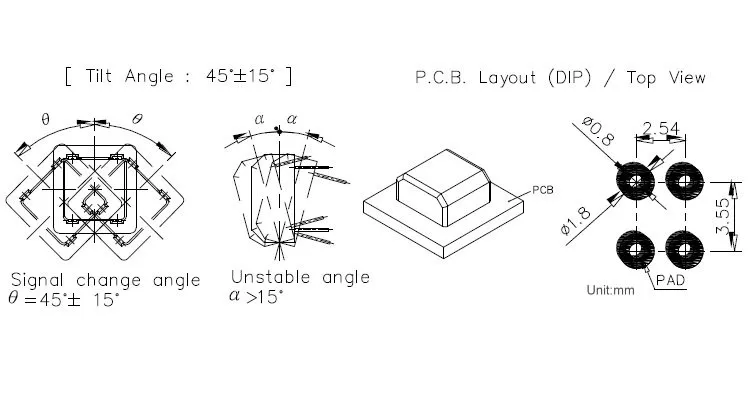

Tilt Angle: 45°±15°
Type : DIP
Suitable for Vertical PCB.
Switch State : Normal Close
Description: Ball-Contact
Feature
- Small size & compact space.
- Housing made of high insulation plastic material, free from electric conduction and rust problem.
- Terminals and balls are gold plated to enhance the life.
- All plastic material subject to industrial purpose meets high temperature and fireproof function.
- Simple switch signal, easy for circuit design.
- Comply with RoHS,complete replacement of mercury switch and meet environmental protection.
- More economic than IC design.
Current / Voltage Suggested
Input Current (mA) | Operating Voltage (V) | Condition |
1.0 | 5 - 12 | -- |
Electrical Characteristics
Contact Rating | 10 mA , 5VDC |
Contact Resistance | 50 Ω max |
Insulation Resistance | 50 MΩ min. At 100 VDC |
Dielectric Strength | 50 VDC min. For 1 minute |
Capacitance | 5 pF max |
Conductive Rate | 85% min |
Mechanical Characteristics
Operating Temperature | -25°C to 85°C |
Storage Temperature | -40°C to 85°C |
Humidity | 40°C / 95% RH |
Mechanical Life | 2 Hz horizontal 1,000,000 times |
Electrical Life | 100,000 times |
Note
For the continued product improvement as one of the company policy, specifications may change or update without notice. The latest information can be obtained from our sales offices. Normally, all products are supplied under our standard conditions.
For the continued product improvement as one of the company policy, specifications may change or update without notice. The latest information can be obtained from our sales offices. Normally, all products are supplied under our standard conditions.
Dimension & Packing

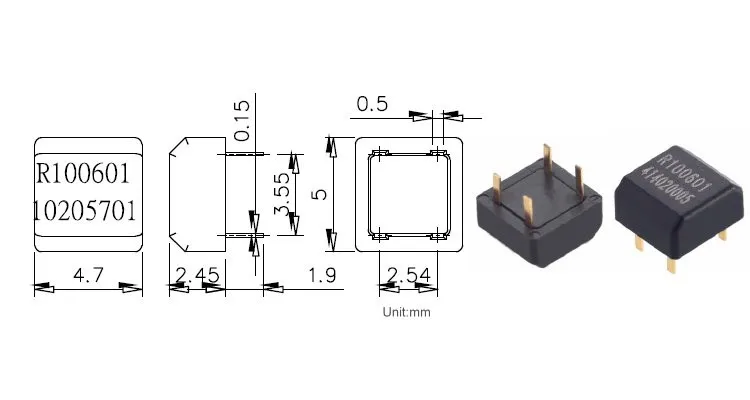

Dimension of RBS100601
All made in TAIWAN and EXAMINED before shipment
Packing of RBS100601
All made in Taiwan and Examined before shipment
Package | Quantity | Total Quantity | Dimension(mm) |
PE bag | 1,000 pcs | 1,000 pcs | 205L*145W |
Inner box | 10 PE bag | 10,000 pcs | 348L*191W*85H |
Carton | 3 boxes | 30,000 pcs | 364L*278W*213H |
Patent
Taiwan
- Taiwan Patent No. I 239025
- Taiwan Patent No. I 261280
- Taiwan Patent No. M 455971
- Taiwan Patent No. I 505313
USA
- U.S.A. Patent No. US 7,045,724 B1
- U.S.A. Patent No. US 7,473,857 B2
- U.S.A. Patent No. US 8,969,747 B2
China
- China Patent No. ZL 200410091589.7
- China Patent No. ZL 200610078234.3
- China Patent No. ZL 201220661492.5
- China Patent No. ZL 201210510604.1
Application
Application of RBS100601
1. Rotation detection for kinds of monitor/device
2. Toys , Entertainment devices
Main Product
What is Roll Ball Sensor Switch?
Roll Ball Sensor Switch operates using the same theory as any other mechanical switches: the turning on and off action is activated whenever the metal part of a switch is touched. As for the Roll Ball Switches, a tiny ball in the switch rolls when motion is detected, triggering a contact of metal terminals or an alteration of a light path. This will generate the conductive or non-conductive status.
A number of different kinds of Roll Ball Sensor Switches are available for various applications, including the Tilt Sensor Switch, Vibration Sensor Switch, Centrifugal Force Sensor Switch and Optical Roll Ball Switch.
The traditional way to detect the tilt and vibration is using mercury switches. As mercury switch is banned by more and more governments, the use of tiny balls to trigger mechanical touch actions becomes more widespread.
Related Product
Function:
Tilt Angle detecting / Rotation detecting / Vibration detecting
Type: DIP/ SMD
Switch state: Normal Close / Normal Open
Function:
Rotation detection at 45° in vertical position.
Suitable to use for Vertical PCB

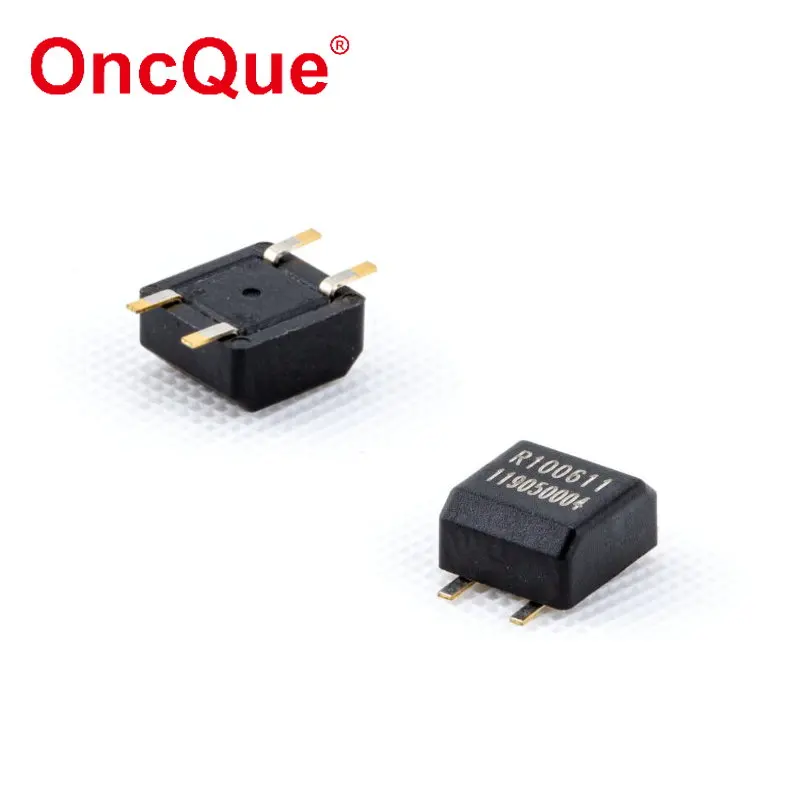

Type: SMD
Switch state: Normal Close
Contact Us
OncQue (Bravotronics) Corporation, founded in 1996 in Taiwan, has been contributing its profession and advanced technology in building high quality sensor switches for nearly 2 decades. Over the past few years, we have developed a great number of new specifications and designs, redefining the idea of sensor switches.
If you wish to know more about Roll Ball Switch, please feel free to contact OncQue, the most historical Roll Ball Switch maker in Taiwan. Our friendly representatives are glad to serve you.
