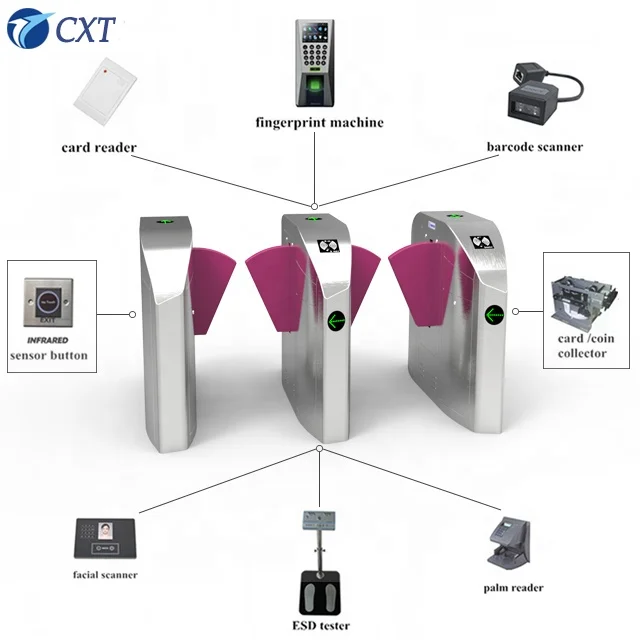

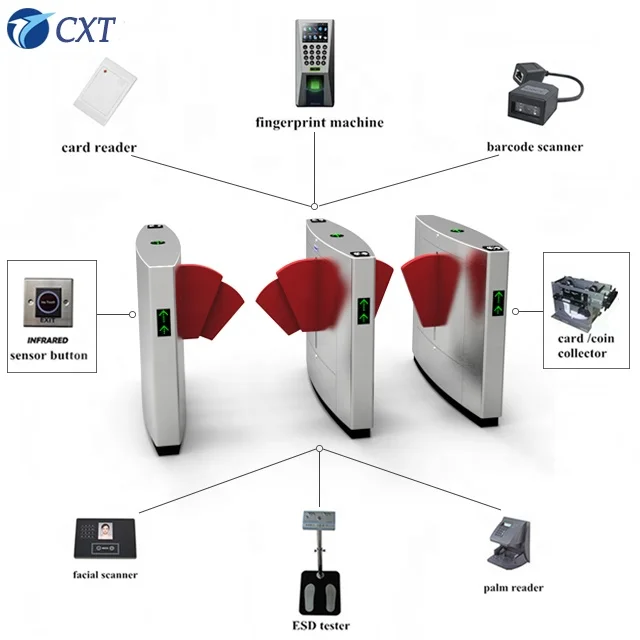

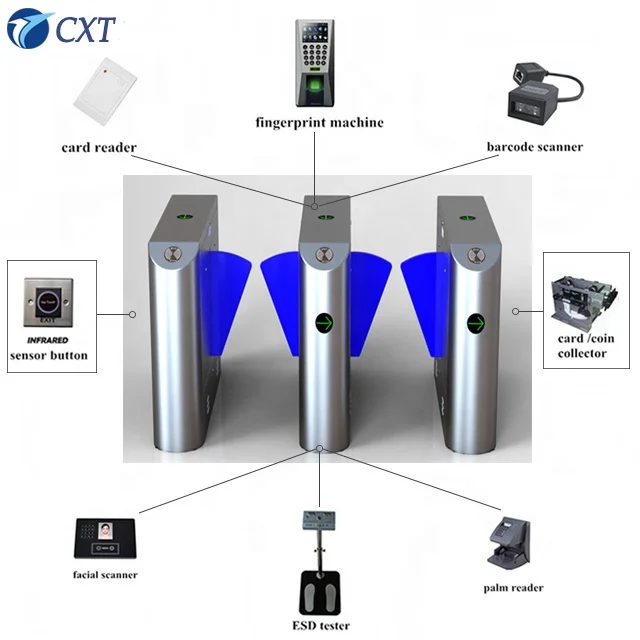

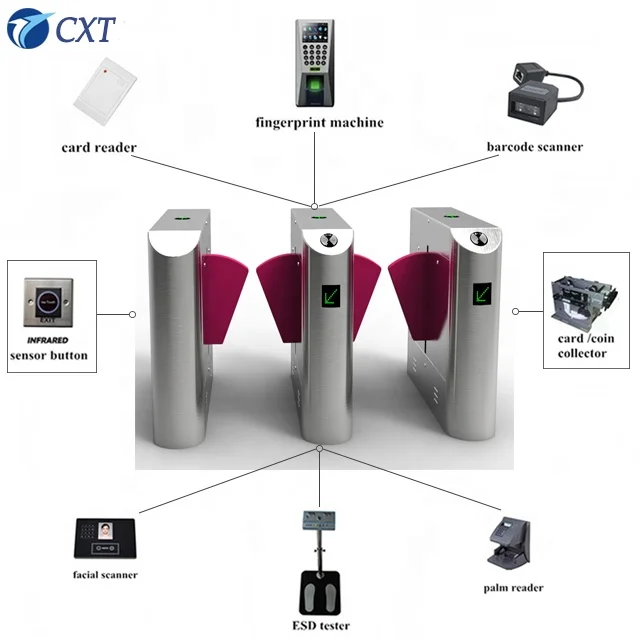

Automatic Turnstile Gate Face Recognition Flap Turnstile Barrier Gate Used for MRT and Subway

Share on (60533744294):


Price:RUB 37,909.00 - RUB 113,727.00

Quantity:


Product Overview

Description

Automatic Turnstile Gate Face Recognition Flap Turnstile Barrier Gate Used for MRT and Subway

Product Description

Flap Turnstile Main Function:

1.Higher flow rate and better anti-tailgate function .

2.Double protections of Mechanical and infrared anti-pinch function.providing more reliable and safer passing.
3Multi alarm modes:illegal intrusion, anti-intrusion, anti-follow, overtime alarm etc.
4.Anti-rush function,Anti-Reverse,anti-intrusion, anti-follow.
5.LED indicator light :green and red indicate the passing information.
6.Normal open and normal close can be controlled by external button.(for group pass)
7.Auto detect and reset function.
8.Gate auto open when power is off to meet the fire protection requirements.
9. Flap turnstile can be hooked with all kinds of access control systems,upon receiving the relay switch signal.
10.Flap turnstile can be uni-directional or bi-directional control.
11. High adaptability for environment, and good ability for self-protection.Can work properly under all kinds of harsh environment, strong ego-protect ability, can adapt to the weak current short circuit, glare, fog rain and snow, the typhoon weather and climate change.

 Automatic Turnstile Gate Face Recognition Flap Turnstile Barrier Gate for MRT and Subway

Flap Turnstile Specification:



Housing material International standard 304SS
Dimensions 1400L*300W*1000H mm
Lane width 570mm(Adjustable)
Weight 80kg
Passing speed 35-45 perople/minute
MCBF 8million times
Input voltage AC220±10% V,50HZ
Driving motor DC brushless motor 50W/24V
Working environment Indoor and outdoor
Working temperature -40℃—— 80℃
Suitable humidity 5%—— 90%

Automatic Turnstile Gate Face Recognition Flap Turnstile Barrier Gate for MRT and Subway
Flap Turnstile Expansible Functions:
Auto bidirectional counter:Automatically count the number present(customized)
Voice prompt(customized)
Barrier arm material and color can be customized.

 Automatic Turnstile Gate Face Recognition Flap Turnstile Barrier Gate for MRT and Subway

Flap Turnstile Application range:

This high efficiency security Wing Turnstile is one of the best entrance control,which could be equipped with almost any system of different buildings, such as access control, time and attendance, visitors, card transceivers, tickets and biometrics, as well as being able to handle CCTV and other additions.The wing turnstile applied to following:

Airport terminal,Metro,bus station and massTransportation;
Governmental facilities &State Institutions;
Outdoor/Indoor Public Areas,,Fitness and Sport Halls;
Industrial Plants;Bank,Hosptial lobby,construction sites;
Universities and other Education Institutions,childcare centers;
Military and Defence Facilities;
Business Centers and Plazas;
Tourism and Historical Facilities;
Ticket Authentication and Process Integration Applications.

 Electronic RFID Fingerprint Turnstile Gate Face Recognition Flap Turnstile for MRT and Subway

Company Information



 Shenzhen Chuang Xin Tong Technology Co.,Ltd is a 14-year old national hi-tech company located in Shenzhen ,China since year 2006.CXT team devote ourselves in providing middle &high end solution of physical access control Turnstile solution for clients all around the world.

We are the holder of :

  • Independent intellectual rights of products,dozens of development technology patents of core tech.
  • 7main series of product with dozens of models for choice(Tripod turnstile,swing turnstile,flap turnstile,full height turnstile,sliding turnstile,drop-arm turnstile and barrier free turnstile).
  • All products had passed the quality and function test of Testing Center For Quality Of Security & Police Electroinic Products Under The Ministry Of Public Security Of P.R. China.
  • Award the honour of “National High Technology Expertise”,“China Top 100 Enterprise of Security Industry ” “China AAA Credit Grade Enterprise”.
  • Our product are popular in people’s daily life and has been widespread applied in different scenarios like MRT & LRT,modernized edifices & office premises, bank, campus and kindergarten,residential communities,factories,construction site,stadiums,scenic spots, prisons etc,.Till now,we have thousands and hundreds successful cases.



turnstile factory, china turnsitle factoryturnstile system



Our Services

14 years professional Security access control turnstile gate factory in China

CXT-14 years Dedication makes professional!



Before sale, What can CXT do for you?

  • Detailed introduction of our company,products and technical service.
  • Discuss and recommend the best solution with you per you actual project.
  • Provide related product specification and price list for your budget.
  • All your inquiries will have our first-time response.

Be contracted, What can CXT do for you?

  • Assist you to select the most suitable turnstile products.
  • Confirm all contracted terms and issues and arrange the production per discussed lead time.
  • Assist you to smoothly install and complete your project.

After sale ,What can CXT do for you?

  • One year free maintenance and life-long technical support!(Man-made damage and consumable parts excluded)
  • Periodically project tracking to solve customers' problems and doubts during operation!
  • Life-long technical support via telephone/internet!
  • Update CXT latest turnstile products info and help partners to develop local market!
Packaging & Shipping

Package details: Factory Standard carton box packaging ,can upgrade to exporting Plywood Case at extra cost!

Shipping mode: By sea or by air at your notification.
Lead time: 1-15 working days pending on actual order quantity.

High quality is our obligation!!!



tripod turnstile gate





FAQ

Here are the most Frequent Queries selected for your referrence!

 Q1:Are you a real factory ?Do you accept OEM order?
A1:CXT is a professional factory in China with 14 years experience,OEM&ODM are acceptable.

Q2: Can we use our own access control system?

A2: Yes, You can use your own system, CXT turnstile gate communication interface is RS232 or dry contact signal, which can be easily communicating with external devices.

Q3:What is your MOQ and Lead time?
A3:No limited MOQ however quantity discount per order will be granted for bulk order;Lead time would be different per different model and quantity, Let us confirm on actual basis.

Q4:What is your Payment term?
A4:By T/T, 30% deposit and the outstanding balance should be paid off before loading.
Q5.:Can you make gate bi-directional access? any extra cost?
A5:Uni/bi-direction is optional, no extra cost.
Q6: What's your factory warranty?
A6:CXT provide 1 year free factory gurantee (man-made damage and consumable parts excluded).
Q7: What'is your Packing details?
A7:Standard carton box packing ,can upgrade to exporting plywood case at cost of $50/CBM

Q8: If we buy your Turnstile unit, can you train us?
A8:Yes, Long-distance video trainning and factory on-the -site trainning are available.
