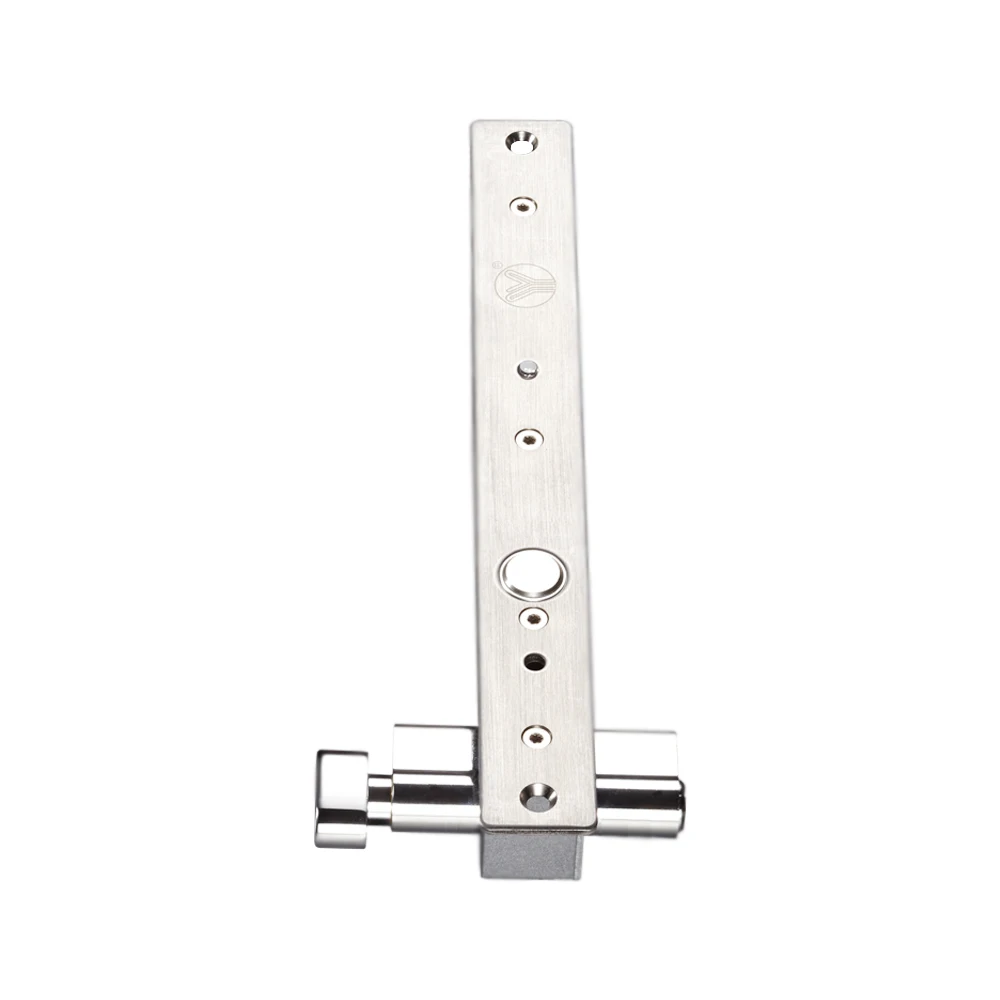

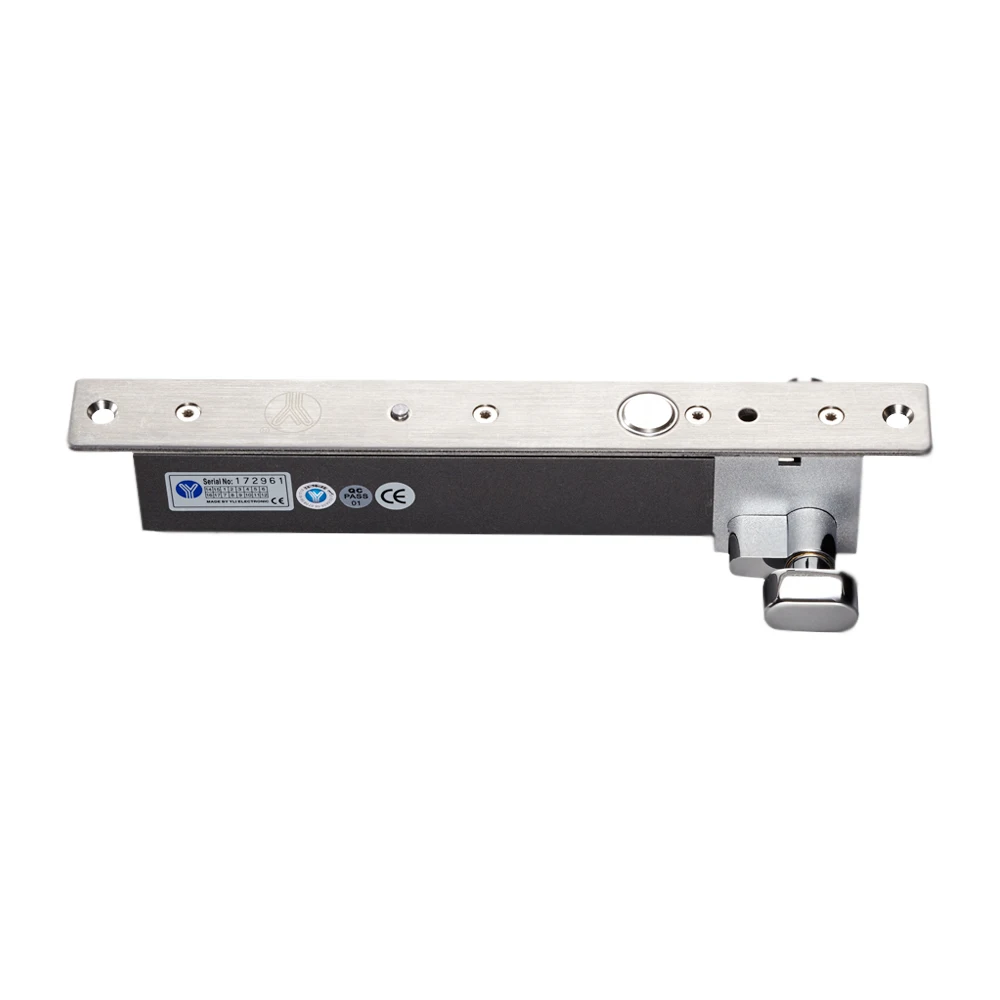

Fail Safe Electric Bolt W/Cylinder and LED YB 600A(LED)
- Category: >>>
- Supplier: Shenzhen Yli Electric Lock Co. Ltd.
Share on (60533760644):
Product Overview
Description
Product Description
Product Application
YB-600A (LED) is an all-metal construction electric bolt .with European-type cylinder and has both electric control and manual control functions.The Fail Secure is Locked when energized.The bolt of the lock adopts 304 stainless steel solid bar by CNC lathe, has 2000kg holding force. It colligates the system of Photoelectric control and Intelligent circuit design ,with the speciality of low-power consumption and anti-intrusion
Feature | Fail Safe | ||||

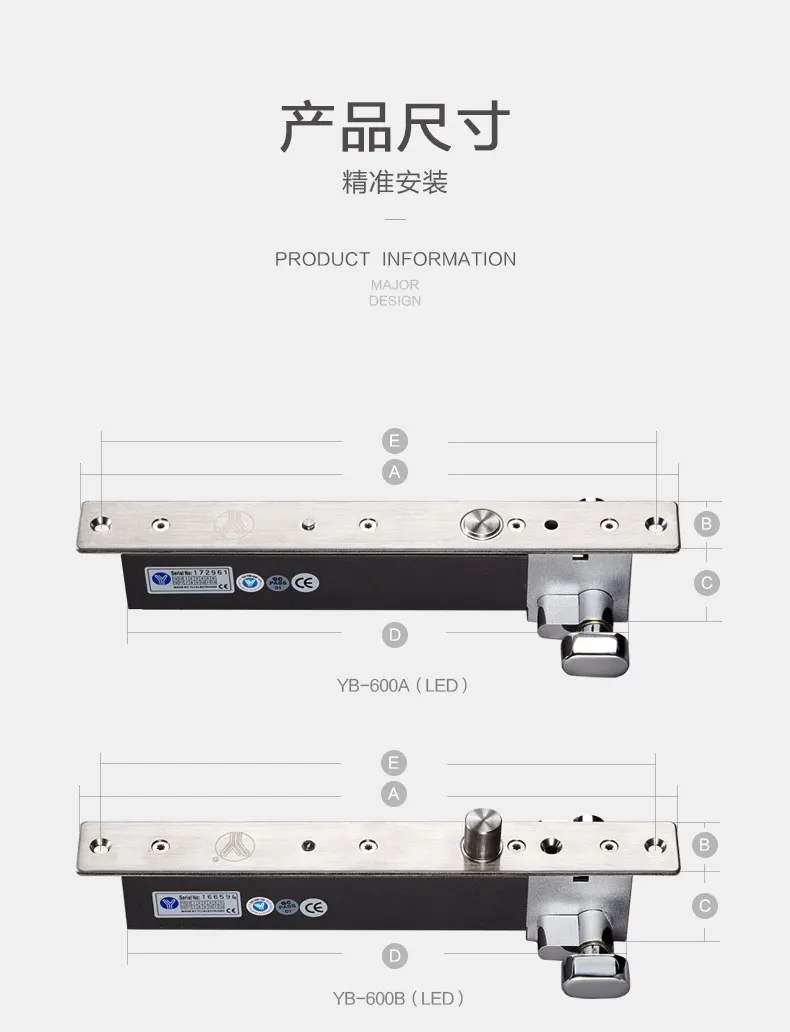

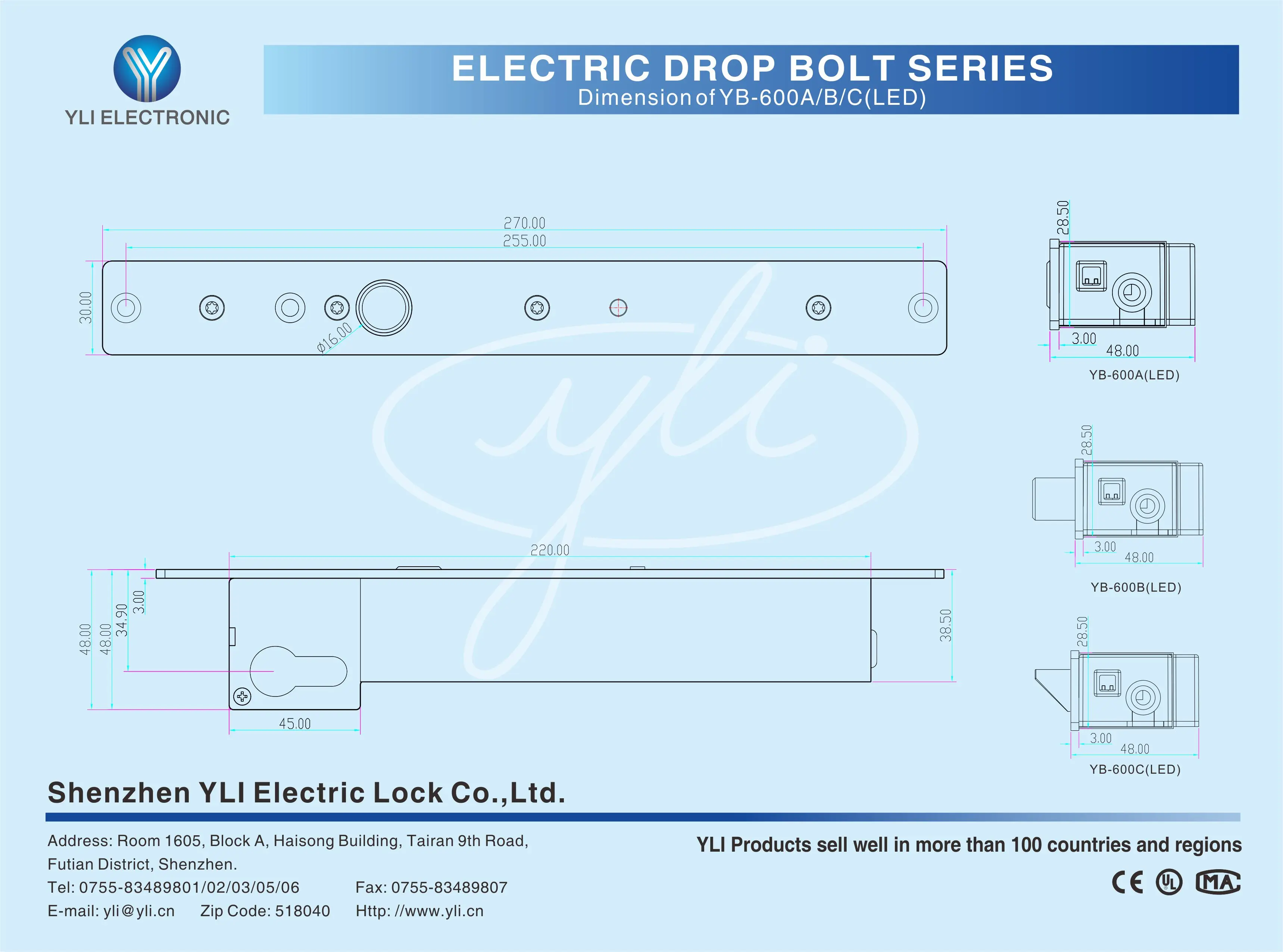

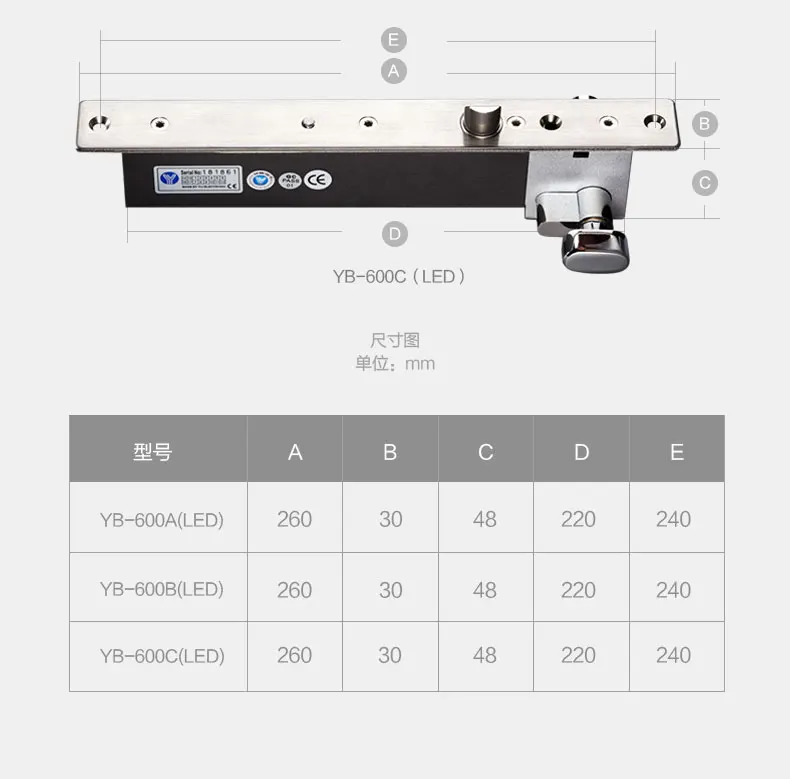

Lock Body | 270Lx30WX48H(mm) | ||||
Magnetic Plate | 100Lx25Wx3H(mm) | ||||
Bolt | 16(length)*16(diameter)(mm) | ||||
Voltage | DC12V | ||||
Start Current | 1200mA | ||||
Standby Current | 200mA | ||||
LED | Light on indicates locked, light off indicates unlocked | ||||
Suitable For | Wooden door , metal door , fireproof door , glass door | ||||
Autolock Time Delay | 0,3,6,9sec | ||||
Signal Output | Lock signal(NO/NC/COM) | ||||
Material | 304 stainless steel,wire draw finishing | ||||
Induction Distance | Within 8mm | ||||
LED | Light on indicates locked, light off indicates unlocked | ||||
Weight | 1.6kg | ||||
Installation Diagram
