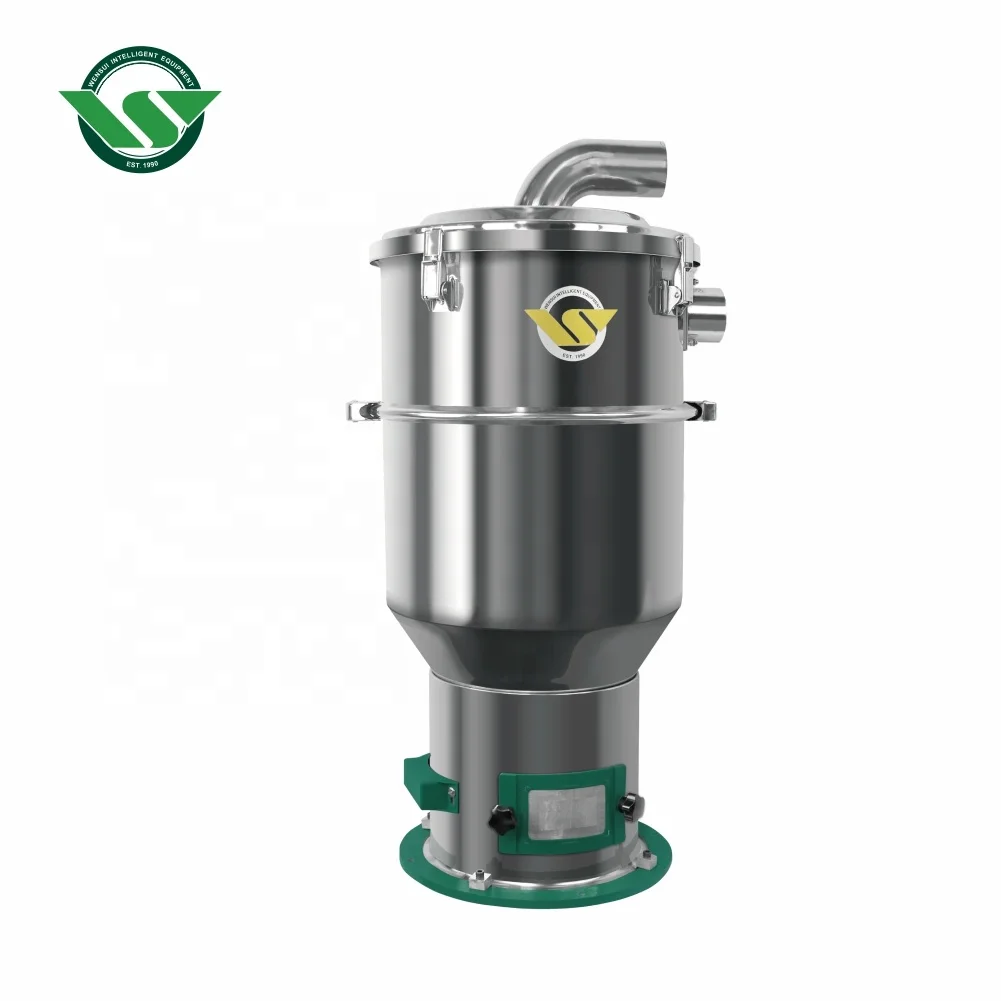

Wensui High Power Autoloader WSAL 10HP machine Separate Hopper Autoloader
- Category: >>>
- Supplier: Wensui Intelligent Equipment Inc.
Share on (60533865235):
Product Overview
Description
Product Features
✔Controlled by microprocessor, and user operates via buttons and a simple system interface.
✔High pressure pump features small volume, lower noise, and easy installation.
✔Large conveying capacity, which can feed one to one (standard) up to one to four (optional).
✔Consisted of dust separator and dust collecting bin, both of which are easy to clean and maintain.
✔Features blowback valve to automatically clean hopper to enhance air conveying.
✔Indicator light shows the working status or faulty status.
Specifications
Model | WSAL-3HP | WSAL-5HP | WSAL-7.5HP | WSAL-10HP |
Motor(kW) | 2.2 | 4 | 5.5 | 7.5 |
Conveying Capacity (kg/h) | 650 | 900 | 1200 | 1500 |
Pump Lift(m) | 6 | 6 | 6 | 6 |
Static Wind Pressure(bar) | 0.29 | 0.31 | 0.41 | 0.44 |
Storage Bin Volume(L) and Number of Bin | 10/25 | 25 | 40 | 40 |
Conveying Tube Inner Diameter (mm) | Φ38/Φ51 | Φ51 | Φ63 | Φ63 |
Size of Standard Hose | Φ38mm×10m 1pcs Φ51mm×10m 1pcs | Φ51mm×10m 1pcs | Φ63mm×15m 1pcs | Φ63mm×15m 1pcs |
Dimension L*W*H(cm) Main Unit | 66×40×110 | 66×40×110 | 65×50×141 | 65×50×141 |
Dimension L*W*H(cm) Hopper | 45×32×45 | 44×44×64 | 44×444×81 | 44×44×81 |
Net Weight(kg) | 80 | 107 | 167 | 185 |

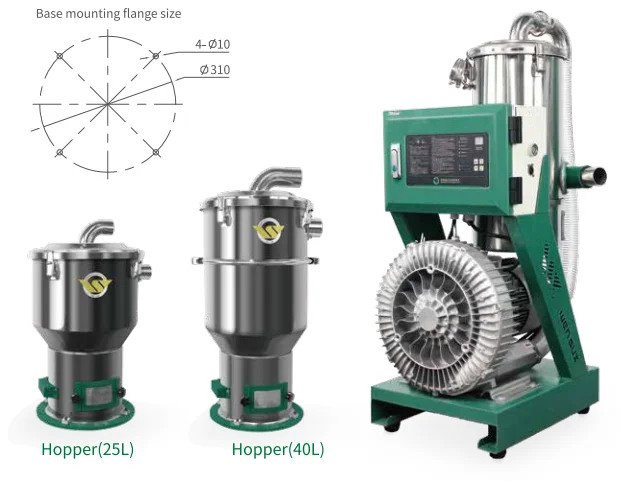

Product details
Certifications
Exhibition

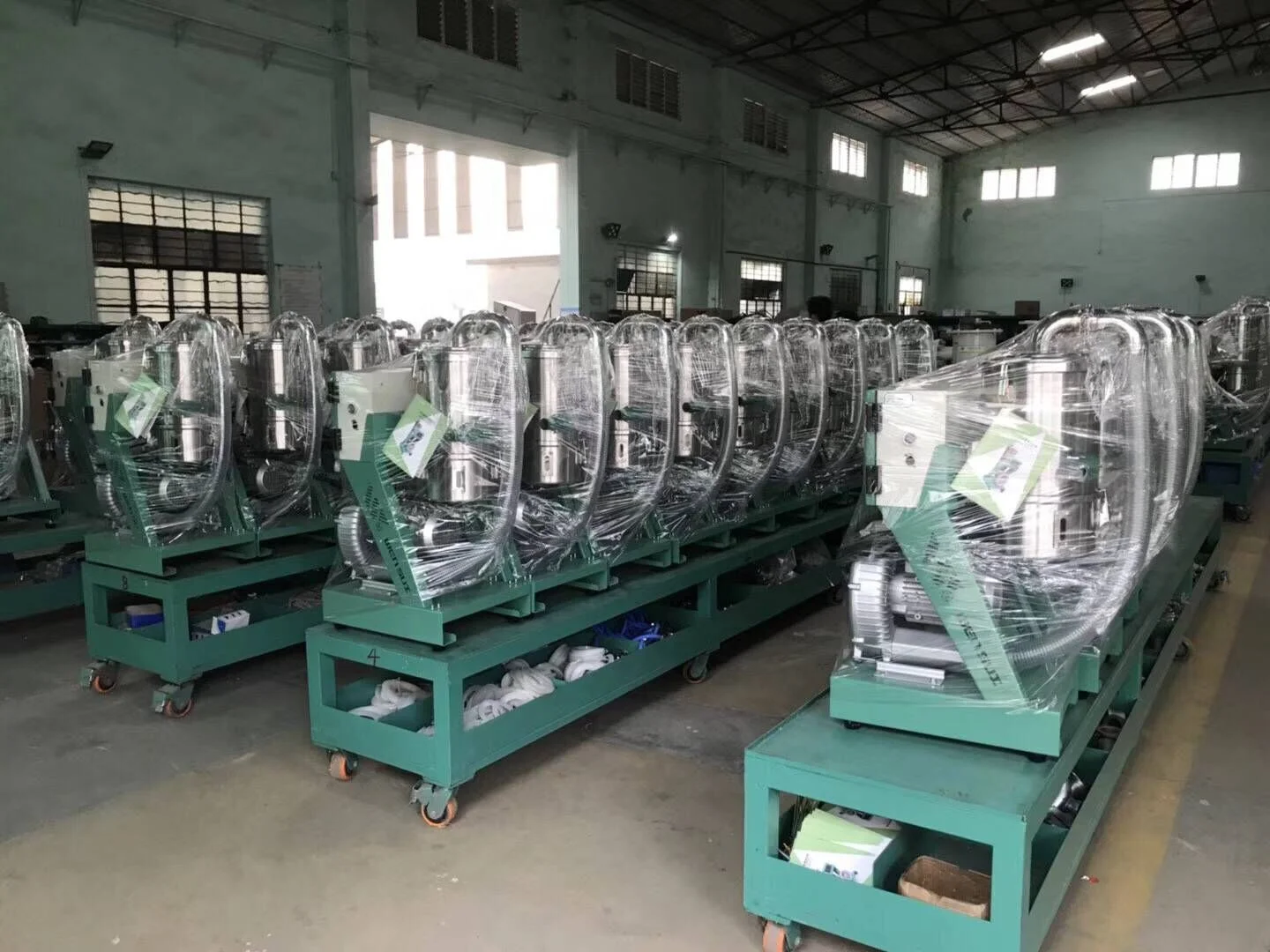

Package
Our Company
Wensui, founded 30 years ago, focused on one stop solution for all kinds of injection workshops, the most professional factory for auxiliary machinery production and development, and a very famous brand all over the Asia. Welcome to browse our websitewww.wensui.com if necessary.
Our products range as following:
1. Automation Seriers
2. Granulating & Recycling Series
3. Drying & Dehumidifying Series
4. Mixing & Separating Series
5. Heating & Cooling Series
6. Feeding &Conveying Series
7. Shredder and Prodution lines (Washing line, recycling line, crushing line … )
2. Granulating & Recycling Series
3. Drying & Dehumidifying Series
4. Mixing & Separating Series
5. Heating & Cooling Series
6. Feeding &Conveying Series
7. Shredder and Prodution lines (Washing line, recycling line, crushing line … )
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory. Founded 30 years ago, focused on one stop solution for all kinds of injection workshops, the most professional factory for auxiliary machinery production and development, and a very famous brand all over the Asia.
Q: How long is your delivery time?
A: Generally it is 7-10 days if have in stock. Or it's 45 days if the goods are not in stock, it is according to quantity.
A: We are factory. Founded 30 years ago, focused on one stop solution for all kinds of injection workshops, the most professional factory for auxiliary machinery production and development, and a very famous brand all over the Asia.
Q: How long is your delivery time?
A: Generally it is 7-10 days if have in stock. Or it's 45 days if the goods are not in stock, it is according to quantity.
