5bbl 10bbl 15bbl 20bbl brewery equipment
Tiantai Company
Shandong Tiantai Beer Equipment factory sits in the provincial capital Jinan city of Shandong Province, north of China.
We have more than 20 years experience about designing, manufacturing, installing and training brewery equipment from 50L-200HL. And We have exported 2000+ Brewery Equipment to USA, Canada, Brazil, Korea, Australia, Italy, Spain, Belgium, South Africa etc. All of our brewery equipment details are taken the humanized and brewmasters' intention into consideration. Reliable quality is guaranteed by certificated raw material, professional technical support, advanced processing equipment, strict quality control and complete personal training etc. We always keep our beer making machine affordable which will support more brew masters to approach their brewing dream.
Brewery Introduction

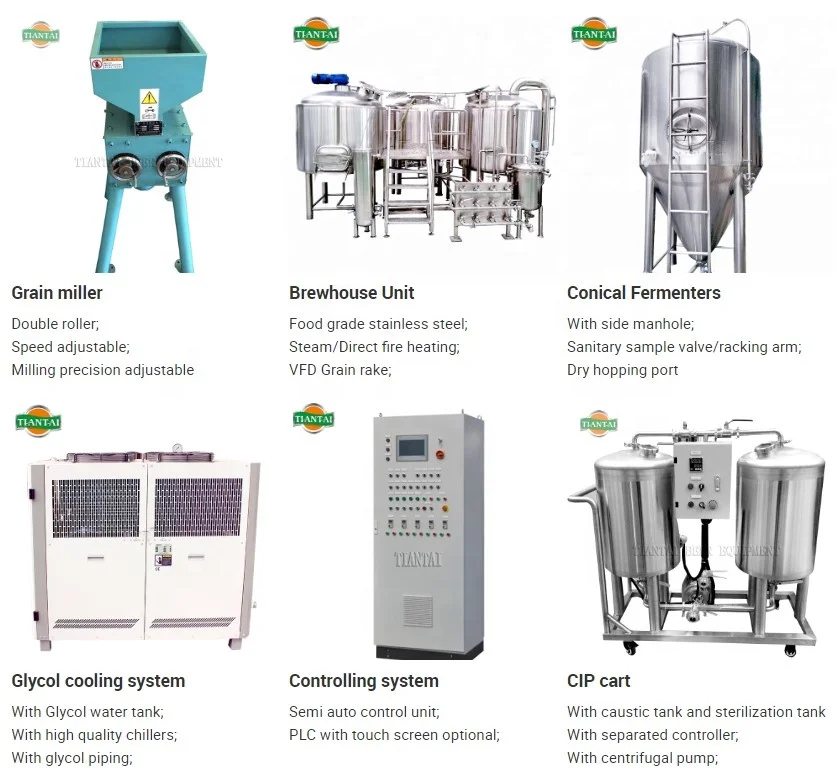

Complete brewery equipment usually includes Mill, Brewhouse, Fermenter, Brite Tank, Glycol Chilling Unit, Control Panel, CIP, Keg Washer, Keg Filler, Bottling Line and Steam Boiler etc.
Brewhouse and Fermenter/Brite tank are most important among of them. And their configuration is not 100% changeless and can be customized according to brewmasters' preference. In order to work out the best proposal for yourself, let us learn these units together now.
Key Configuration
1.) Brewhouse unit of brewery equipment

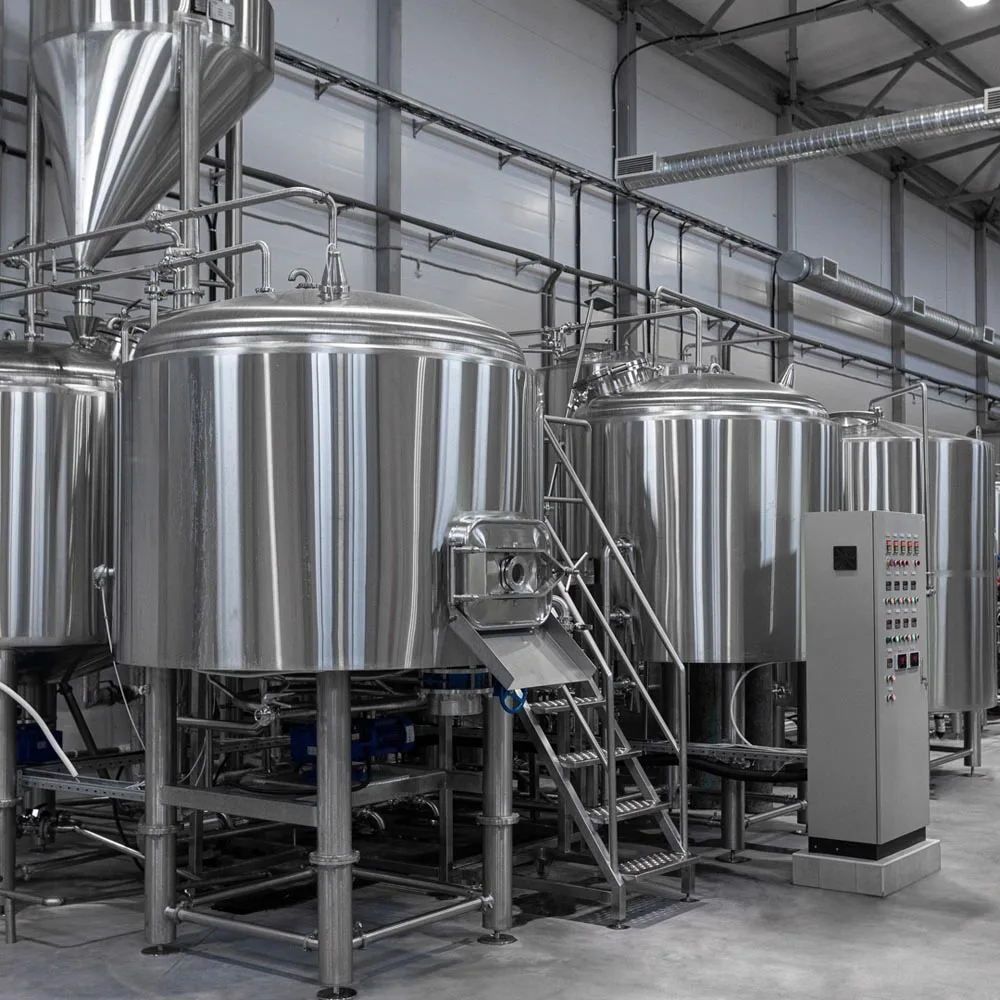

*Automatic 5 bbl two vessel brewhouse*
Features: It is typical two vessel brewhouse, mash/lauter tun and kettle/whirlpool tun. Two tanks are gathered a stainless steel frame. In this case, we are able to install every unit before shipping, so the customers do not need to spend time and effort on installation, which is very convenient. And all of valves are upgraded to pneumatic valve. The brewmaster can control valve on/off by touching screen. It can save labor efficiently.

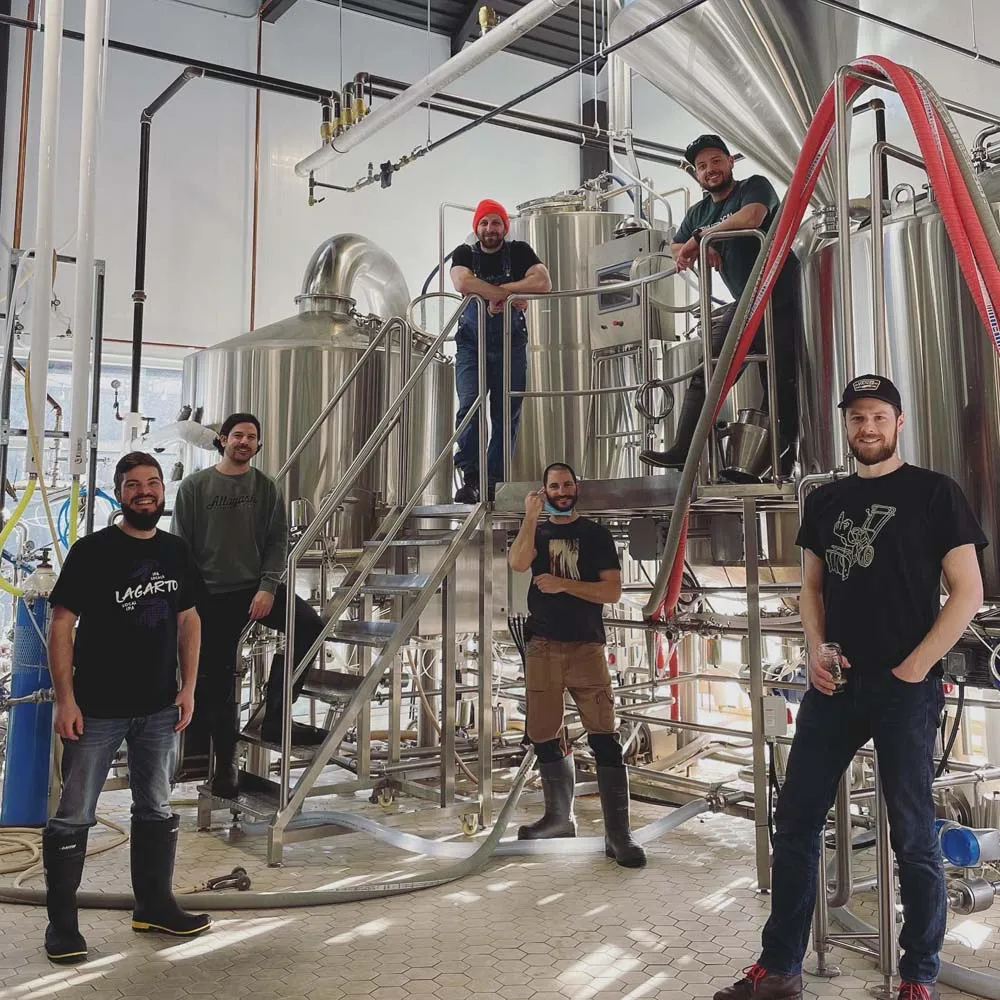

*10 bbl micro brewery equipment with copper strips*
Features: For this brewery system, all of tanks are placed in a brewpub for showing, so both top and bottom are decorated with copper strip, which looks more beautiful and attractive.
*15 bbl Direct Fire heated brewhouse*
Features: The brewhouse is heated by direct fire. There should be a fire chamber and burner fitted on tank bottom. Compared with steam heating, it is more affordable. After all, the steam generator and pipeline is really expensive in some countries.

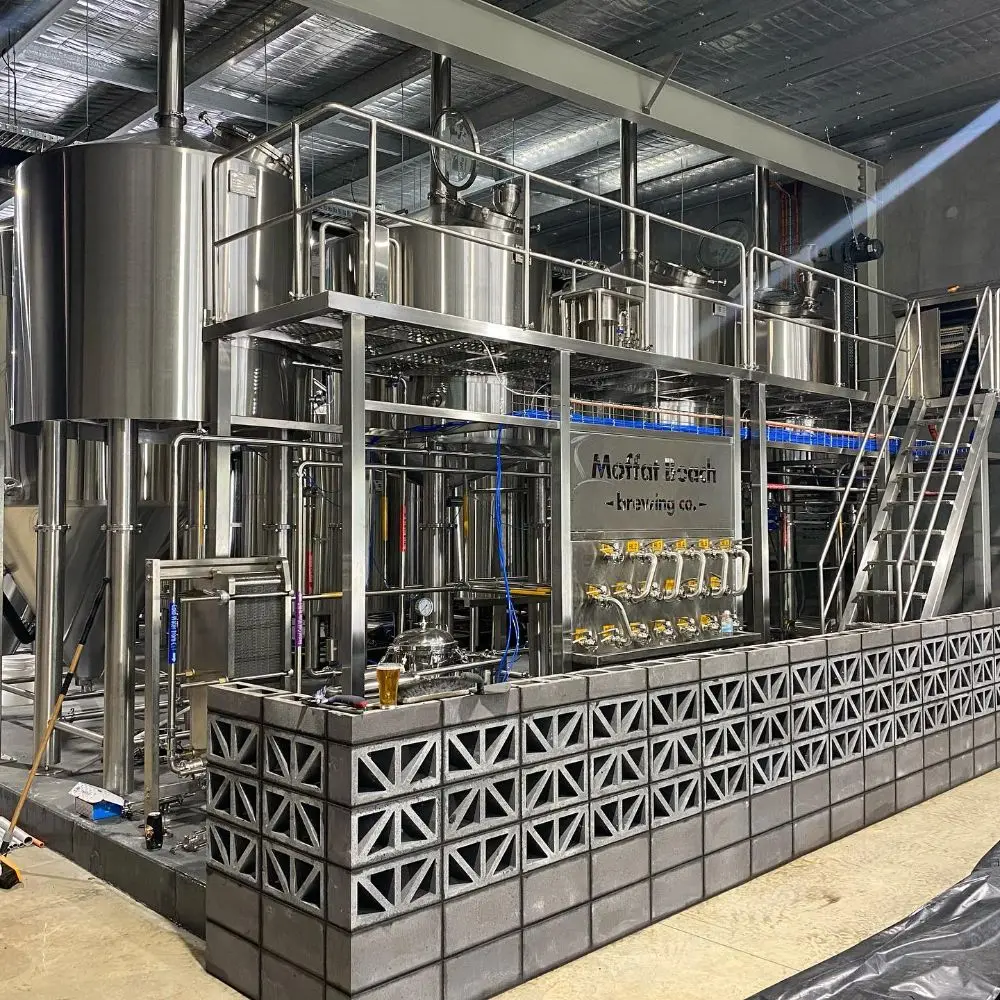

*20 bbl Four vessel brewhouse *
Features: the brewhosue are four vessel, mash tun+lauter tun+brew kettle+whirlpool tun with HLT. It supports brewmaster to brew 4-5 batches per day.
2.) Fermenter and Brite tank of brewery equipment
*Interior Shell: SUS304 full welded; TH=3mm
*Exterior Shell:SUS304 full welded; TH=2mm
*100% TIG welding with pure argon gas shield
*Interior Finish: Sanitary 2B finish, Pickled and Passivated; (8K Mirror finish optional)
*Interior full polished to 0.2~0.4 μm without dead corner
*Insulated with high density Polyurethane foam; TH=80mm
*Glycol Jacket: Dimpled plate on cone and side
* Dished head and 60 degree cone bottom

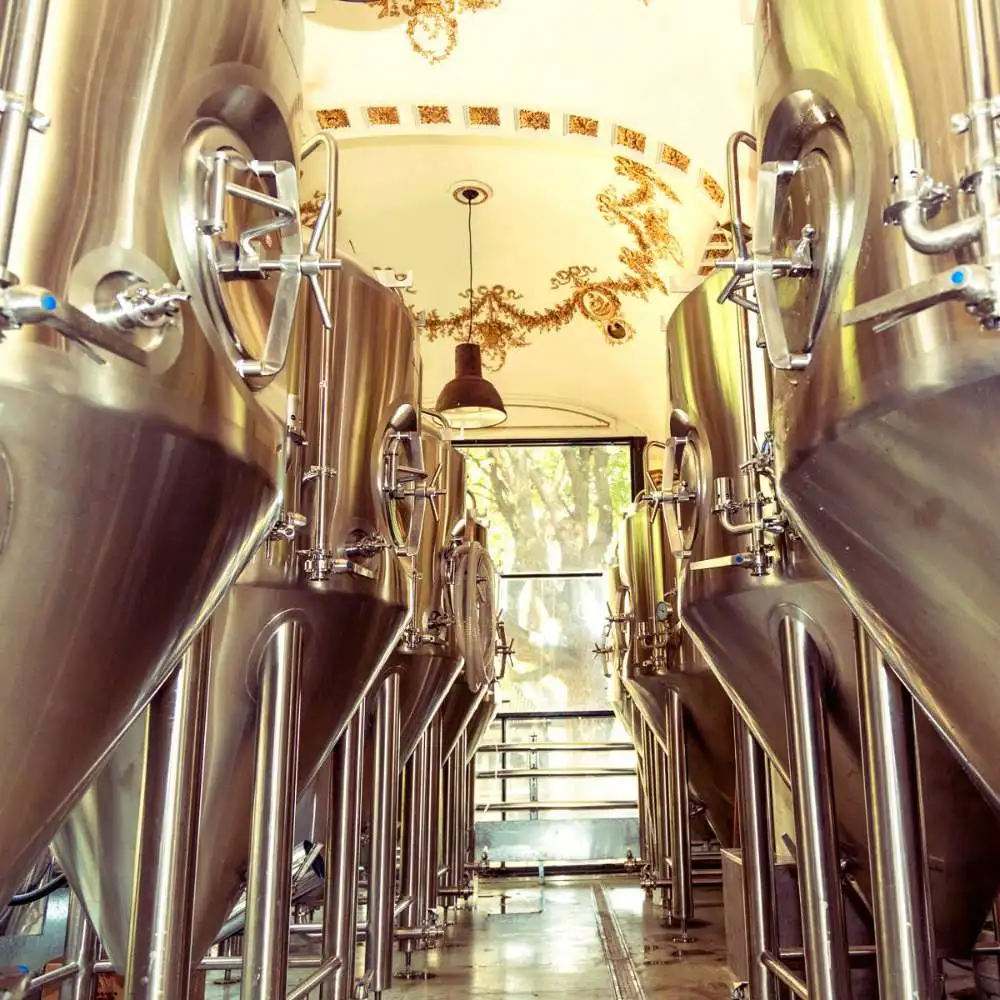

*Jackted Conical Fermenter*
*Vertical Brite tank*

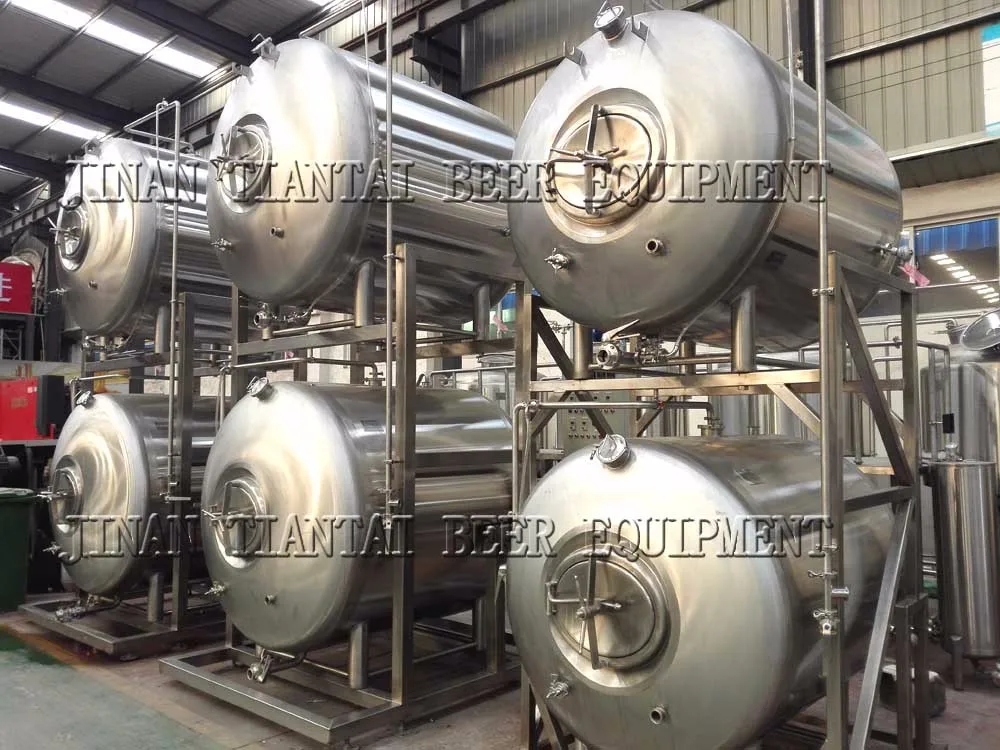

*Horizontal Brite tank*
3.) New design of brewery equipment
*Acid Washing and Passivating*
Features: After polishing the inner finish, we would use acid to wash and passivate. In this case, the precision can reach 0.2-0.4um. As you know, the size of bad baterial is usually 0.6-0.7um, so they are not able to be remained in tank. It can protect beer from contamination further.
*Horizontal Racking Arm*
Features: Based on Horizontal racking arm, the brewmaster does not need to loose the tri clamp when they want to rotate the racking arm, which can avoid beer leaking very well.
Friends, if you are interested in any beer brewery equipment, please do not hesitate to click "contact us" for getting detailed price and specification list.
Service&Guarantee
a.) Free consultation service before, during, and after sales;
b.) Project planning and design services;
c.) Free debugging instruction of equipment until everything is functional;
d.) Management of equipments' long distance shipping from seller's factory to named port or station by buyer;
e.) Training of equipment maintenance and operating personally;
f.) The remind of regular maintenance and maintenance register consultant;
g.) Provide 36 months complete warrantee for tanks body and life-time maintenance service; All of the accessories and auxiliary facilities are guaranteed for one year; The seller is responsible for the nature damage of the machinery in the warranty period except for man-made damage. All spare parts and wearing parts are attached with the machinery for free.
Certification
All of our beer brewing machine China are CE and ISO Certificated, so they are fully meet the requirements or regulations in Australia, Korea, Japan, Singapore, Germany, Belgium, Austria, Netherlands, Turkey, United Kingdom, United States, Canada, Mexico, Russia etc.
Exhibition
We are active to attend different expo or exhibition all over the World, such as BrauBeviale and Drinktec in Germany, Craft Brewers Conference in United States, Brewcon in Australia, Sea Brew in Sourthest Asia,Beviale Moscow in Russia etc.The customers can learn our brewery equipment design and quality better with see and touch the equipment in person in these expo or exhibition. In addition, face-to-face talking with customers in booth also makes everything become simple and easy. Hope we can meet in some exhibitions soon. :)
