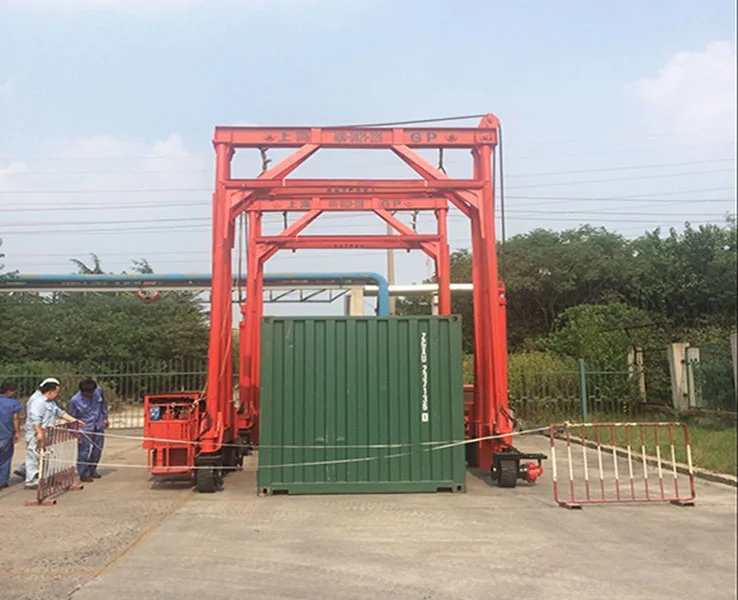

30T/36T/40T portable mobile shipyard lift crane/new container crane

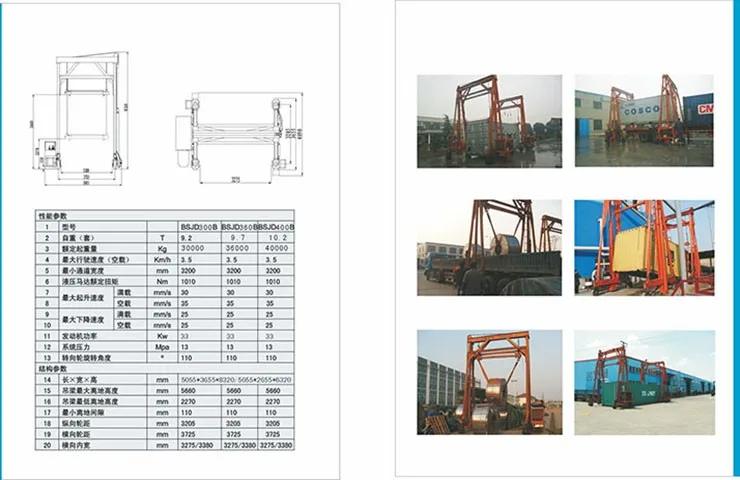

Specification | ||||||
1 | Model |
| BSJD300 | BSJD360 | BSJD400 | |
2 | Self weight | Kg | 7000 | 7500 | 8000 | |
3 | Rated load capacity | Kg | 30000 | 36000 | 40000 | |
4 | Max steering speed (without load) | Km/h | 3.5 | 3.5 | 3.5 | |
5 | Mini passageway width | mm | 3200 | 3200 | 3200 | |
6 | Rated torque of hydraulic motor | Nm | 1010 | 1010 | 1010 | |
7 | Max lifting speed | with load | mm/s | 25 | 25 | 25 |
8 | without load | mm/s | 35 | 35 | 35 | |
9 | Maxfalling speed | with load | mm/s | 30 | 30 | 30 |
10 | without load | mm/s | 25 | 25 | 25 | |
11 | Engine power | Kw | 37 | 37 | 37 | |
12 | System pressure | Mpa | 14 | 15 | 16 | |
13 | Rotation angle of turning wheel | º | 110 | 110 | 110 | |
Specification of structure | ||||||
14 | L*W*H | mm | 5055×2655×6320 | |||
15 | Max height of lifting beam | mm | 4660 | 4660 | 4660 | |
16 | Lowest height of lifting beam | mm | 2270 | 2270 | 2270 | |
17 | Min ground clearance | mm | 110 | 110 | 110 | |
18 | Longitudinal track | mm | 2205 | 2205 | 2205 | |
19 | Crosswise tread | mm | 3725 | 3725 | 3725 | |
20 | Inside width of crosswise | mm | 3275/3380 | 3275/3380 | 3275/3380 | |
21 | Wire rope diameter | mm | 28 | 28 | 28 | |
22 | Tire size | mm | 450*180 | 450*180 | 450*180 | |

Details:




New products from manufacturers at wholesale prices
