High Standard Steel wire braided hydraulic rubber hose for coal mining oil drilling
- Category: >>>
- Supplier: Hebei Aotong Rubber Product Co. Ltd.
Share on (60534044783):
Product Overview
Description

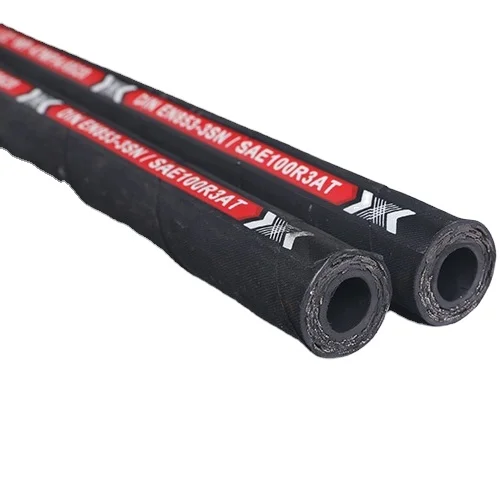

High Standard Steel wire braided hydraulic rubber hose for coal mining oil drilling
Product Description
DIN EN853 1SN/2SN
DIN EN853 1ST/2ST
DIN EN857 1SC/2SC
SAE 100R1/100R2
DIN EN856 4SP/4SH
SAE100 R1 / EN 853 1SN
SAE100 R2 / EN 853 2SN
SAE100 R3 + R6
SAE100 R4
SAE100 R5 + R14
SAE100 R7 + R8
SAE100 R9 + R10 + R12
SAE100 R13 + R15
SAE100 R17
EN856 4SP/4SH/6SP
Production Details
| Part Number | Inside Diameter | Outside Diameter | Working Pressure | Weight | Length | ||
| mm | inch | mm±0.3 | BAR | PSI | Kg/m±0.02 | m/pcs±2 | |
| SAE 100R1 | 6mm | 1/4 | 13.5 | 225 | 3263 | 0.3 | 100 |
| 8mm | 5/16 | 15.5 | 215 | 3118 | 0.36 | 100 | |
| 10mm | 3/8 | 17.6 | 180 | 2610 | 0.38 | 100 | |
| 13mm | 1/2 | 20.6 | 160 | 2320 | 0.45 | 100 | |
| 16mm | 5/8 | 23.8 | 130 | 1885 | 0.58 | 100 | |
| 19mm | 3/4 | 27.8 | 105 | 1523 | 0.71 | 50 | |
| 25mm | 1 | 34.3 | 88 | 1276 | 0.91 | 50 | |
| 32mm | 1 1/4 | 41.5 | 63 | 914 | 1.12 | 40 | |
| 38mm | 1 1/2 | 47.7 | 50 | 725 | 1.37 | 40 | |
| 51mm | 2 | 61.3 | 40 | 580 | 1.72 | 40 | |
Packaging & Shipping
Payment: 30% T/T deposit payment in advance, balance against copy of T/T.
Production Manufacture Time: 25-30 days after receiving your deposit.
Shipping Ways: ocean freight or air transportation.
Port: Tianjin Port China.
Factory show
Hebei Aotong Rubber Product Co.,Ltd was founded in September 2000 and is located in Jing County, the development zone of Hebei province. In May 2010, we added 11000-square-meter workshop for expanding production, in Jilu Economic Co-ordination Region. Our company covers an area of 26980 square meters, including building area of 24500 square meters with a fund of almost $8 million.
Now we have more than 380 employees, including 8 senior engineers and 15 junior ones. The annual output can be 6 million meters
We have advanced facilities of production and inspection, and have been setting up a steady relationship of cooperation with several famous academies in China. Our high pressure hoses have good performance in fatigue, high pressure and pulse, which can be used for transportation of oil, liquid, air and water in the temperature -40℃~100℃
