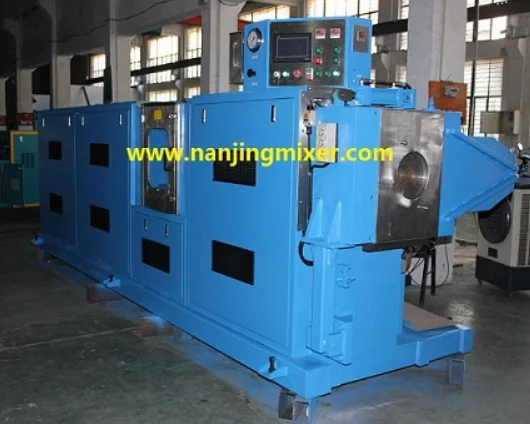

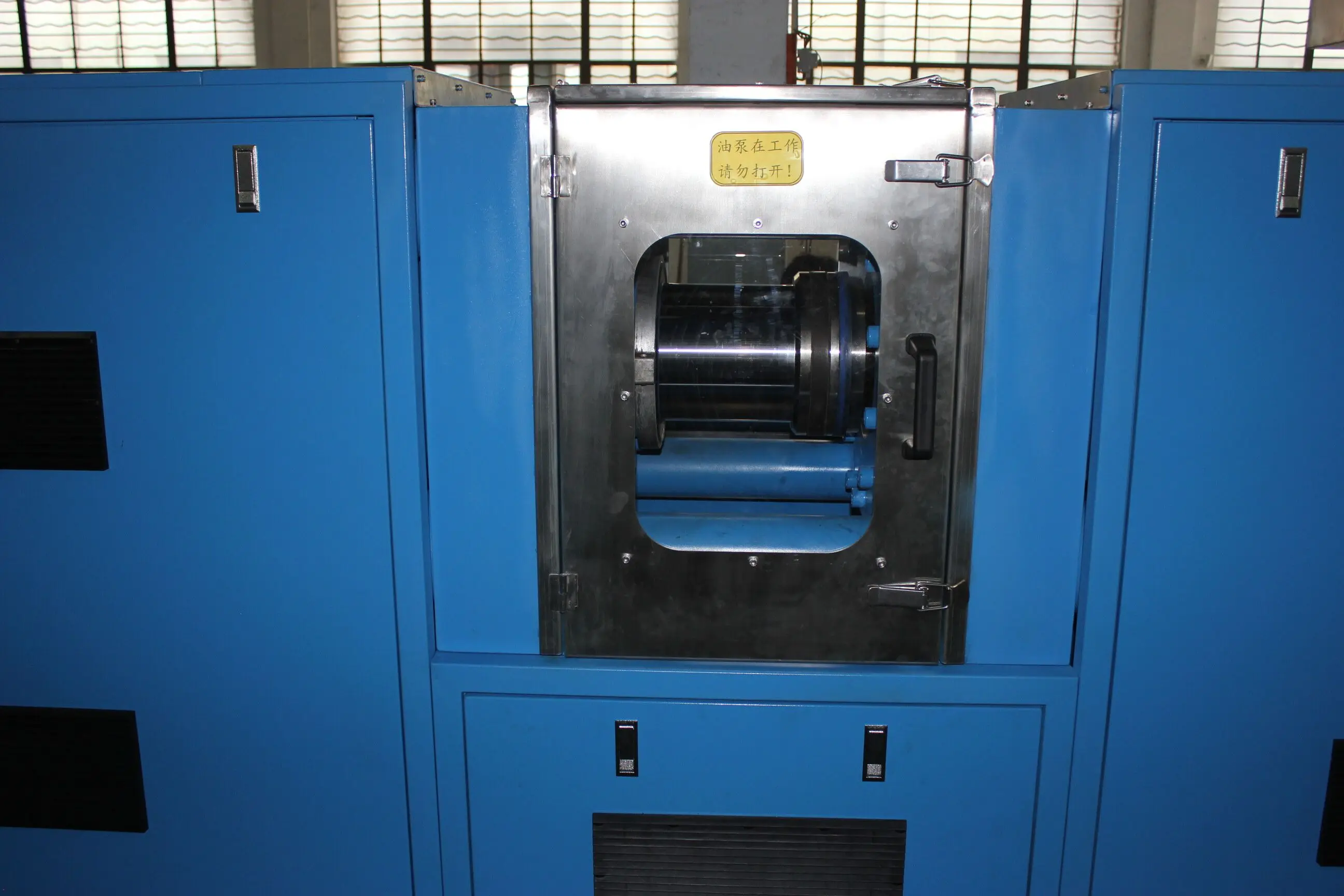

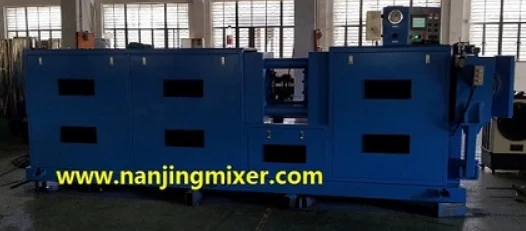

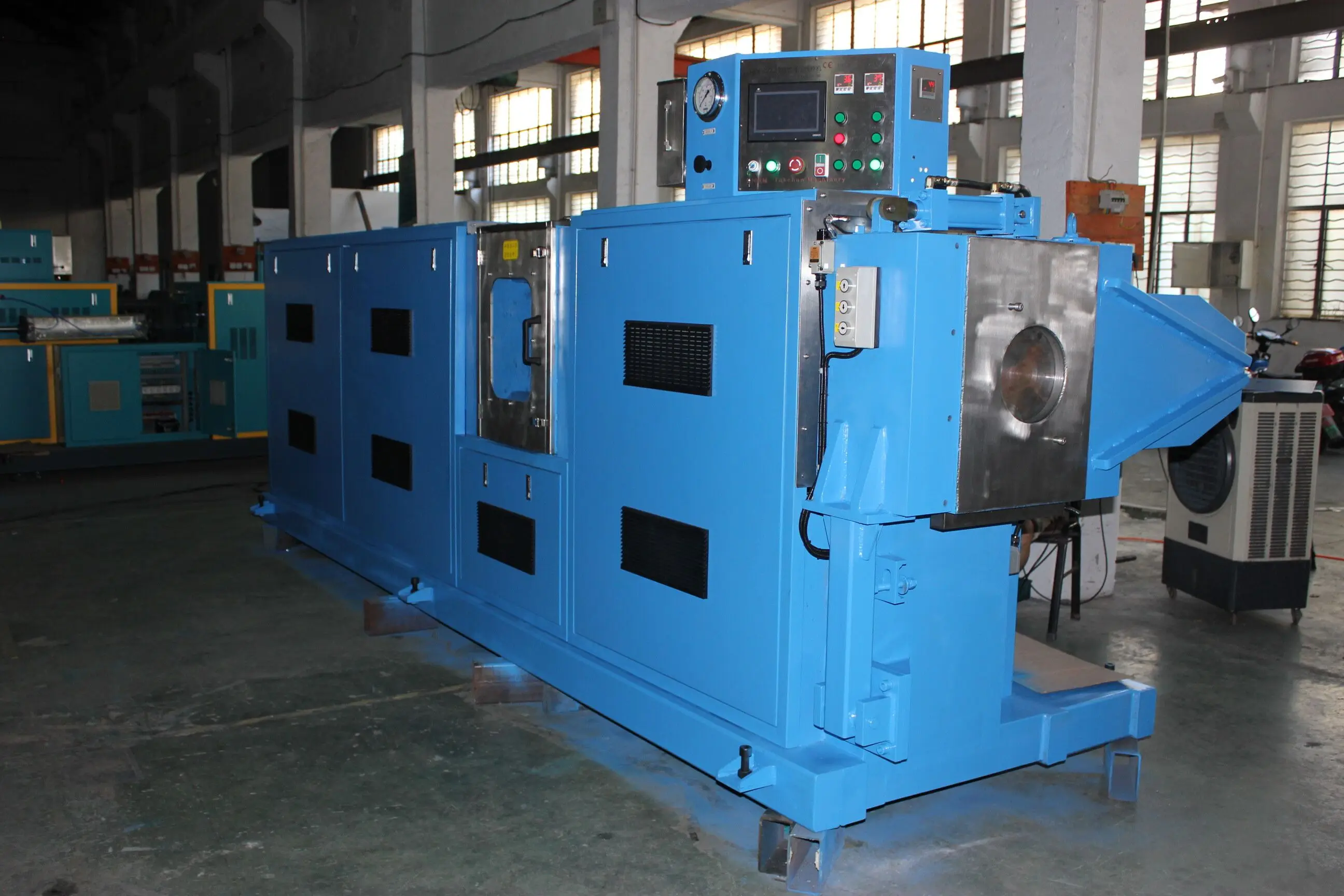

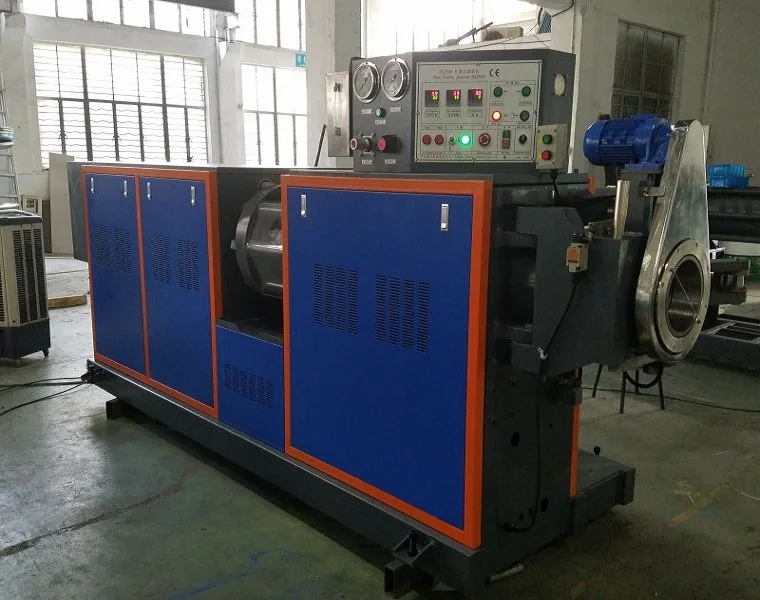

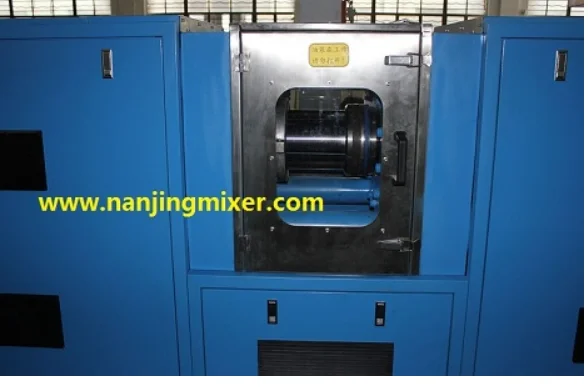

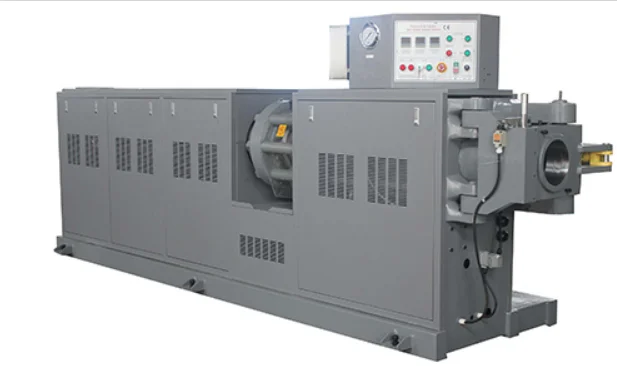

Hydraulic High-Pressure Piston Type Rubber Strainer Machine/Hydraulic Rubber Extruder

Hydraulic High-Pressure Piston Type Rubber Strainer Machine/Hydraulic Rubber Extruder is used to remove the impurity

inside the rubber materials by use of hydraulic piston extrusion, with a screen head for filtration.

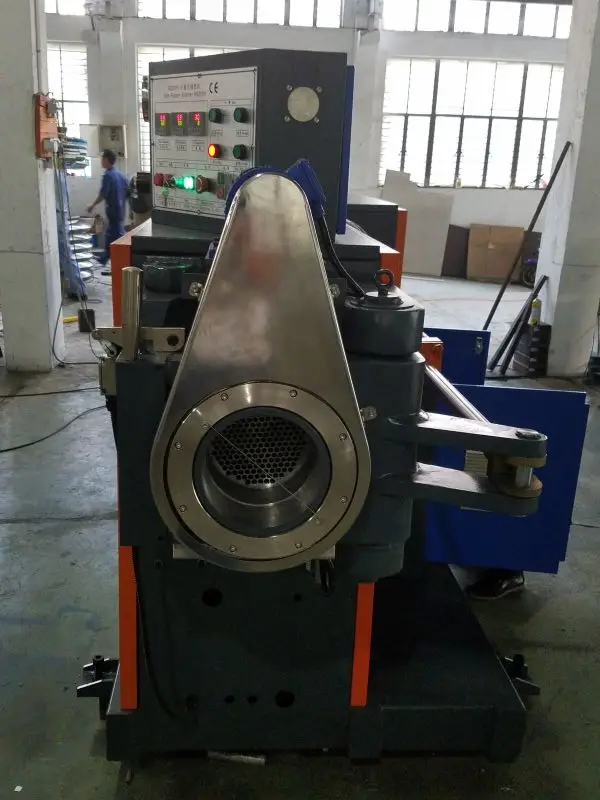

The machine is mainly composed of piston, barrel, head and conveying device. The screen head is installed with perforated

plate and screen net. The perforated plate is used for supporting and holding the screen net, also as the discharge port.

It is used to filtrate kinds of rubber materials,especially compared with traditional mechanical screw type strainer,it enjoys

outstanding advantages for  filtration of  rubber with high hardness, such as fluorine rubber (FKM), nitrile rubber, butyl rubber, etc.

Filtration precision can be up to 300 mesh. Compared with screw type rubber strainer machine, the temperature can be

controlled at very low situation and there is no high temperature rise, ensuring no rubber burn during straining process.

Rubber materials can be added the accelerant first before filtration to improve productivity.

Besides, this piston type rubber strainer machine is hydraulic drive system, the electric power consumption is much lower

than the mechanical screw type strainer,so it can save operation cost.
