Stainless steel micro 1500L beer machinery beer production line
Product Description
Are you plan to expand your current beer brewing business?
Or you have beer brewing experience and plan to establish your own brewery?
Then the 15hl capacity may be a good choice. The 1500l beer brewing equipment is one of our hot sale capacity for starting a new beer brewery. Generally a turnkey beer brewing equipment included at least the Malt miller, Brewhouse unit, Fermenters, Glycol cooling system, Controlling system and CIP cart. The optional devices included the Beer filter, Brite tanks, Bottling machine, kegging machine, keg washing amchine etc. Here are some clarifications for the brewery we made for other cusotmers before as below.
Output/Brew
1500L
Brew/Week
2~6
Output/Week
3000~9000L
Area Request
>90M2
Brew master
1-2
Material
Interior Shell: SUS304 TH=3mm
Exterior Shell:SUS304 TH=2mm /red copper
Heating Source
Steam/Direct fire for optional
Electric Supply
3phase/380(220, 415,440…)v/50 (60)Hz
Single Phase/ 220(110, 240…)v/50(60)Hz
Main Features
1. Quality verified_ 19 years experience on beer equipment manufacturing
2. Transaction security_ More than 1100+ brewery project all over the world
3. One stop service_ Pre sale + Design + Production +Installation
4. Certification guarantee_ With ISO, CE, design and produce by ASME standard available
Components:
A complete 500L beer production line included malt miller, Brewhouse unit, Fermenters, glycol cooling system, Control unit, CIP cart. We can also supply the brite tanks, keg washer, keg filler, beer filter, stainless steel kegs if you need. The beer production line could be speically customized according to your requirements.
NO.
Name
Function
Remark
UNIT 1
Grain miller
Grain crushing
Necessary
UNIT 2
Flexible Auger
Conveyor the malt from miller to mash tun
Optional
UNIT 3
1500L Brew house
Grain mashing, lautering, wort boiling, whirlpool, hot water supply
Necessary
UNIT 4
Fermentation Tank(CCT)
Wort Fermentation or maturation
Necessary
UNIT 5
Filtration Unit
Beer filtration
Optional
UNIT 6
Bright Beer Tank (BBT)
Beer maturation/conditioning
/serving/filtered beer receiving
Optional
UNIT 7
Glycol Cooling Unit
Glycol water supply for wort, cooling and fermentation cooling
Necessary
UNIT 8
Controlling Unit
Brewhouse controlling
Fermenter controlling
Bright beer tank controlling
Necessary
UNIT 9
CIP Unit
Supply caustic liquid and sterilization liquid for all tanks cleaning
Necessary
UNIT 10
Keg Filler and Washer
Filling kegs and washing kegs
Optional
UNIT 11
Bottling Machine
Rinsing/Filling/Capping/Labeling bottles
Optional
UNIT 12
Assisting purchased facilities
Water treating equipment
Steam Boiler, burner Kegs, etc.
Optional
Detailed Images
Malt Milling Unit
Particle adjustable rolling crusher
Flexible or steel auger for optional

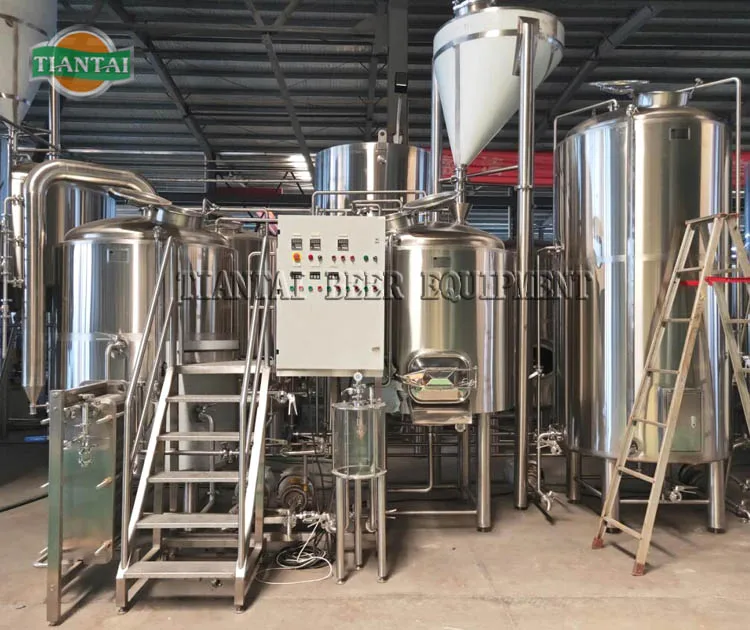

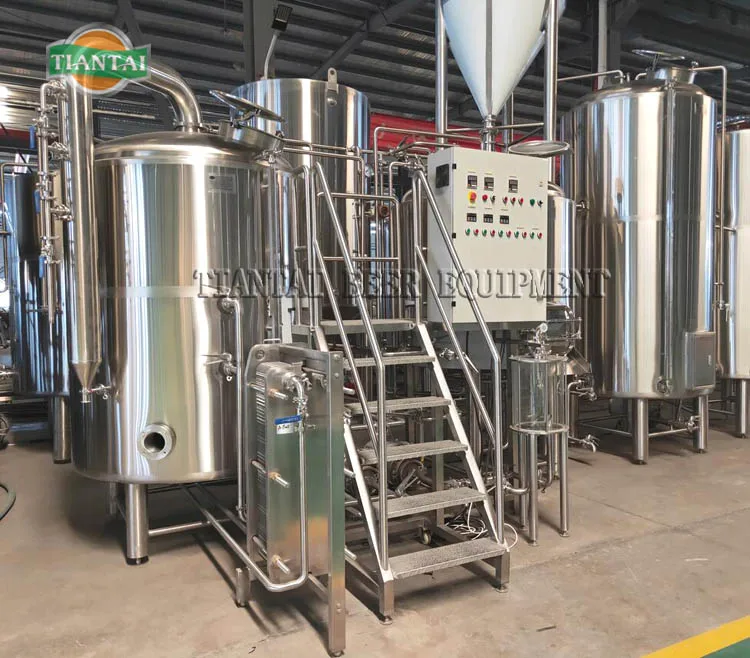

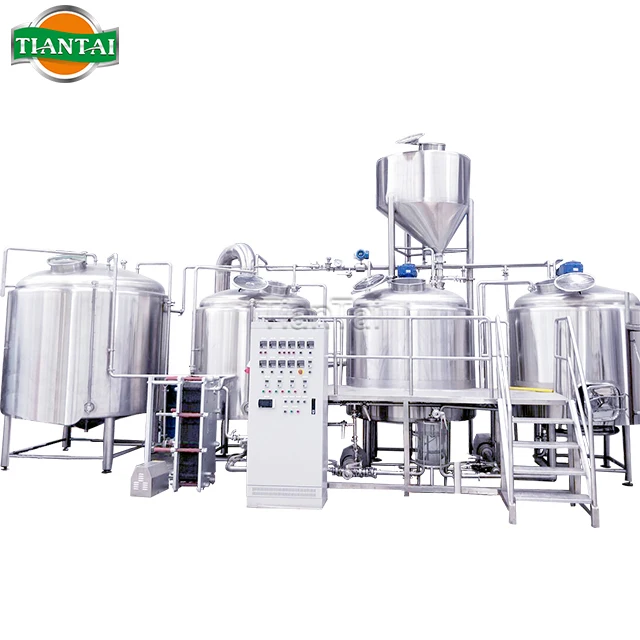

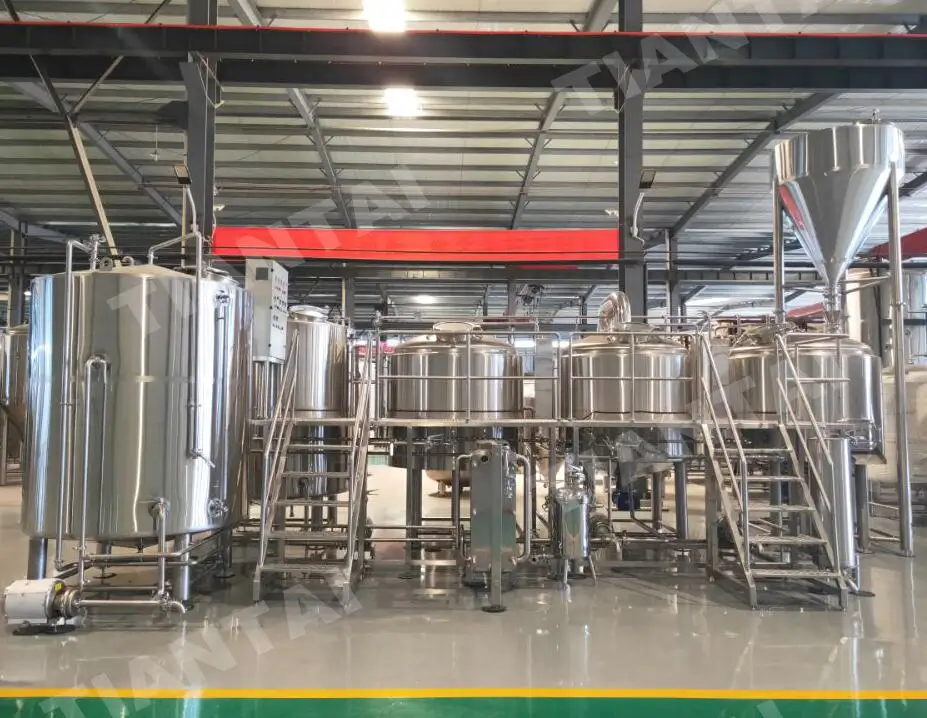

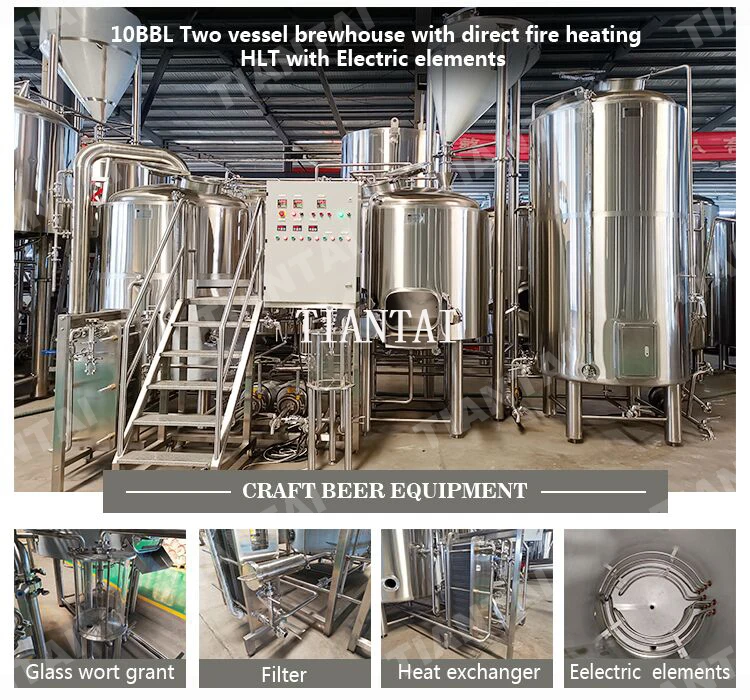

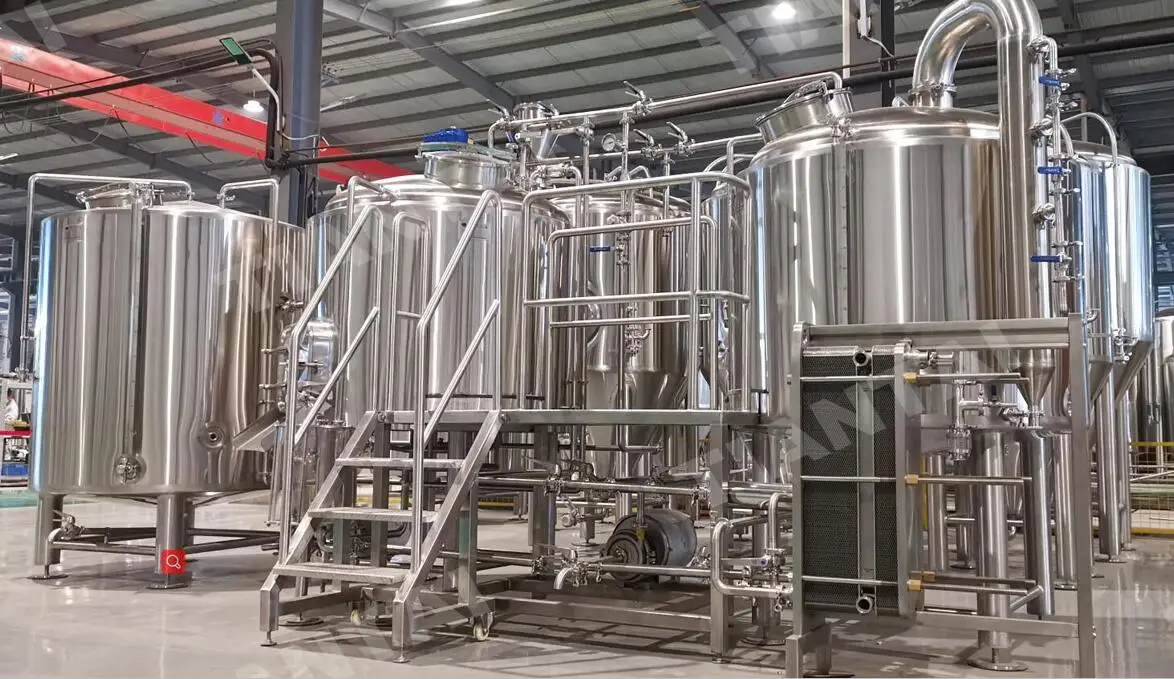

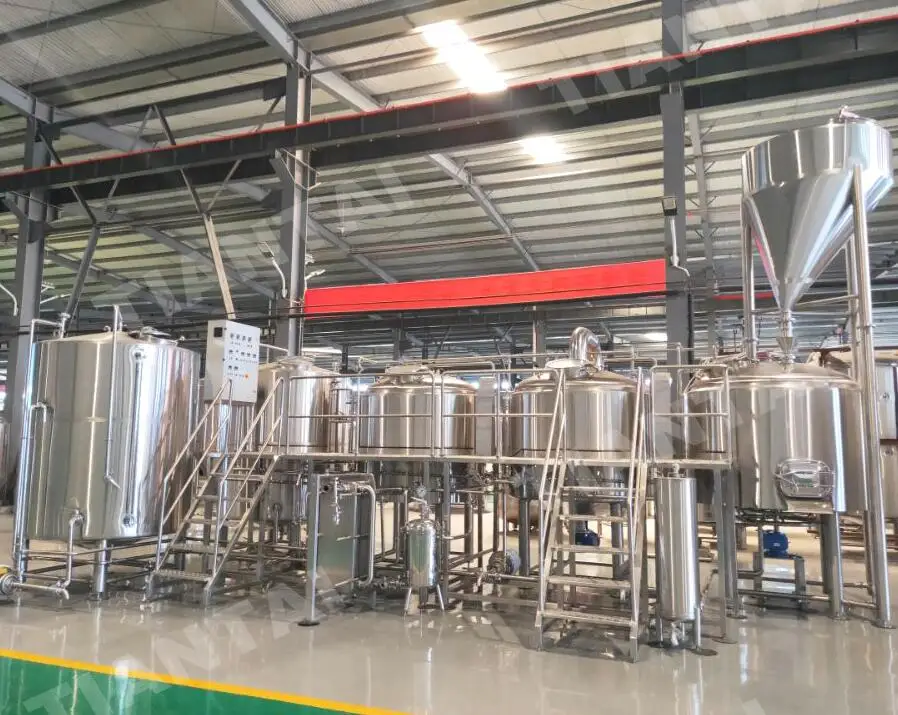

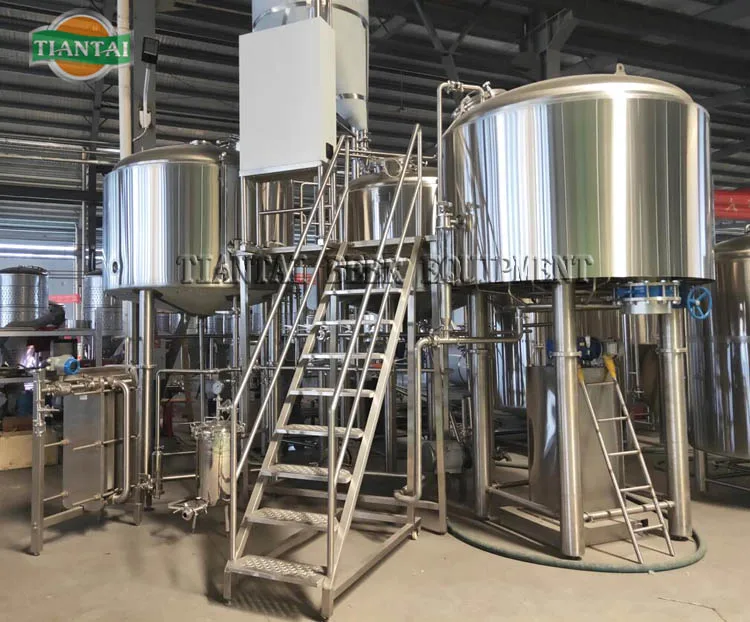

1500L Stainless steel Brewhouse Unit
Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination
Hot water tank and cold water tank for optional in special combinations
Infusion or decoction brewing methods are designed exactly
Stainless steel or copper cladding are popular
Two stages or single stage heat exchanger for wort cooling
Completely stainless steel integrated work platform
Sanitary and efficiency wort pump
All pipings and fittings
Fermentation Unit
Standard stainless steel conical cylindrical fermentation tanks
Single size as brewhouse is common used in restaurant
Tanks quantity is exactly calculated by fermentation cycle for various beers
All manhole, valves, pressure gauges, fittings etc are included
Bright Tank Unit
Standard stainless steel bright tanks for beer maturation, conditioning, service, carbonation
Single size as fermenter is common used in restaurant or bar
Tanks quantity is exactly calculated for various beers and the function
All manhole, valves, stone, gauges, fittings etc are included

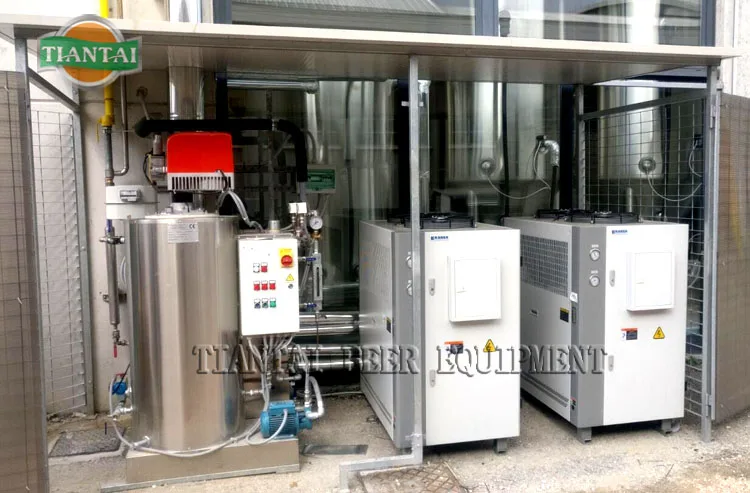

Cooling Unit
Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing
Efficiency chillers or refrigerators with fryonto supply cooling energy
Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger
All pipes, fitting, insulation materials are included
Controlling Unit
Electrical controlling cabinet with temperature, on-off controlling for brewhouse
Electrical controlling cabinet with temperature, on-off controlling for cooling parts
Temperature controller, thermocouple, solenoid valves etc are included
PLC with touch screen panel for special request
Other Facilities
Portable CIP system for cleaning the tanks
Beer filter unit
Steam boiler for brewhouse heating
Beer dispense
Water treatment for brew water
Oil free air compressor
Manufacture proces
1. Welding: We abandoned the argon gas cylinder but adopt The Central System of Argon to make sure the TIG welding with pure argon gas shield. We also increase the using amount of gas when welding, so the quality of the welding line is more higher.
2.Dimpling: We adopt dimple plate rather than belt for glycol jacket, since it can increase the cooling area and improve the speed of cooling. The most important thing in brewing process is to avoid contaminating, that is to say the most important thing in producing beer equipment is to polish the inside tanks to 0.4~0.6 μm Without dead corner.
3.Polishing: We use large-scale polishing equipment to polish the inside of the tanks -- all over the wall to make sure there is no dead corner. And we adopted passivation and acid pickling which will make our tanks with higher accuracy. You need not worry about there will be some bacterias remained after cleaning.
About us
We have more than 15 years experience about designing, manufacturing, installing and training the beer brewery equipment. We have exported to USA, Canada, Brazil, Korea, Australia, Italy, Spain, Belgium, South Africa etc. All of our beer equipment details are taken the humanized and brewmasters’ intention into consideration. Reliable quality is guaranteed by certificated raw material, professional technical support, advanced processing equipment, strict quality control and complete personal training etc. We always keep our system affordable which will support more brew masters to approach their brewing dream.
Welcome to send us inquiry for detailed cost of the 1500L beer production line!
