Product Overview

Description

high speed 300mbps wireless wifi router no password hack 192.168.1.1



1,Simple introduction



Hardware:

WE2026 used the MT7620N, CPU up to 580Mhz, installed the large capacity SDRAM and the high

speed SPI FLASH, provide 5 10/100Mbps Auto-MDI/MDIX port and 2.4Ghz wireless network, could meet

many kinds of wireless application, much better cost-performance.

Wireless:

Support 802.11b/g/n network protocol,transmission rate up to 300Mbps, 4 external antennas, cover a

larger area.

Software:

The most stable system openWRT or Ecos, easy use, for home using and commercial using.



2.Product Feature



MT7620N CPU, 580Mhz, powerful performance and work stably;

Support IEEE 802.11b,IEEE 802.11g,IEEE 802.11n wireless network protocol

Support IEEE 802.3,IEEE 802.3u standard. , 1 10/100MAuto-MDI/MDIX WAN port; 4

10/100MAuto-MDI/MDIX LAN port.

 Wireless rate up to 300Mbps

One push to rest mode.

Support several encryption mode, such as WEP,WPA,WPA2 and so on.



3.Specification:



Hardware

1)Main CPU MT7620N/580MHZ

2)RAM SDRAM 64MB (Max SDRAM 64MB)

3)FLASH SPI 8MB (Max 16MB)

4)Protocol IEEE802.11n/802.11g/802.11b/802.3/802.3u

5)WiFi Rate Max 300Mbps

6)Work Frequency 2.4GHZ

7)RT Power

11N: 15dBm ±2dBm

11G: 15dBm ±2dBm

11B: 18dBm ±2dBm

8)Reception Sensitivity

11N: -68dBm

11G: -70dBm

11B: -82dBm

9)Antenna 4 external antennas

10)Interface

1* 10/100M Auto-MDI/MDIX WAN port,

4* 10/100M Auto-MDI/MDIX LAN port;

10)LED power /WLAN/WAN/LAN1/LAN2/LAN3/LAN4

11)Button Reset

12)Max consumption < 5W





Software:

1)WAN Type PPPoE,Dynamic IP, Static IP

2)Work Mode:AP&Router;

3)DHCP Server, Client, DHCP Client List, Address Reservation,Port Forwarding,Virtual Server, Port Triggering, UPnP, DMZ,Firewall

4)Security:Dos, SPI Firewall,IP Address Filter/MAC Address Filter/ Domain Filter,IP and MAC Address Binding,DDNS SupportWEB Style Change, Support Band Ctrl ,Support Static Router ,Support System Log 5)Other Function:Mac clone,NTP Synchronize,Web firmware upgrade



Others

Work Environments

Operating Temperature:0℃ ~ 40℃;

Storage Temperature:-40℃~ 70℃;

Operating Humidity:10%~90% non-condensing

Storage Humidity:10%~90% non-condensing



Adapter :5V/1A

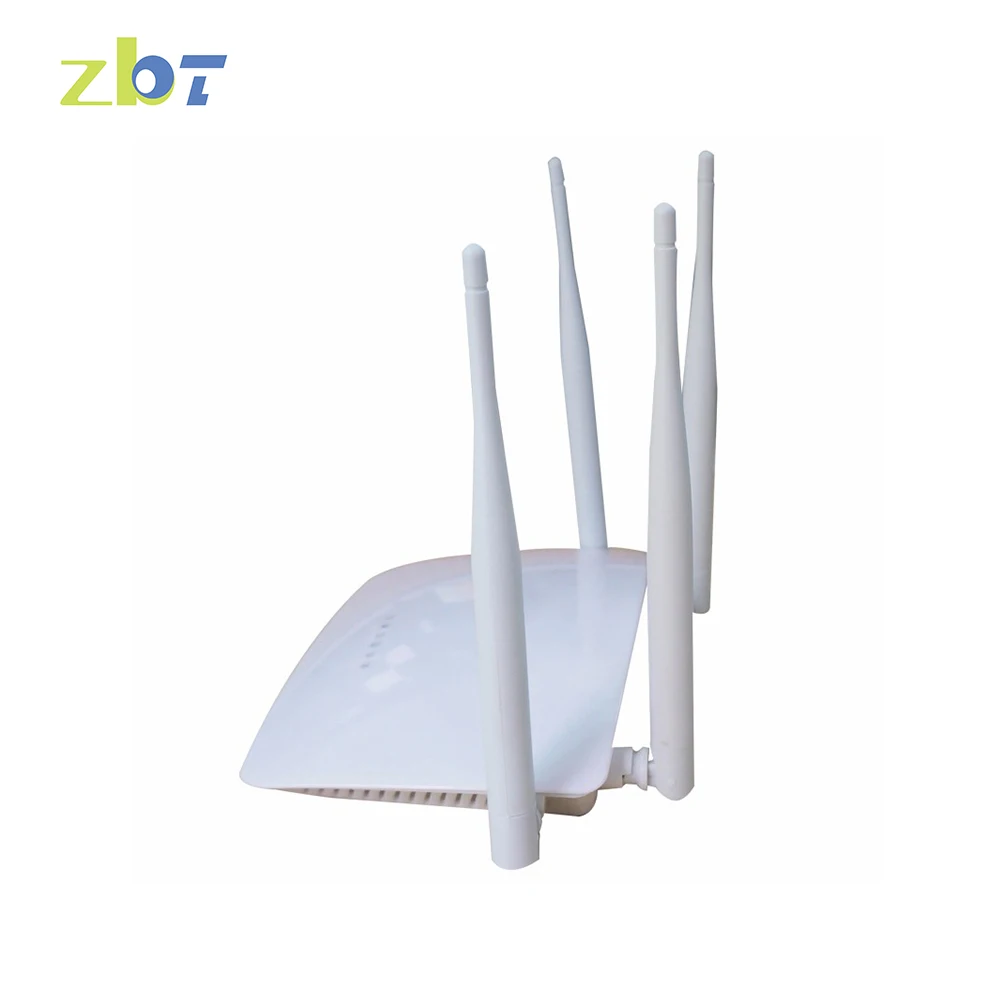

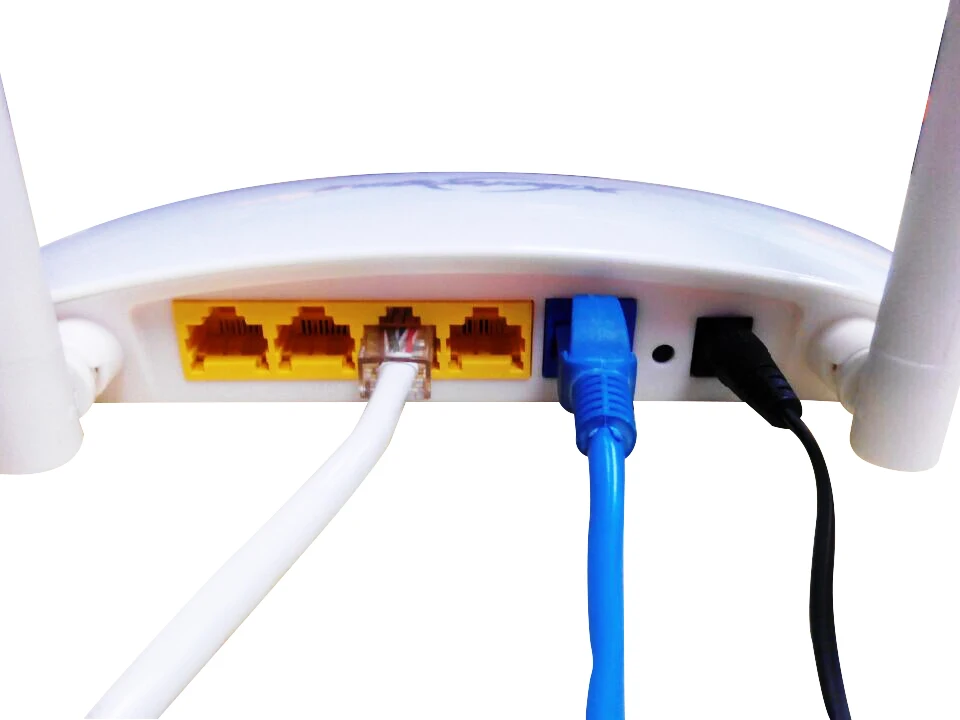

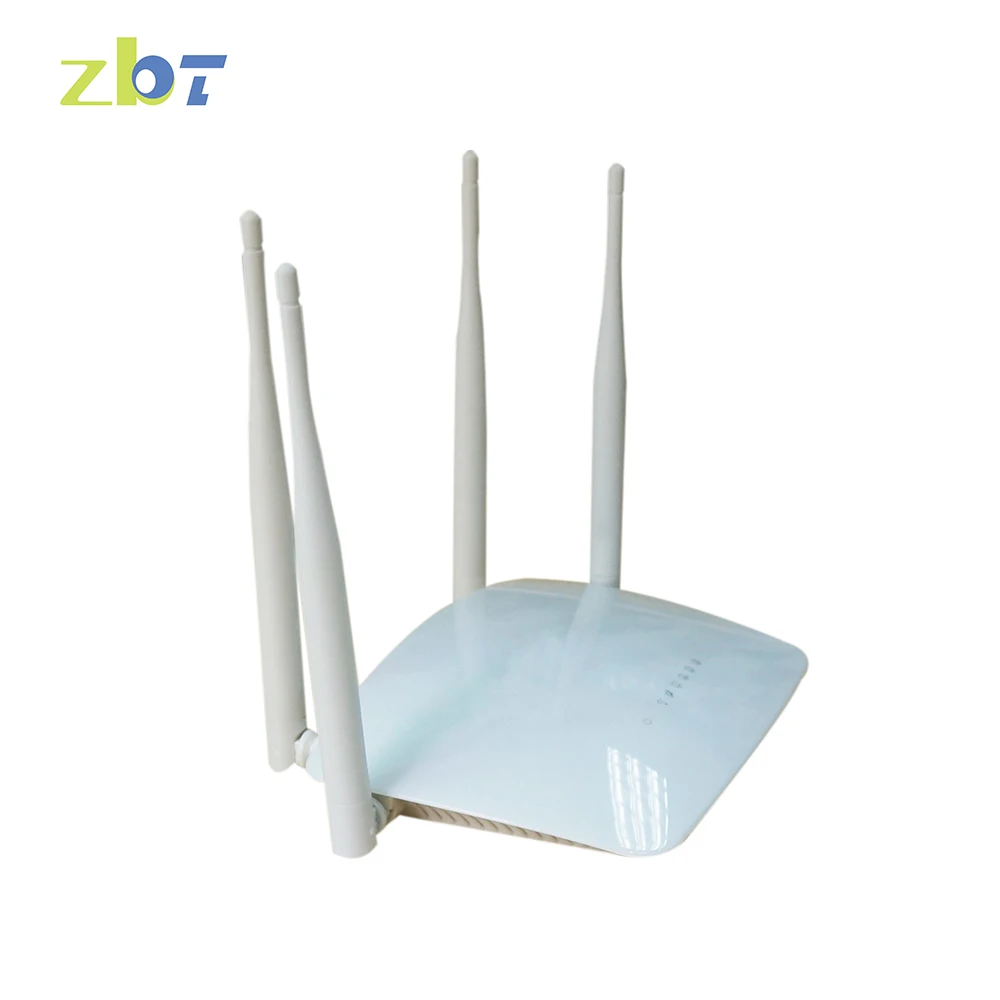

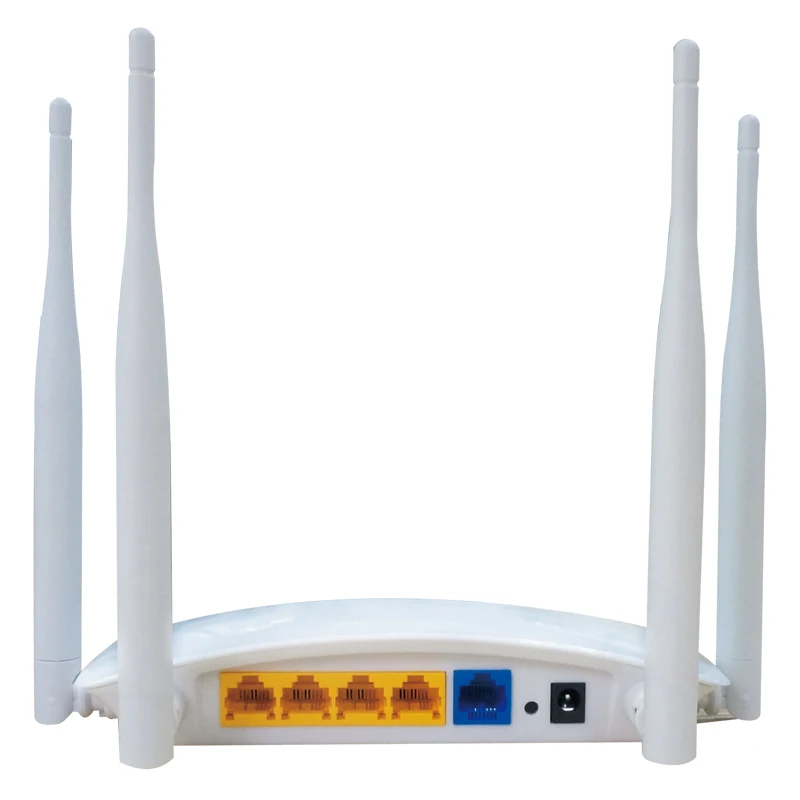

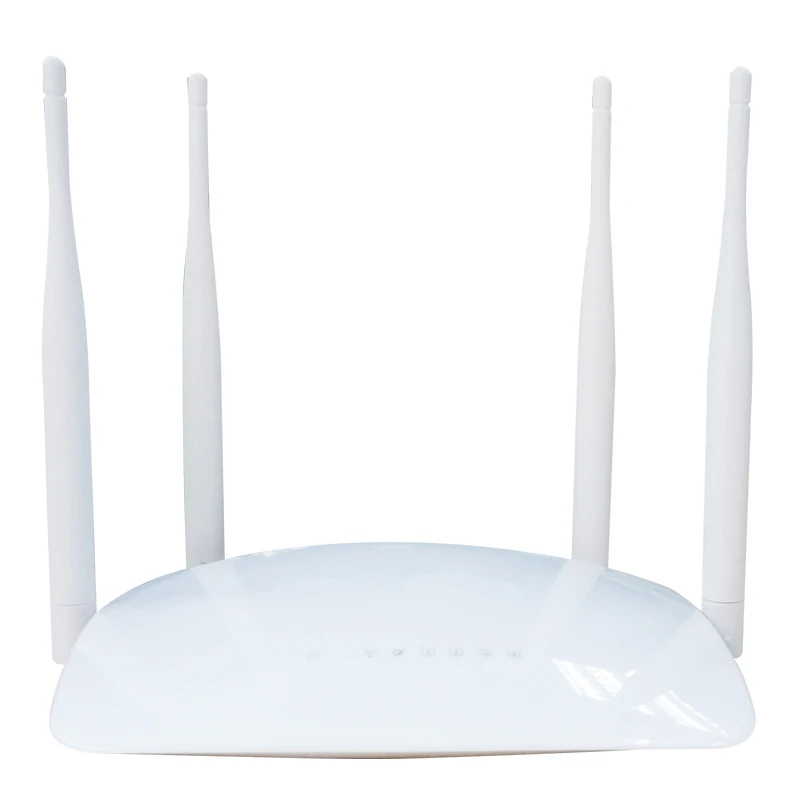

Product Photo;
