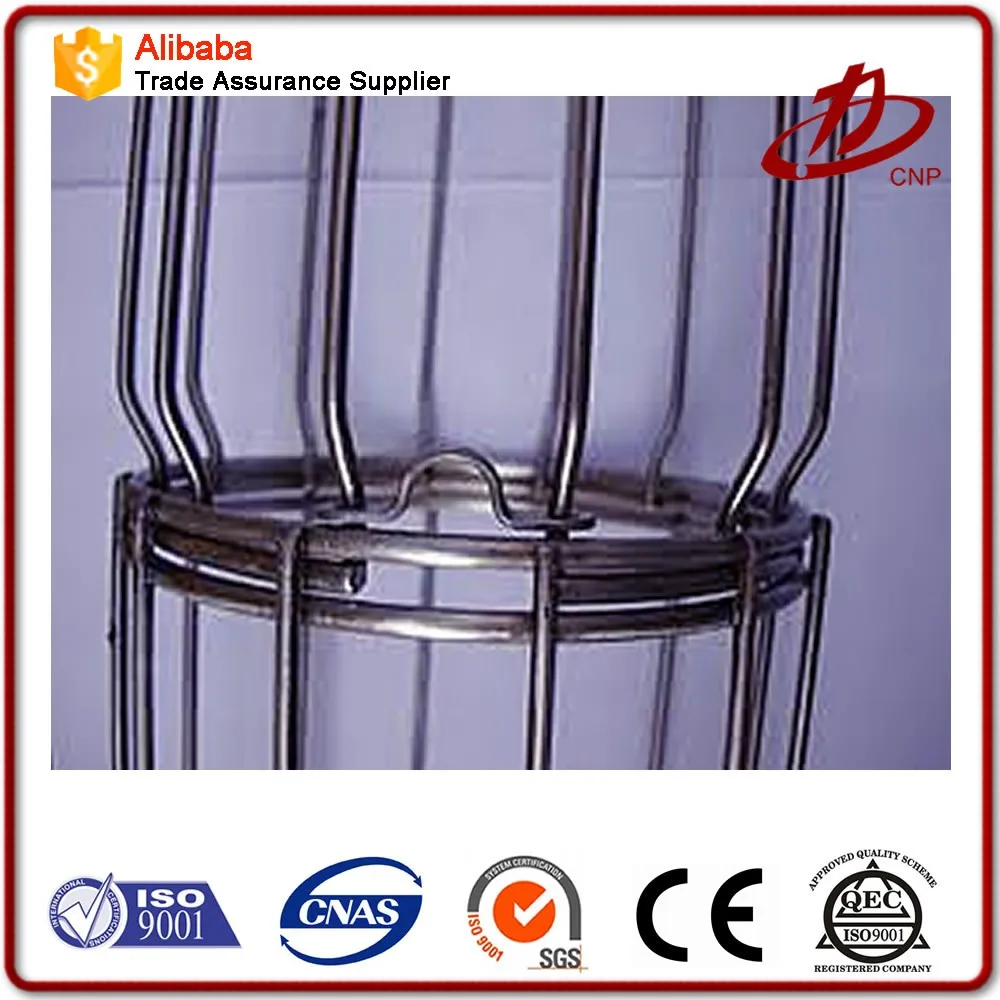

Высококачественный фильтр для электростанции из нержавеющей стали с Venturi для промышленного пылесборника
- Category: Filter Bags >>>
- Supplier: Century New Power (tianjin) International Trade Co. Ltd.
Share on (60534273678):
Product Overview
Description
INTRODUCTION
Filter bag is the core of the dust filter components. The filter bag has the strict requirements on design, filter material cutting, woven technology etc. These requirements are very important for the normal operation of the bag filter and convenient maintenance, and it is great significance to enlong the service life of the filter bag.
Structure and application

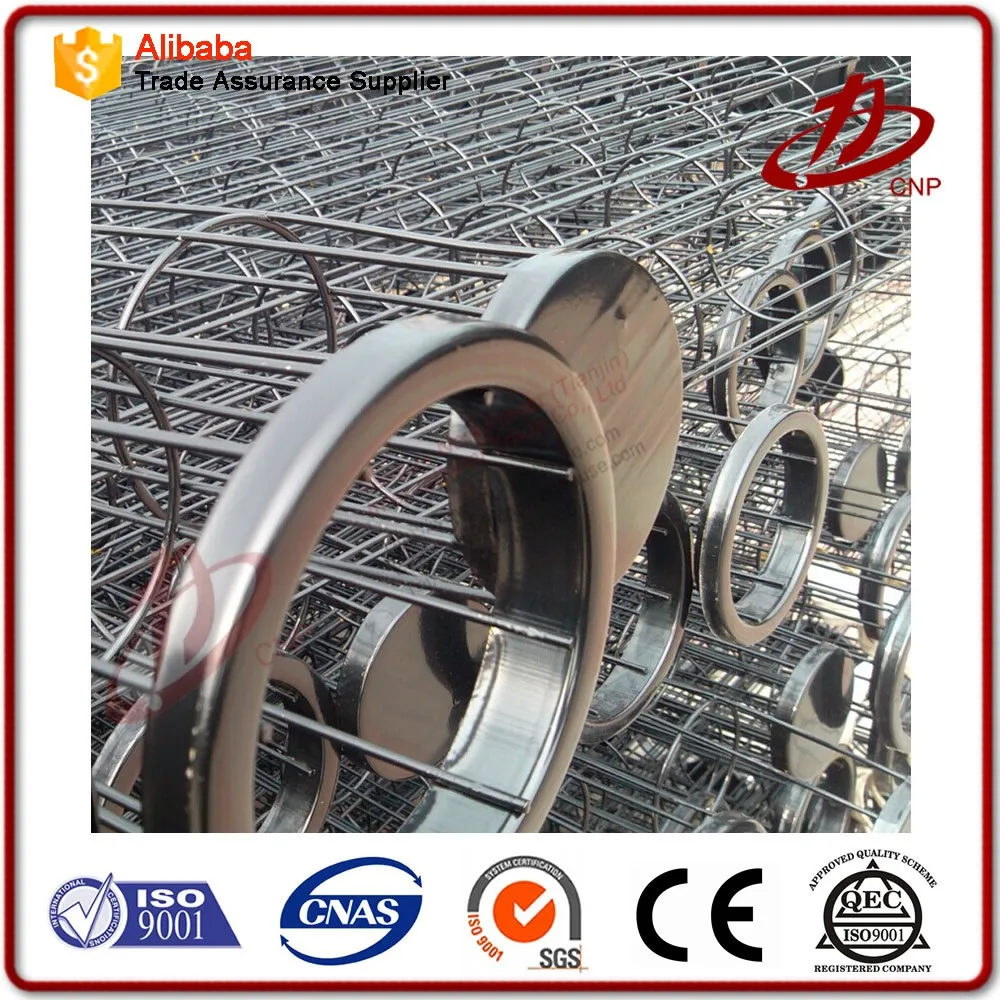

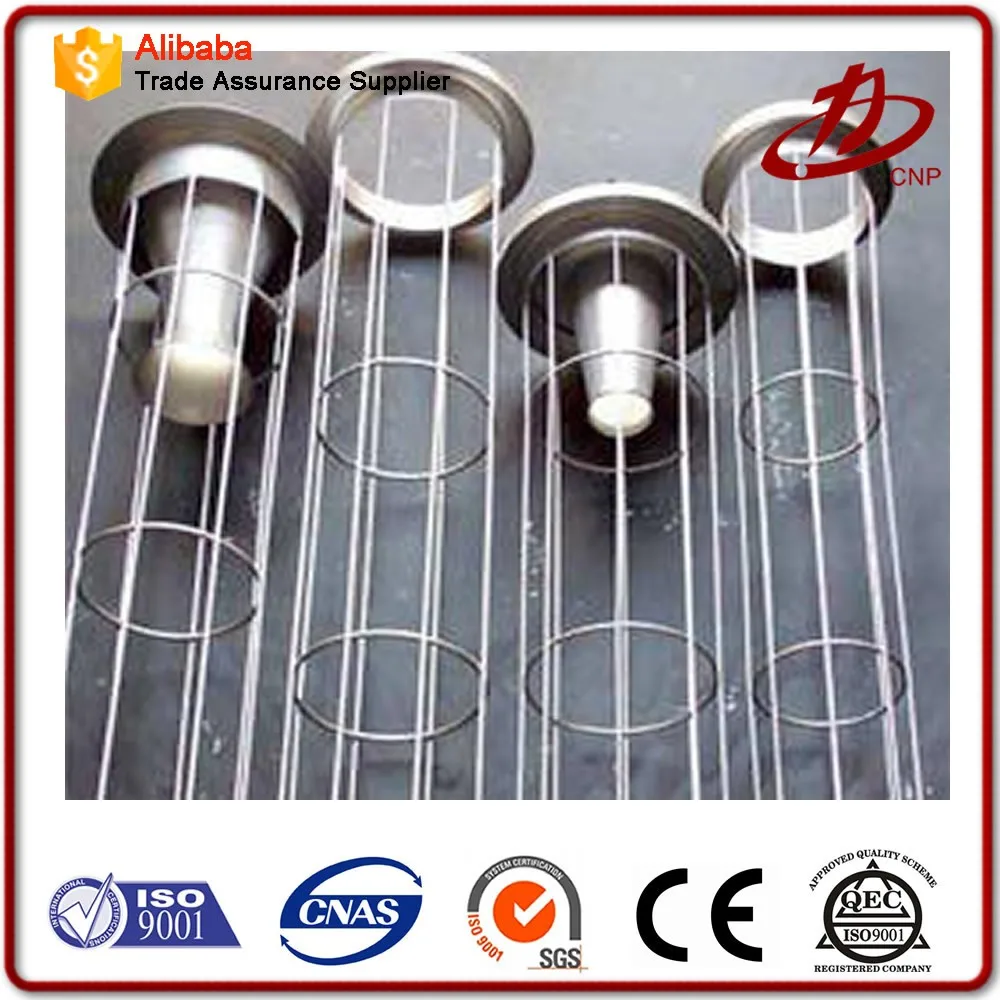

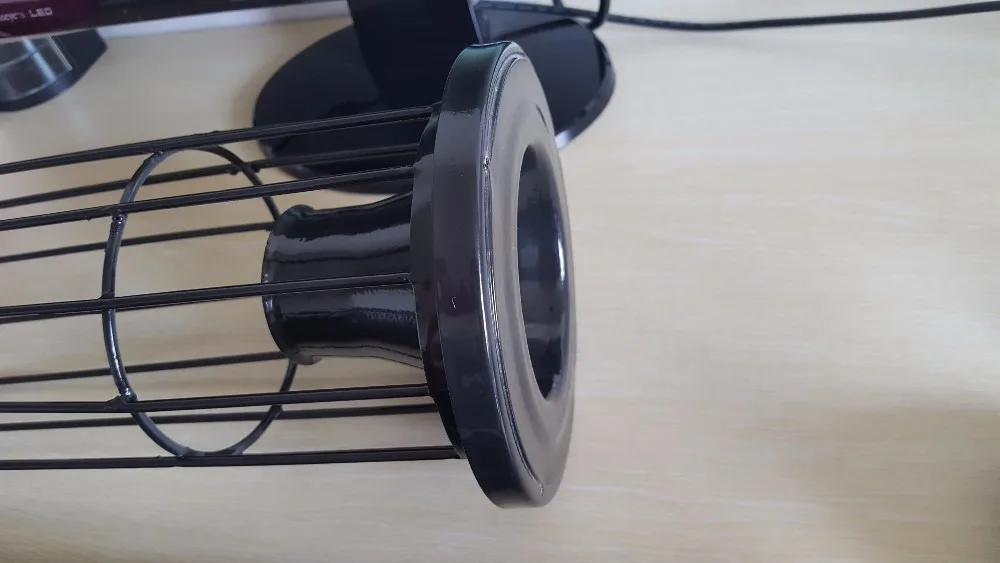

Filter bag are composed by woven filter material bag body and supported in role, snap ring, clamp, chain hoist, etc. The rest of the filter bag dust collector and its accessories are the venturi tube, frame, mouth of elastic ring, etc.
Specifications
The diameter of the filter bag is 115-200mm, length is 2000 - 9000mm, the specifications of the commonly used filter bag is 120 - 160 mm diameter, 2000 ~ 6000mm length.
Filter bag processing need attention
Filter bag processing matters that should be paid attention:
After the selection of filter bag material and determine the specifications of the filter bag, we will process the filter bag as following attention matters:
(1) Precise design required size of the filter cloth for filter bag parts, the filter cloth will larger than the actual amount design size, to leave a spare for weaving.
(2) To choose the right filter bag accessories, specifications and check its quality. The filter bag accessories should match the filter bag quality requirements.
(3) We make the filter bag line drawing, cutting, sewing on automatic production line. When the filter bag need manual processing, we will open it on the operation platform, and with certain pulling force to keep it is flat.
(4) We keep the strict processing quality standards, according to design drawings and operation process. Our worker meet the requirements of tooling and clothing shoes and hats, no smoking.
(5) We have the responsible for the processing of products, and examines, waste, residue, defective goods in the beginning.
Coated Fiberglass Dust Collector Filter Ba
Product Description
INTRODUCTION
Filter bag is the core of the dust filter. The filter bag has the strict requirements on design, filter material cutting, woven technology etc. These requirements are very important for the normal operation, maintenance and even the service life of the bag filter.
Structure & Spec.
Filter bag are composed by woven filter material bag body, snap ring, clamp, chain hoist, etc. The rest of the filter bag dust collector and its accessories are the venturi tube, frame, mouth of elastic ring, etc.
Specifications
The diameter of the filter bag is 115-200mm, length is 2000 - 9000mm, the specifications of the commonly used filter bag is 120 - 160 mm diameter, 2000 ~ 6000mm length.
The oval, flat, envelope and support ring types of filter bag, please be sure to enquiry for us engineer. We'd like to provide the most suitable design and filtration material select suggestion for your reference.
For different industries
Filter bag should be inspected and repair after sewing according to the design requirements to eliminate surface crease, dirt and grease. For PTFE coated filter bag, in addition to the needle density control and strict operating procedures, it needs to use special materials for all the pin hole repairing.
Filter bag manufacture should be according to the national standards, industry standards and enterprise standards, quality supervision departments according to the number of sampling test project and the proportion. According to the number of sampling ratio is 5% ~ 20%. For higher requirements on the filter bag, As a group of sampling rate should be above 15%.
For Chemical Industry
Our filter bag for the chemical industry are offered as thorough solutions. This means you will receive expert support not only filter bag design, but also how to optimize the flow parameters of your system to get the absolute best productivity. This process-specific product design and applications engineering approach has proven to be the lowest risk way to optimize your system's performance.
For Cement Industry
We know that the cement producer all over the world need high-performance filter media for kiln/mill, alkali, and other pulse jet or reverse baghouse. Our filter Bags provide emissions control, production increases and the lowest overall maintenance and operating costs.
For Power station and Incineration Industry
With PTFE membrane, our filter bags provide near zero emissions for waste processing and power station boiler. Whether you use standard or low grade coals, wood or tires in your boiler, or operate a chemical, hazardous, or medical waste incinerator, all we can deliver consistently high airflow over the life of the filter bags for your application.
The most commonly Used filter bag material specifications: (Please click the word for more informations )
Nomal temperature filter bag:
- Polypropylene needle felt filter bag
- Polyester needle felt filter bag
- Water proof polyester filter bag
- Antistatic conductive polyester filter bag
- Carbon antistatic polyester filler bag
- Acrylic needle felt filter bag
High temperature filter bag:
- Aramid needle felt filter bag
- New Nomex needle felt filter bag
- PPS (Polyphenylene Sulphide) filter bag
- P84 (Polyimide) filter bag
- PTFE needle felt filter bag
- Glass fiber woven bulk yarn filter bag
- Glass fiber needle felt filter bag
- Glass fiber woven filter bag
Filter bag processing Notice
We pay 100% attention on our Filter bag processing matters:
After the selection of the material and specifications of the filter bag, we will process the filter bag as following attention matters:
(1) Precise design of the filter cloth for filter bag parts, the filter cloth will be larger than the actual amount design size, to leave a spare for weaving.
(2) To choose the right filter bag accessories with high quality. The filter bag accessories should be qualified to match the filter bag.

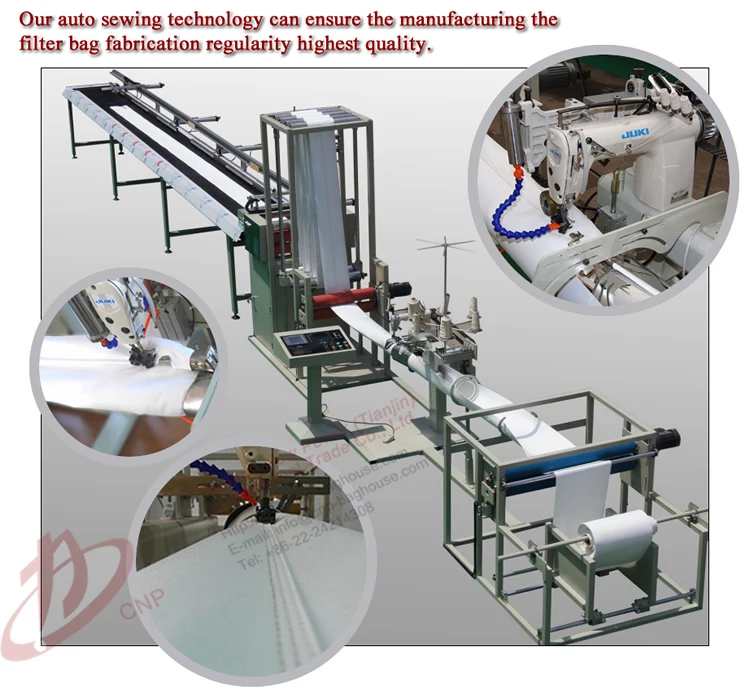

(3) Drawing, cutting, sewing are all on automatic production line. Certainly, when manual processing is necessary, we will open it on the operation platform to handle it.
(4) We keep the strict processing quality standards, according to design drawings and operation process. Our worker meet the requirements of tooling and clothing shoes and hats, no smoking.
(5) We have the responsible for the processing of products, and examines, waste, residue, defective goods in the beginning.

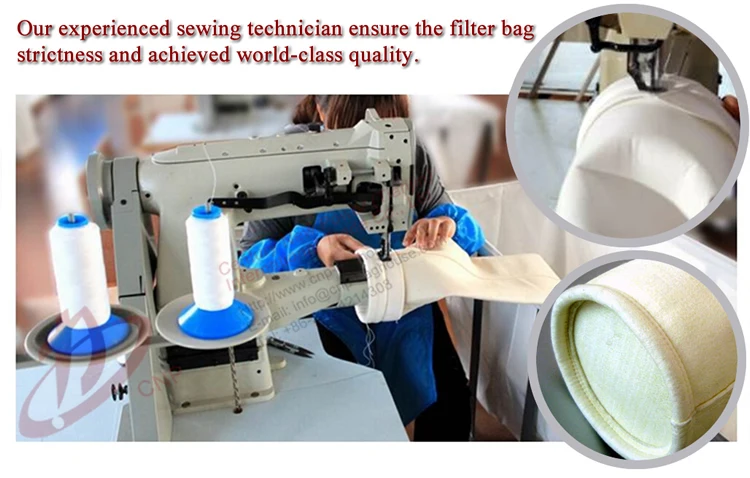

For our sewing, we will obey the following instructions to ensure our filter bag quality.
Filter bag sewing material should be the same as the material of filter material. In special circumstances, we will use different sewing thread with different filter material, the suture properties such as strength, heat resistance and chemical resistance should be better than the filter material sewing thread.
For our filter bag stitching line:
Filter bag bag body vertical stitches must be strong, straight, and shall not be less than three line. The top and bottom of the bag have single or double needle stitching according to different requirements . Filter bag suture needle closely related to the filter bag material, not only to ensure the stitching rigor to ensure it not leak dust, but also shall it not damage the strength of the filter material itself.
The Needle density of chemical fiber filter material filter bag should within 10 cm length (25 + / - 5) needle; Glass fiber can not be too large. The stitching width normally for 9 ~ 12 cm. The stitches and distance on the edge of the filter material: needled felt for 2 ~ 3 mm, glass fiber filter material is 5 ~ 8 mm.
Filter bag should be inspected and repair after sewing according to the design requirements to eliminate surface crease, dirt and grease. For PTFE coated filter bag, in addition to the needle density control and strict operating procedures, it needs to use special materials for all the pin hole repairing.
For our inspection of filter bags:
Filter bag manufacture should be according to the national standards, industry standards and enterprise standards, quality supervision departments according to the number of sampling test project and the proportion. According to the number of sampling ratio is 5% ~ 20%. For higher requirements on the filter bag, As a group of sampling rate should be above 15%.

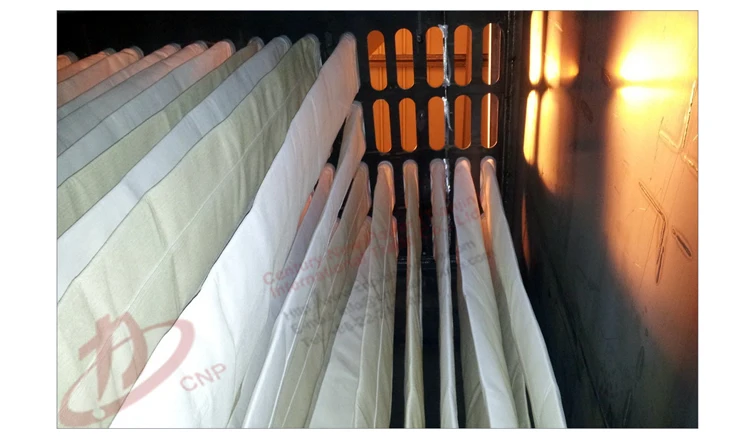

Our oval type filter bag on installment application:

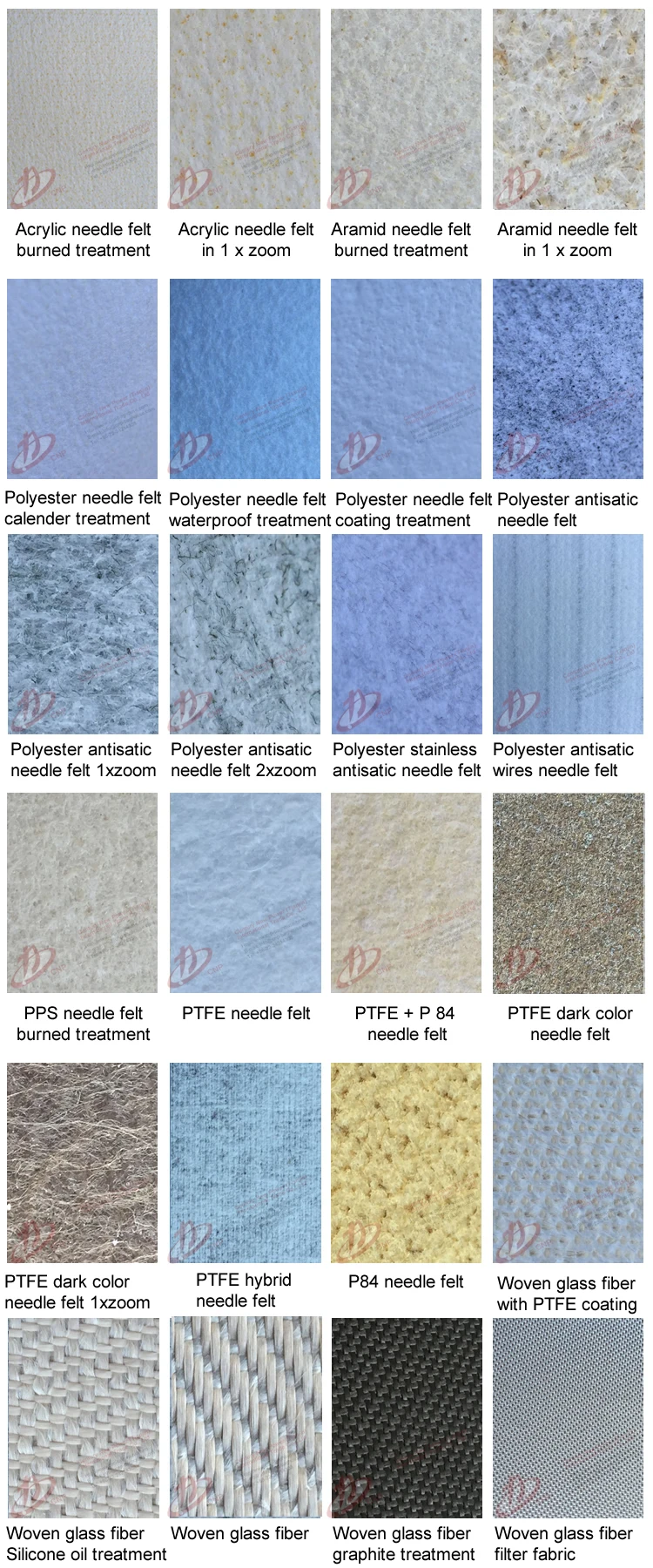

Filter material pic.
ollection waterproo
Trade Shows
f application
Our Services
1. Enquiries quickly reply within 24 hours.
2. After-sales service, rapid response, the engineer installation guide. The feedback problems will be replied within 24 hours. We can arrange professional engineers arrived at equipment location within 48 working hours for problem solved.
3. The dust collector design according to the specific condition of dust removal technology. The wind network project design for all system. To be the optimal structure design.
4. The lowest equipment price whole network in alibaba Welcome to rate of the price. If our price is higher, we will return twice of our quoted price difference to you. Please prompt before sign the contract with us. Due to our good faith principle.
5. The bag filter equipment over 20 years working life.
6. Associated with equipment spare parts, ensure the replacement parts within 20 years.
7. If accessories stop production or update, to ensure that the replacement parts can be normal use, and keep noticed one year before the spare parts stop production.
8. Ensure easy operation and absolutely no worries about future.
