High quality equivalent filter for Milli pore Sartorius cartridge filter element for beer wine alcohol making (60534398799)

Share on:


Price:RUB 1,114.91
Price in USD:Details

Quantity:


Product Overview

Description

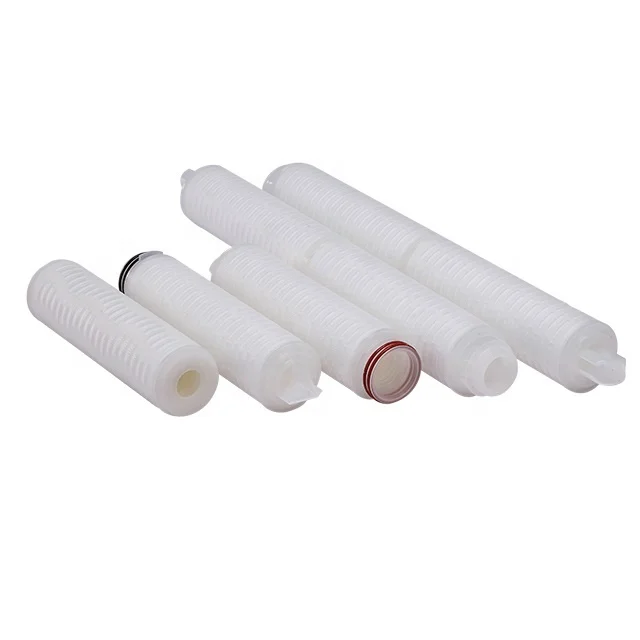

PP filter cartridge 10 inch 2.0 um 222 DOE 226 Fin Silicone Oring for industry water filtration water treatment







Materials Of ConstructionFilter Media:PP Membrane
Support Layers:Polypropylene
Micron Rating:0.1, 0.2, 0.45, 0.65, 0.85, 1.2 um
Inner Core:Reinforced Polypropylene
Outer Cage, End caps:Reinforced Polypropylene
Seal Method:Thermal Bonded, No Adhesives
O-rings/gaskets: Silicone, Nitrile, EPDM, Viton, , etc
Cartridge DimensionsOuter Diameter69mm(2.75'')
Inner Diameter33mm(1.30'')
Length(based on DOE end caps)10"- 254mm, 20"- 508mm, 30"-762 mm, 40"- 1016mm
Filtration Area(m2)0.65 m2 per 10''
Operating conditionsNormal Operating Temperature: Up to 55℃ (131℉)
Max.Operating Temperature: 80℃ (172℉) at P≤1.0 bar (14.5psi)
Max. Differential Pressure
Normal Flow Direction:4.2 bar (60.9 psi) at 25℃ (77℉)
Reverse Flow Direction:2.1 bar (30.5 psi) at  25℃ (77℉).
PH Value compatibility:1-13
Sterilization:Steam Sterilization for 30 minutes at 121±2 ℃,
Cumulative Time:8 hours;
Typical water flow rate @ 25 ℃ (10")
Cartridge SafetyEndotoxin:<0.25 EU/ml
Extractables:0.03g / 10"



Features and Benefits

1. Graded density ultra fine polypropylene membrane filter, could provide absolute rating filtration;



2. Pleated depth media for high flow rate and maximum dirt holding capacity;



3. 100% polypropylene construction offers broad chemical compatibility;



4. High retention efficiency provide excellent protection of downstream filters;



Applications



> Food & Beverages, Wines, Beer, Mineral Water, etc;



> Pharmaceuticals, API's, Biologics, Buffers, Reagents;



> Fine Chemicals, Inks, Solvents, Photoresists, etc;



> Electronic, Semi-Conductor, LCD Display, Discs;

Product category

The Polypropylene (PP) membrane filter has high flow rate and dirt holding capacity, 100% quality polypropylene construction with excellent chemical compatibility,

It's thermally bonded construction ensures minimal extractable and its high filtration efficiency makes it an excellent choice for use in various industrial applications.
