Шиномонтажный станок, шиномонтажный станок для грузовиков, автобусов и тракторов

Product Overview

Description

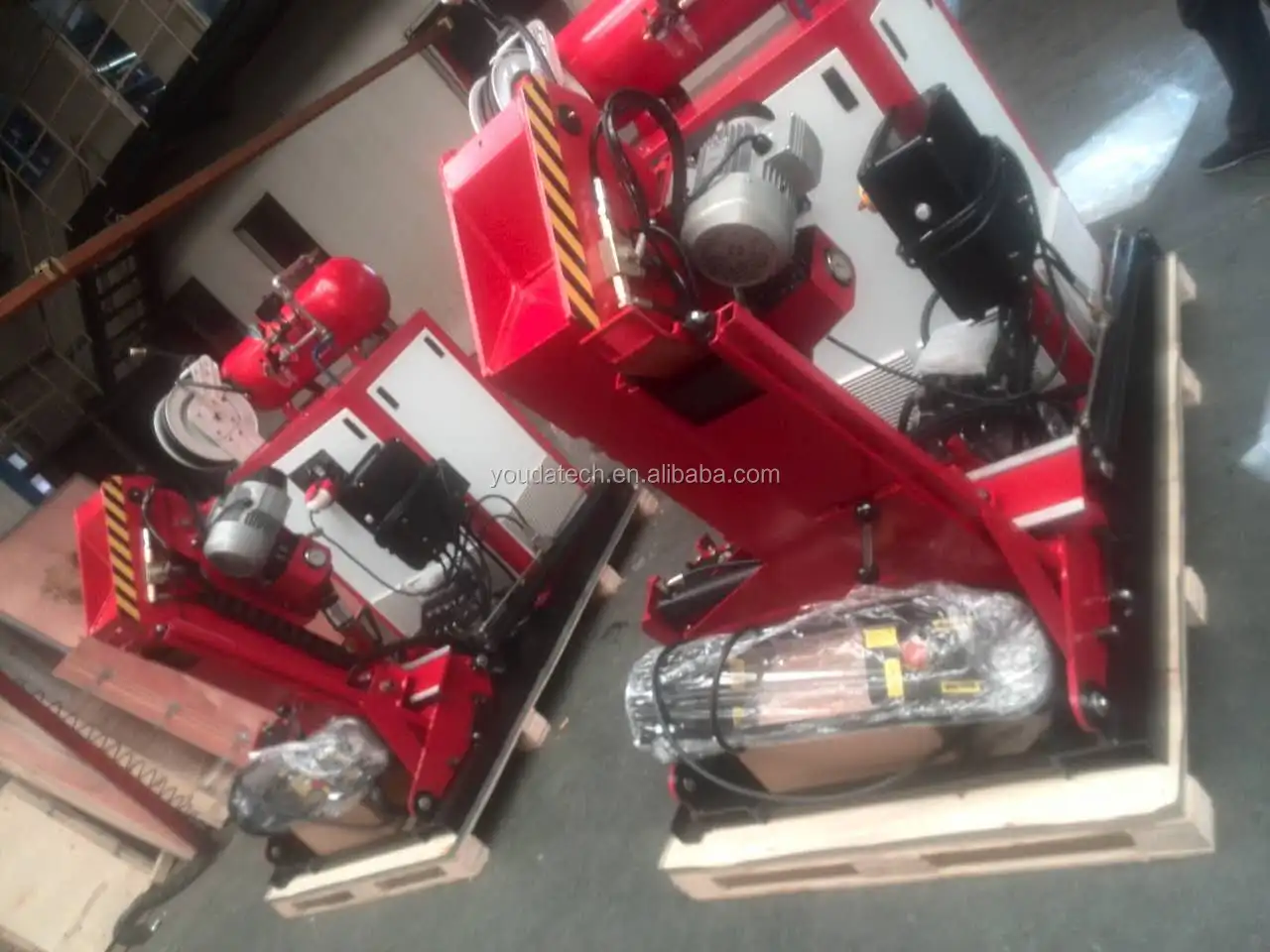

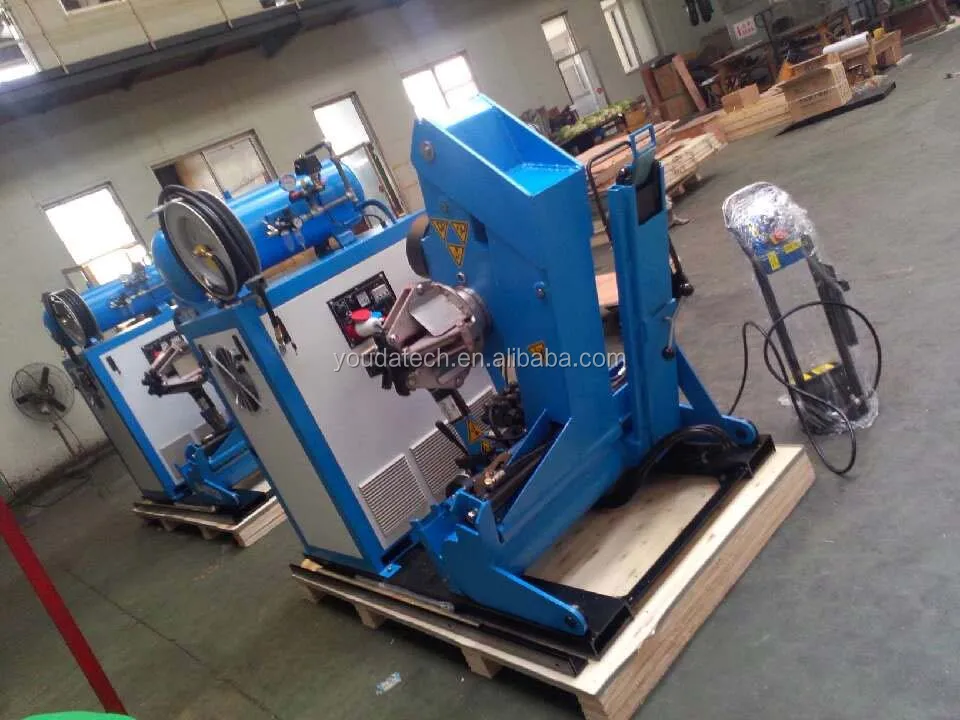

Mobile tire changer for trucks, buses and tractors



Product features:
Electro-hydraulic tyre changer for trucks, buses and tractors.

Equipment with a power generator optional

Can be run in the workshop and is suitable for mobile service
With CE certification.

Technical data:



Technical Data:
Rim diameter: 13" to 26"
Max. wheel weight: 700kg
Max. wheel width: 600mm
Max. tyre diameter: 1300mm
Hydraulic pump motor:1.1kw
Gearbox motor: 1.1kw
Bead breaker borce: 2500kg
Power: 220V/440V 50/60HZ 1P/3P optional



Dimensions of Van‘s door:
Min. height of machines chassis to the top of the door: 1450mm
Min. width of inner van: 1650mm
Min. width of door: 980mm
Thick of van: ≤160mm
Chassis of the van to floor: ≈ 700mm



Weight &Packing Size:
Gross weight: 580KG
Outside size:1180x1000x1550mm (LxWxH)



Optional power generator and air compressor
