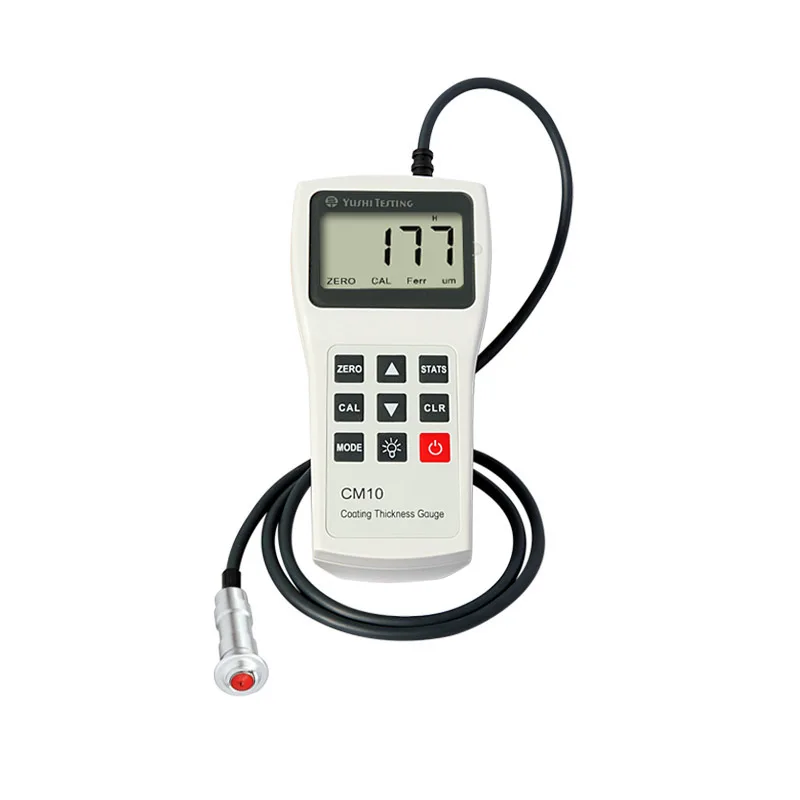

Best selling measure range 0 1500um 0 50mil in build probe coating thickness gauge manufacture
- Category: >>>
- Supplier: YUSHI INSTRUMENTS
Share on (60534717694):
Product Overview
Description
Parameter

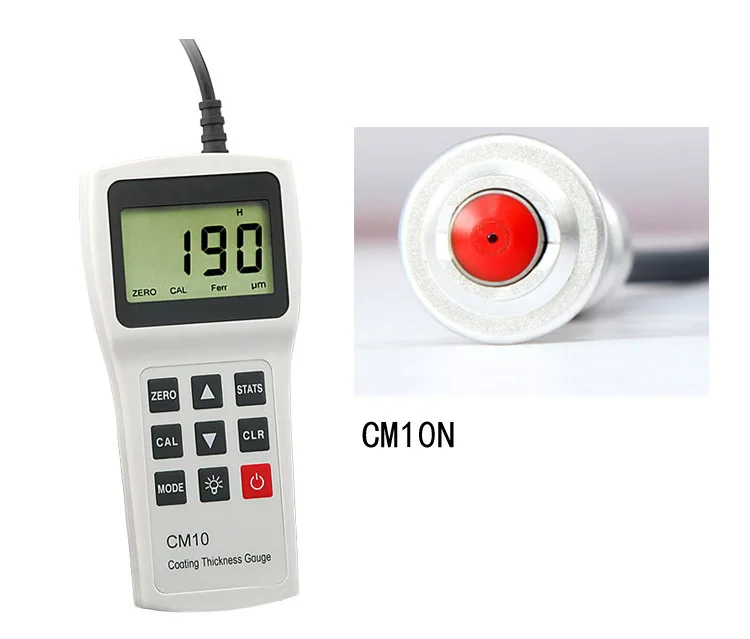

Probe Type:P1,P2,
Working principle:P1 Magnetic Method ,P2 Eddy Current Method,
Measuring Range(um) :P1(0~3000), P2(0~2000),
Low range sensitivity (um) :0.1( P1), 0.1(P2),
Tolerance:
One-point Calibration(um) :±(2%H+2) P1, ±(2%H+2)P2,
Two-point Calibration(um) :±((1~3)%H+1) P1, ±((1~3)%H+1.5)P2,
Testing Condition:
Min.Curvature Radius(mm):1.5 ( P1), 3(P2), 10(P3), 1(P4)
Min.Measuring Surface(mm): 7( P1), 5(P2), 40(P3), 3(P4)
Min.Substrate Thickness(mm): 0.5( P1), 0.3(P2), 2(P3), 0.2(P4)
Display: High Contrast Segment Liquid Crystal Display (LED Backlight)
Statistics: N, MAX, MIN, MEAN and STD.DEV
Calibration: One-point Calibration,Two-point Calibration
Auto Power-off: Auto off after 3 minutes of inactivity;
Power: 2AA 1.5V batteries,low-voltage indication function
Weight: 200g including batteries.
Size: 149mm×73mm×32mm (H×W×D)

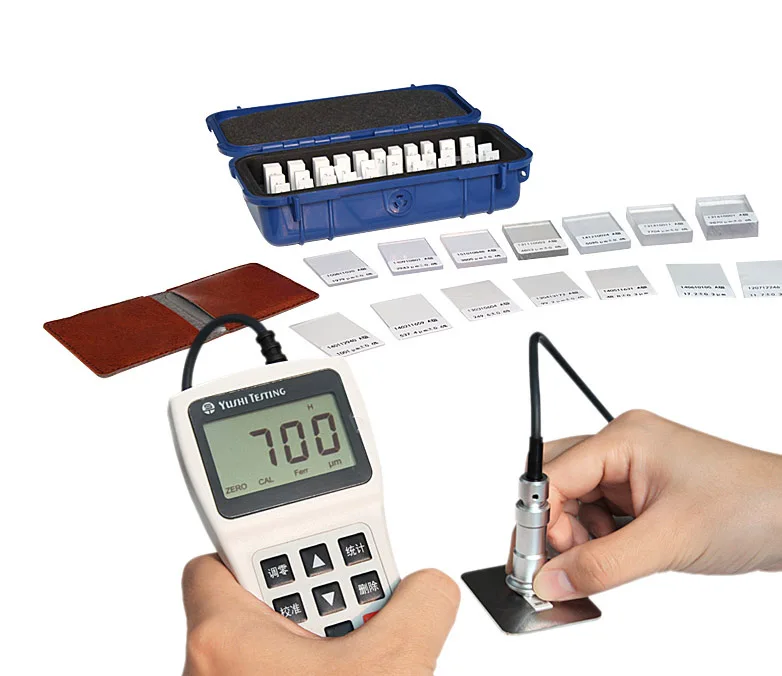

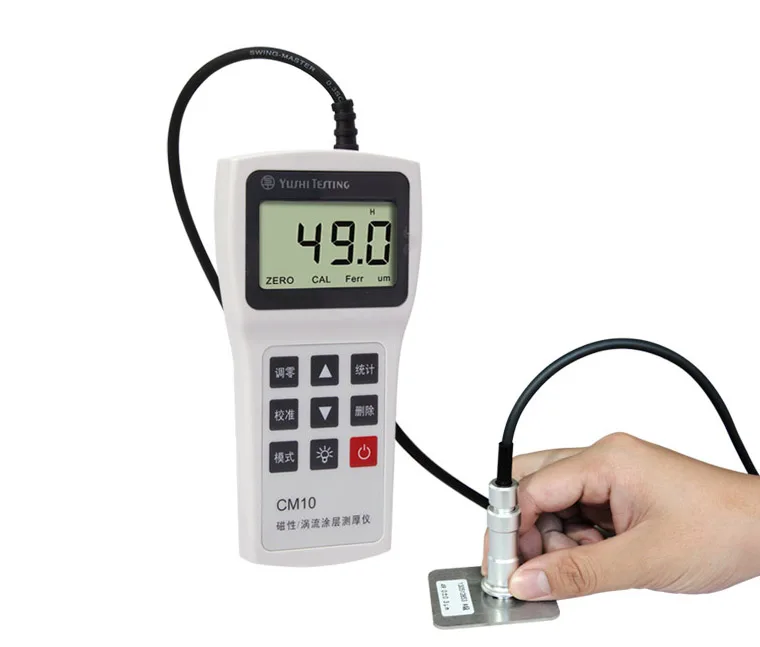

Field Measurements:
Configuration

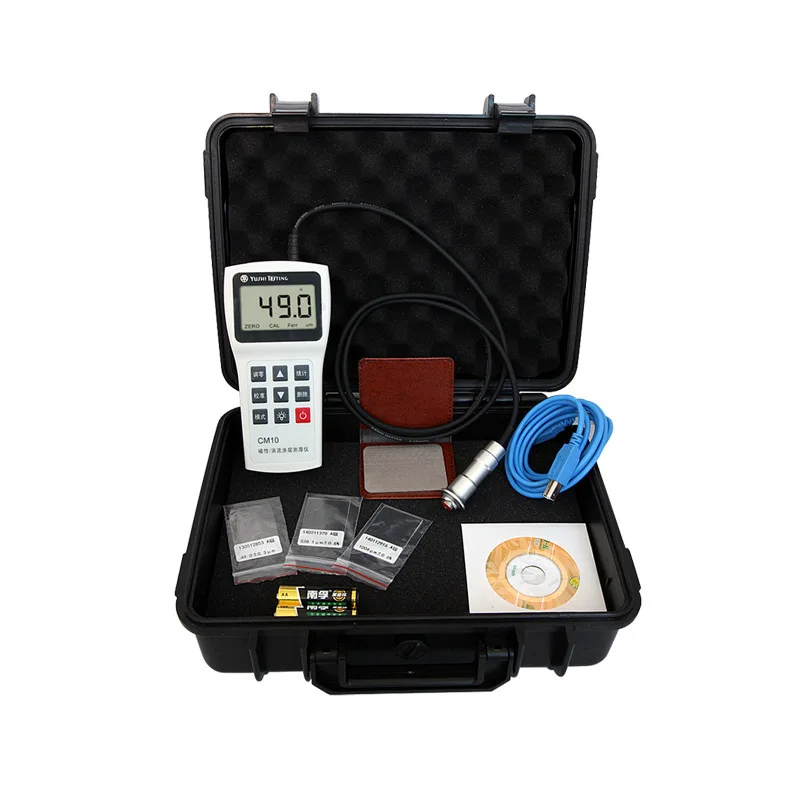

Standard Configuration:CM10FN Coating Thickness Gauge,P1 Probe, P2 Probe,Calibration foils,Fe Zero plate,Operating Mannual,2AA Batteries,Certification,Packing list,Warranty card,Sealed Carrying Case
Optional Accessories:Calibration Foils,Fe Zero Plate ,Al Zero Plate ,Rubber Sheath
Certifications
Packaging & Shipping
Company Information
Our company has a strong researching and developing institution. We have devoted ourselves to research, develop and manufacture the new products and series products for many years. We hold the complete independent intellectual property rights and we honorably have several of the national patents for new products. New-structures micro-miniature XX-C X-Ray flaw detector and high-penetration XX-E X-Ray flaw detector, VM UV flashlight, YUT series ultrasonic flaw detector, UM series ultrasonic thickness gauge, which including through coating thickness gauge, extra accurate thickness gauge and color screen with A/B scan thickness gauge, Leeb hardness tester and CM series coating thickness gauge, etc.
FAQ
Q:What’s your after-sales service and warranty?
A: We promise to bear the following responsibility when defective product is found:
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.
Q:Do you accept OEM orders?
A: Yes, we provide OEM services to worldwide customers.
Q:What’s the MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.
Q:How long is the lead time?
A: The lead time for single order is 1-3 days, for bulk orders is 3-10 days.
Q:How to place orders?
A: 1. Email us the model and quantity, consignee information, shipping way and payment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.
