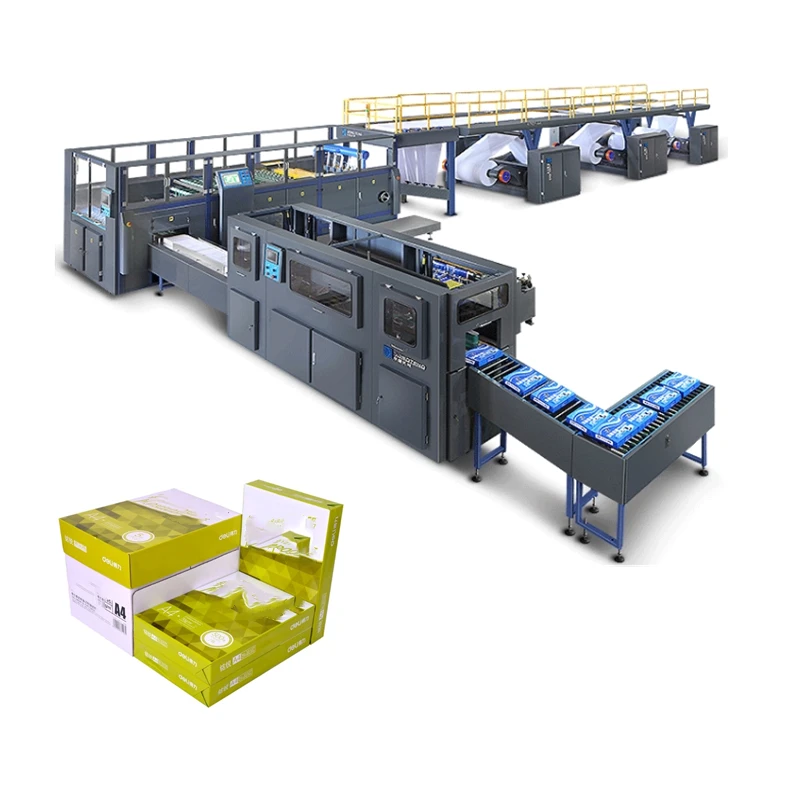

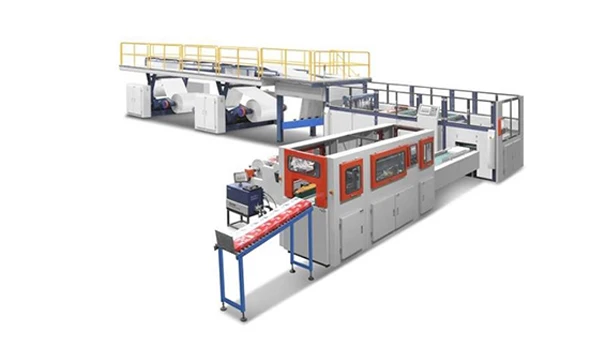

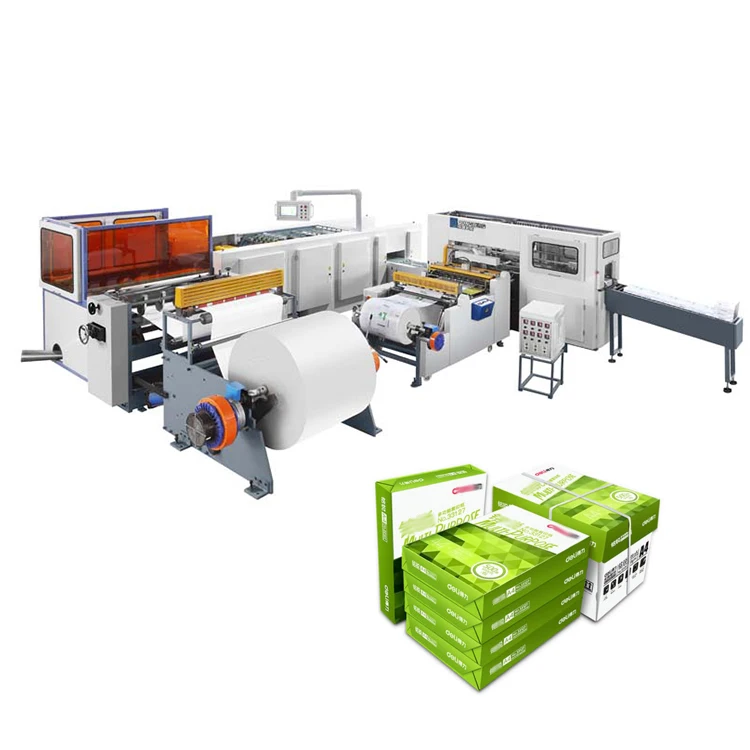

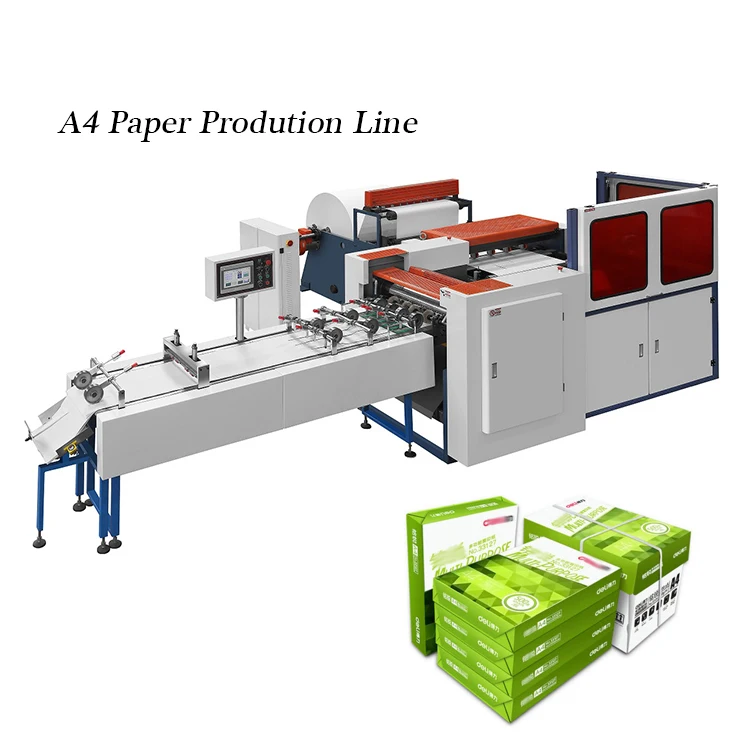

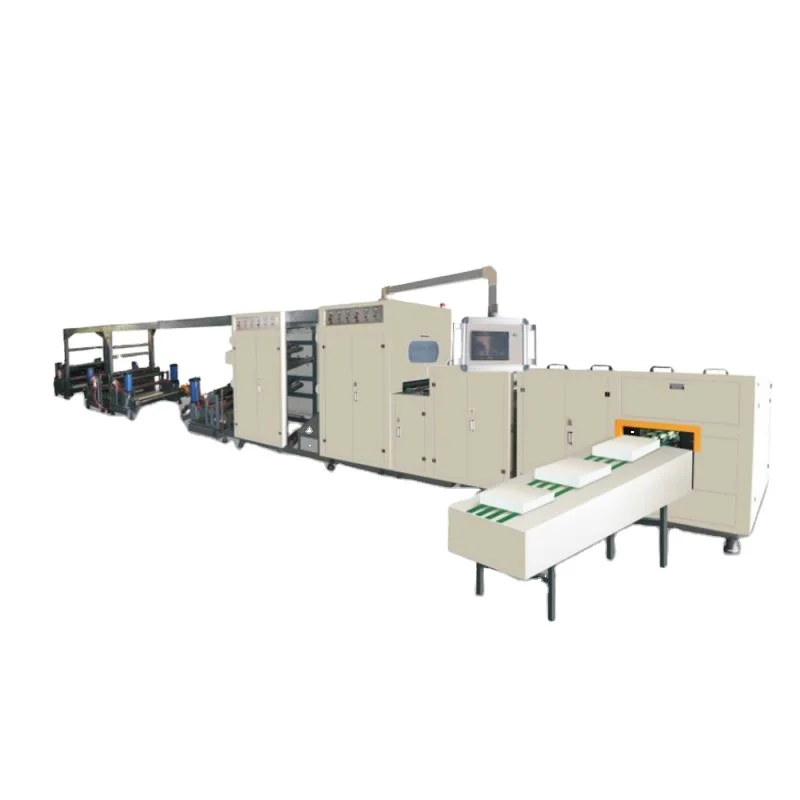

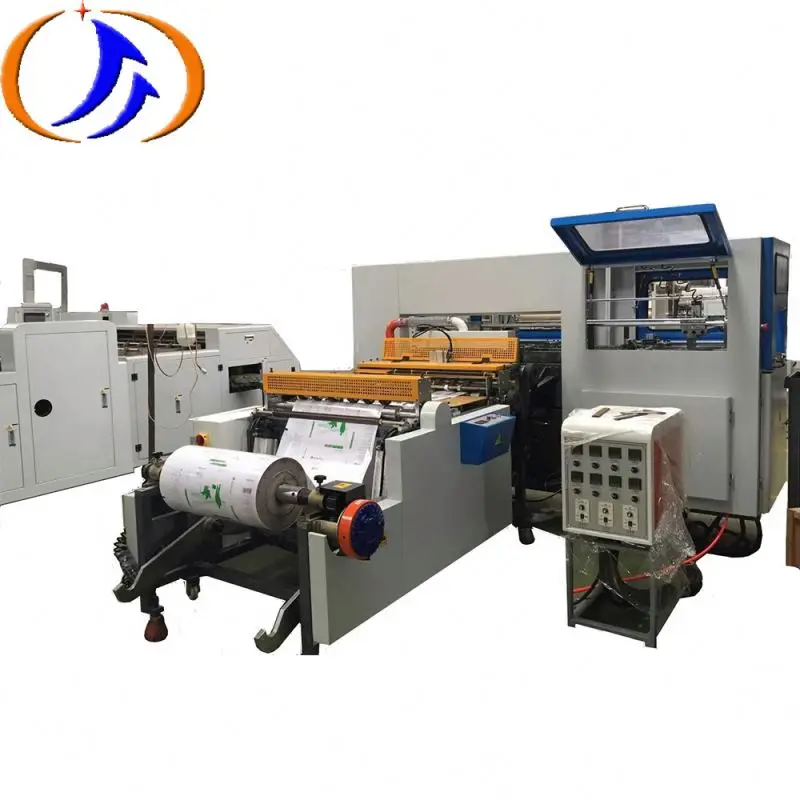

Fully automatic a4 paper making machine Good Reputation Copy a4 Paper Cutting and Packaging Machine A4 Paper Cutter Machine


1. Main Technical Parameters:
MODEL | YDF-A4-10 | |
Cut-Size Sheeting Unit | ||
Unwinding Paper Reels | 2 | |
Number of Pocket | 2 | |
Recommended Width of Paper Roll(mm) | 845-860 | |
Net Cutting Width(mm) | 840 | |
Diameter of Paper Roll(mm) | 400-1200 | |
Diameter of Core Chuck(mm) | 3”(76.2mm) | |
Paper GSM(gsm) | 60-100 | |
Length of Sheeted Paper (mm) | 297 | |
Sheet Quantity per Ream (pcs) | 250--500 | |
Ream Height(mm) | 30--65 | |
Max. Speed of paper feeding (m/min) | 250 | |
Max. Working Cutting Speed (cutting/min) | 840 | |
Ream Discharging speed (reams/min) | 10-12 | |
Max. Knife Loading(gsm) | 400 | |
Paper cutting accuracy (mm) | Length | ±0.2 |
Width | ±0.1 | |
Squareness | ±0.15 | |
Requirement for paper Reel | 1. Stable Speed 2. Paper roll without splice 3. Qualified paper | |
Transmission | AC Frequency conversion, stepless speed regulating | |
Main power source | 380V 50Hz 3phase 4 wires | |
Control voltage | 220V AC/24V DC | |
Total Power(Kw) | 22 | |
