2020 hot selling 3W 5W 7W 9W 10W 20W 30W 50W 100W dimmable dob led for cob led
AC COB LED module can be connected directly to the main power supply 110VAC / 220VAC, and create light without the typical driver.
Advantages: 1. Easy installation: Build-in bonding pads(+/-) and internal wires ensure the convenience and safety. 2. Universality: Match with general lens and reflection cup in the market. 3. Dimmable: Integrally dimming from 0% to 100%. 4. Ceramic PCB: Excellent heat dissipation. 5. Long lifespan, with 2-3 years warranty. 6. CE Approval: Quality assurance.
Item

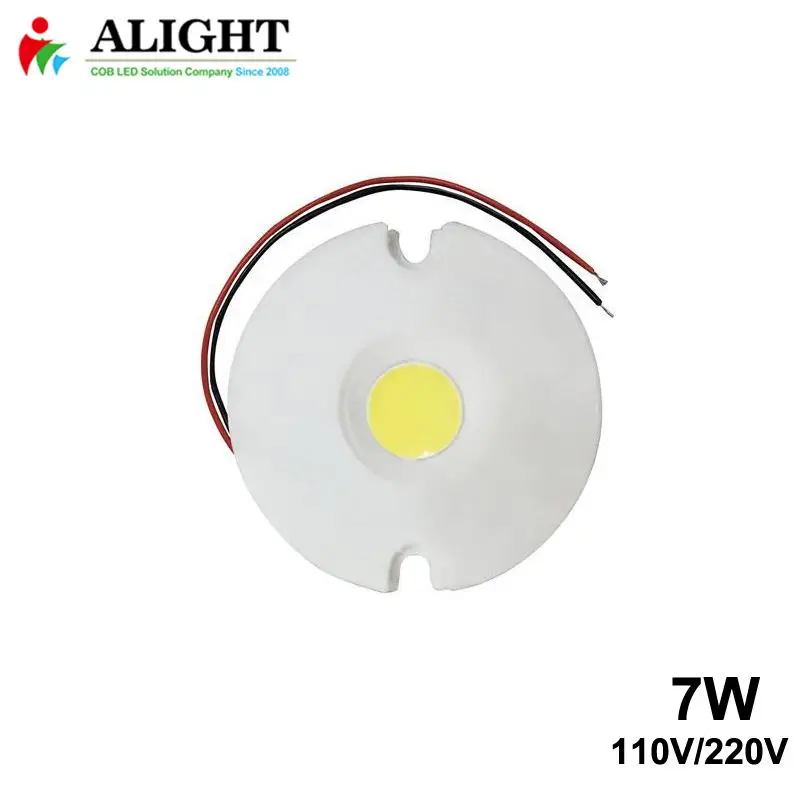

7W cob leds specification
Product Name
7W COB LED Chip
Color
warm white, natural white, pure white,cool white, red, yellow, green, blue,orange,purple and other colors you want
Chip brand
Epistar taiwan adopt 0.5W 17*34MIL chip And Bridgelux 1734mil chip
Lumens
650-700lm
Power
7watt
Current
32mA
Voltage
110V / 220V
CRI
>80
>85
>90
CCT range
2800-3200k (warm white)
4000-5000k (Natural white)
5000-6500k (Pure white)
>7000k (Cool white)
Working temperature
-20 °C-+40 °C
Super long lifetime
50,000 H long lifetime
Max Junction Temperature
120°C
Certification
CE, Rohs LM80
Joint junction Temp
65-85°C
Warranty
3 years
Place of Orign
Guangdong China
Technical
Mirror surface Aluminum imported from Germany
Features

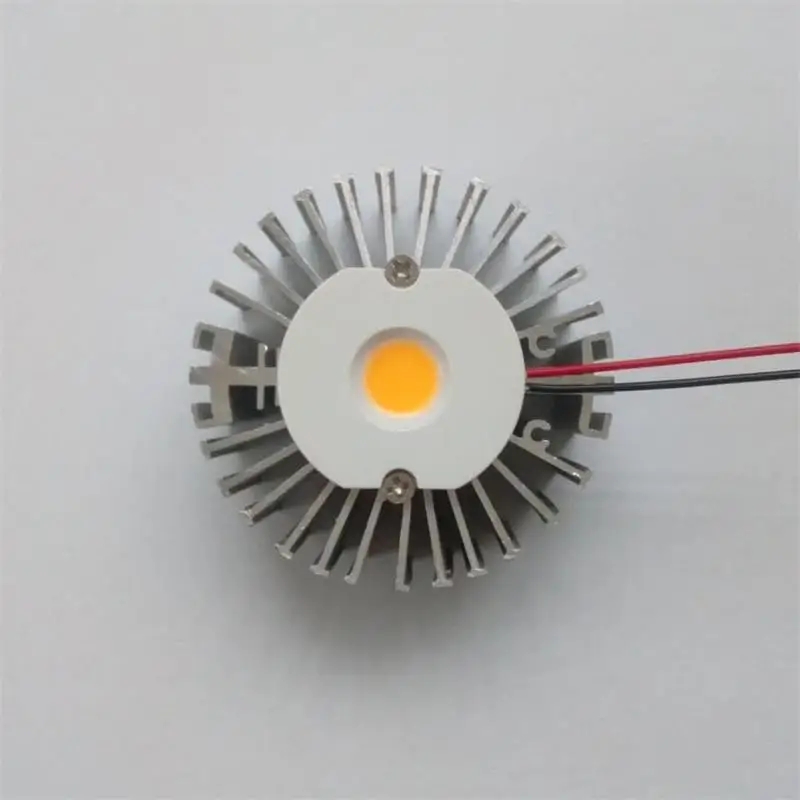

1. LED chip is fixed on the aluminium layer of PCB, the heat can be spread out through aluminium layer rapidly.
2. Low light decay: decay rate is less than 3% after 1000 hours and less than 30% after 35000 hours.
3. Equable and soft irradiancy, no glaring and eye protection.
4. Good reliable, no dead bulb, no dark space, uniform spherical scattering.
5. COB LED encapsulation lighting can be multi-functionally used in variety lighting products.
6. Highly color-rendering index and lighting effect, no ultraviolet and infrared rays, no attraction to mosquitoes.
7. Low voltage work to ensure the products safety used.
8. No contain mercury, lead and other heavy metals, environment friendly.
Application
1. Round COB module: LED bulb, LED cup, LED spotlight, LED downlight, LED grow light.
2. Flat COB module: LED tube(such as T5,T8,T10), LED rigid bar, LED desk lamp.
3. High power LED COB module: LED street light, LED tunel light, LED flood light.
Related Products
Packaging & Shipping
Our Services
1) Your inquiry related to our products or price will be replied within 24 hours.
2) OEM&ODM, and your costumed lighting we can help you to design and put into produce.
3) Distributorship are offered for your unique design and some our current models.
4) Protecting your selling areas, idea of design and all your private information.
Company Information
Alight Optoelectronic Industry Commerce Co., Ltd. founded in 2001, located in Xiaolan Town , Zhongshan City, Guangdong Province. It is earliest LED encapsulate factory in Zhongshan City.
In 2007, we cooperated with Semiconductor Research 13th Institute of China Electronics Technology Group and begin the research on new LED light panel encapsulate technology.
Since 2008, we adopted our patent Chip-on-Board encapsulation LED panels in industrial and commercial illumination field. We R&D successfully different types of COB LED lamps to replace traditional incandescent bulb,fluorescent lamp, compact fluorescent energy-saving lamp, high voltage sodium lamp etc.
In the future, we will continue to leverage the support from the Semiconductor Research 13th Institute, innovative products and with COB panel as the light sources, continue research and develop high efficiency, energy-saving, high quality and low price LED semiconductor lighting products, devote ourselves to Green Earth.
FAQ
1. What is AC COB LED? The AC COB LED is directly driven by the mains power supply 220VAC or 120VAC, meaning that no additional drivers are required and are illuminated directly by the AC110V or AC220V.
2. What is DOB? DOB is the abbreviation of the driver on the board. It is equal to AC COB.
3. What is the advantages of AC COB LED? -It is well known that the drive is the most vulnerable part of a luminaire, This is mainly limited by the short life of electrolytic capacitors. We have solved this problem in a completely new way. Integrate key components into the COB and avoid to use electrolytic capacitors.
4. Does the AC COB LED module flicker free? - LED strobe is caused by the use of poor quality driver. The AC COB LED module developed by our company solve this problem by using proprietary technology. Flicker free outside 50CM, suit all lamps except table lamps, such as ceiling spotlights, downlights, street lights, floodlight, track lights and so on.
5. Is the AC COB LED module dimmable? -Our AC COB LED module suit most dimmers on the market, such as DALI dimmer, 0-10V dimmer, 1-10V dimmer, triac dimmer and so on.
