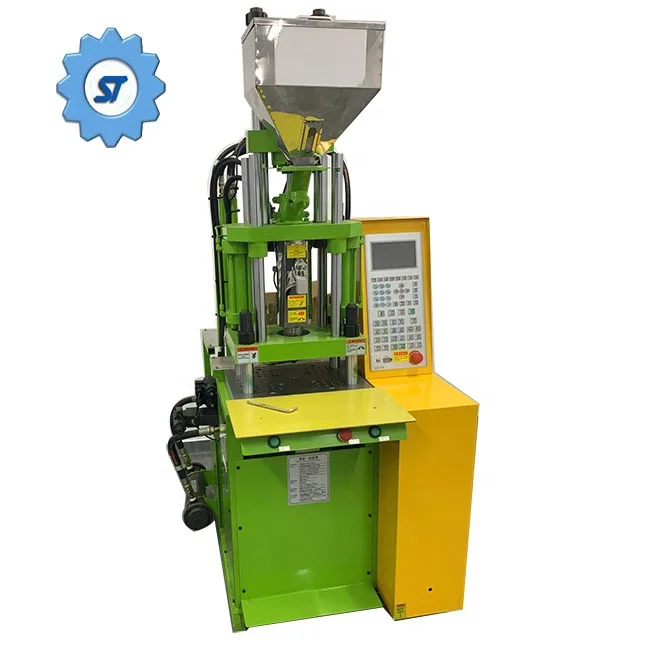

plastic electric socket injection molding Making machine
- Category: >>>
- Supplier: Qingdao Steady Machinery Co. Ltd.
Share on (60535257147):
Product Overview
Description
Product Description
Plastic electric socket injection molding Macking machine with the feature of simple structure, high pressure, high efficiency, and wide adaptability and wide Application.
Application
Plastic electric socket injection molding Macking machine apply to many kinds of plastics--PC, ABS, Nylon, etc, if change screw,can also make bakelite products.
Product Description

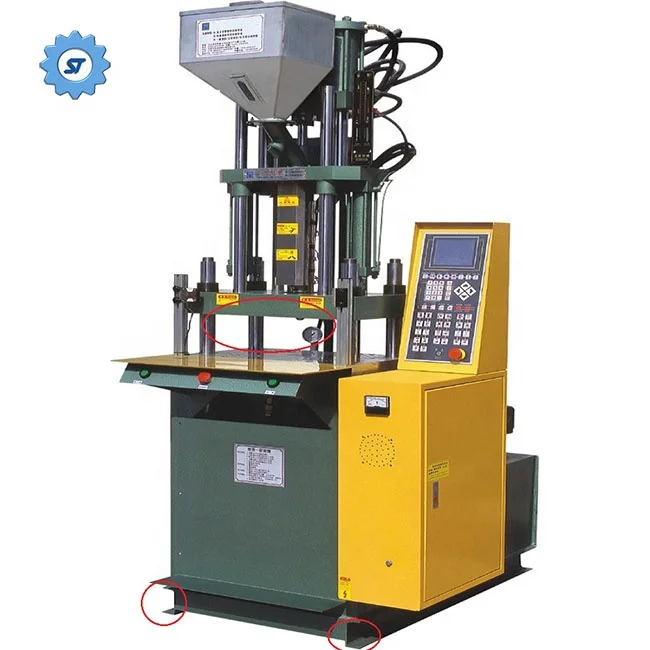

The machine is high precision 4 pillar guiding. The main machine is consist of up plate(also called up beam), down machine seat, move plate(move platform), oil cylinder and pillars. The oil cylinder is piston type, the piston installed into the down machine seat. Customer can choose to install two fast return cylinder at the machine two sides.
The machine has independent power mechanism and electrical system . The control box is positioned at the right side of the main machine. The machine adopts PLC control, equipped with LCD display screen. Buttons centralized control, easy to operate. Working pressure and heating temperature can be adjusted. The machine has manual operation mode and half automatic operation mode for choice.
The machine is single machine single pump station structure. Customers can also choose double(duplex) machine or multi machine connect work together. Hydraulic system and electrical system all have overload protection.

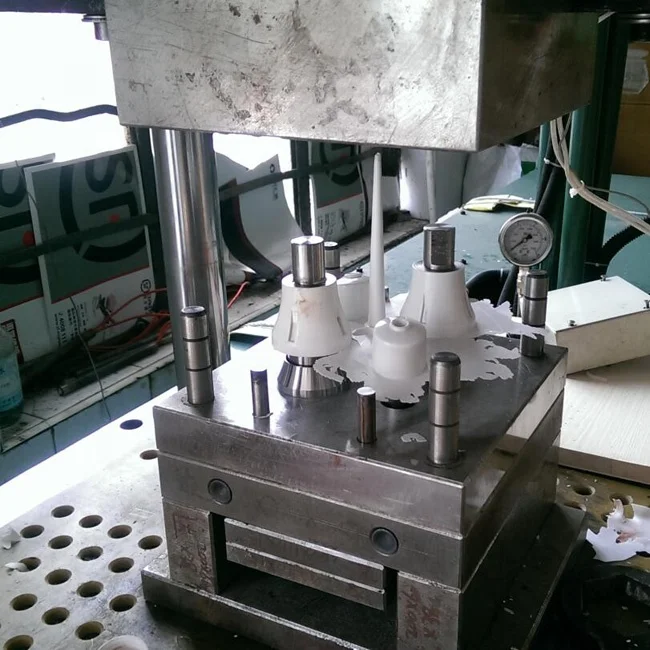

When the machine work, piston move from down to up to close the mold, compress the products into shape.
Application
Plastic electric socket injection molding Macking machine apply to many kinds of plastics--PC, ABS, Nylon, etc, if change screw,can also make bakelite products.
Product Description
The machine is high precision 4 pillar guiding. The main machine is consist of up plate(also called up beam), down machine seat, move plate(move platform), oil cylinder and pillars. The oil cylinder is piston type, the piston installed into the down machine seat. Customer can choose to install two fast return cylinder at the machine two sides.
The machine has independent power mechanism and electrical system . The control box is positioned at the right side of the main machine. The machine adopts PLC control, equipped with LCD display screen. Buttons centralized control, easy to operate. Working pressure and heating temperature can be adjusted. The machine has manual operation mode and half automatic operation mode for choice.
The machine is single machine single pump station structure. Customers can also choose double(duplex) machine or multi machine connect work together. Hydraulic system and electrical system all have overload protection.
When the machine work, piston move from down to up to close the mold, compress the products into shape.
Detailed Images
We always pay our great attention on every detail processing and treatment.
So that the machine quality is assured and durable in work.
Control Panel
Touch screen parameters setting. Big size LCD display. 1000+ work datas storage, easy for invoking.
Work state real time display and fault indication.
Work state real time display and fault indication.
Electronics
Our machine adopts good quality famous brand electronics. And all the wires are well arrayed. The machine is easy to use and
maintenance.
maintenance.
Screw Injection Head
1. 38CrMoAIA(JIS SACM645) 2. 9Cr18MoV
Nitrided Hardness：HV900-1000
Nitrided Depth: 0.5-0.8mm
Alloy Hardness: HRC50-65
Alloy Depth: 0.8-2mm
Nitrided Hardness：HV900-1000
Nitrided Depth: 0.5-0.8mm
Alloy Hardness: HRC50-65
Alloy Depth: 0.8-2mm
Valves
International famous brand are adopted on our machine. Which ensures the machine works accuracy and stable.
Size Information

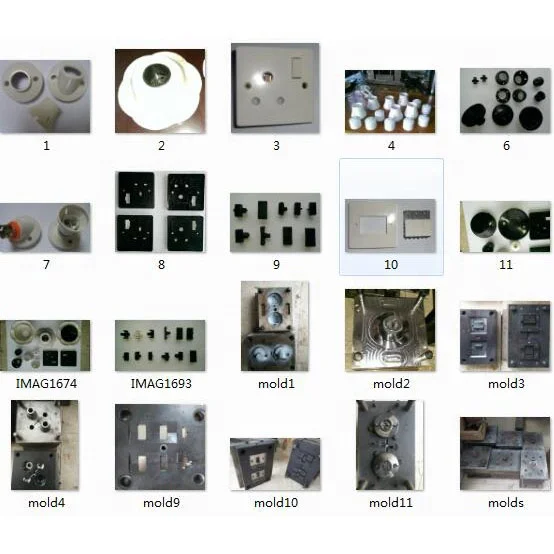

Below are some reference models, tell us your work needs, we can provide you a reasonable proposal. When change mold to it,the machine can also be used to make other products.
Related Products
Certifications
Packing&Shipping
The machine and molds are packed into fumigation free wooden box with pallet base for easy forklift handling.
Then load into container for export.
Customer Photos
After Sales Service
Technical Supoort
Training customer on how to operate the machine, how to make production and how to maintenance the machine.
