Thicker Sheet Blister Vacuum Thermo Forming Machine
- Category: >>>
- Supplier: Guangzhou Looker Packaging Machinery Co. Ltd.
Share on (60535367312):
Product Overview
Description
Product Description
Application
Suitable for PVC, PE, PET, PETG, PP, PC, PS, HIPS, APET etc, heat the material and make them soft then vacuum suction, that can transform sheet material into various plastic blister.
This machine is widely use in blister sample making, also can be used in small batch production.
This machine is widely use in blister sample making, also can be used in small batch production.
What the machine can do ?
Model | LK-61B |
Power supply | Power supply |
Power supply | AC220V, 1Phase/50HZ AC380V, 3Phase/50HZ Customs made available |
Power | 25.0KW |
Max. forming size | 560*610mm |
Speed | 300~500moulds/H |
Thickness of material | 0.2~1.5mm |
Machine size | 2700*1200 *2000mm |
N. weight | 1200KG |
Main Features
1. Double mould plates design, the heat furnace can heat to the two mold plate respectively. The working efficiency is nearly twice as fast as that of the single mould plate machine.
2. 25pcs ceramic infrared heating boards which can be controlled separately, suit for different size or different thickness material.
3. 25pcs Solid state voltage regulators, control heating boards simple and visualized.
4. Large-scale cooling fan which can cool the products quickly.
5. Water-spray cooling system which suit for thick material.(optional)
6. Manual and Semi-auto style.
2. 25pcs ceramic infrared heating boards which can be controlled separately, suit for different size or different thickness material.
3. 25pcs Solid state voltage regulators, control heating boards simple and visualized.
4. Large-scale cooling fan which can cool the products quickly.
5. Water-spray cooling system which suit for thick material.(optional)
6. Manual and Semi-auto style.
7. Button or pedal control available, improve the efficiency.
Detailed Images
Machine Parts
Name: Vacuum Pump
Original: China( import brand use)
Top quality we choose to use on our machine
Import international brand for each spare part for machines
Main Features
Name: Automatic Cylinder driving oven
Details: Oven was driven by cylinder automatically.
This is a option by customer .
1.Automatic heatter oven
2.Pedal controller
3.customs made forming size
Machine Parts
Name: control board
Details:
Left control and right control are independent, so left working table and right working table can form different product accordingly.
Digital timer, setting and working will be clearly.
Main Features
Name: Plastic roll frame
We also provide you different size and material of plastic rolls if you need.
we have PVC, PE, PET, PETG, PP, PC, PS, HIPS, APET...
so just tell us what material and thickness you need ?
we can help to load all of your goods ( machine, Plastic rolls.others goods together in the same container )
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Product design discuss support
Factory workshop view :
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas to teach the customer everything about machine
Certifications

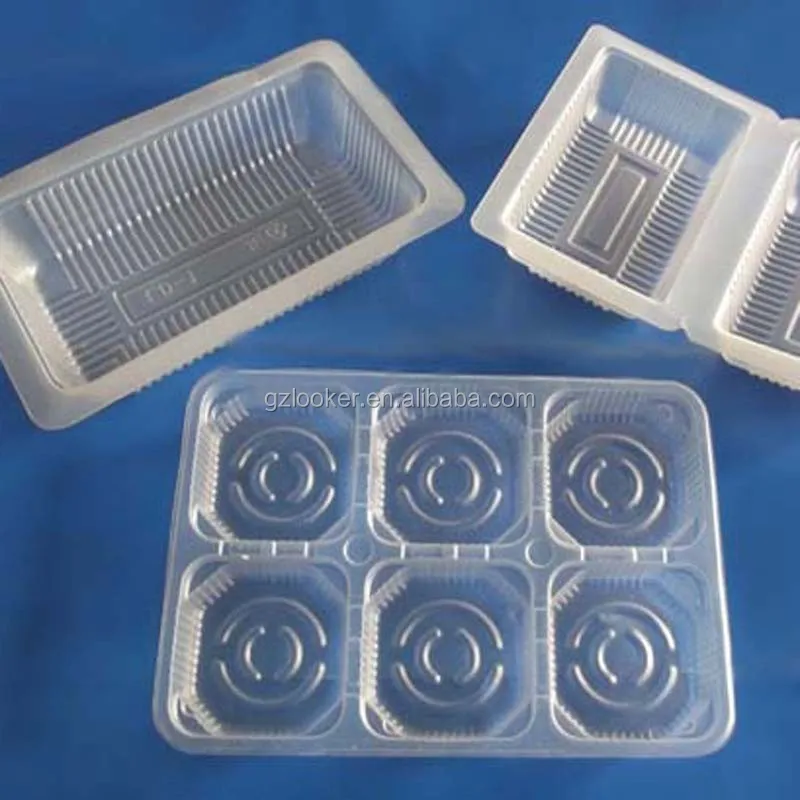

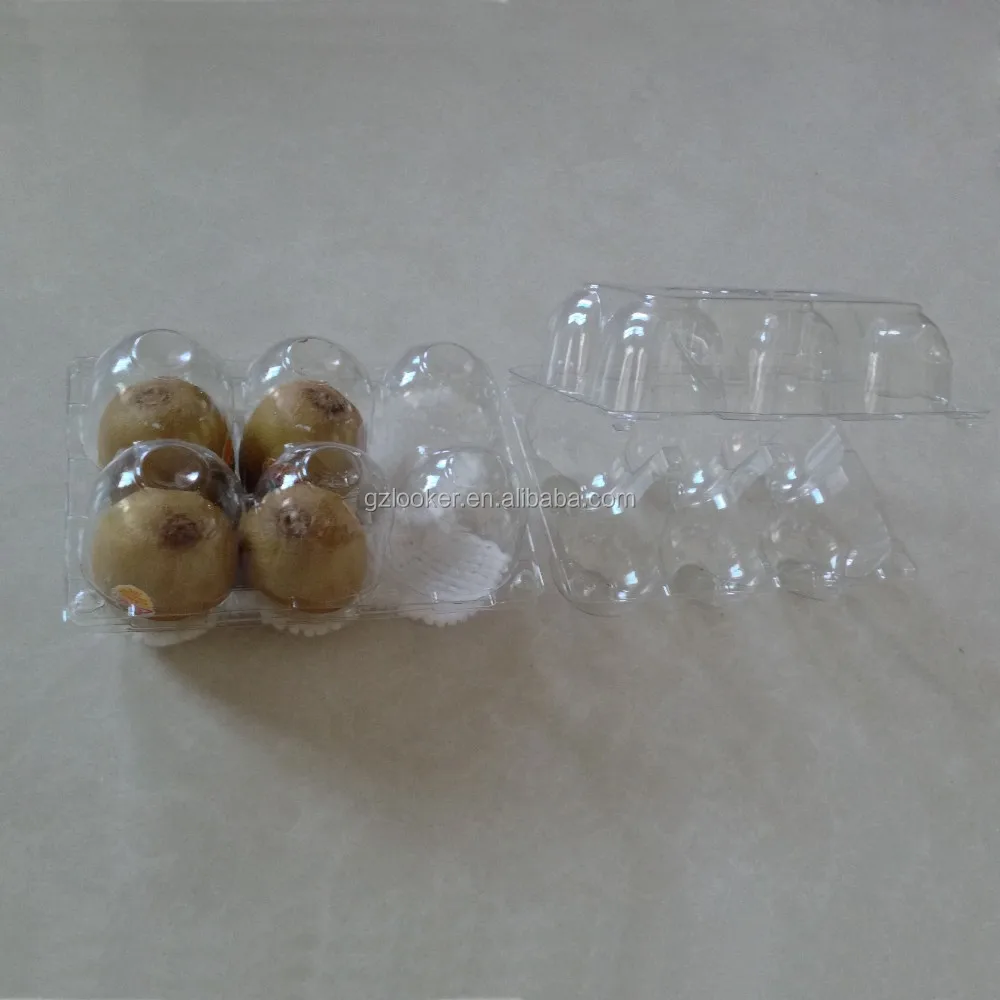

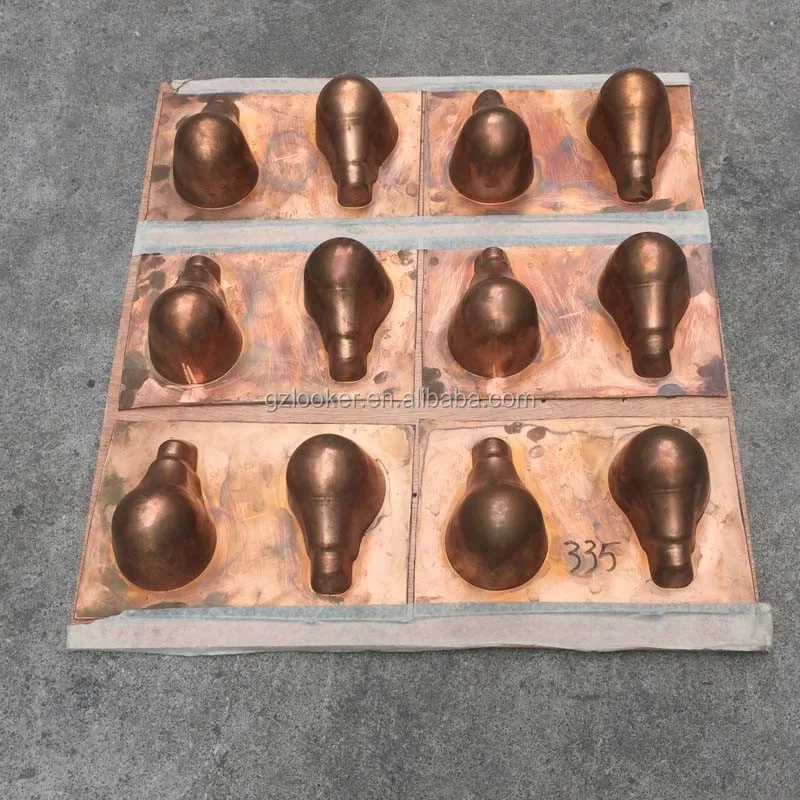

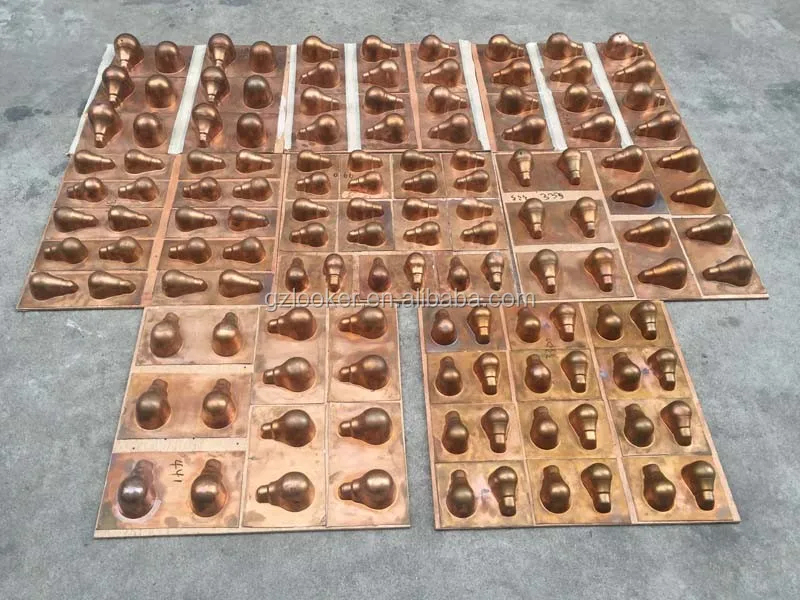

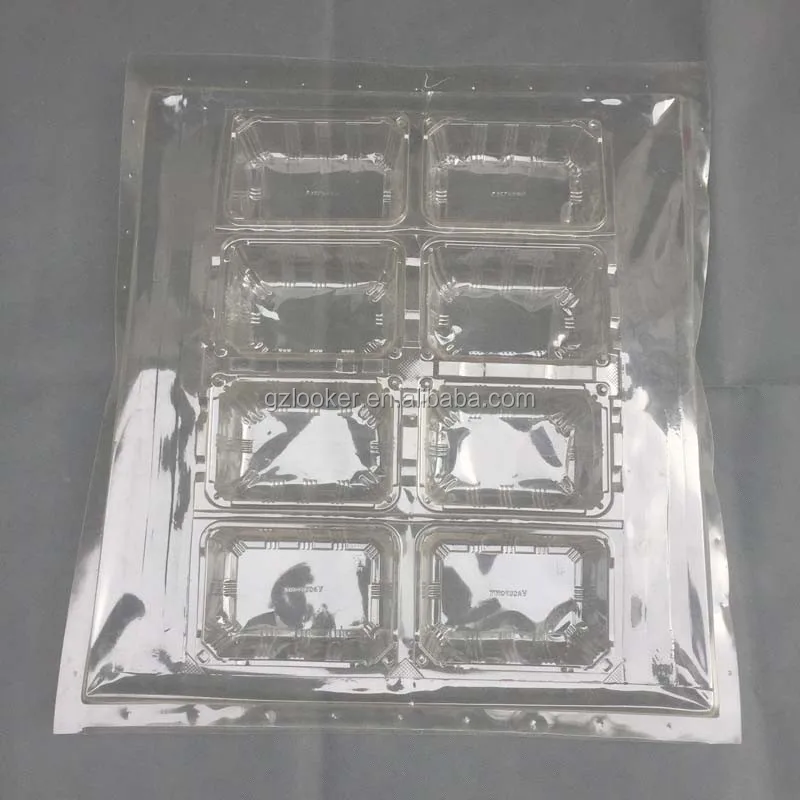

Mould & Samples
