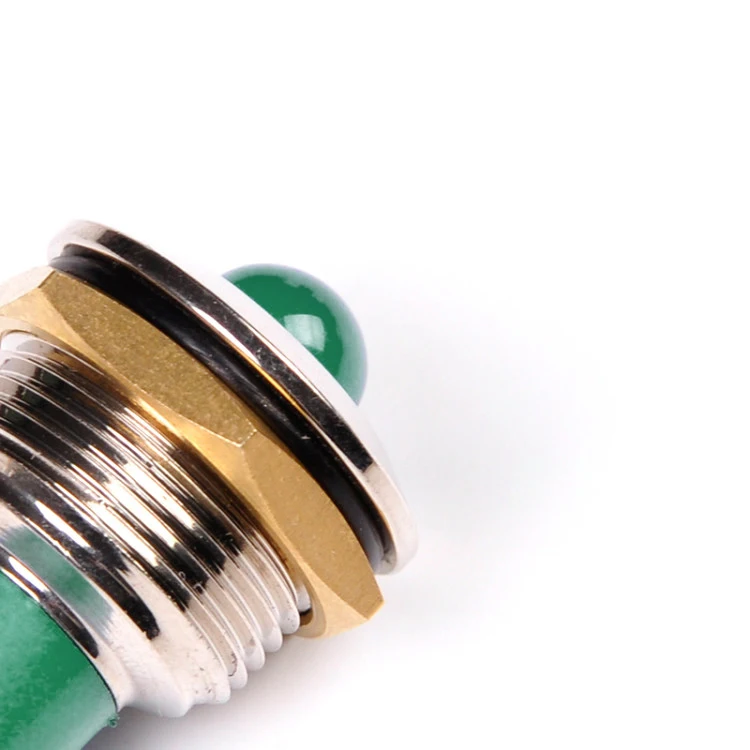

IP67 8mm mini Green Light 12v LED indicator light Waterproof
- Category: >>>
- Supplier: Yueqing Toowei Electronic Switch Manufacturer
Share on (60535383780):
Product Overview
Description
Product Description
Features:
1. Brass Alloy material case, electroplate bright nickel processing treatment .
2. Flashlight LED , LED colour red, green, yellow, blue , white.
3. IP67 protection degree .
4. Mininature , delicate appearance , economical and practical.
5. 8mm size , voltage 2~220VAC . Widely used in various electronic electrical equipment.
1. Brass Alloy material case, electroplate bright nickel processing treatment .
2. Flashlight LED , LED colour red, green, yellow, blue , white.
3. IP67 protection degree .
4. Mininature , delicate appearance , economical and practical.
5. 8mm size , voltage 2~220VAC . Widely used in various electronic electrical equipment.
Specification
LED Indicator Light | ||
Model | 8081.72 | |
Rated Value | 2~220V | |
Dimension | φ8mm | |

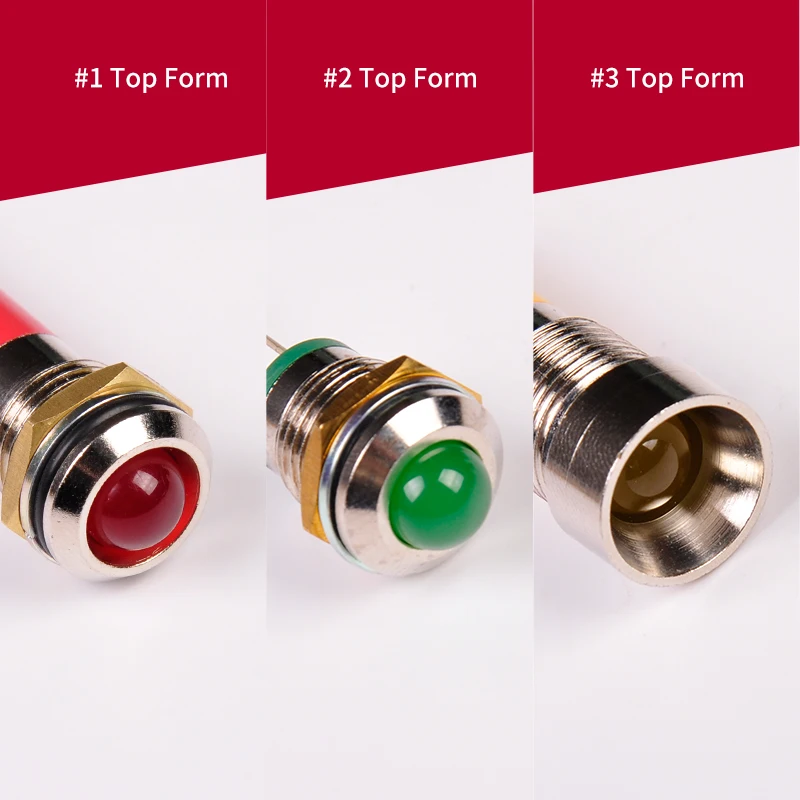

Top Form | Small flat head | |

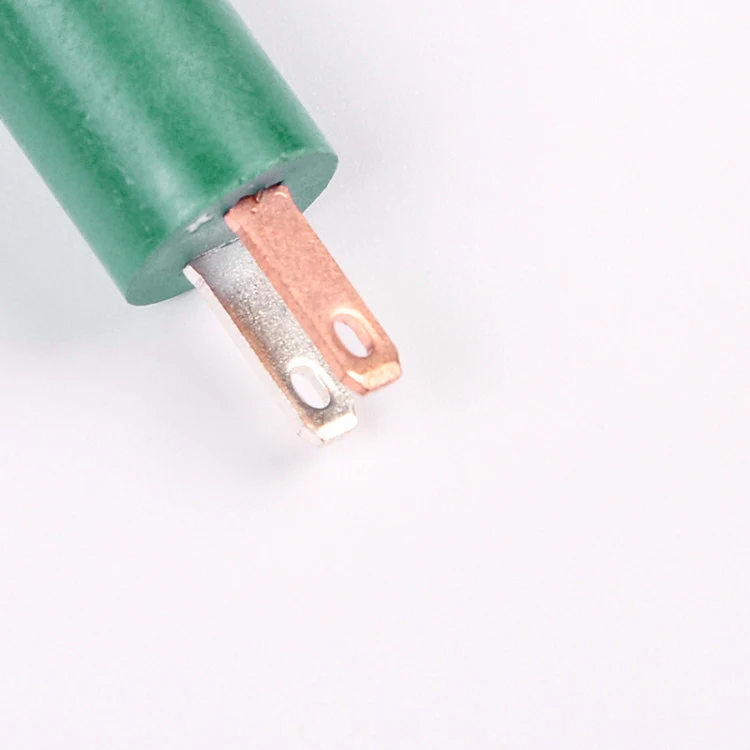

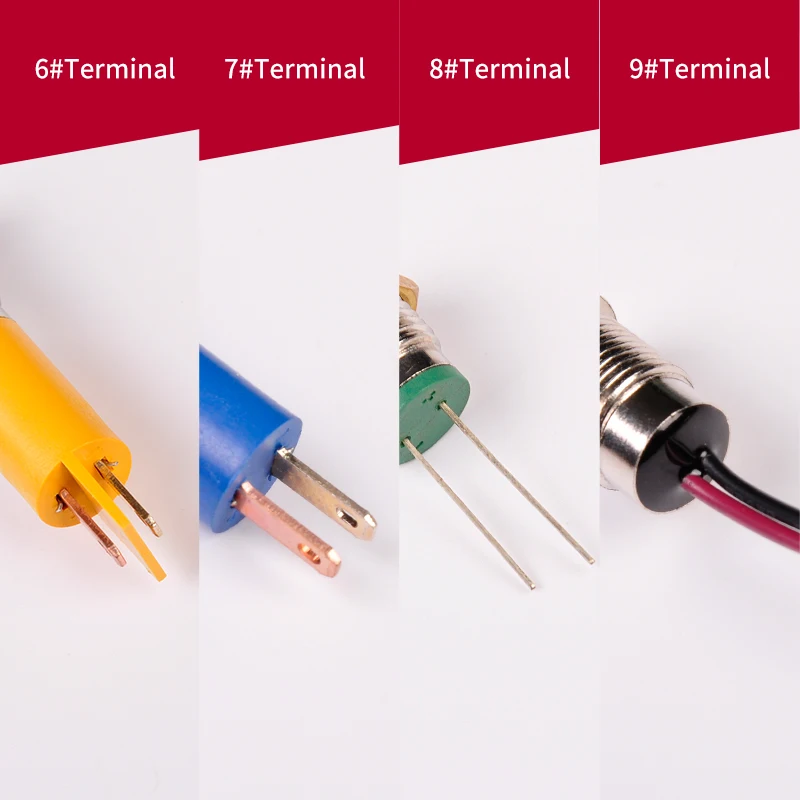

Base Form | 7# | |
LED Color | Red,Green,Yellow,Blue,White and so on | |

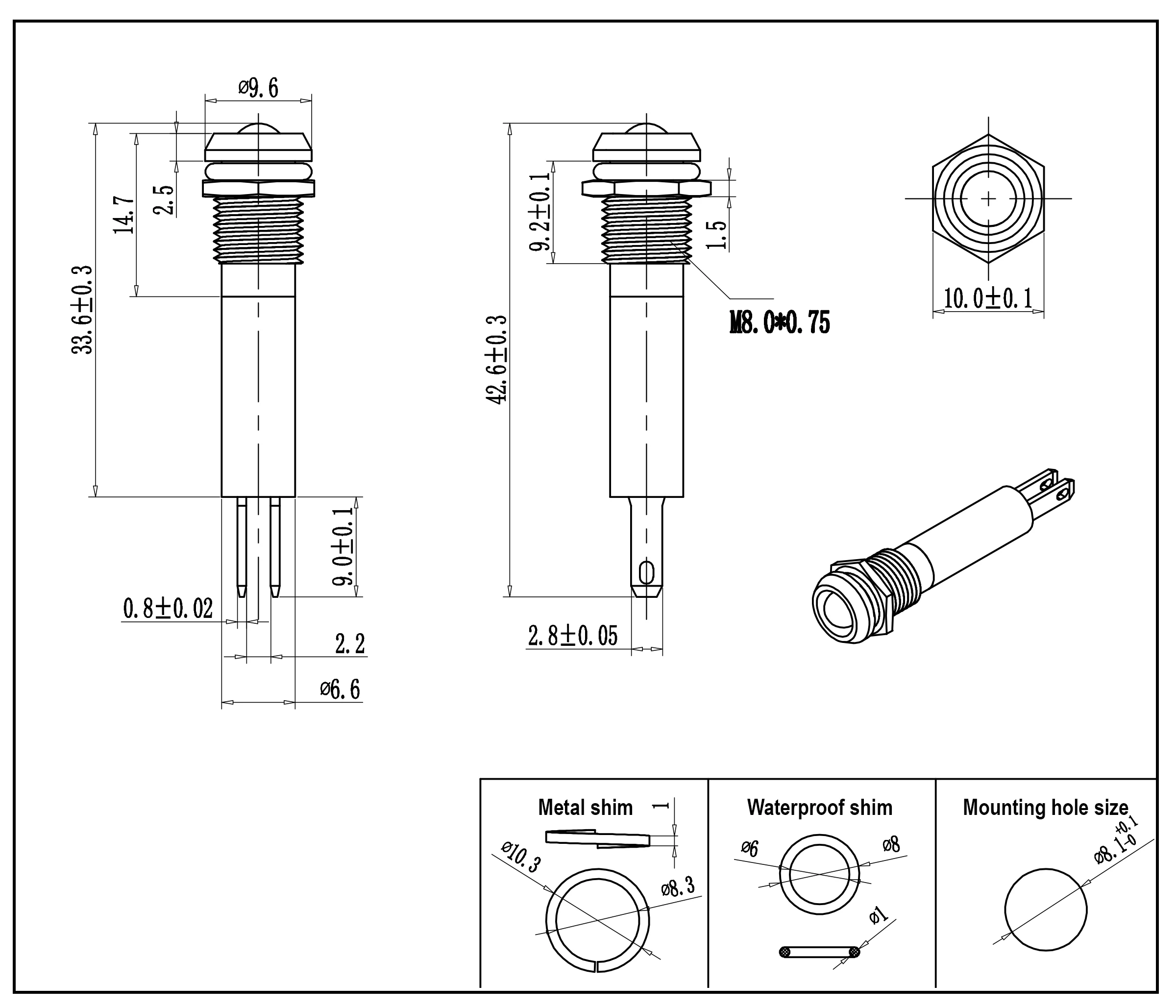

Model Size
Technical parameters | ||||||
Rating Current | 20mA | Rating voltage | 2.4V-220V | |||
Environment temperature | -25 ~ 85 ℃ | Insulation resistance | ≥100M Ω | |||
Withstand voltage | 1000-1500V 50/60Hz/min | Leakage current | 3mA | |||
Waterproof degree | IP67 | Light bulb | 5mm | |||
Use life | ≥ 50,000 hours ( weeken by 30% after half a year of use ) | Installation size | 8mm | |||
Wiring methode | Red line, green line represent red and green lights, black is public line (negative electrode) | Remarks | 1. 500VAC/Min between pins and housing. 2. Bright nickel plating on the outer surface of the casing. | |||
