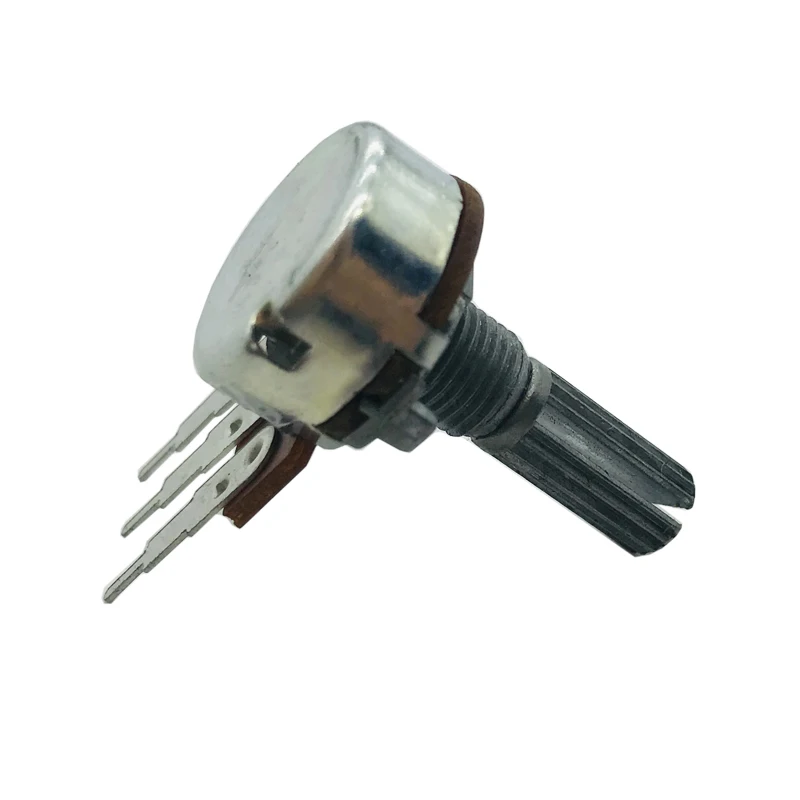

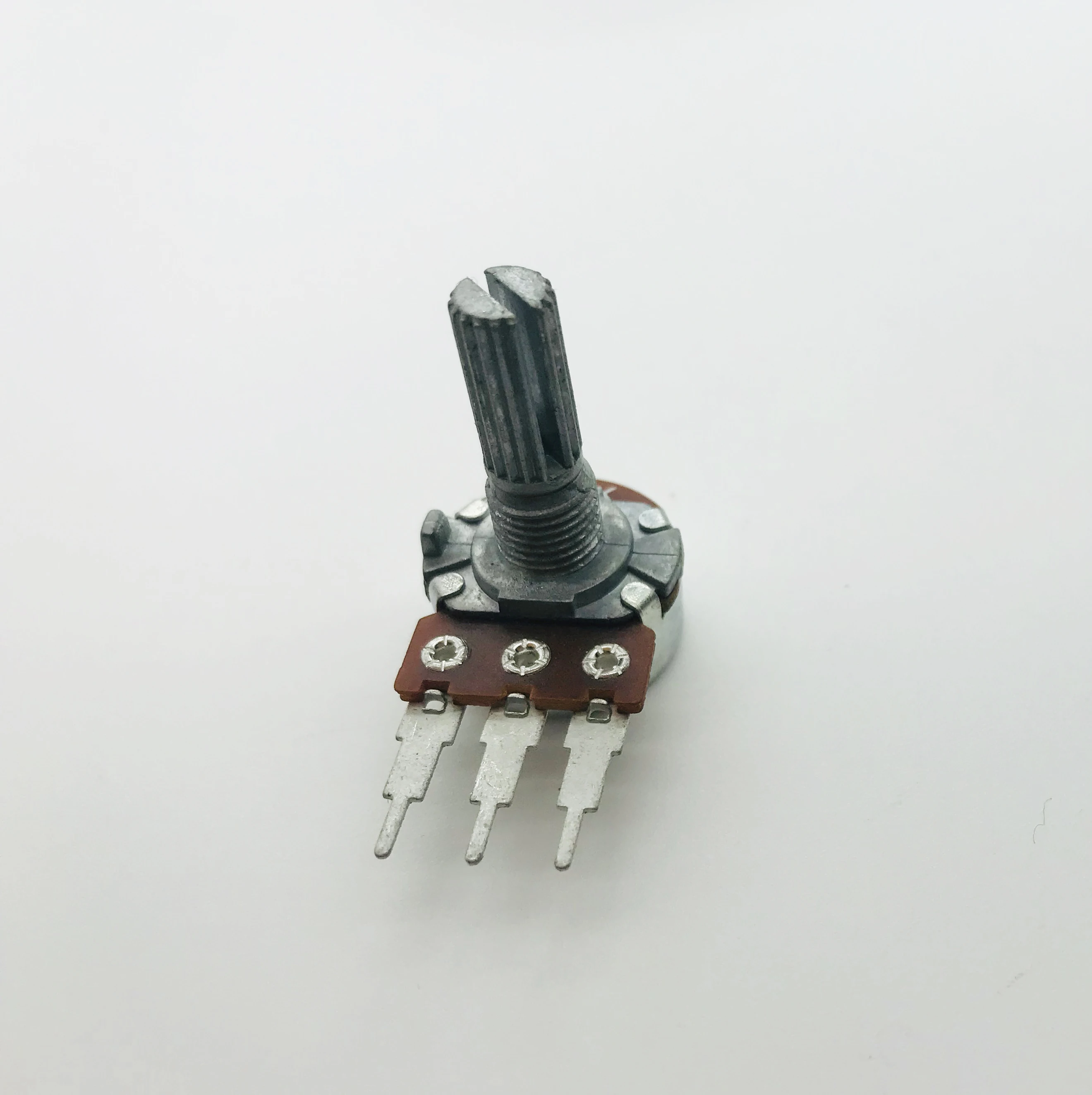

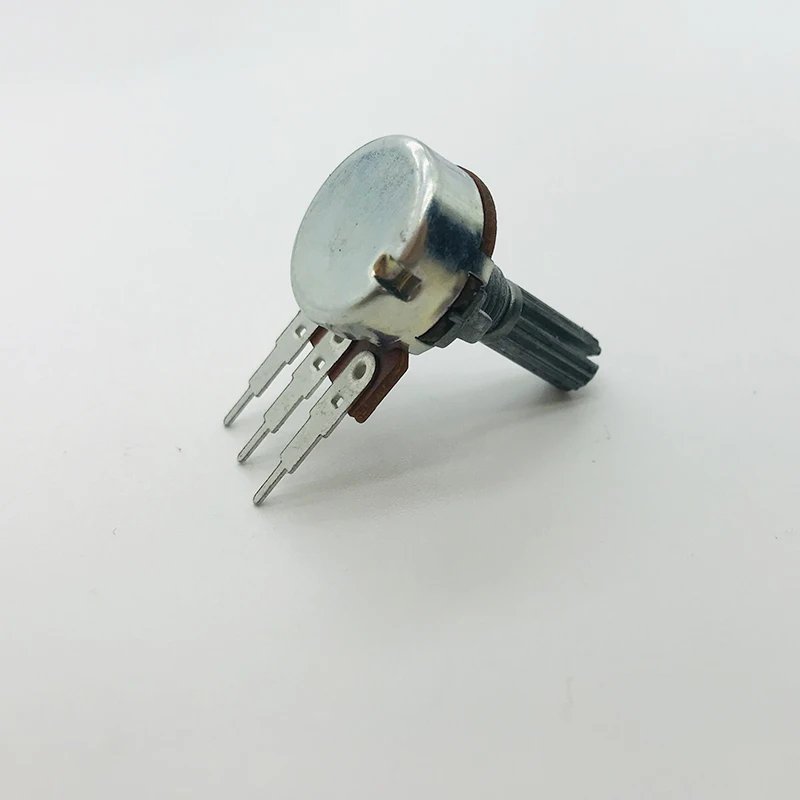

ALPS rotary potentiometer 10K 500K radio audio video volume control claro mexico throttle potentiometer

ITEM

SPECIFICATION

Electrical Characteristics

Temp Range

-10℃~70℃

Rated Power

Curve B:0.125W

Other curve B:0.053W

Max Operation Voltage

Curve B:200V

Other curve B:150V

Resistance Range

B250KΩ

Allow Desistance Tolerance

±20%(1MΩ or more30%)

Rotational Noise

≤47mV

Terminal Resistance

R≥250KΩ      0.1%R max

250KΩ>R>10KΩ 20Ωmax

10 KΩ≥R          10Ωmax

Resistance Law

A,B,C

Dielectric

AC500V,1minute

Insulation Resistance

More than 100MΩ at DC500V

Mechanical Characteristics

Rotational Torque

2~20 mN.m(20~200gf.cm)

Total Rotational Angle

300°±5°

Rotary life

10,000 cycles

Shaft Stopper Strength

6Kgf.cm

Push Pull Strength

60 N

Click position

Center detent or 10,20,40

position clicks

Soldering

T≤260ºC,t≤3s
