4BB monocrystalline solar cells stock for sale

Share on (60535403240):


Price:RUB 5,202.90

Quantity:


Product Overview

Description

4BB monocrystalline solar cells stock for sale



 Physical Characteristics



Item4BB  monocrystalline solar cells stock for sale
Materialmonocryalline silicon
Dimension156.76mmx156.75mm±0.25mm
Diagonal/
Thickness(Si)

200±20 μm/180±20μm

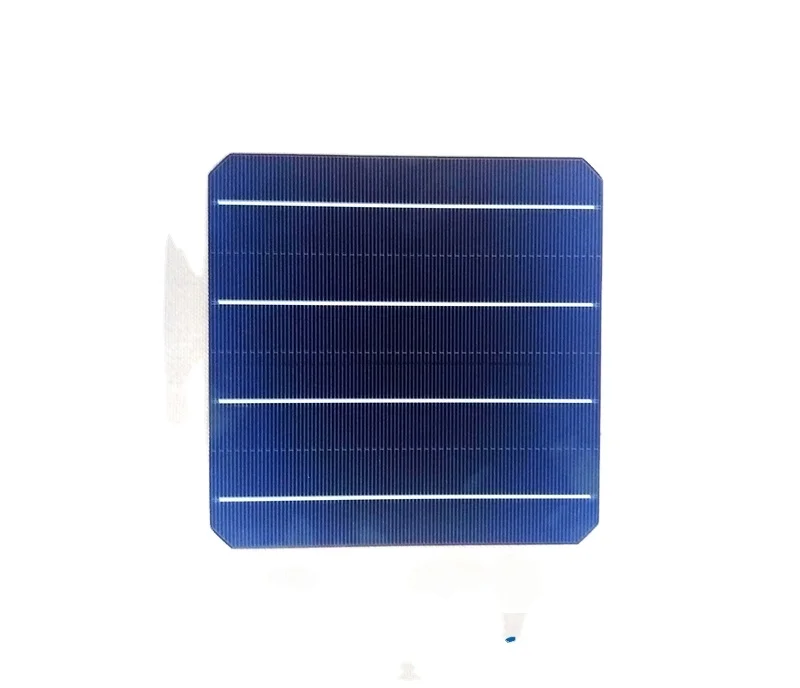

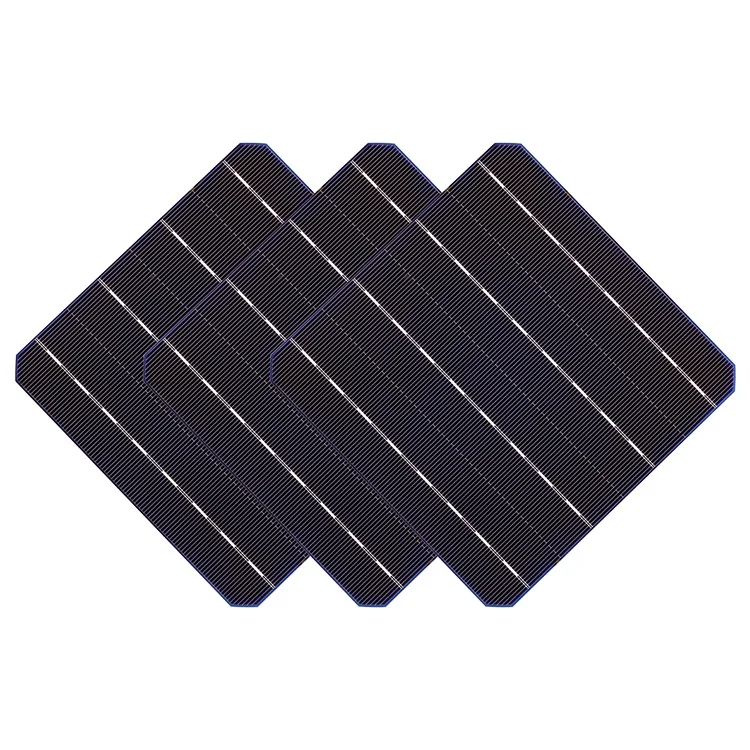

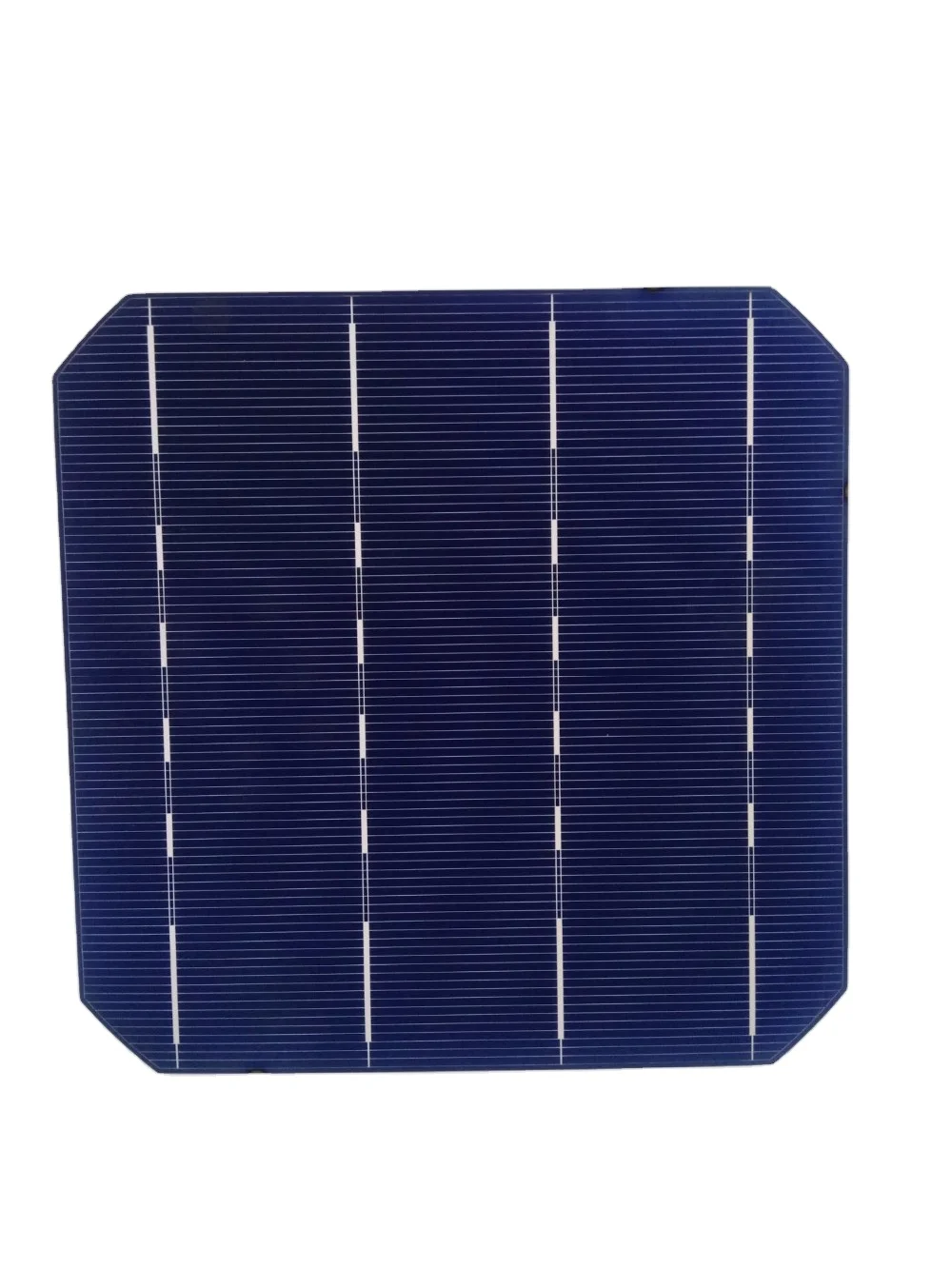

Front(-)

Blue anti-reflecting coating (silicon nitride)

1.0mm wide bus bars

Distance between bus bars: 39mm

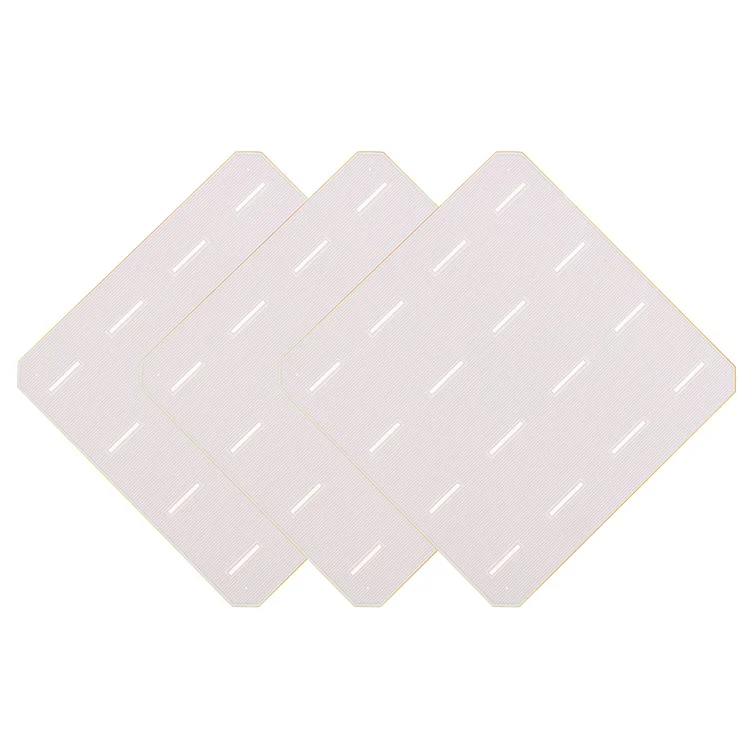

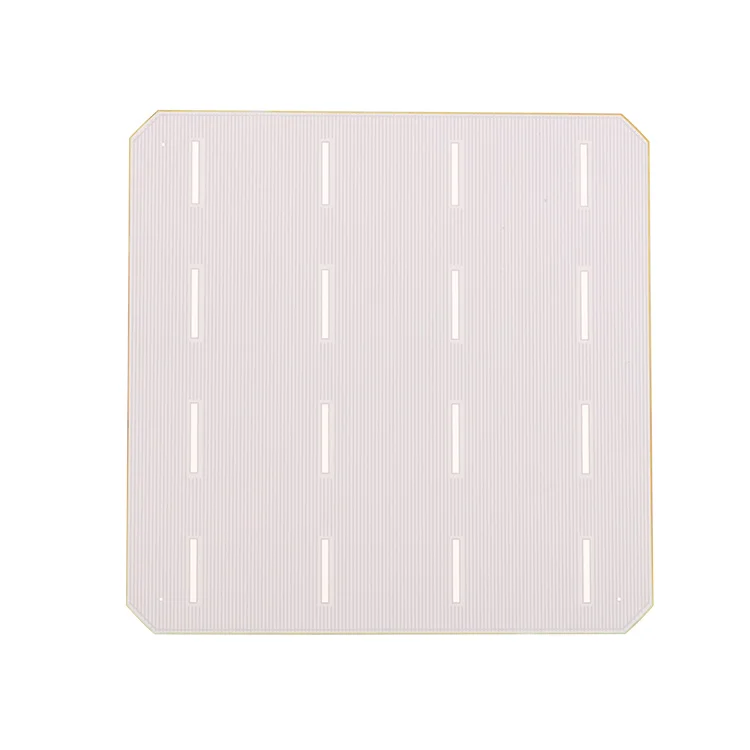

Back(+)

Aluminum back surface field

2.1mm wide soldering pads

Distance between bus bars: 39mm





 Electrical Characteristics





Efficiency code19801990200020102020203020402050206020702080
Efficiency(%)19.8%19.9%20.0%20.1%20.2%20.3%20.4%20.5%20.6%20.7%20.8%
Pmax(W)4.8384.8624.8864.9114.9354.9604.9845.0095.0335.0575.082
Vmp(V)0.5350.5360.5370.5390.5410.5430.5450.5470.5490.5500.551
Imp(A)9.0429.0719.0999.1119.1229.1349.1459.1569.1689.1959.223
Voc(V)0.6310.6320.6340.6360.6380.6410.6430.6450.6480.6490.650
Isc(A09.5859.6159.6459.6589.6709.6829.6949.7069.7189.7479.776

 Data under standard testing conditions(STC): 1,000W/ m2 AM1.5, 25℃, eff. tolerance : average + 0.3%/-0.1% absolute.





 Production Process





 Packaging and Shipping
 Solar

4BB  monocrystalline solar cells stock for sale



4BB  monocrystalline solar cells stock for sale

Cell Sho
 Our Services




Quick Response
1. Any time and anywhere, reply clients' email and solve all problems happen in the work  at the first time.
2. Remove clients doubts and offer the best solution at the first time.
 3. Give our clients the lastest news of the photovoltaic, update the newest stock informtion.
4. Precision cell efficiency sorting procedures
5. Stringent criteria for color uniformity and appearance
6. Reverse current and shunt resistance screening
7. We always giving our clients the most economical and fastest deliery method.
8. No matter the Air transportation / Ocean shipping /  Internation express, our professional logistic team will ensure cargo transportation Safe and High efficiency
Payment Terms
We can accept payment by T/T, LC, Paypal, Western Union and Trade Assurance in Alibaba.

Company Information



Shenzhen Taihesheng Solar Energy Co.,Ltd is a professional manufacturer & exporter which is concerned with the design, production,and marketing. our manufacturer covers an area of 8000m2 as a high-tech environmental friendly enterprise,which was established in 2009 and specialized in solar industry for providing solar cells ,solar modules , solar panels and solar charger etc application products.

Under strict quality control system. Our products include: 125mm mono solar cell and 156mm poly & mono solar cell,0.1W-300W mono-crystalline and poly-crystalline silicon solar panel.our products approved CE, ISO, RoHS,IEC, TUV,UL certificates, Which are widely exported to Europe,America, Africa, Asia and Middle east countries, we gainded more and more higher reputation from our clients.We also offer OEM,ODM,OBM service as per customer requirement and aim at making a greater contribution to the usage of solar energy in the world.

 4BB  monocrystalline solar cells stock for sale
