ONPOW Metal emergency stop button LAS1 AGQ 11TSB Dia. 19mm IP65 CE ROHS 30 Years Industry Leader
- Category: >>>
- Supplier: Onpow Push Button Manufacture Co. Ltd.
Share on (60535769137):
Product Overview
Description

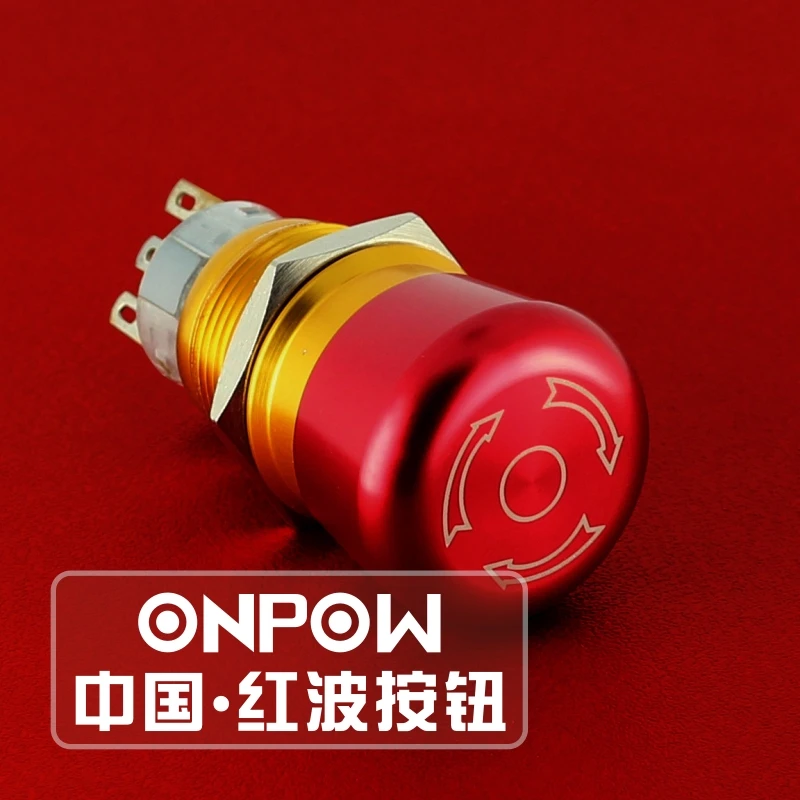

ONPOW Metal Emergency Stop Switch LAS1-AGQ-11TSB Dia. 19mm IP65 CE ROHS 30 Years Industry Leader
Why choose us?
ONPOW Push Button Manufacture Co.,Ltd. is currently one of the leading developing manufacturer of push button switches and indicators.
- Founded in 1988 and experienced in the field of pushbutton switches for 27 years
- Certification:we have passed ISO9000 Quality Management System and UL,VDE,CE(LVD),CE(EMC),PSE,CCC,ROHS,REECH
- More than 40 patents
- About 40 series of pushbutton switches and 1-2 new series of production developed each year
- Over 1500 molds available for production
-Registered Fund: About 50 million RMB

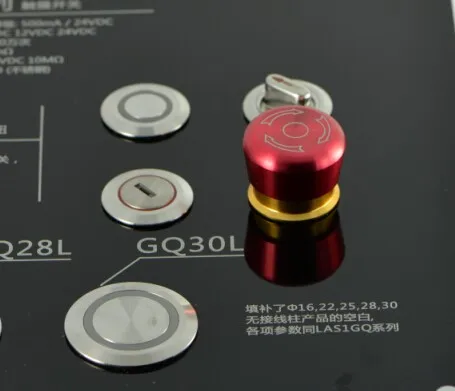

Display on the panel:

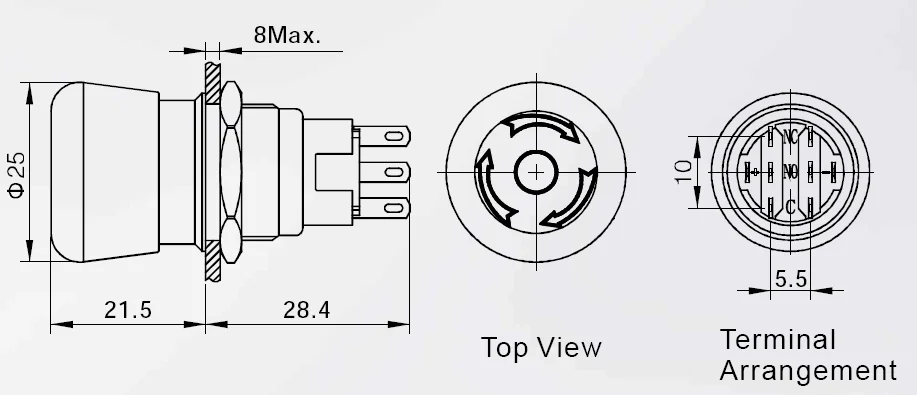

Dimension

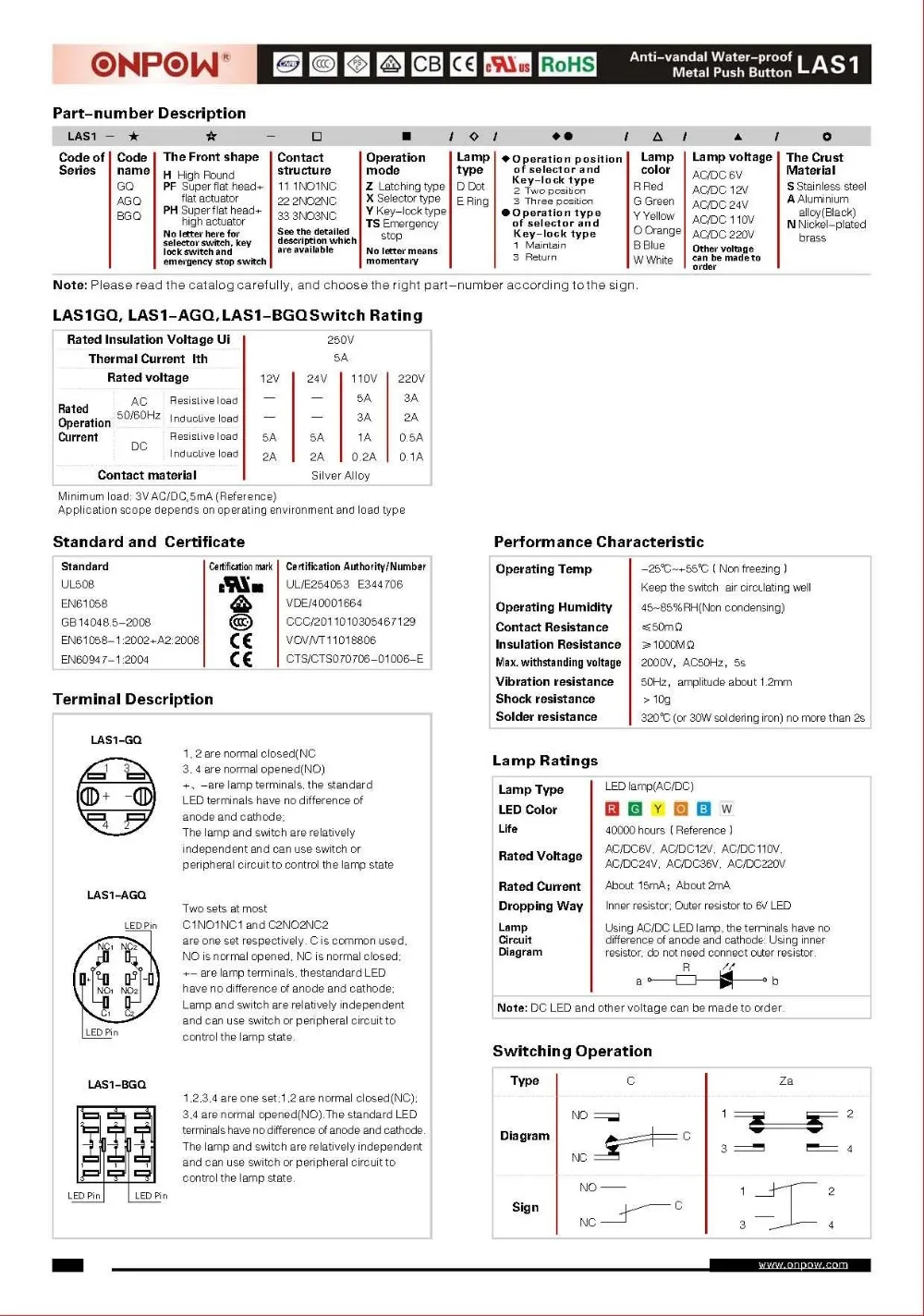

Product Description
Model Number | LAS1-AGQ-11TSB | |
Mounting hole size | 19mm Diameter | |
Switch Rating | 5A / 250V | |
Contact Configuration | 1NO1NC(2NO2NC) | |
Operation Type | Maintain/Return | |
Crust Material | Aluminium Alloy | |
IP Degree | IP65 | |
Terminal Type | Pin terminal(2.8×0.5mm) | |
Switching | C(single-break quick-motion contact) | |
Panel Thickness | 1~6mm | |
Mechanical Life | 200,000 cycles | |
Electrical Life | 50,000 cycles | |
Operation Pressure | About 2N(1NO1NC) | |
About 3N(2NO2NC) | ||
Material
| Button | Aluminium Alloy |
Body | Aluminium Alloy | |
Base | PBT | |
Packaging & Shipping
Packing:
1. Neutral packing : 40 pcs/box, 25boxes/carton
2. Upon customers' request, but the price is different with neutral packing
3. Carton size: 30*50*35 cm
Shipping: switches with high flat button
1. DHL, TNT, Fedex, UPS and other international express.
2. By air or by sea.
More discount for large qty.
Contact information
Fiona Hu
ONPOW / ONPOW PUSH BUTTON MANUFACTURE CO., LTD.
Address: Sibanqiao Industrial Zone, Xiangyang Town, Yueqing City, Zhejiang Province, China. 325619
Tel: +86-577-62621532 MT: 86-15888436583 // Fax: +86-577-62623304
Website: www.onpow.com //hongbo.en.alibaba.com
SKYPE: fiona_onpow
Work time: 8:0-11:30 13:00-17:30(Except Sunday)
ONPOW Metal Emergency Stop Switch LAS1-AGQ-11TSB Dia. 19mm IP65 CE ROHS 30 Years Industry Leader
