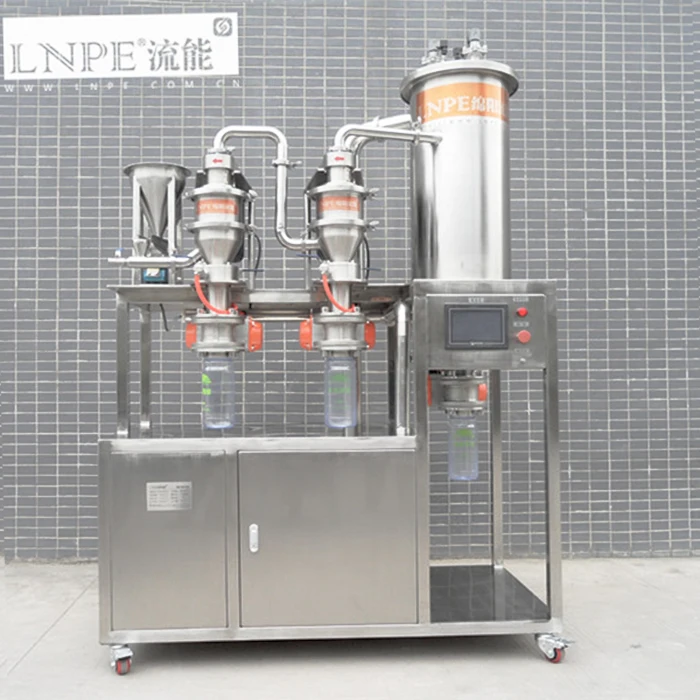

Ultrafine Powder Glass Beads Reflective Material Grinding Machine with Classifier

Product Overview

Description

Ultrafine lab micron  micronizer  jet mill and classifier





General

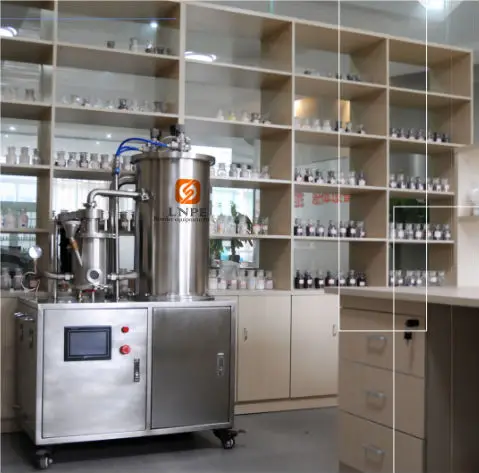

Lab Use Jet Mill is special designed for universities and research institutions, small dimension,

compact structure, easy to disassemble and clean.



Superfine grinding and precision classifying.



Material collision each other lead to breaking without contamination.



Effective for heat-sensitive material.



Easy to disassemble and clean.



Automatic control system.



Effective for Mohs 1-10 hard material.



Personalized design to solve the affairs on grinding and classification.



The specific requirement of protection system for Inert Gas.













Features





Best-selling Lab Use Jet Mill has small size so that it can be placed on desk or laboratory bench. It has compact structure and disassembling is easy, with features as follows:



 1 Particle acceleration, improved grinding efficiency and energy saving without over-ground fineness.



 2 Effective for grinding hard materials (Mohs 1-10) with little tool wear and no contamination.



 3 Effective for heat-sensitive and low melting point materials.



 4 Effective for dispersing agglomerate ultrafine powder.



 5 No oversized particles.



 6 Good dynamic balance and long service life.



 7Adjustable particle size distribution with little material loss.



 8 High collecting efficiency (up to 99.9%) and easy to clean.



 9 Easy to operate due to PLC (Programmable Logic Controller) control system.









Applications





Colleges, scientific research institutions, corporate Research and Development, small serial production.(suitable for chemical industry, medicine and pharmacology,mineral materials,new materials,etc.)









Technical Data





Model	Air Flow	Max Feed Size (mm)	Product Size (d50μm)	Capacity (kg/h)	Power (kw)
LNJ-6 A	1m³/min	≤1mm	2-60µm	0.2-3kg/h	9.5kw
LNJ-6A-2	1m³/min	≤1mm	2-60µm	0.2-3kg/h	11kw
LNJ-12A	2m³/min	≤3mm	2-100µm	5-10kg/h	18.7kw
LNJ-12A-2	2m³/min	≤3mm	2-100µm	5-10kg/h	20.2kw
LNC-80A		0-100um	0-60µm	0.5-5kg/h	2.5kw
LNC-80A-2		0-100um	0-60um	0.5-5kg/h	3.5kw
LNC-120A		0-150um	0-100um	5-20kg/h	4kw
LNC-120A-2		0-150um	0-100um	5-20kg/h	5.5kw

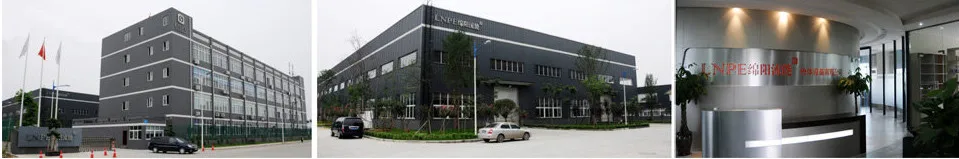

Office and Plants









Packaging & Shipping

















Technique and service





• Customized selection and flowsheet design,provide equipment layout and factory consultation.


• Sending technical engineer to guide the installation,commissioning and training service.


• Supply expert consultation and detection ensure the equipment operation normally,and get feedback from customers regularly.


• Long-term technology support for upgrading and solve difficulties.


• One year of warranty period.


• Personalized design to solve the affairs on grinding and classification.
