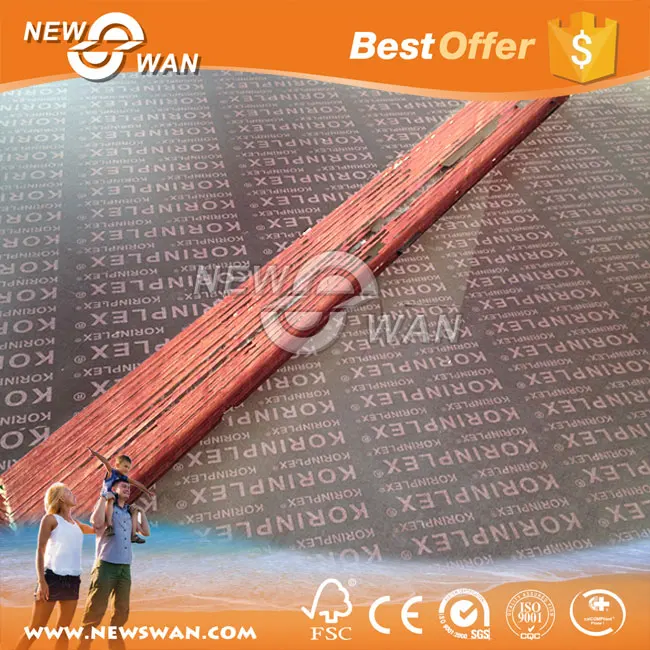

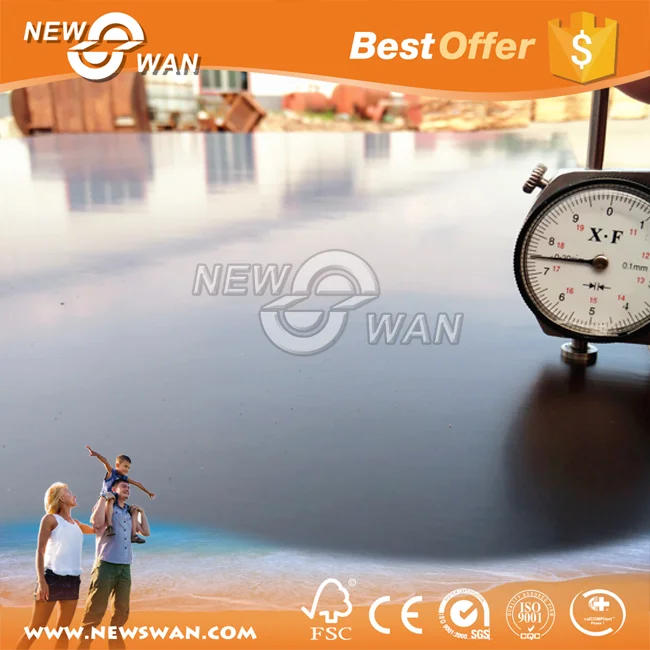

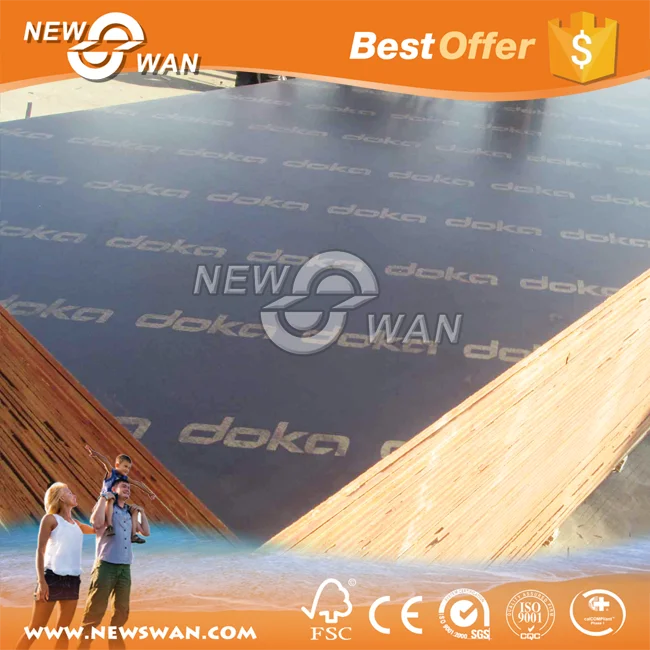

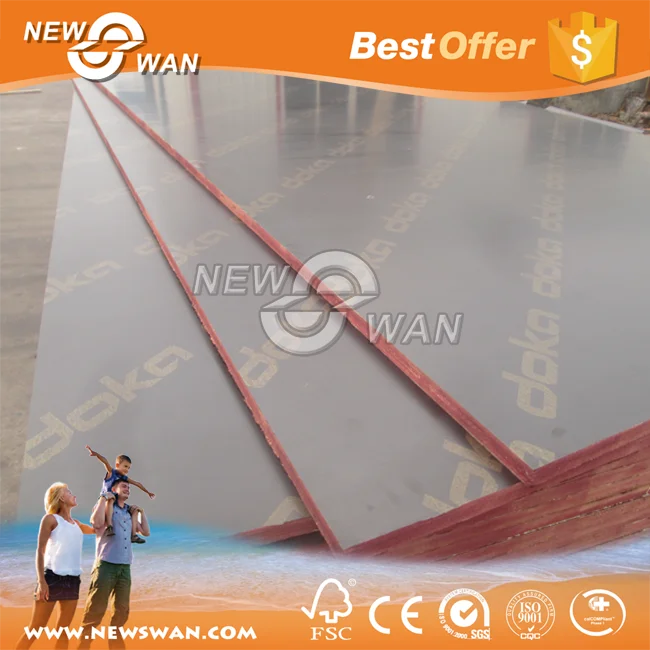

Concrete Plastic Formwork 15mm Shuttering Plywood Plate
- Category: >>>
- Supplier: Shanghai Newswan International Trading Co. Ltd. [Shanghai China]Shanghai
Share on (60535937280):
Product Overview
Description
Product Description
Concrete Plastic Formwork 15mm Shuttering Plywood Plate
Product Name | Shuttering Plywood / Construction Ply Wood |
Color of Film | Black, Brown, Dark Brown, Red |
120G/M2, 135G/M2,150G/M2, 180G/M2, 220G/M2, 240G/M2 | |
Finish of Film | Mirror, High Glossy, Glossy, Matt, Wire-Mesh, Anti-slip |
Origin of Film | Imported, Domestic |
Core | Poplar, Combi, Eucalyptus, Birch, Bamboo, Mixed Hardwood, Imported Hardwood |
Glue Type | MR, E1, E2, Melamine, WBP, Phenolic WBP |
Thickness | 6mm, 9mm, 10mm, 12mm, 15mm, 16mm, 17mm, 18mm, 20mm, 21mm, 22mm, 25mm, 28mm, 30mm |
Size | 915x2135mm, 610x2440mm, 615x2500mm, 1200x1800mm, 1200x2400mm, 1200x1830mm, 1220x2440mm, 1250x2500mm,1500x3000mm, 2000x5200mm |
Features & Technical Data for Shuttering Plywood / Construction Ply Wood
Also Called Film Faced Plywood, Formwork, Marine Plywood
Board Density | >530KGS/M3(Poplar Core), >630KGS/M3(Combi Core) |
>700KGS/M3(Birch Core), >700KGS/M3(Bamboo Core) | |
Tolerance of Thickness | + / - 0.5mm |
Tolerance of Length/Width | + / - 2mm |
Number of Layers | From 5 up to 21 depending on thickness |
Edges Processing | By waterproof Acrylic Pain |
Moisture | ≤9% |
Formaldehyde Emission Class | E1 (up to 8 mg per 100g of bone dry plywood) |
Ultimate Shearing Strength | Not less than 1.5Mpa (Birch Core), not less than 1.0Mpa (Combi Core), not less than 0.7MPa(Poplar Core) |
Abrasion | ≤0.1G.100G |
Impulsion | 40KJ/M2 |
Modulus of Elasticity | ≥5000 MPa |
Bending Strength | ≥40MPa |
Warp Degree | ≥1% |
Expansion Rate of Thickness | ≤8% |
Time of Usage | ≥5-20 Times (depends on quality grades) |
Certification | ISO9001:2008, FSC, CARB, SGS, DIN68705-3, EN13986, EN636-3 |
Application | Construction, Truck/Container Flooring, Packaging |
Black Film Faced Plywood
Brown Film Faced Plywood
Red Film Faced Plywood / Anti-slip Film Faced Plywood / Bamboo Film Faced Plywood
Concrete Plastic Formwork 15mm Shuttering Plywood Plate
> Brown Film Faced Plywood
> Black Film Faced Plywood
> Red Film Faced Plywood
> More Film Faced Plywood
(PVC Film Faced Plywood / Anti-Slip Film Faced Plywood / Bamboo Film Faced Plywood)

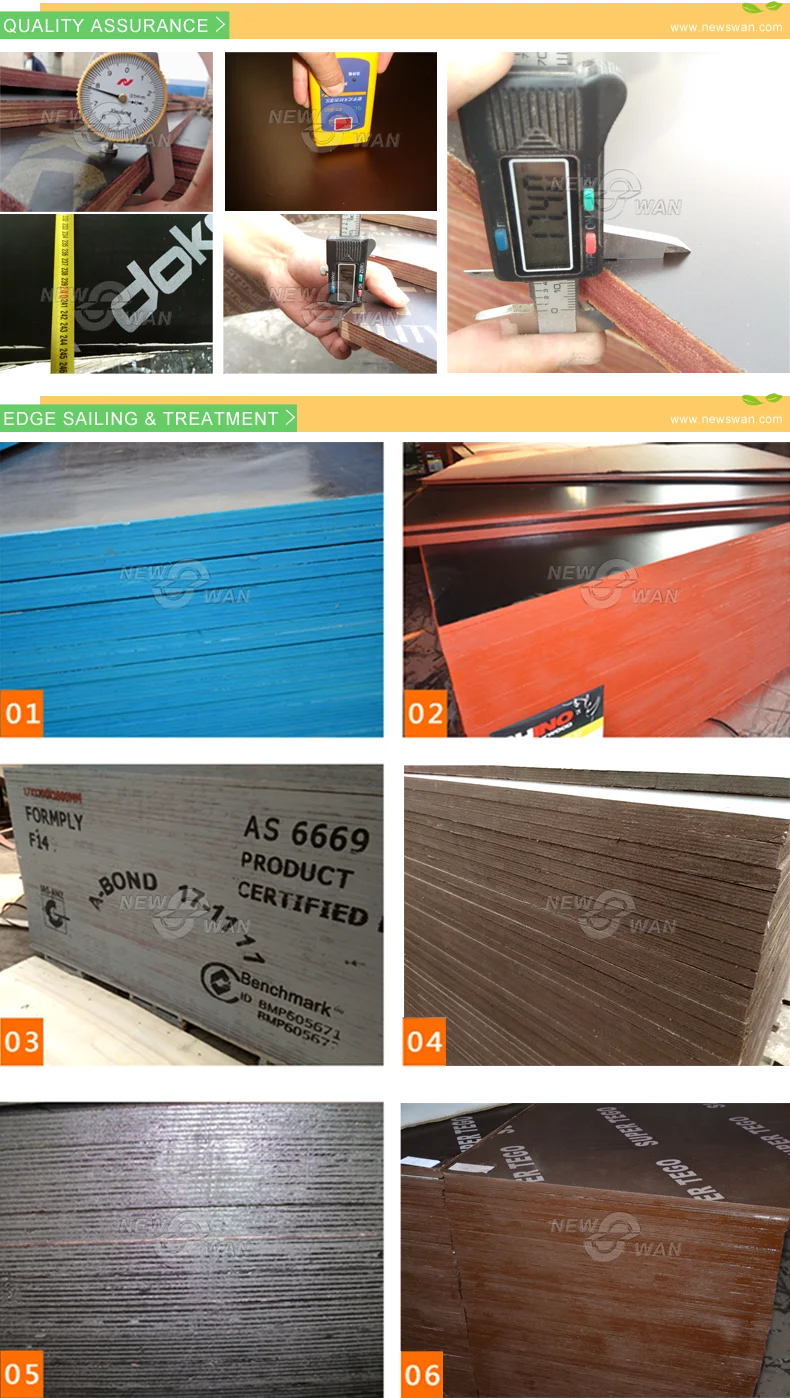

Quality Assurance

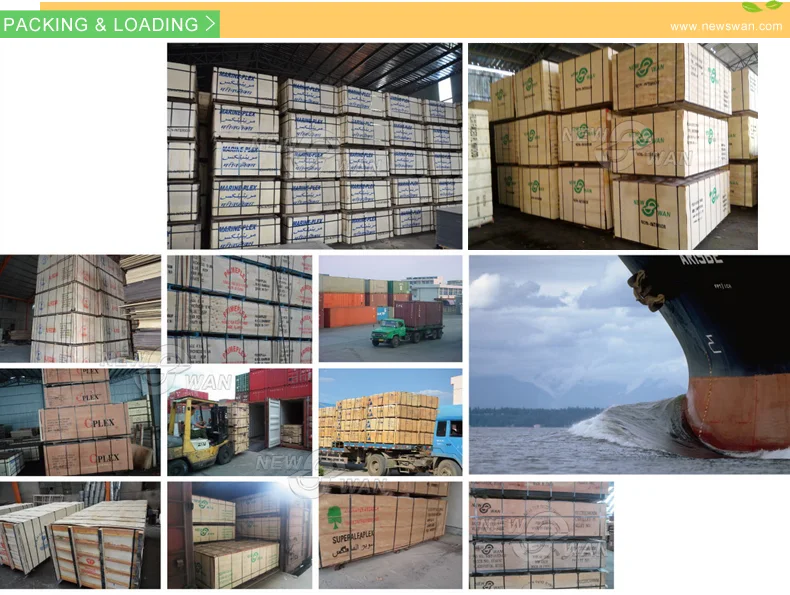

Packing&Loading

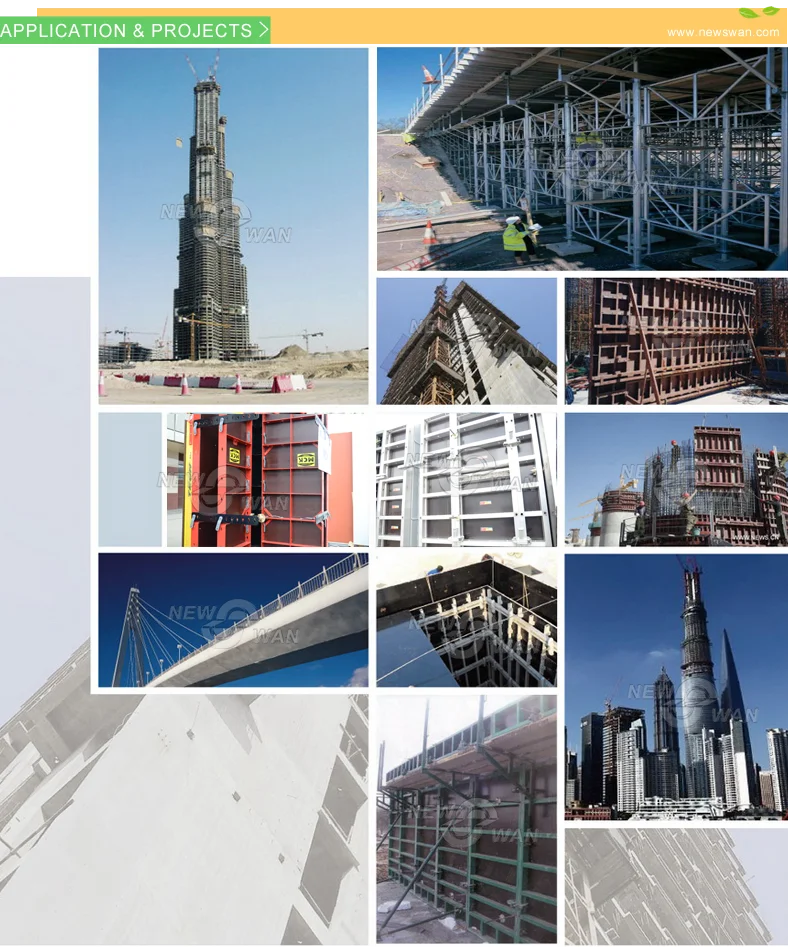

Application
About Us
FAQ
Sample:
1. Welcome to ask a free sample of film faced Plywood you want
We will send you the sample as soon as possible
2. If you got any special inquiry, please just let us know
We will try our best to march your inquiry
Product:
1. We can provide the Production report & Test Report as you required
2. High Productivity means we can march most customers inqiury, not only in quantity but also in the quality
3. Our production is support a Competitive Shipping company, who can supply a better service with lower price
Our Advantage:
1. Our Professional Manufacturer let us supply large amount high quality products with competitive price
2. Our High-Quality Team let our customer can get better service from us
2. We can provide a competitive After-sales service
*Loading Quantity: 54 CBM per 40ft HQ in Pallet Packaging
*Minimum Ordering Quantity: 1X40ft HQ Container
*Shipping Date: 20 days after receiving the prepayment or L/C
*Payment Terms: T/T or L/C at sight
*Productivity/Capacity/Availability: 120,000 CBM per Year
