Full Color Soft PCB LED Sheet DC 12v 24v TV Lens LED Sheet Backlight
- Category: >>>
- Supplier: Zhongshan Ruixian Electronics Factory
Share on (60535944905):
Product Overview
Description

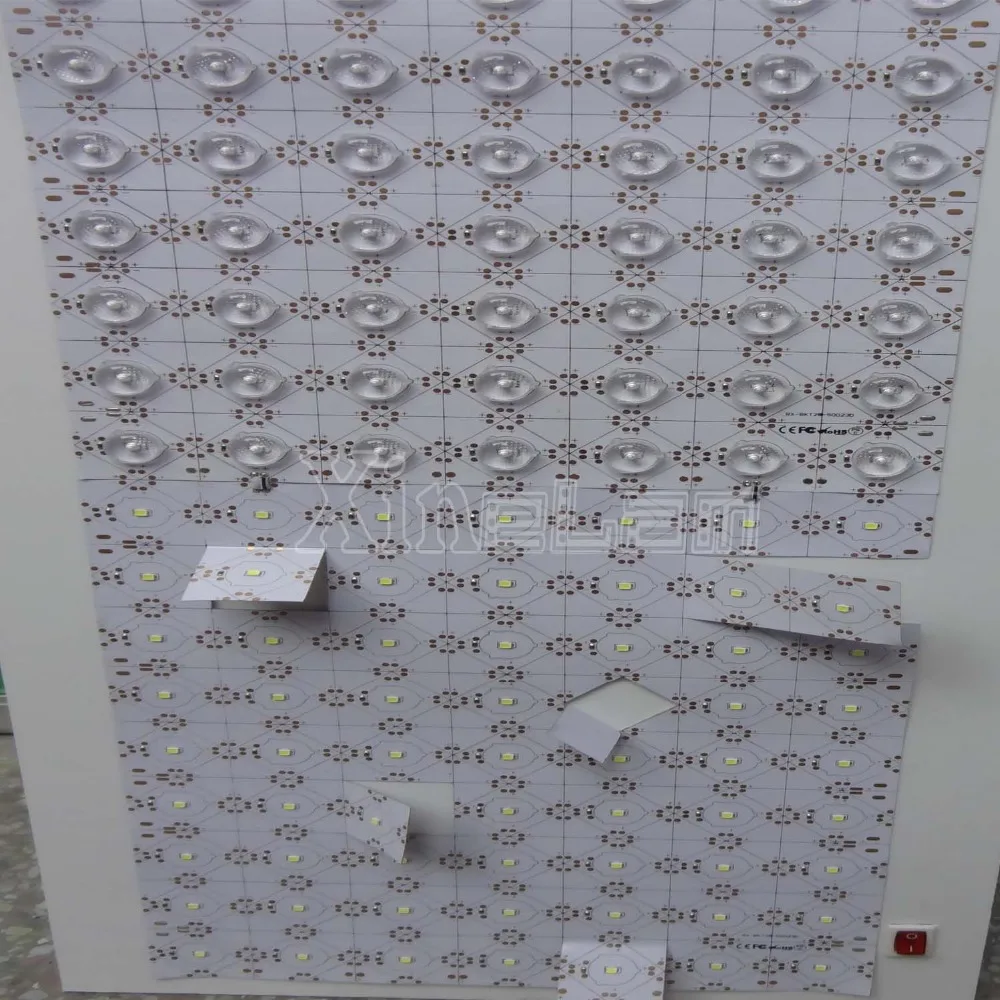

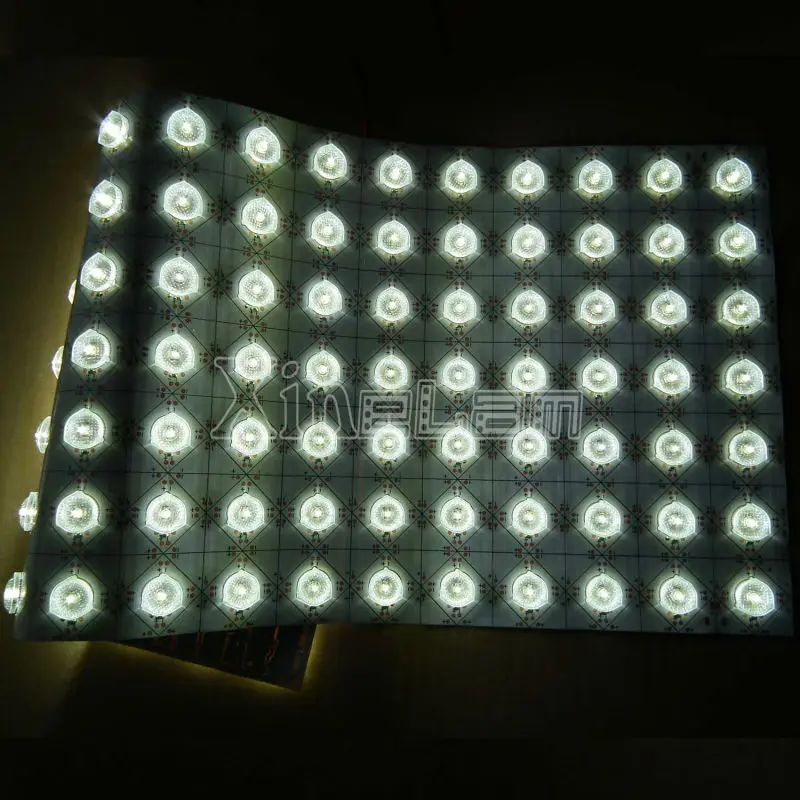

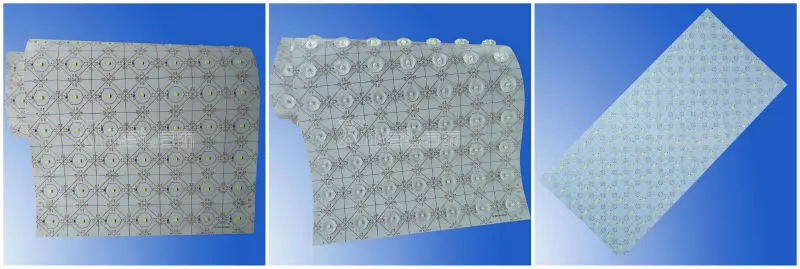

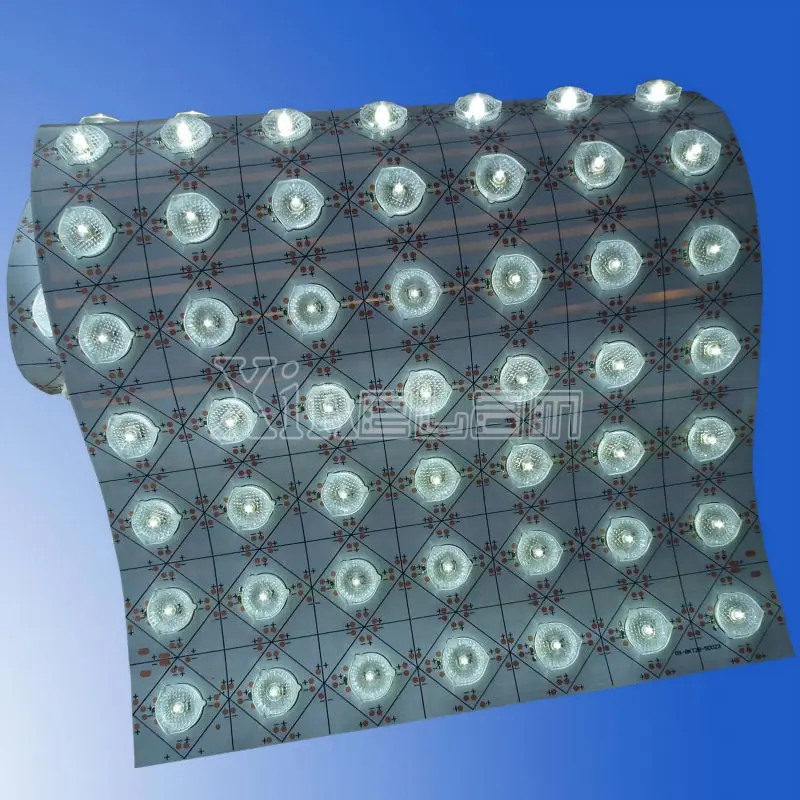

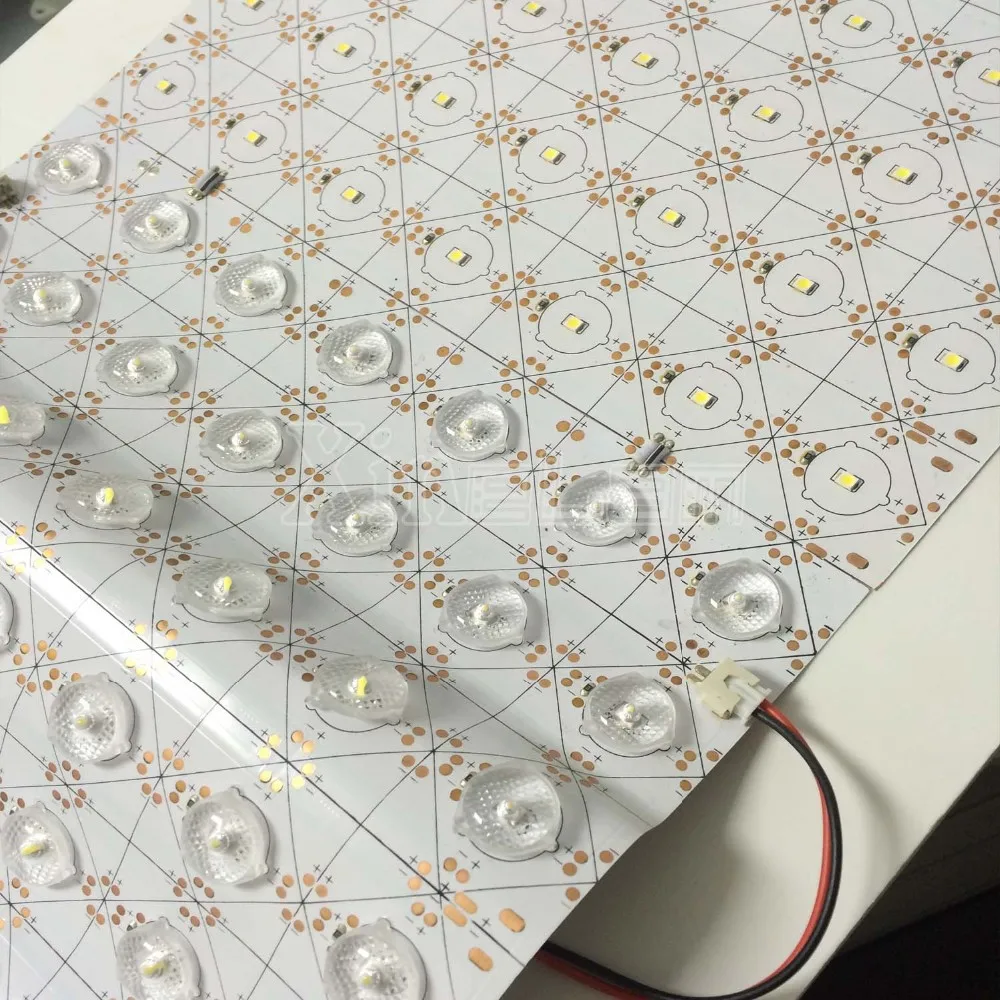

Full Color Soft PCB LED Sheet DC 12v 24v TV Lens LED Sheet Backlight
Patent NO: 201420249938.2
Product Description
RX-BKT28-500235 LED Sheet, Flexible LED modules; High efficiency 108Lm / W @ constant voltage drive, you can cut and splice. Ideal for Light source, Backlighting for advertising, Blister words backlit, LED signs. Do your own energy-saving lighting project.
Efficiency 108Lm/W
Low-voltage 12V or 24V DC
power:32W
Emits bright, uniform light
Excellent color balance; no hot spots.
LEDs are free of mercury and toxic gases
Epistar SMD2835, CRI (Ra>80)
Flexibility, Thin and lightweight
Listed USA Dupont FPC
Easy to customize and install
Arbitrary cutting in any sizes,shapes or every 1led
Ideal for large applications,unique shapes,curved surfaces
Long service life 50,000 hours
CE, RoHS, FCC
Warranty 3 Years
Application specs | |
Brightness | 33Lm/LED |
Default Colors | CW6000~6500K |
Other colors | WW2800~3200K NW3800~4250K |
Waterproof Rating | No IP rating |
Operating Temperature | -30~40oC ; Max Tcp 60 °C |
Electrical specs |
|
Power | 32W ; 0.3W / LED |
Input | DC24V |
Interconnect connection | -- |
Certification | CE RoHS FCC |
Life-Span | >50000hours Tc <60 °C, I =1.33A |
Technical Data:
Part Number | Dimensions Net weight | LED QTY | Input Power | Luminous flux | Efficacy | Comment |
RX-BKT28-500235 | 500x235x1mm 55g | 105LED | DC24V 32W | 33Lm/LED | 108Lm/W | Test Tcp 45 °C One LED a group No Columns connection |
Note: Beam characteristic120 °, Tolerance range for optical data: ±10 %. Tolerance range for electrical data±5 % The above table data testing at room temperature is 25 °C, Cooling by free air convection. LED color temperature 6000-6500K, CRI >80 Minimum bending diameter: 50mm | ||||||
Application
Light source
Backlighting for advertising
Blister words backlit
LED signs
Company Information
Zhongshan XINELAM- RUIXIAN Electric Factory has 13years experience for producing LED, with 15 patents and specilize in delevoping energy efficient,confortable, safe, environment friendly and long life LED lights.
Main products:
1-Waterproof aluminum led panel (Custom sizes and shape)
2-Lattice LED lighting( available double sided led, low cost)
3- LED sheet light (Slim, light weight, Sizes and shape cuttable service)
4-LED Module Light
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A:Sample needs 3-5 days.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
