Hot Sale!!! POWERGEN 178F Air Cooled Single Cylinder Italy Type Diesel Engine 6HP

Share on (60536033686):


Price:

Quantity:


Product Overview

Description


Product Description

Product Application

The Single Cylinder Diesel Engine 6HP can work as engine for Generators, Water Pumps, Air compressors and Go karts.

\t
Specifications of Diesel Engine 6HP
\t
Model No.
\t
BD178F (E)
\t
Engine Type
\t
Air-cooled, 4-stroke, Single Cylinder, Direct Injection
\t
Bore x Stroke (mm)
\t
78x62
\t
Displacement (cc)
\t
296
\t
Compression Ratio
\t
20:1
\t
Peak Power (HP/RPM)
\t
6/3600
\t
Rotation (View from Flywheel)
\t
Clockwise
\t
Fuel Type
\t
0#, -10# diesel
\t
Fuel Tank Capacity (Liter)
\t
3.5
\t
Fuel Consumption (g/kW.H)
\t
320
\t
Lub. oil Type
\t
SAE10W30(Above CD grade)
\t
Lub Oil Capacity (Liter)
\t
1.1
\t
Starting System
\t
Recoil Start, Optional Electric Start
\t
Dimensions (LxWxH)mm
\t
383x 421 x 450
\t
Net weight (Kgs)
\t
Recoil start: 33Kg ; With electric starter: 38Kg

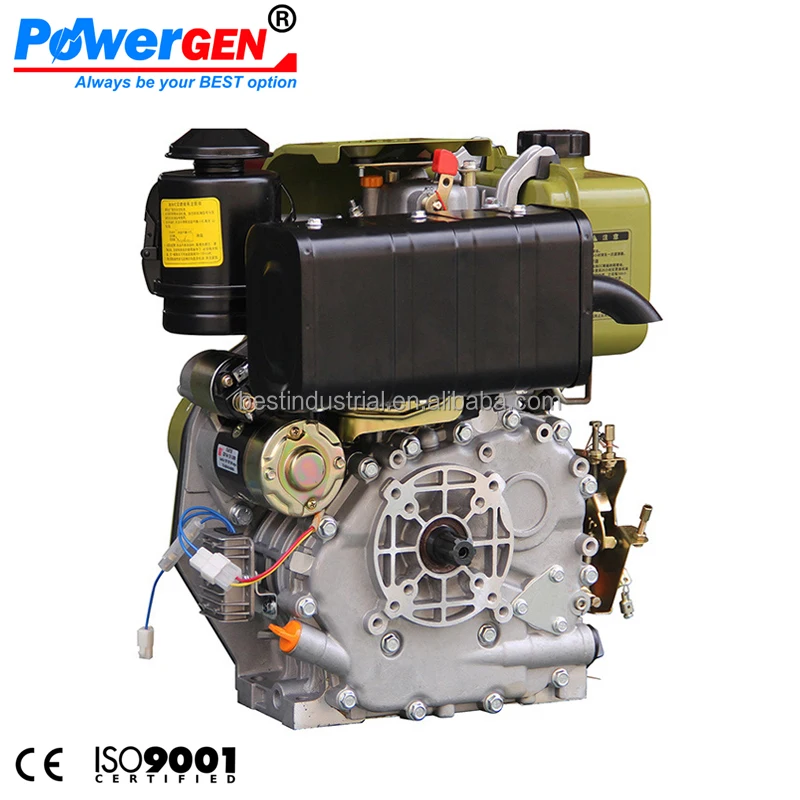

Diagram & Shaft
* Equipped with muffler and fuel tank                        * electric starter (optional, battery not included)
* Pull-recoil starter included                                          * Compression release lever
* Glow plug for cold weather starting                         * One year factory warranty on parts
Packing
\t
Packaging
\t
Size (mm)
\t
480 (L) * 460 (W) * 520 (H)
\t
Gross Weight
\t
35Kg (Recoil Start)
\t



Packaging
Details
\t


1) Inner Packaging: Polybag & Foam
2) Outer Packaging: Carton
3) Wrapping tape
Assembly Line
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
