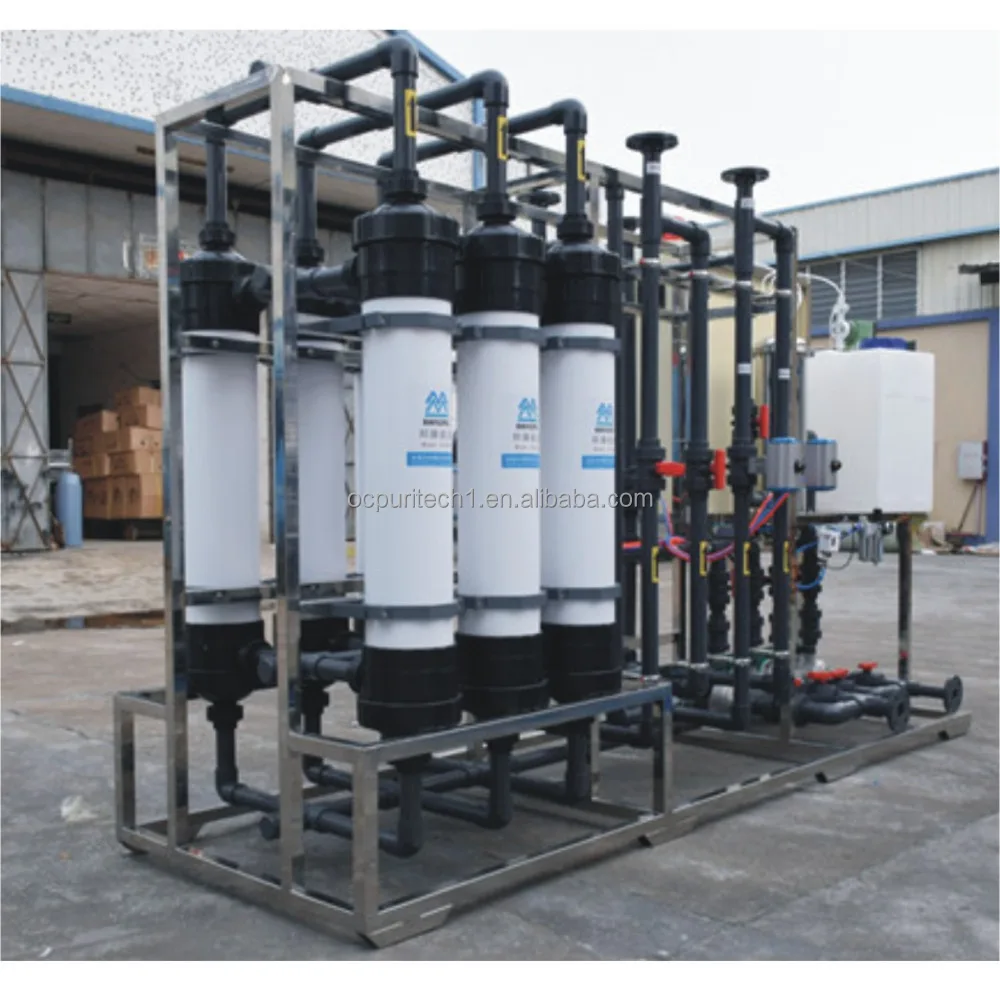

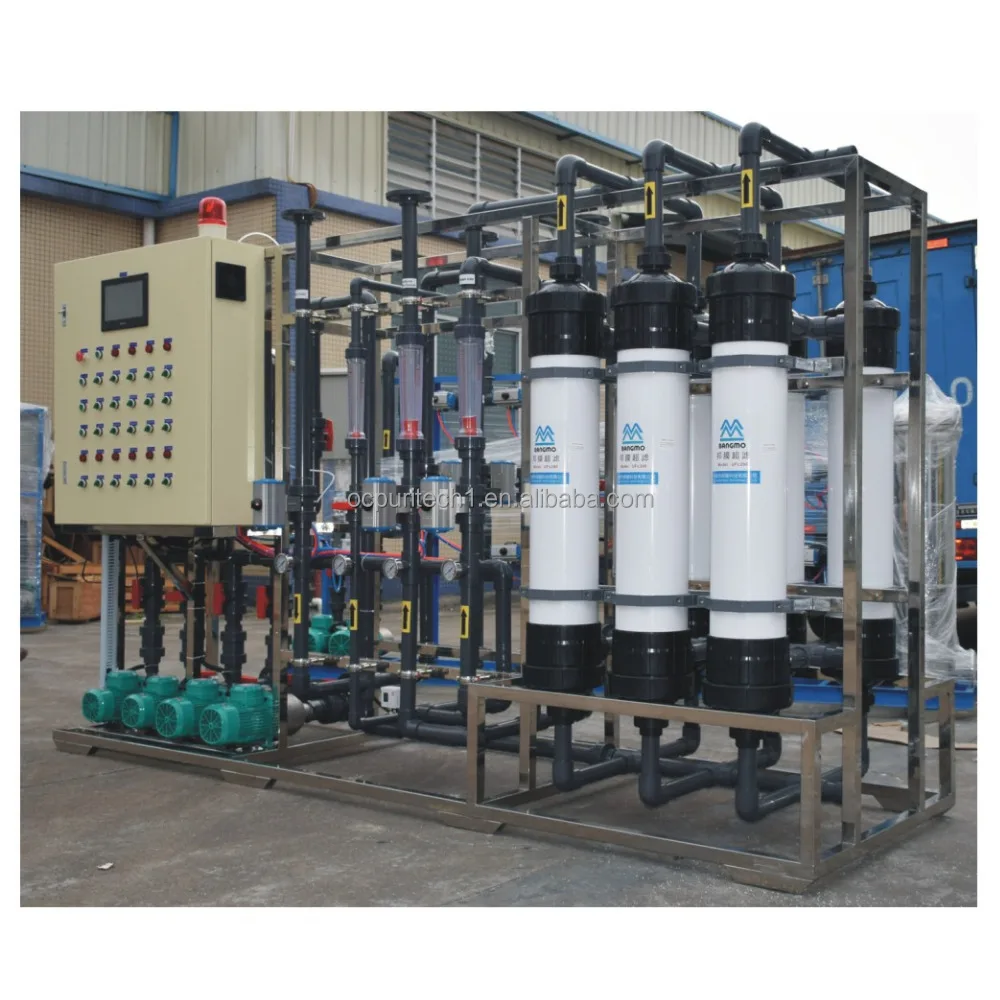

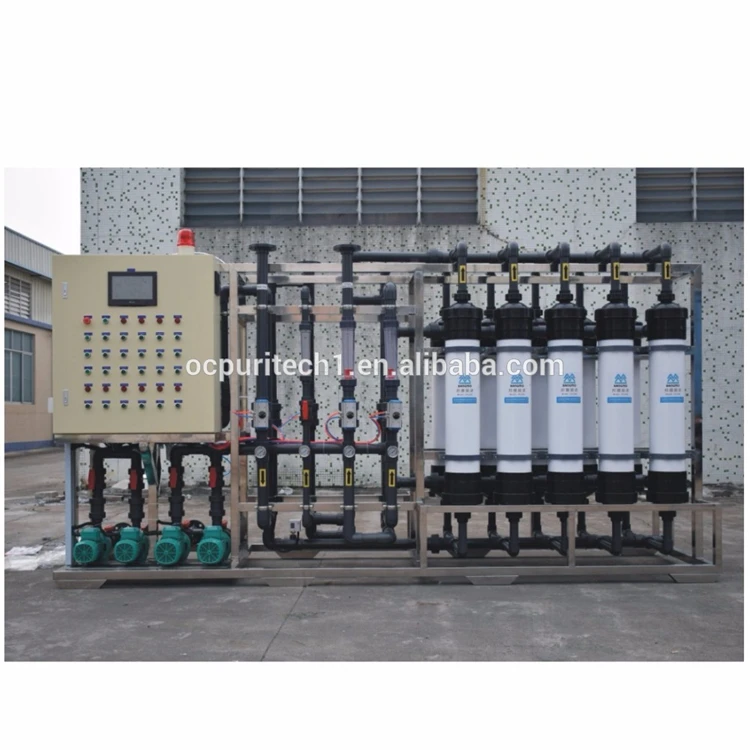

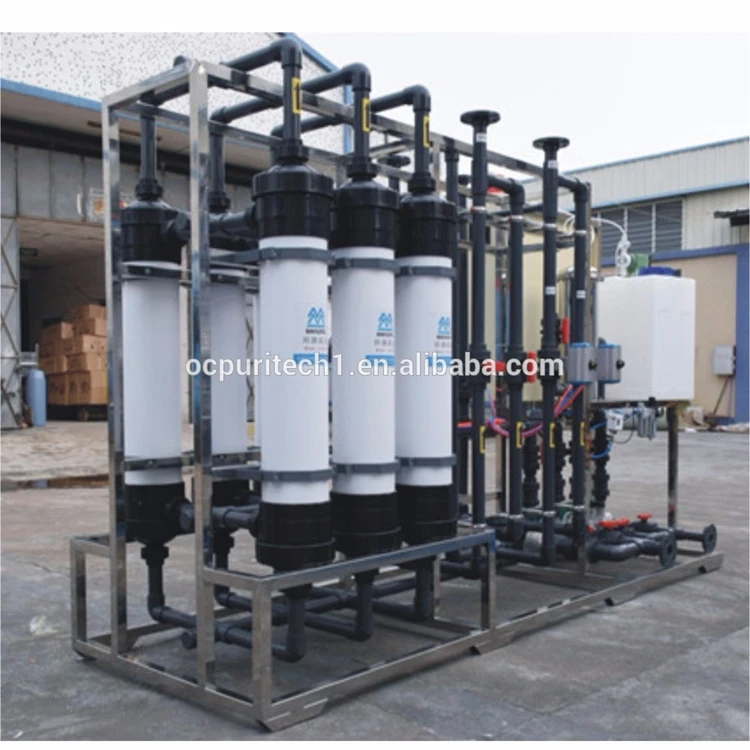

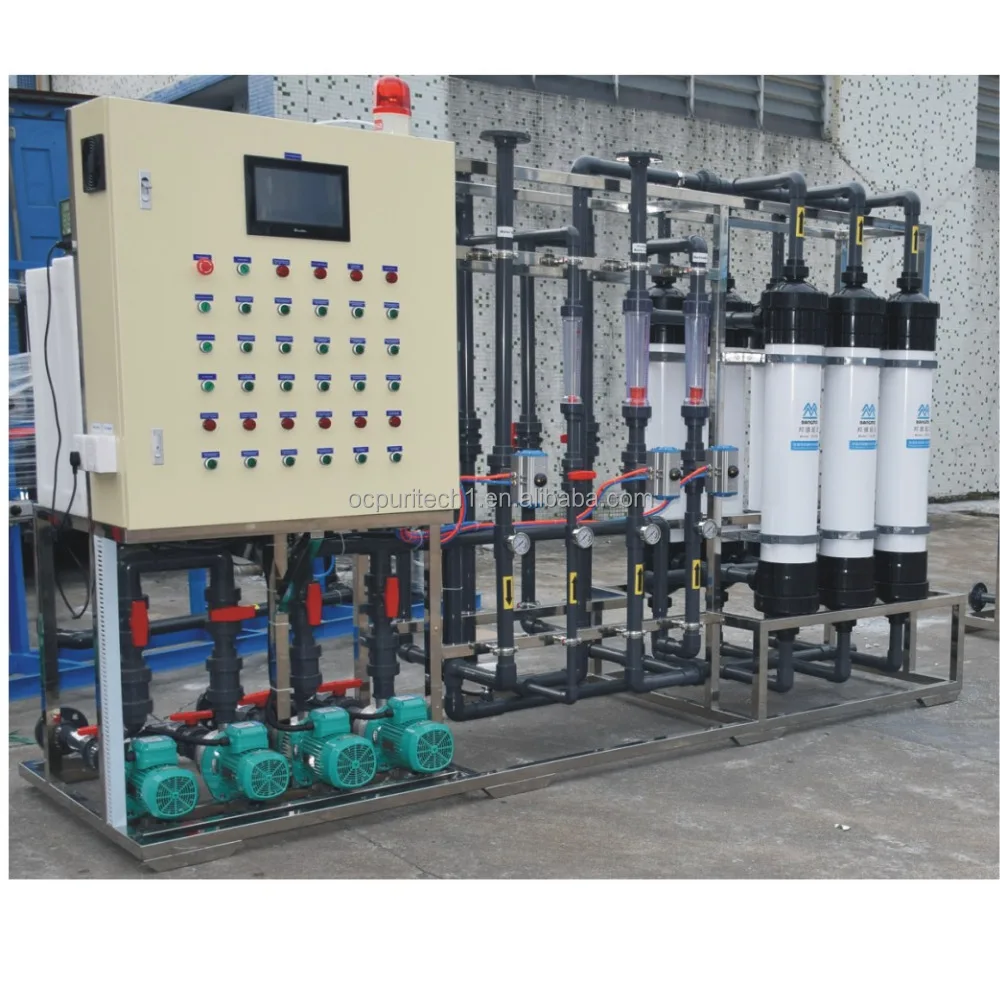

10m3/hr Economic UF membrane mineral drinking water treatment system

Product Overview

Description



Front View























Capacity: 10000L/Hr(10m3/hr; 10t/hr);

Feed water	Booster pump	CNP
Pretreatment system	Automatic Multimedia filter	OC FRP tank
		Quartz sand
		Automatic / manual valve
	Automatic manganese sand filter	OC FRP tank
		Quartz sand
		Automatic / manual valve
	Activated carbon filter	OC FRP tank
		Activated carbon
		Automatic / manual Valve
Security Filter	Precession filter (cartridge housing)	40''
	Filter cartridge	40'' -7um PP
UF system host	Backwashing pump	CNP
	UF membrane	10pcs
	Control panel	Stainless steel
	Stainless steel frame	OC



UF pure water facility

UF Pure Water Equipment technology  Using hollow fiber ultrafiltration new technology, with three pre-processing filters remove impurities in tap water; ultrafiltration pores smaller than 0.01 microns (one hundred thousandth mm), can completely filter out bacteria, rust, colloid and other harmful substances, water retention of minerals and trace elements beneficial to human body, super-concentrated impurities of water discharged from the discharge valve; hollow fiber membrane large volume of water, clogging, the filter can be washed repeatedly, long life; ultrafiltration machine use tap water pressure to power, not consumption electricity, easy filter replacement





Scope Of Application Of the Equipment



1, Widely used in recycling automobiles, electrical appliances, tractors, bicycles, locks, glasses, lighters and other metal manufacturing industries electrophoretic coating production lines electrophoretic paint.
2, Electrophoretic paint production line of key equipment, the use of ultrafiltration machine, you can increase 30-40% of the cost of the use of electrophoretic paint, paint electrophoresis bath to avoid contamination, and improve the life of electrophoretic paint and greatly improve the quality of electrophoresis electrophoresis artifacts.
3, The system of industrial water, natural water purification, brewery, pharmaceutical, dairy, etc. related to water treatment industries.
4, Industry use, city home use. Suitable for relatively clean water.
