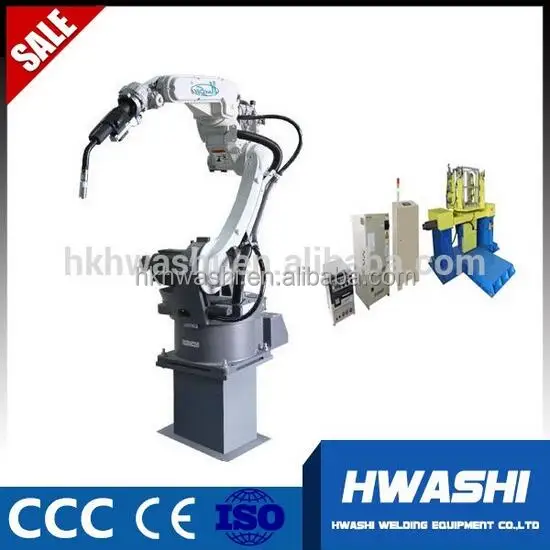

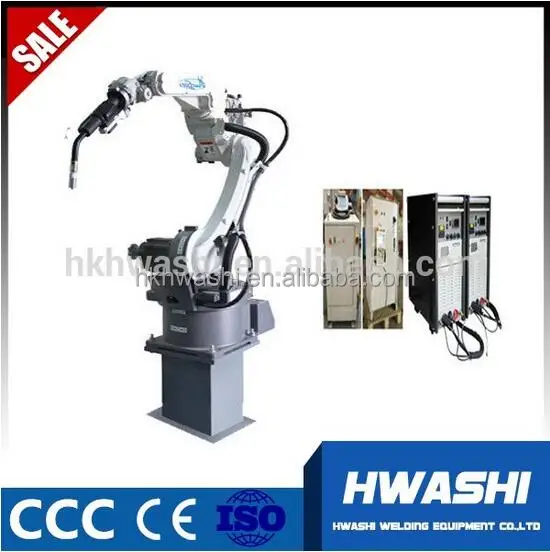

Hwashi CNC industrial welding robot with remote controller

Product Overview

Description





Our machines have been widely applied to various kinds of industries, such as kitchen utensils, automobile making, motorcycle manufacturing, glasses, hardware, household appliances, low-voltage apparatus, elevator, compressor, etc.









Hwashi CNC Robot Arm Welding Equipment (Overseas Service Avaliable)



DETAILED DESCRIPTION

Hwashi CNC Robot Arm Welding Equipment (Overseas Service Avaliable)


World Class Speed Robot

• Robot motion makes minimum cycle times unbeatable. Light weight and high rigidity design results in high acceleration and minimum vibration. Maximum speed on all axes reduces move time. All this provides dramatically improved productivity.

HS-RAW Series robot improves the accuracy and efficiency

• Improved drives and motors for accurate positioning and better repeatability.
• Slim and compact design allows closer installation in less floor space.
• Maintainability is improved with easier inspections and parts replacement.











APPLICABLE AREA

Hwashi New Robot Arm Welding Equipment (Overseas Service Avaliable)

Applied to loading and unloading, welding, stacking transportation, gelatinization and spraying.



 TECHNICAL PARAMETERS

Hwashi CNC Robot Arm Welding Equipment (Overseas Service Avaliable)



Model		HS-RC03	HS-RC08	HS-RC13	HS-RC06L	HS-RC15L	HS-RC20	HS-RC50	HS-RC165
DOF		6	6	6	6	6	6	6	6
Driving Mode		AC servo Driving	AC servo Driving	AC servo Driving	AC servo Driving	AC servo Driving	AC servo Driving	AC servo Driving	AC servo Driving
Effective Load (kg)		3	8	13	6	15	20	50	165
Repeat Positioning Accuracy (mm)		±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05
Motion Range (°)	J1	±170	±170	±170	±170	±170	±170	±178	±180
	J2	±150~-60	±120~-85	±150~-95	±132~-95	±132~-95	±132~-95	±130~-90	±80~-60
	J3	±75~-170	±85~-165	±70~-175	±73~-163	±73~-163	±73~-163	±75~-210	±80~-190
	J4	±190	±180	±170	±180	±180	±180	±360	±360
	J5	±125	±135	±132	±133	±133	±133	±115	±115
	J6	±360	±360	±360	±360	±360	±360	±360	±360
Max Speed (°/S)	J1	150	130	135	163	163	163	158	100
	J2	150	130	135	111	111	111	149	90
	J3	180	13020	135	125	125	125	130	104
	J4	270	270	350	300	300	300	215	144
	J5	270	170	280	198	198	198	251	160
	J6	270	455	400	394	394	394	365	215
	J4	7.2	14	14	40	40	40	196	951
	J5	7.2	12	12	50	50	50	196	951
	J6	5.2	7	7	22	22	22	127	490
Moving Radius (mm)		893	1389	1404	2000	1810	1595	1950	2483
Machine Weight		75	180	163	305	300	290	600	1300
